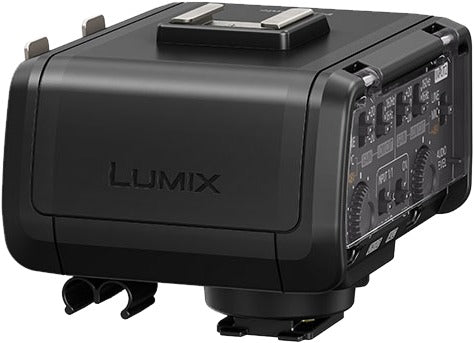

Professional microphone adapter/mixer with two XLR inputs for use with one or two microphones. The unit attaches to the camera's hot shoe and is powered by the camera's battery.
Connects and is powered via the camera's accessory shoe/flash shoe

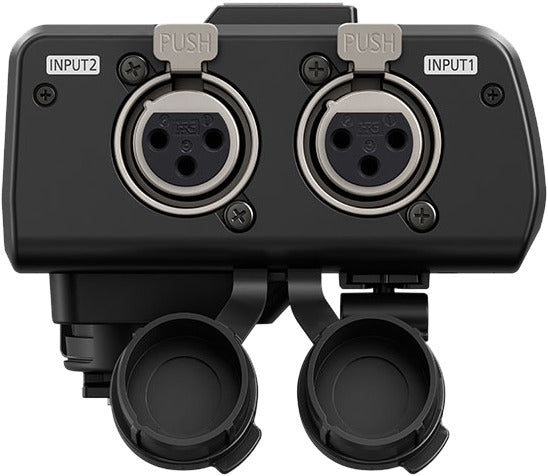

Two XLR inputs for connection of microphones
Line level, microphone level and phantom power mode (+48V)
Optional high-pass filter with cut-off frequency 16 or 160 Hz
Gain setting -20,0,+20
Manual level setting or ALC (automatic level control)
Cable clamp keeps the wiring organized
Extra accessory shoe available on top
Adjustment panel has a transparent protective cover
Sturdy protective covers for the XLR inputs
The DMW-XLR1 has a variety of settings that allow you to adapt it to different microphone types and conditions.
The adapter works with the following models:
S5M2
S5M2x
G9M2
GH6
GH5
S1
S1R
SH1
Technical Specifications
Connections: USB-C (3.0), HDMI output (Type D), Lightning, Headphone, HDMI, Gold-plated 6.35mm connector, AV, 3.5mm TRS, 3.5mm TRS, 3.5mm TRRS, 3.5 mm mini jack
