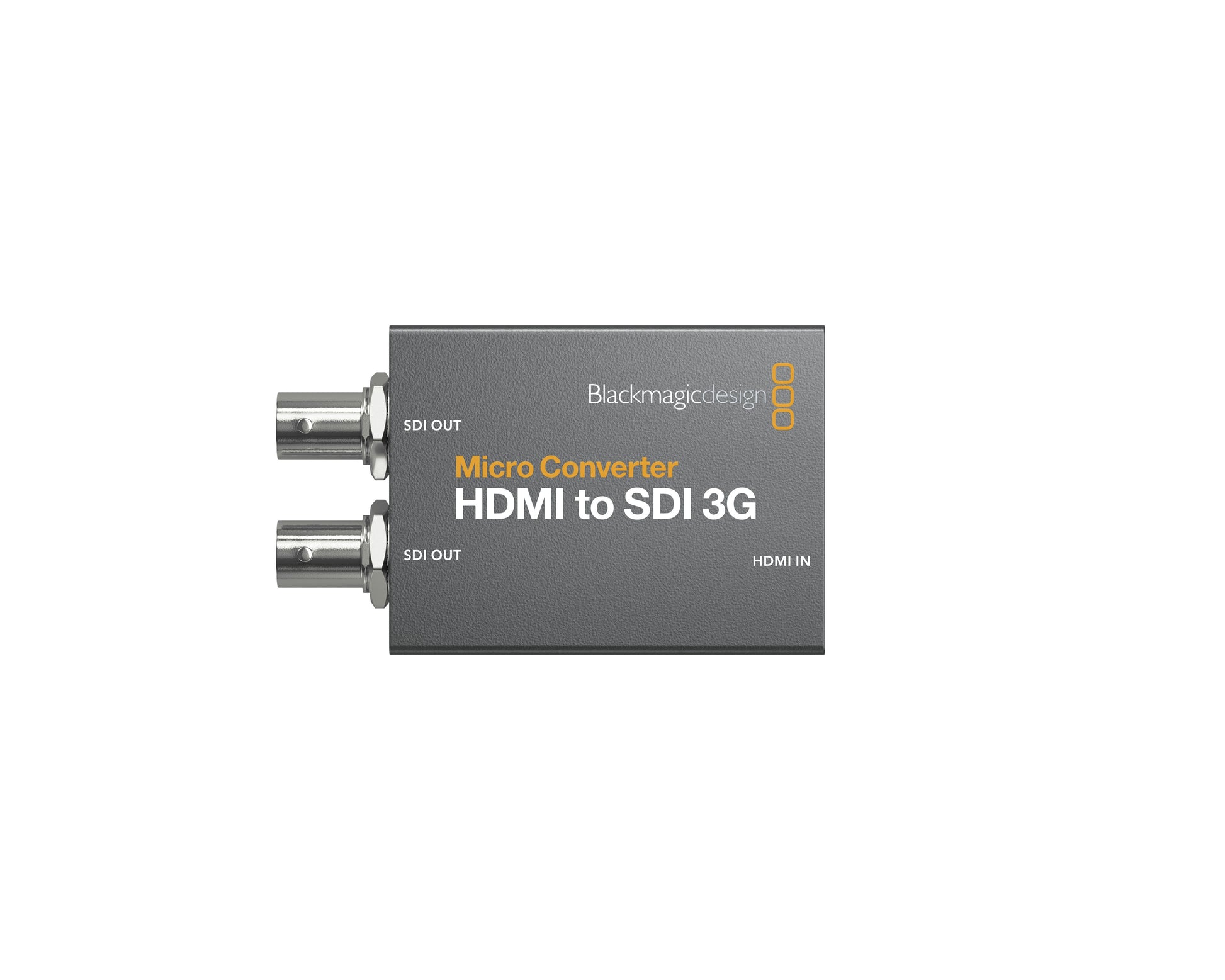

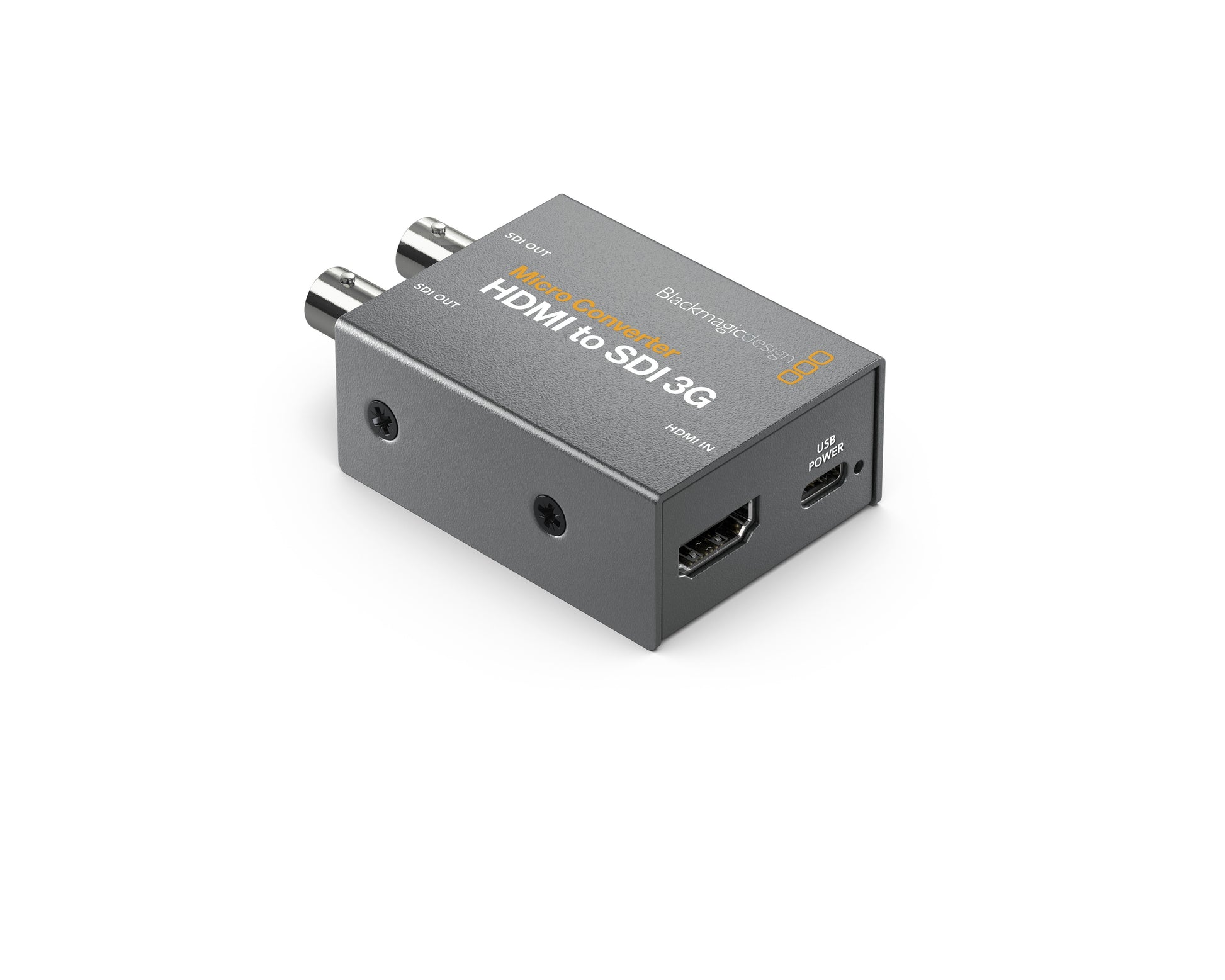

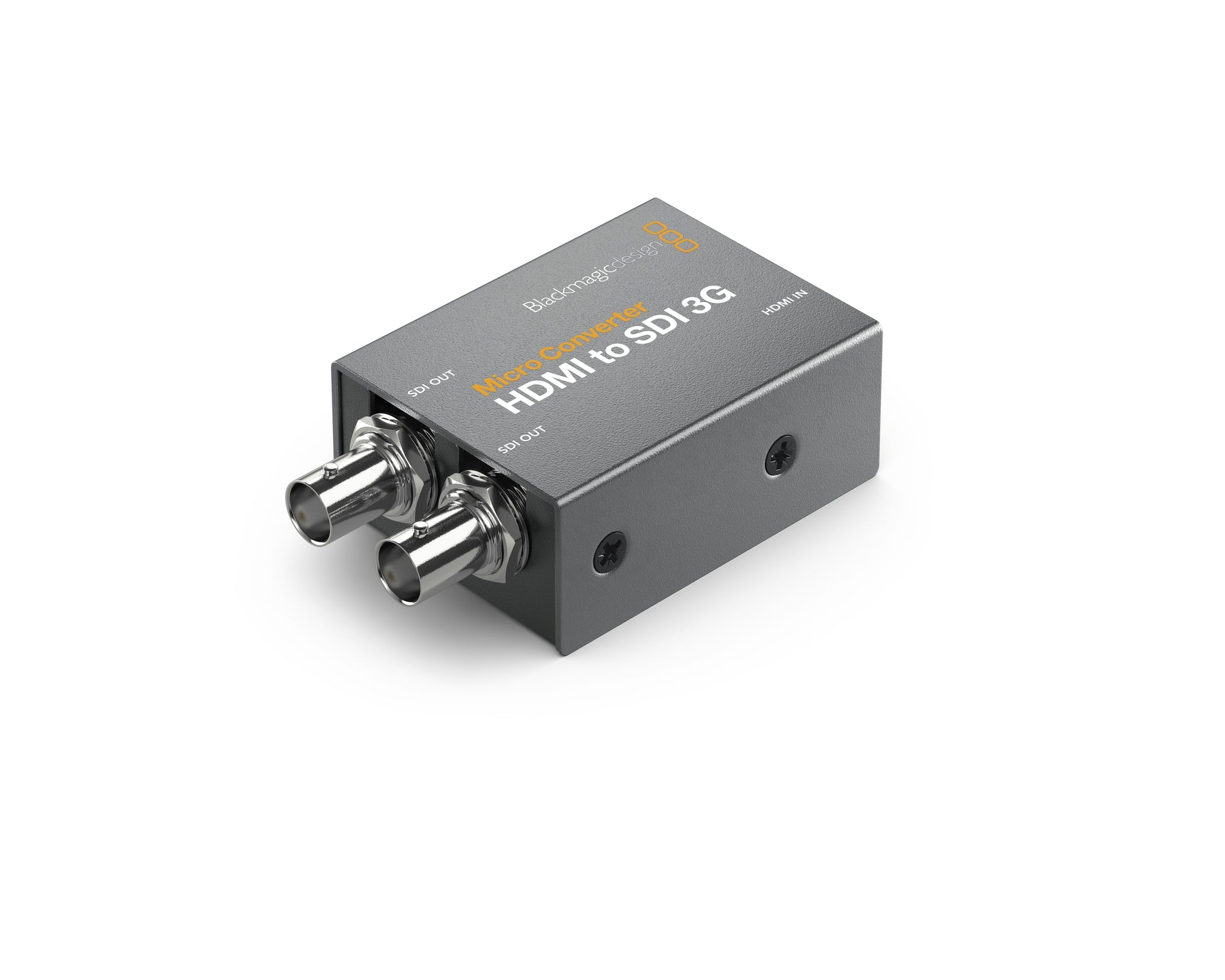

This model is perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 3G-SDI outputs which can be set to level A or level B formats. Unlike cheap converters, it even supports feature film video formats including 1080p24, 1080p47.95 and 1080p48.
Official Technical Details
Connections
SDI Video Outputs: 2 x SD, HD or 3G‑SDI. Automatically matches the HDMI input.
HDMI Video Inputs: HDMI Type A in.
Multi Rate Support: Auto detection of SD or HD.
Updates, Configurations and Power: USB Type‑C.
Reclocking: Yes
Standards
SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B for 3G‑SDI via setup utility.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
