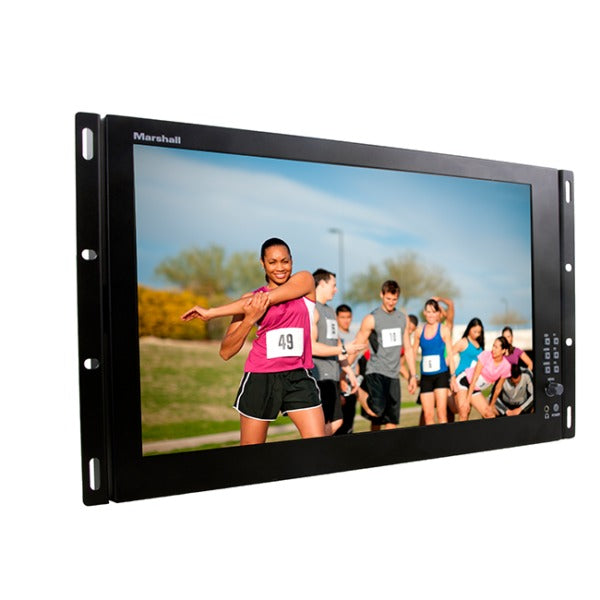

Marshall's V-LCD173HR is a 17.3-inch native resolution (1920 x 1080) production monitor that includes a range of professional monitoring functions including peaking, false color, exposure, histogram, safety markers, audio, and more. The Marshall V-LCD173HR offers unprecedented value and uses HDMI/HDSDI inputs and outputs.
Overview
V-LCD173HR-DT - Rec 709 compliant LED Tally lights HDMI/HDSDI inputs and outputs with conversion ability Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more Rack ears or VESA mount options BNC connectors Two-channel audio monitoring Image flip ability Headphone jack V-ST15 Optional Desktop Stand The Marshall V-LCD173HR 17.3-inch native resolution (1920 x 1080) production monitor comes with a range of professional adjustment settings and convenient HDMI/HDSDI inputs and outputs. The Marshall V-LCD173HR comes with built-in histogram, peaking, false color, exposure, adjustable safety markers, and more, and can monitor up to two audio channels as well. The V-LCD173HR offers unprecedented value and has a versatile 6RU frame that can be rack mounted or used on a desktop. The V-LCD173HR can also convert between HDMI and SDI signals. V-LCD173HR Applications: Broadcast, live streaming, production, cinema, film, control rooms, field monitors Model Name V-LCD173HR Role of Usage 17.3” LCD Monitor Connectors Inputs SDI BNC x 1 with Loop Out HDMI x 1 with Loop Out Composite BNC x 1 with Loop Out Audio L/R RCA x 2 Line Level Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth USB 3.0 USB-A x 1 (Firmware Updates) XLR-12V 4 pin x 1 Outputs 3.5 mm Front Panel Stereo Headphone Jack Hardware Included Rack Ears x 2 (6RU height) for standard 19” rack mount Back Panel Supports VESA 100x100mm and 75x75mm mounting systems Optional Desktop Stand Model V-ST15 Available Weight 7.9 lbs. (3.6 Kg) Product Dimension: 1.29” x 17.75” x 10.5” / 3.28cm x 45cm x 26.7cm (D x L x W) Panel Information Native Resolution: 1920 x 1080 pixels Contrast Ratio: 700: 1 Luminance: 300 nits Display colors: 16 million colors Viewing Angle: 178-degrees H & V Supported Formats / Frame Rates Composite Input NTSC PAL SD-SDI Input 480i 59.94Hz 576i 50Hz HD-SDI 720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50, 59.94, 60 Hz 1080psf 23.98, 24.00 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz 3G-SDI Level A 1080p 50, 59.94, 60 Hz 10800i 50, 59, 60 Hz 1080psf 23, 24, 25, 29.97, 30 Hz 1080p 23.98, 24, 25, 29.97, 30 Hz SD - HDMI 480i 59.94, 60 Hz 576i 50 Hz 480p 59.94, 60 Hz 576p 50Hz HD - HDMI 720p 25, 29.97, 30, 50, 59.94, 60 Hz 1080i 50
Official Product Data
-
Model: V-LCD173HR-DT
-
Category: Monitors
-
UPC: 801813193046
-
HS Code: 8528529100
