Marshall Electronics Touch-Screen RCP Camera Control model RCP-PLUS.
Overview

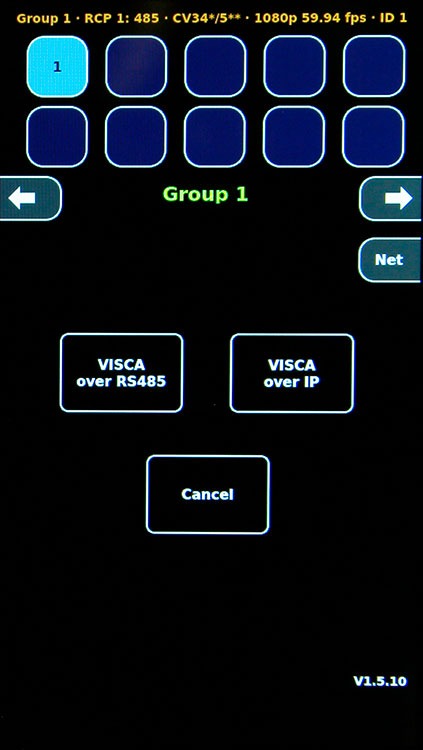

VISCA over IP to support Marshall camera models: CV574, CV570, CV374, CV370, CV420Ne, CV420e, CV355-27X-IP Larger 5-inch TFT LCD Touchscreen (800x480) with fine-tune adjustment knobs. Supports up to 7 cameras via VISCA RS485, 63 VISCA over IP, and up to 70 cameras using both VISCA RS485 and VISCA over IP combined Directly adjust and match up to seven different cameras from the convenience of control truck or control booth. Common 3-pin XLR cable connection allows for cable-runs at distances of up to 300 meters (1,000 ft). Adjustments made on camera without OSD Menu appearing on video stream. Top Rack Mount Bracket for mounting onto CCU control boards for remote adjust Seven cameras are select-able from ALL screen menus with intuitive navigation layout. Global or individual camera adjustment capability without OSD (On-screen Display) Menu appearing on video stream. Adjust Red/Blue, Pedestal (Black-levels), Brightness (AE Offset), Gain, Gamma, Iris, Shutter, Saturation, Hue, Optical/Digital Zoom, Pan-Tilt, Focus, and more. Rugged machined aluminum enclosure provides durability while a larger 5-inch screen provides easier access to digital buttons. Easy access USB port for field up-gradable firmware Red and Blue adjustment follows every screen menu with optional Favorites Menu to save important controls to specific events for easy access. Low power consumption requires 12V power at less than 12W (AC or battery packs).
