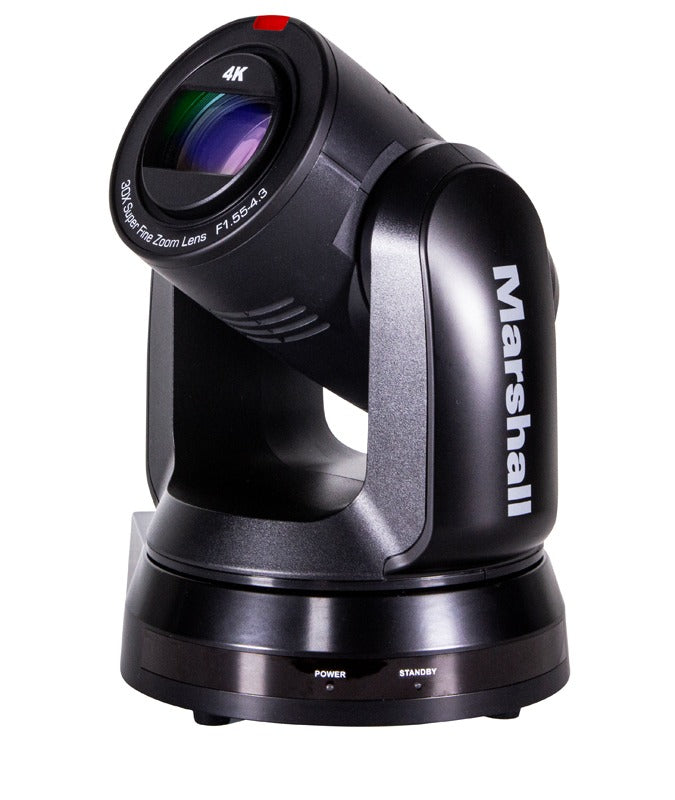

Name: Marshall CV730-BK / CV730-WH - 30x UHD60 IP (HEVC) PTZ Camera
Brand: Marshall
SKU: CV730-BK
Price: 2895.00 EUR
Availability: InStock

Marshall CV730-BK / CV730-WH - 30x UHD60 IP (HEVC) PTZ Camera

€2.895,00

Marshall CV730-BK / CV730-WH - 30x UHD60 IP (HEVC) PTZ Camera

€2.895,00

Marshall CV730-BK / CV730-WH are a full featured Ultra-HD PTZ Cameras with the ability of up to 3840x2160p resolution at 60fps and flexible simultaneous 12GSDI, HDMI2.0 and IP outputs. Showcasing crystal clear 4K images from a professional 1/1.8 inch Sony 8.5MP sensor and remote adjust and match camera settings via RS232, RS422 or IP (Video Management Software or Software GUI).

Overview

Best of Class Featuring 12GSDI, HDMI2.0, and IP simultaneous outputs from a professional level 9.2MP 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols. Flexible Zoom Range Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances. Ease of Use Install one-cable to camera for all functions (power, control, audio, video), or use Ethernet for PoE++/Preview and other outputs (12GSDI/HDMI) for simultaneous workflows for streaming, production, or archiving. Professional Broadcast Performance Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. 9.2 Megapixel Sony UHD sensor (1/1.8") 30x optical zoom (6.5mm~202mm) starting at 65° H.AOV Smart Auto-Focus System; AI-enabled focus ensures faces stay in focus 340° pan & 120° tilt range with select-able transition speeds (5~300° per second) 12G/6G/3G-SDI, HDMI2.0, USB3.0 and IP (SRT/HEVC) simultaneous outputs 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i (HD) & 1280x720p 59.94, 50, 29.97, 25fps options up to 4K60 and HD60 IP formats: SRT, UDP, DHCP, MPEG-TS, RTSP, RTP, RTMP, RTMPS, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X 3.5mm TRS Stereo Audio over I/O cable (Mic/Line) 12V Power Supply included and PoE++ (IEEE802.3bt) Free-D protocol support and CGI protocol commands Min. Illumination - 0.05 lux (F1.6, 50IRE, 30fps) Applications: The CV730 is suitable for use in Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation.

Official Specifications

Sensor: 1/1.8" 8MP CMOS
Lens: 30x optical zoom
Angle of view (H): 63~3.3°
Minimum working distance: 1.5m (Tele/Wide)
Pan: +/-170° (Max speed: 100°/sec.)
Tilt: -30 °～+90° (Max speed: 100°/sec.)
Minimum °/step: 0.062° ±5%
Power: 1. Connector: EIAJ-04 12 V (10.8 to 13.0 V DC) 2. POE ++ (802.3bt)
Output: HDMI/12G-SDI/Ethernet/USB3.0
Control: RS-232/RS-422/Ethernet/USB
OSD: English/Chinese
Ouput resolution: 2160p59.94 2160p50 2160p29.97 2160p25 1080p59.94 1080p50 1080p29.97 1080p25 1080i/59.94 (SDI & HDMI only) 1080i/50 (SDI & HDMI only) 720p59.94 720p50
Video Compression: HEVC/H.264
Multiple Video Stream: Stream 1 :HEVC 4K 60fps Stream 2 :H.264 1080p 60fps Stream 3 : H.264 640x360 30fps
Audio in: x1
Audio Compression Format: AAC/G.711
IR Select Switch: x1
Output Switch: x1
Infrared signal output: Yes
Preset groups: 256
Electronic shutter: 1/1 to 1/10,000 s
Flip / Mirror: Yes
White balance: Auto / Manual
Gain: Auto / Manual
AE control: Auto / Manual
Brightness control: Yes
Backlight compensation: On / Off
Flicker cancel: Sync with output mode
Focusing system: Auto, One-push AF, Manual
Noise Reduction: Yes
