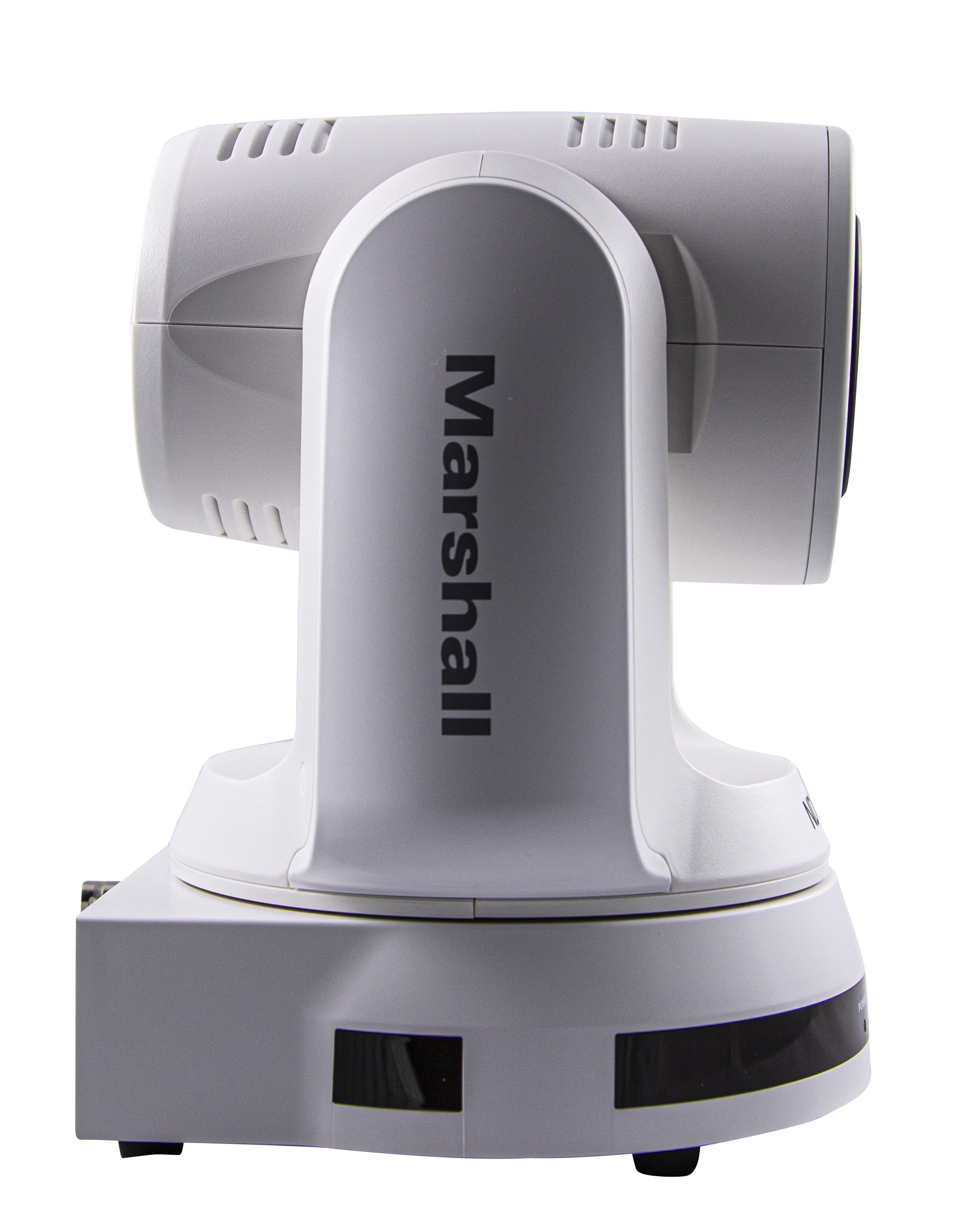

Marshall CV730-BHN / CV730-WHN 30x UHD60 NDI PTZ Camera
Marshall CV730-BHN / CV730-WHN 30x UHD60 NDI PTZ Camera
Marshall CV730-BHN PTZ cameras feature a 9.2 million-pixel Sony sensor with a long 30x optical zoom range and flexible simultaneous 12GSDI and HDMI outputs along with networkable full-NDI, NDI|HX3, NDI|HX2, IP (HEVC), SRT and other common IP codecs. The crystal-clear UHD (4K) images up to 3840x2160p at 60fps offers a flexible professional camera source to any production. Full NDI delivers the lowest latency, highest quality, frame-accurate video, and audio in real time to IP workflows. NDI 5.5 and other NDI|Tools opens the ability to integrate more video devices and applications into your production workflow. Also ability to Genlock the SDI signals via Black Burst or Tri-Level Sync and optional USB3.0 workflow.
Overview
Best of Class Featuring output options of 12GSDI, HDMI, USB and IP simultaneous outputs from a professional grade 9.2 million pixel 1/1.8" UHD sensor and smooth synchronous movements. CV730 delivers crystal-clear UHD images up to 3840x2160p at 60fps and remote broadcast-style adjust & match setting control through NDI, IP, RS232/RS422 using universal open source protocols. Flexible Zoom Range Designed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures crystal clear head & shoulder shots at very long distances. Ease of Use Install one-cable from IP switch with PoE++ to ethernet port on rear panel of camera – THAT’S IT – or use Ethernet for PoE/Control/Preview and send traditional outputs (12/6/3G-SDI or HDMI) to production, switching or archiving. Professional Broadcast Performance Marshall Camera Division continues to develop cutting edge camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. Full NDI, NDI|HX3, SRT, IP, Dante AV-H and more to come. 9.2 million pixel UHD Sensor (1/1.8") with Sony square pixel array 30x Optical zoom (6.5mm~202mm) starting at 65° H.AOV Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times 340° pan & 120° tilt range with select-able transition speeds (5~300° per second) 12GSDI, 3GSDI, HDMI2.0, NDI|HB, NDI|HX3 or IP (SRT/HEVC) 3840x2160p (UHD), 1920x1080p (HD), 1920x1080i and 1280x720p All framerates have access to 59.94, 50, 29.97, 25fps framerates 3.5mm TRS Stereo Audio over I/O cable (Mic/Line) 12V Power Supply included (30W max) and PoE++ Low-light performance – 0.05 lux (F1.6, 50IRE) Applications: Broadcast, Production, Live Events, Sportscast, Government, Courtroom, House of Worship, College/University, Front of Stage, Confidence, Observation NDI® and NDI®|HX2. are registered trademarks of NewTek, Inc.
Official Specifications
- Sensor: Sony IMX334 1/1.8 inch
- Video Format: Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25
- Video Output (HD) Interface: HDMI,Ethernet,12G-SDI,3G-SDI, USB 3.0
- Optical Zoom: 30x lens
- Horizontal Viewing Angle: 63° (Wide) to3° (Tele)
- Panning Angle: +/-170°
- Panning Speed: 160 °/sec
- Tilting Angle: -30 °～+90°
- Tilting Speed: 160 °/sec
- Aperture: F1.6~F18
- Focal Length (lens spec): 6.5mm~202mm
- Shutter Speed: 1/1 to 1/10,000 s
- Minimum Object Distance: 1.5M
- Focus System: Auto/Manual
- Gain Control: 0~45db
- White Balance: Auto/Manual
- Exposure Control: Auto/Shutter priority/Iris priority/Manual
- WDR: Yes
- 3D NR: Yes
- Image Flip: Off/Mirror/Flip/Mirror+Flip
- Preset Positions: 256
- Control Interface: VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote/ USB
- Control Protocol: ONVIF,VISCA, PELCO D
- Tally Light: Yes
- PoE: POE++,IEEE 802.3bt
- Video Stream: A Group：RTSP / RTMP / RTMPS / SRT /MPEG-TS B Group：NDI|HX C Group：High Bandwidth NDI Ouput mode：A+C or B+C
- Video Compression: HEVC/ H.264/ MJPEG
- Audio Input: MIC/ Line In
- Audio Output: Ethernet / 12G-SDI / HDMI2.0 / USB 3.0
- IR Pass-through: Yes
Official Product Data
- Model: CV730-BHN
- Category: PTZ Cameras
- UPC: 801813228908
- HS Code: 8525.89.0000
- Price: 4825.00 EUR ex VAT
