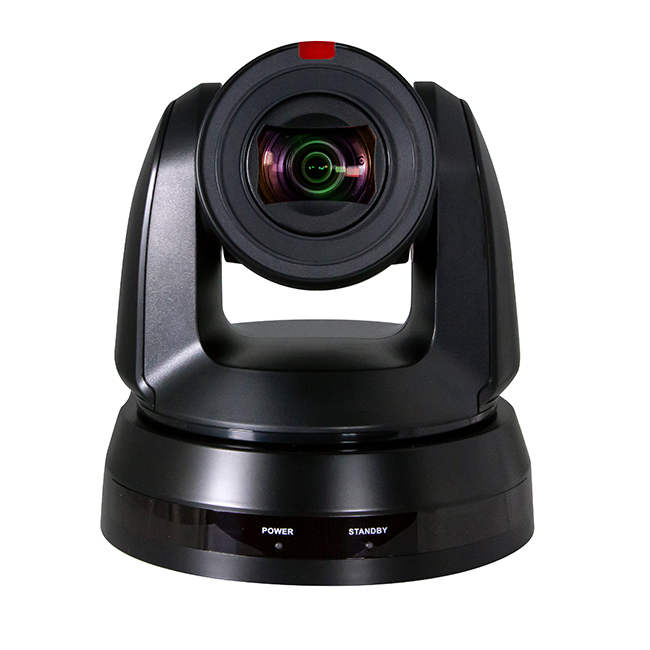

Marshall CV630-BI / CV630-WI - 25X UHD60 IP (HEVC) PTZ Cameras captures stunning ultra-HD video with the versatility of pan-tilt-zoom (PTZ) adjustability, professional image settings, and networked output and control with simultaneous 3GSDI and HDMI outputs.
Overview
High Performance Video Output At its core, the CV630-BI and CV630-WI both pack a powerful 8-megapixel 1/2.5" sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, 1280x720p, 1920x1080i. Versatile Camera Positioning The CV630-BI and CV630-WI are equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 25X optical zoom block provides flexibility from 4.6mm to 120.5mm, with a nearly 68-degree angle-of-view at its widest. Simultaneous Networked and Streaming Outputs Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation. Flexible Control Options The CV630-BI and CV630-WI offer easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms. Additionally, the CV630-BI and CV630-WI are compatible with Marshall's VS-PTC-300 PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with with one button dials and rocker control. 8MP 1/2.5" sensor 25X Optical Zoom (4.6~120.5mm) near 68-degrees AOV at widest 3GSDI, HDMI, and IP simultaneous outputs Simultaneous pan, tilt, and zoom H.265 (HEVC) and H.264 (triple-stream) networked outputs IP formats: RTSP, RTMP, RTMPS, MPEG-TS, SRT, Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X 3840x2160p, 1920x1080p, 1280x720p, and 1920x1080i Stereo audio input (mic or line level) embedding PoE+ (IEEE802.3at), video, and control over a single Ethernet cable 340° pan, 120° tilt, and 25X zoom range Front tally light Free-D protocol support and CGI protocol commands Applications: The CV630 cameras are suitable for use in live broadcast production, newscast, concerts, reality television, corporate communications, government, courtroom, house of worship, education, and many more broadcast and Professional AV applications
Official Specifications
-
Item: Spec
-
Model Name: CV630-BI/WI Color Black, White Sensor 1/2.5" COMS Video Format 2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50 Video Output (HD) Interface 3G-SDI, HDMI,Ethernet,USB3.0 Optical Zoom >=25x Horizontal Viewing Angle 68 Aperture 68 Focal Length 4.8~120.5(mm) Shutter Speed 1/1 ~ 1/10,000 sec Minimum Object Distance <=1.5m Focus System Auto, Manual, Smart AF Gain Control Auto, manual White Balance Auto, manual Exposure Control Auto, manual WDR Yes 3D NR Yes Image Flip Yes Preset Positions 256 Control Interface RS-232 / RS-422 / Ethernet / USB 3.0 Control Protocol VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI Tally Light Yes IP Protocol RTSP, RTMP, RTMPS, MPEG-TS, SRT,Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X IP Streaming Output Main : HEVC up to 2160p 59.94/50fps Second : H.264 up to 1080p 59.94/50fps Third : H.264 640x360 29.97fps Webpage Preview: 640x360 15fps PoE PoE+ (IEEE802.3at) Video Compression H.265/H.264/MJPEG Audio Input Line In/MIC In , Phone Jack 3.5mm x1 Audio Output Ethernet / 3G-SDI / HDMI / USB 3.0 IR Receiver Yes IR Remote Control Yes Power Consumption PoE : 18W DC In : 16W Weight 1.9kg Dimensions 174x186x190 Operating Temperature 0 °C to 40 °C Storage Temperature -20 to 60 °C
-
Model Name: CV630-BI/WI
-
Color: Black, White
-
Sensor: 1/2.5" COMS
-
Video Format: 2160p : 59.94 / 50 / 29.97 / 25 1080p : 59.94 / 50 / 29.97 / 25 720p : 59.94 / 50 / 29.97 / 25 1080i : 59.94 / 50
-
Video Output (HD) Interface: 3G-SDI, HDMI,Ethernet,USB3.0
-
Optical Zoom: >=25x
-
Horizontal Viewing Angle: 68
-
Aperture: 68
-
Focal Length: 4.8~120.5(mm)
-
Shutter Speed: 1/1 ~ 1/10,000 sec
-
Minimum Object Distance: <=1.5m
-
Focus System: Auto, Manual, Smart AF
-
Gain Control: Auto, manual
-
White Balance: Auto, manual
-
Exposure Control: Auto, manual
-
WDR: Yes
-
3D NR: Yes
-
Image Flip: Yes
-
Preset Positions: 256
-
Control Interface: RS-232 / RS-422 / Ethernet / USB 3.0
-
Control Protocol: VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI
-
Tally Light: Yes
-
IP Protocol: RTSP, RTMP, RTMPS, MPEG-TS, SRT,Multicast, UDP, DHCP, RTP, DNS, HTTP, HTTPS, IPv4, NTP, TCP, 802.1X
-
IP Streaming Output: Main : HEVC up to 2160p 59.94/50fps Second : H.264 up to 1080p 59.94/50fps Third : H.264 640x360 29.97fps Webpage Preview: 640x360 15fps
-
PoE: PoE+ (IEEE802.3at)
-
Video Compression: H.265/H.264/MJPEG
-
Audio Input: Line In/MIC In , Phone Jack 3.5mm x1
-
Audio Output: Ethernet / 3G-SDI / HDMI / USB 3.0
Official Product Data
-
Model: CV630-BI
-
Category: PTZ Cameras
-
UPC: 801813232080
-
HS Code: 8525.89.0000
