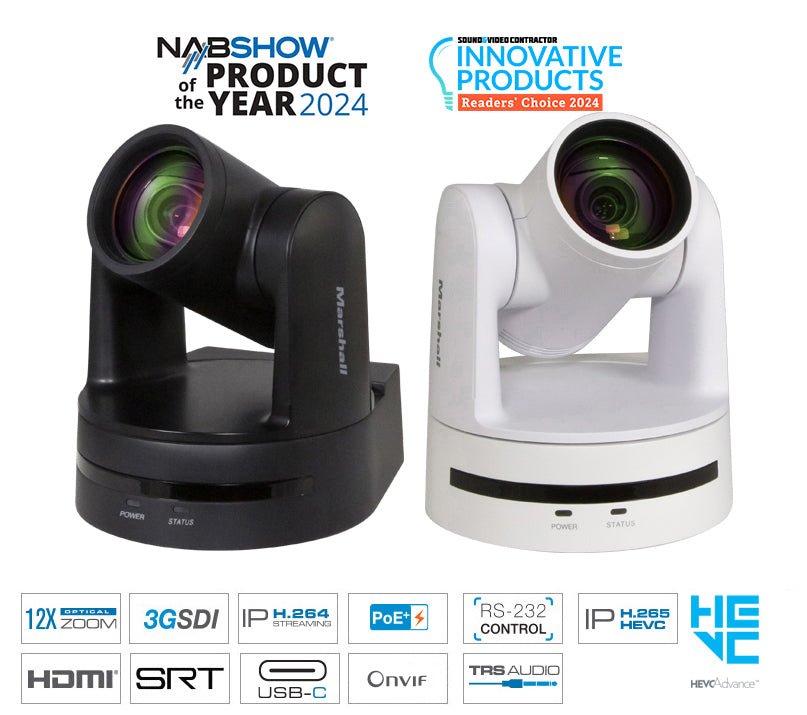

The Marshall CV612-TBI Camera captures clear HD video resolution through 3GSDI, HDMI and USB 3.0
Overview
AI Auto Track Technology The CV612 models can automatically track, follow, and frame presenters using AI facial learning for accurate and smooth self-adjusting maneuvers. Tracking features include Presenter real-time tracking and Zone regional tracking, Presenter mode follows a single person and ignores others. Regional mode follows a person from one established shot to another. Live Streaming Made Simple The camera can stream HEVC/H.264 directly via RTSP/RTMP/SRT while simultaneously outputting video via SDI, HDMI making it an ideal solution to stream live to YouTube, Livestream, Facebook (Meta), Twitch, etc. High quality USB-C is available also. When USB and SDI are set to the same format/frame rate, all four video output types are available simultaneously. Flexibility Workflow CV612 camera is equally at home in houses of worship, classrooms, reality shows, pod casting channels and corporate boardrooms. It's compact size allows it to fit on a desktop, on a shelf, or concealed by set decorations in a reality shoot. It operates equally well on a surface or mounted upside down from an overhead location. High Compatibility Multiple output types, multiple control methods and P0E+ power make life easy for system designers. Nearly all common control methods are supported including Visca & Pelco (RS232), Visca-over-IP, ONVIF, USB UVC, Web Browser setup and control, plus a hand-held IR Remote. It's a perfect match for Marshall’s VS-PTC-300 PTZ control panel as well as many 3rd party products. Accurate auto-track, follow and frame subjects using AI facial learning technology 1/2.8" high quality HD CMOS sensor with 2.07 megapixel-inch Format Resolutions 1920x1080, 1280x720, 640x480 Video outputs include: 3GSDI, HDMI, USB3.0 and IP 12x optical zoom (4.1~49.2mm) Supports real time tracking and regional tracking up to 8m Dante Ready AV-H supports up to 1080p and 2 audio channels (Requires end user activation in Dante Controller) Horizontal Angle of View 6.6°- 70.3° Pan rotation of +/- 170°, Tilt rotation of -90°-+90° Camera Applications: The CV612-TBI/CV612-TWI cameras are suitable for use in networked HD workflows where image quality and versatility are of utmost concern, including live broadcast productions, conference rooms, live streaming, online content, courtroom capture, corporate video, government assembly, house of worship and many more.
Official Specifications
-
Optical Zoom: >12X, f=4.1～49.2mm
-
Sensor: >1/2.8-inch-high quality HD CMOS sensor, 2.07 megapixel
-
Viewing Angle: >6.6°- 70.3°
-
Digital Zoom: >8X
-
Minimum Illumination: 0.5Lux (F1.8)
-
White Balance: Auto / Manual/ One Push/ VAR
-
Focus: >Auto/Manual/One Push
-
Iris: >Close/F11/9.6/8.0/6.8/5.6/4.8/4.0/3.4/2.8/2.4/2.0/1.8
-
Electronic Shutter: Auto/Manual (1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000)
-
BLC: >ON/OFF
-
Video Adjustment: Brightness, Hue, Saturation, Contrast, Sharpness, B/W mode
-
SNR: ≥50dB
-
Video Interfaces: USB3.0 TYPE-C, 3G-SDI, HDMI, LAN
-
Video Compression Format: USB3.0: YUY2 LAN: MJPEG, H264, H265
-
Audio Input: Two-channel 3.5mm line input
-
Network Protocol: RTSP, RTMP, SRT, ONVIF; VISCA over IP control
-
Control Interface: RS232
-
Control Protocol: VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/38400/9600/4800/2400
-
Power Interface: HEC3800 outlet (DC12V)
-
Supply Adapter: AC110V-AC220V to DC12V/2A
-
Input Voltage: DC12V±10%
-
Input Current: 1.25A
-
Consumption: 15W (12V, 1.25A Max)
-
Pan Rotation: >±170°
-
Tilt Rotation: >-90°～+90°
-
Pan Control Speed: 0.42°/s ~ 60.32°/s
-
Tilt Control Speed: 0.27°/s ~ 40.34°/s
-
Preset Speed: >Pan: 60°/sec, Tilt: 30°/sec
-
Preset Number: 255 presets (10 presets by remote controller)
-
Store Temperature: -10° C～+70° C
Official Product Data
-
Model: CV612-TWI
-
Category: PTZ Cameras
-
UPC: 801813231984
-
HS Code: 8525.89.0000
