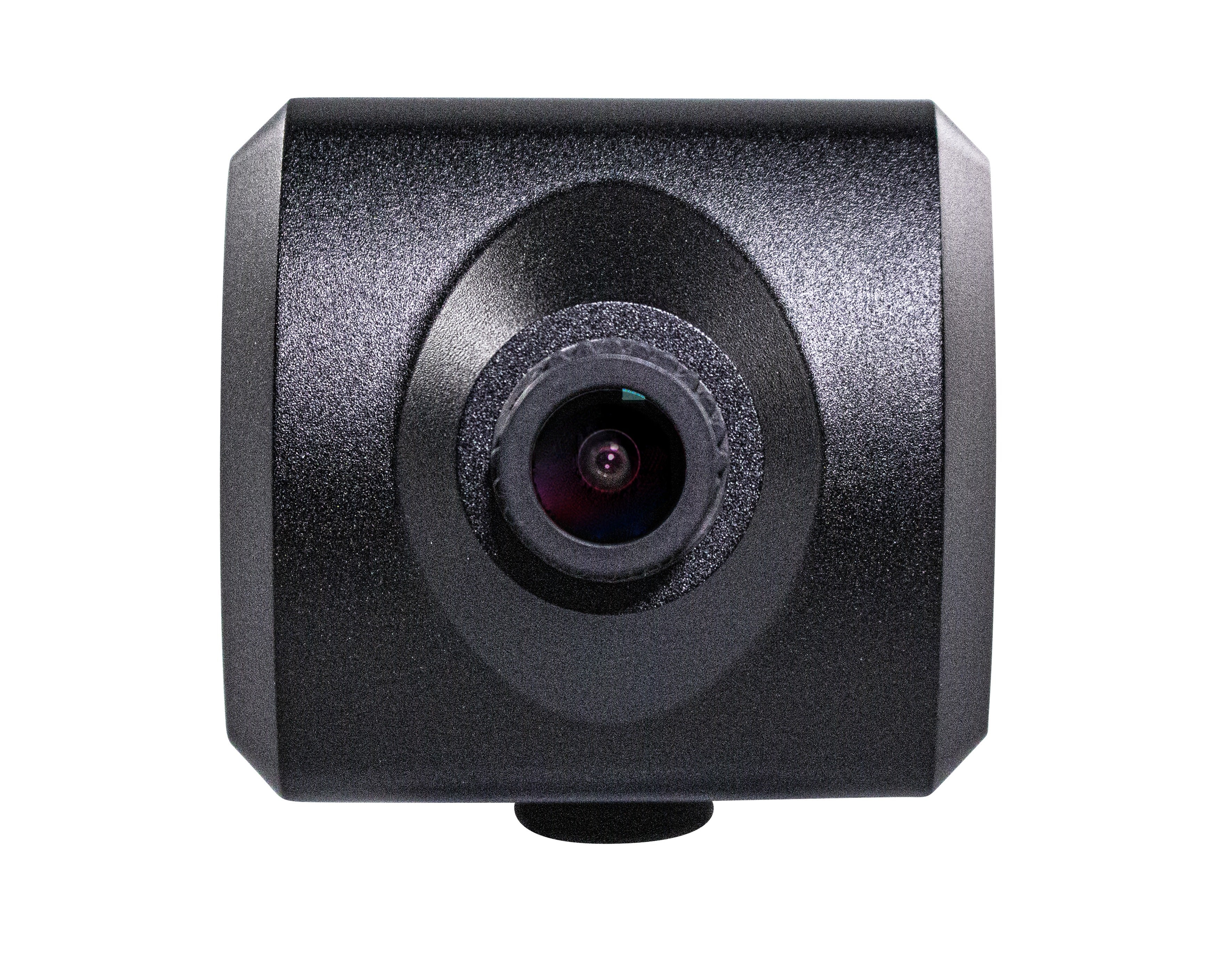

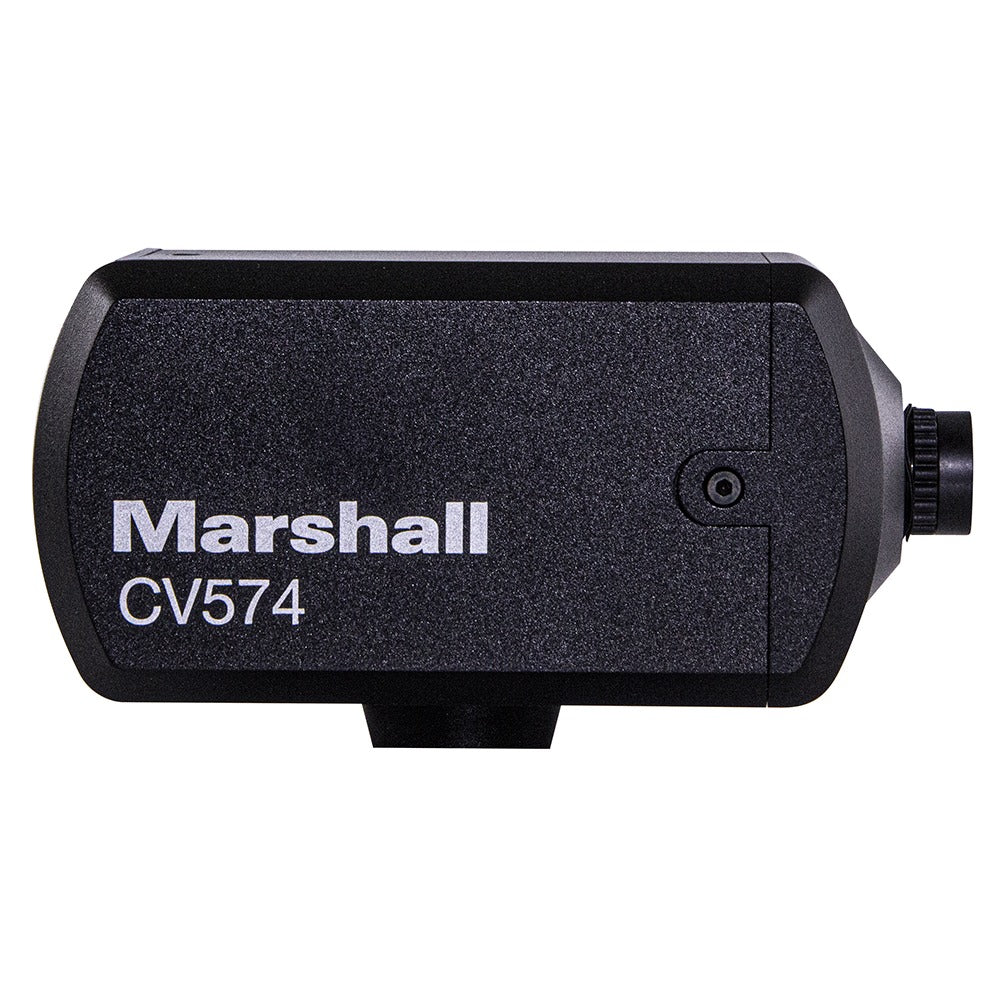

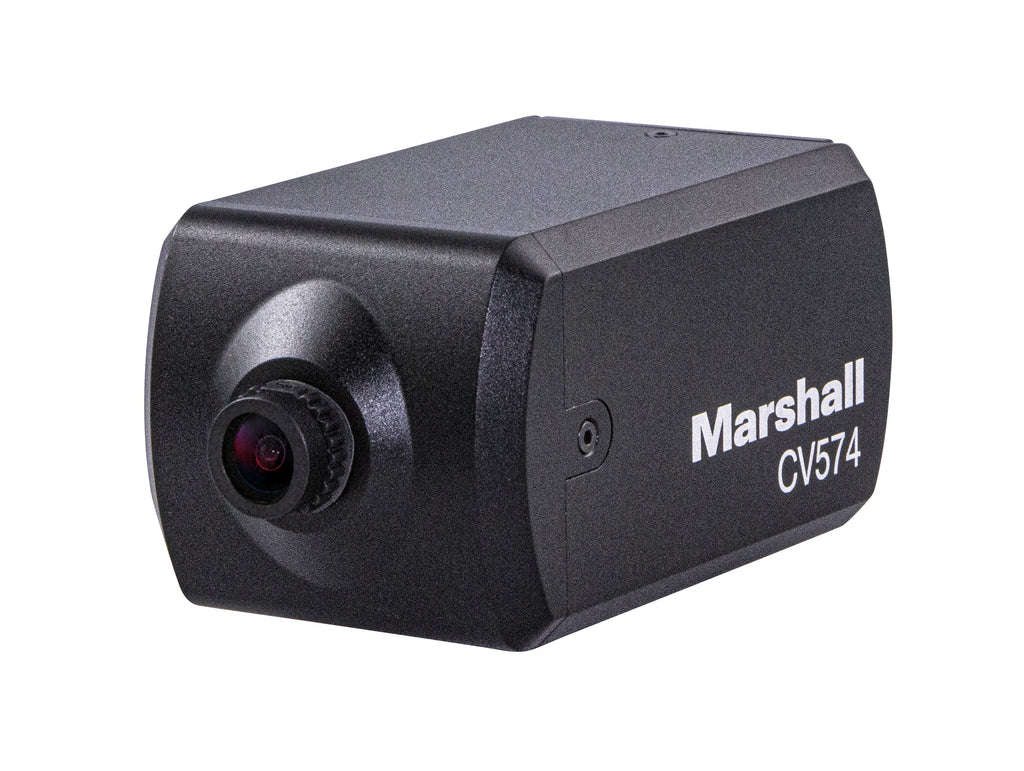

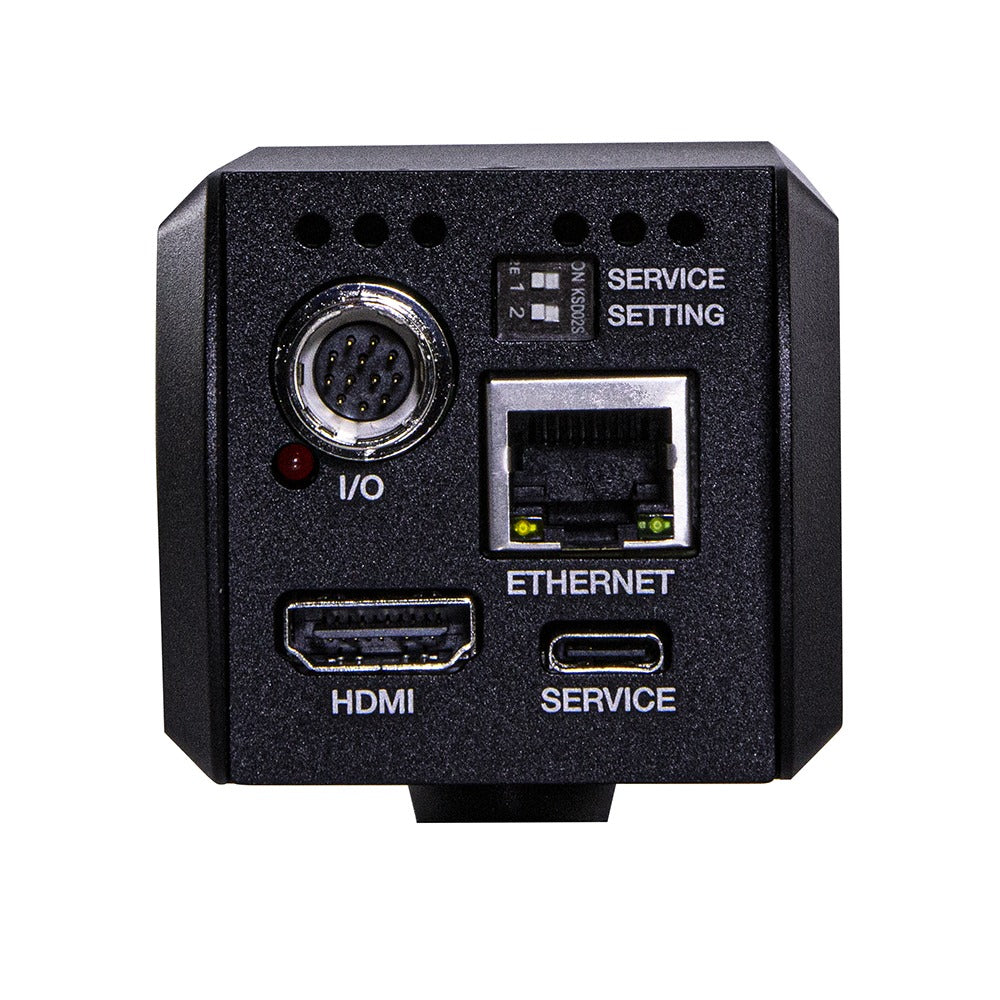

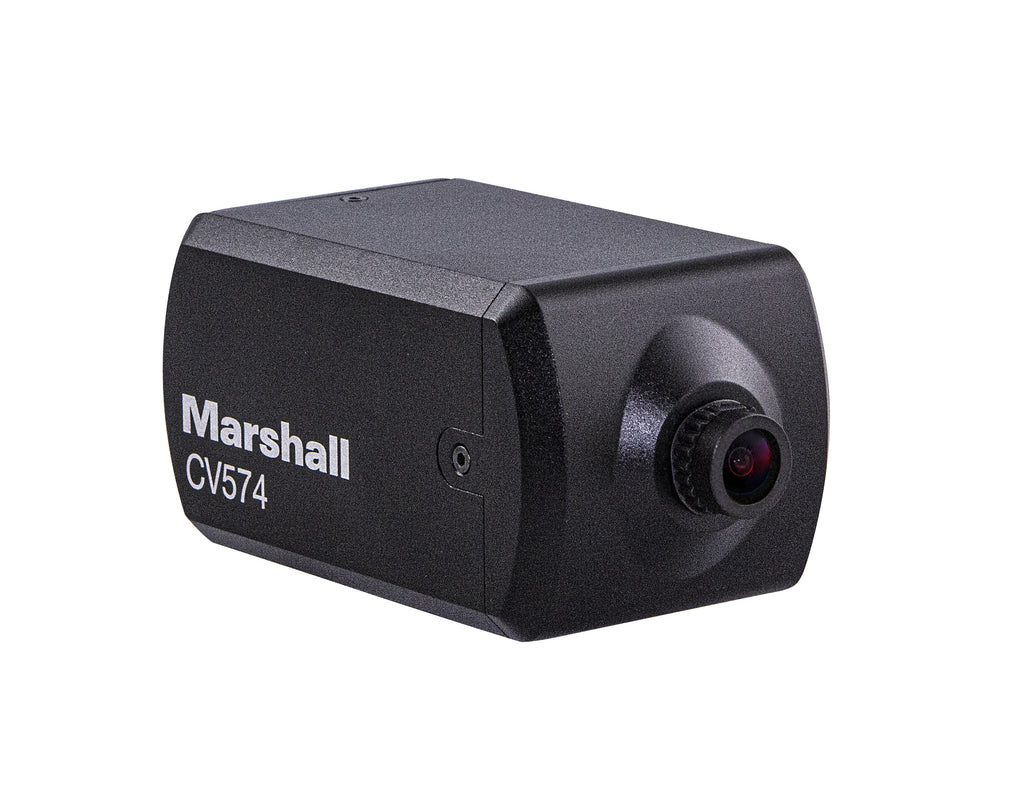

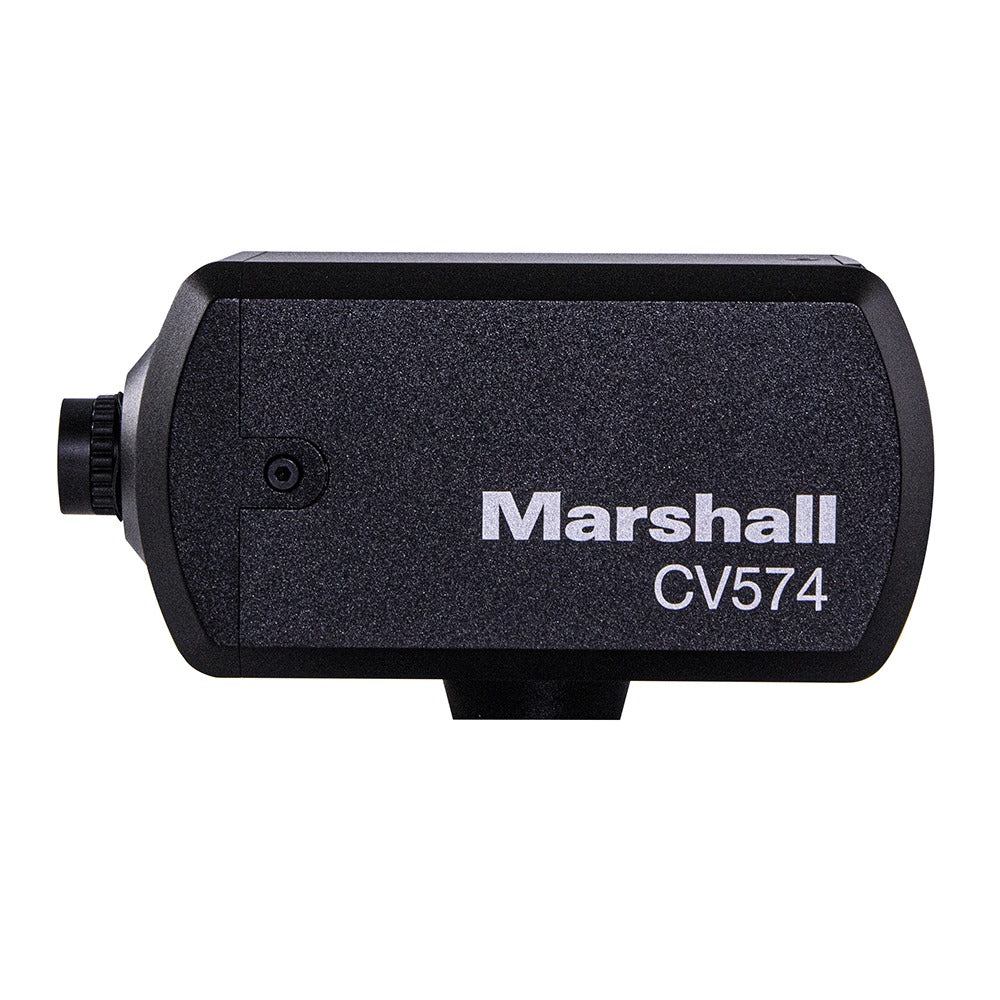

Marshall CV574 Miniature UHD Camera NDI HX3 and HDMI
Marshall CV574 Miniature UHD Camera NDI HX3 and HDMI
The CV574 miniature 4K cameras contain a next generation Sony sensor with larger pixels and up to Ultra-HD at 60 frames per second. These unique streaming cameras with easy AV over IP capability capable of a variety of streaming codecs and resolutions of up to 3840x2160p60 (progressive), 1920x1080p60, 1920x1080i60 (interlaced) and 1280x720p60. These cameras are designed with the same flexible features as other Marshall POV’s with flexible swappable lenses, remote setting control, discreet durable bodies made of lightweight aluminum alloy with rear I/O protection wings.
Overview
NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec Featuring the extremely efficient NDI HX3 codecs gives the miniature CV574 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more. Interchangeable M12 Lenses Marshall CV574 cameras come with a high-quality 4.0mm (77.2° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application. Durable, Flexible, Powerful The miniature CV574 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV574 operates with exceptional low-light sensitivity, ensuring a clear Ultra-HD picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows. Broadcast Performance Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. 8.46 Megapixel 1/2.8" Sony solid-state image sensor CV4804-8MP - Interchangeable 4.0mm lens with 77.2° Horizontal AOV 3840x2160p, 1920x1080p, 1920x1080i & 1280x720p resolutions available Framerates: 60, 59.94, 50, 30, 29.97, 25fps HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs One-cable to camera option for power (PoE), video, audio, and remote setting control Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage PoE over Cat cable or 12V power with included power supply Applications: The Miniature CV574 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly,
Official Specifications
- CV-4702.3-3MP: 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
- CV-4702.8-3MP-IR: 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 109.4°
- CV-4804.4-12MP: 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 70.6°
- CV-4706-3MP-IR: 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 53.8°
- CV-4708.0-3MP: 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 40°
- CV-4712.0-3MP: 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 26.2°
- CV-4716.0-2MP: 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 18.8°
- Part Number: Description & Horizontal AOV
- CV4804-8MP (Included): 4.0mm F1.8 8MP M12 Lens - 77.2°
- CV4808-8MP: 8.0mm F1.8 8MP M12 Lens - 39.4°
- CV4812-8MP: 12.0mm F1.8 8MP M12 Lens - 25.9°
- V-555.0-5MP-VIS-IR M12: 5.0mm F2.0 5MP M12 Lens - 67.1°
- V-557.6-5MP-VIS-IR M12: 7.6mm F2.0 5MP M12 Lens 43.0°
- CV-2812-3MP: 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = W: D77.9°x H67.02°x V36.78° | T: D56.5°x H49.04°x V27.36°
- CV-0622-5MP: 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = W: D39.16°x H33.69°x V18.72° | T: D23.16°x H20.2°x V11.36°
Official Product Data
- Model: CV574
- Category: Mini Cameras
- UPC: 801813232493
- HS Code: 8525.89.0000
- Price: 959.00 EUR ex VAT
