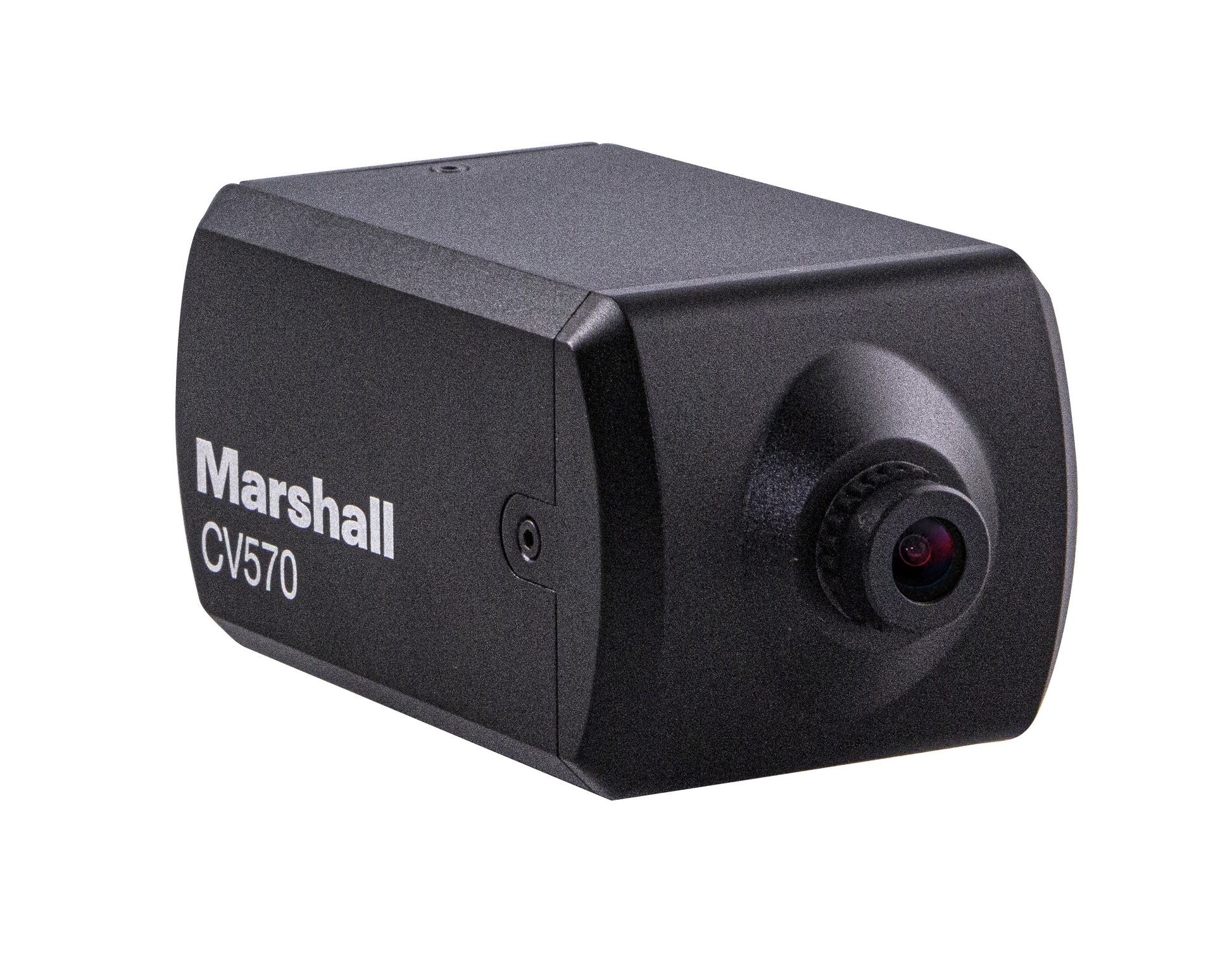

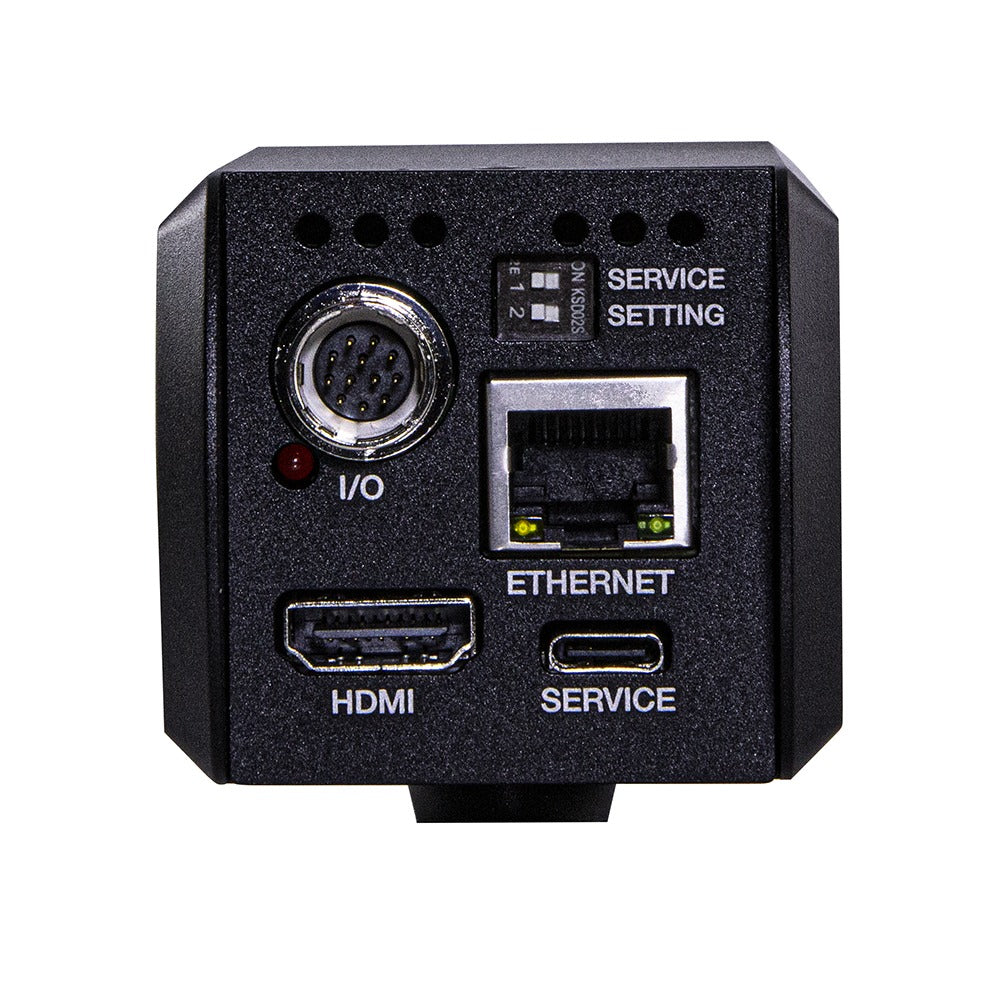

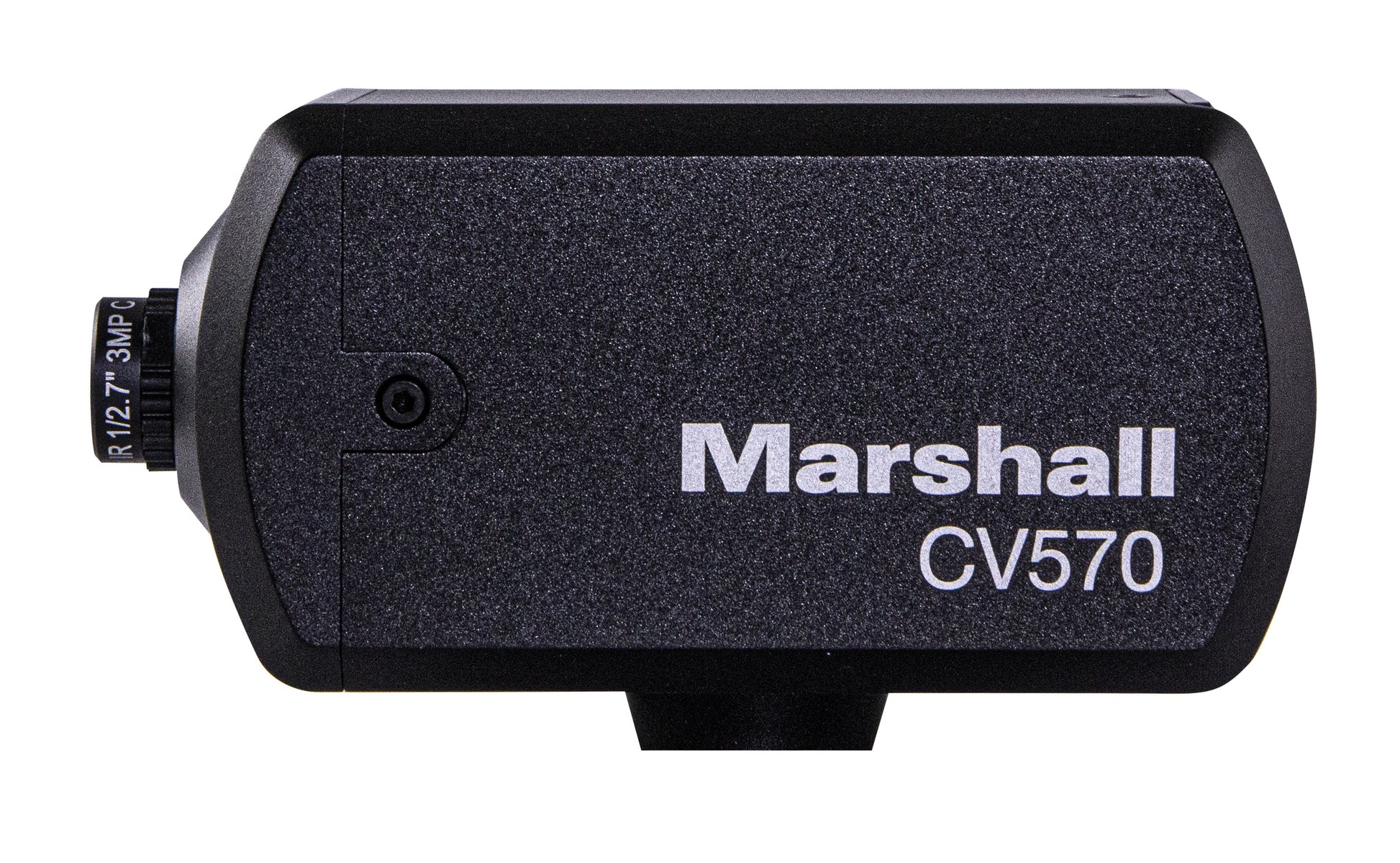

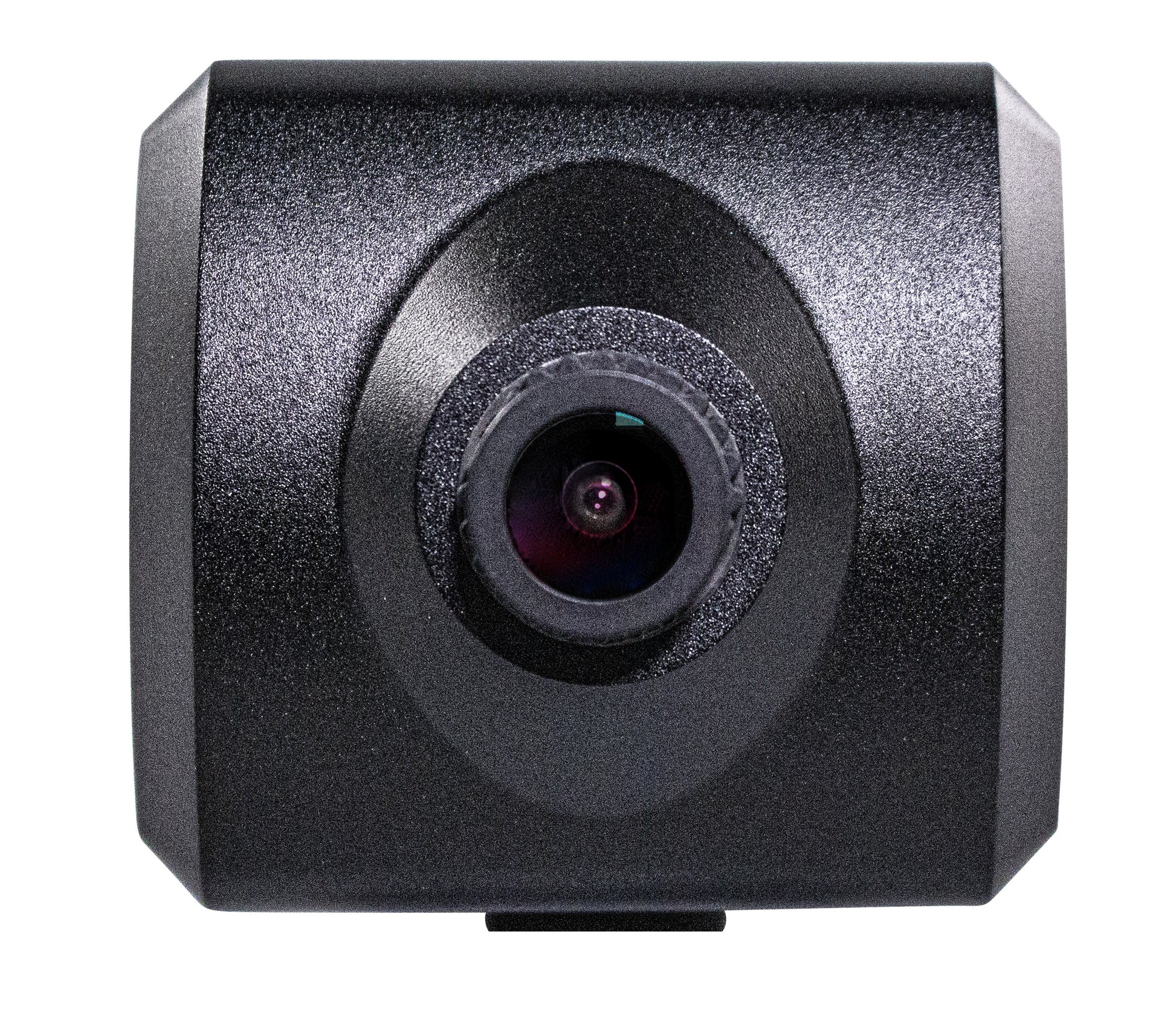

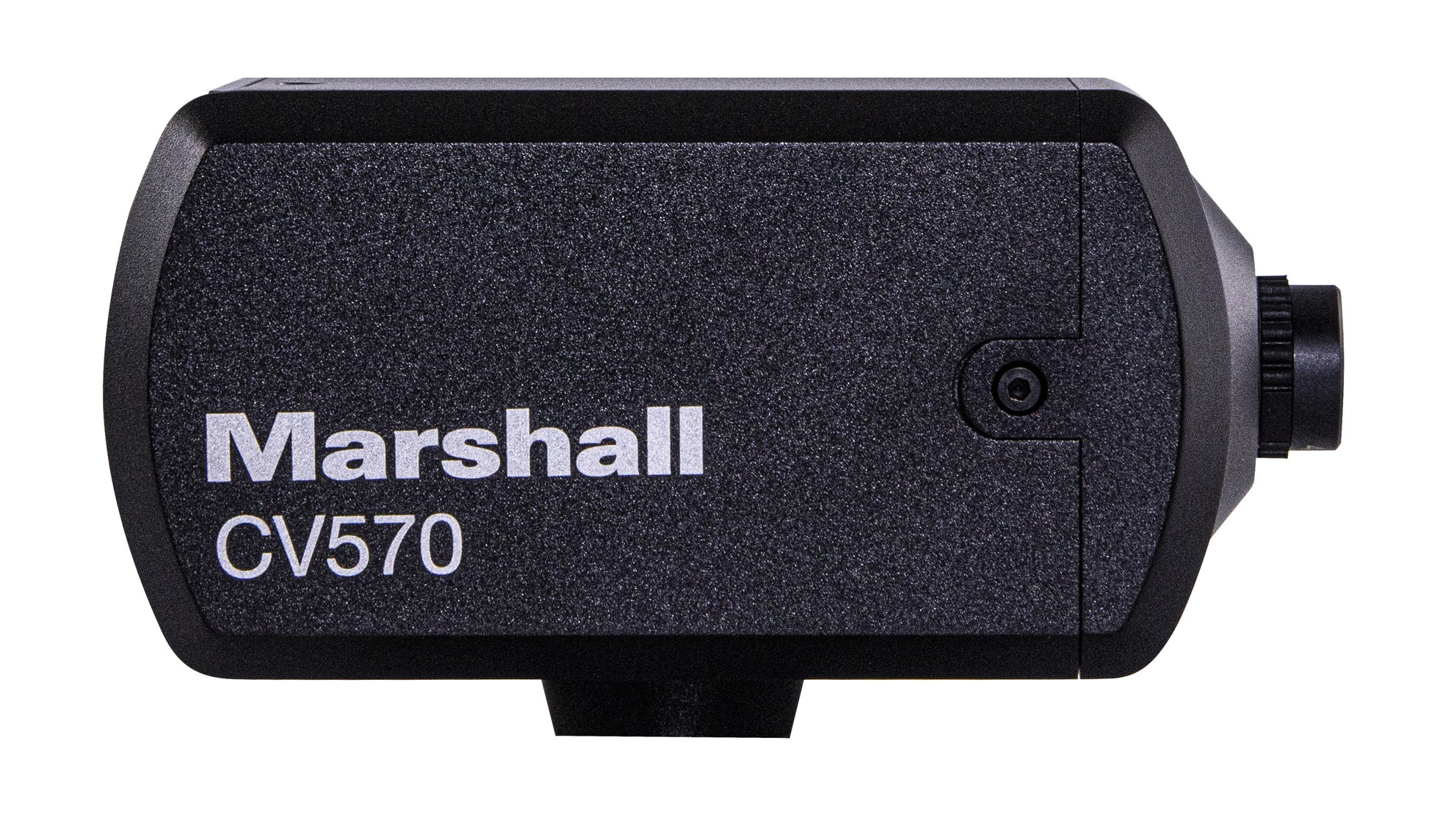

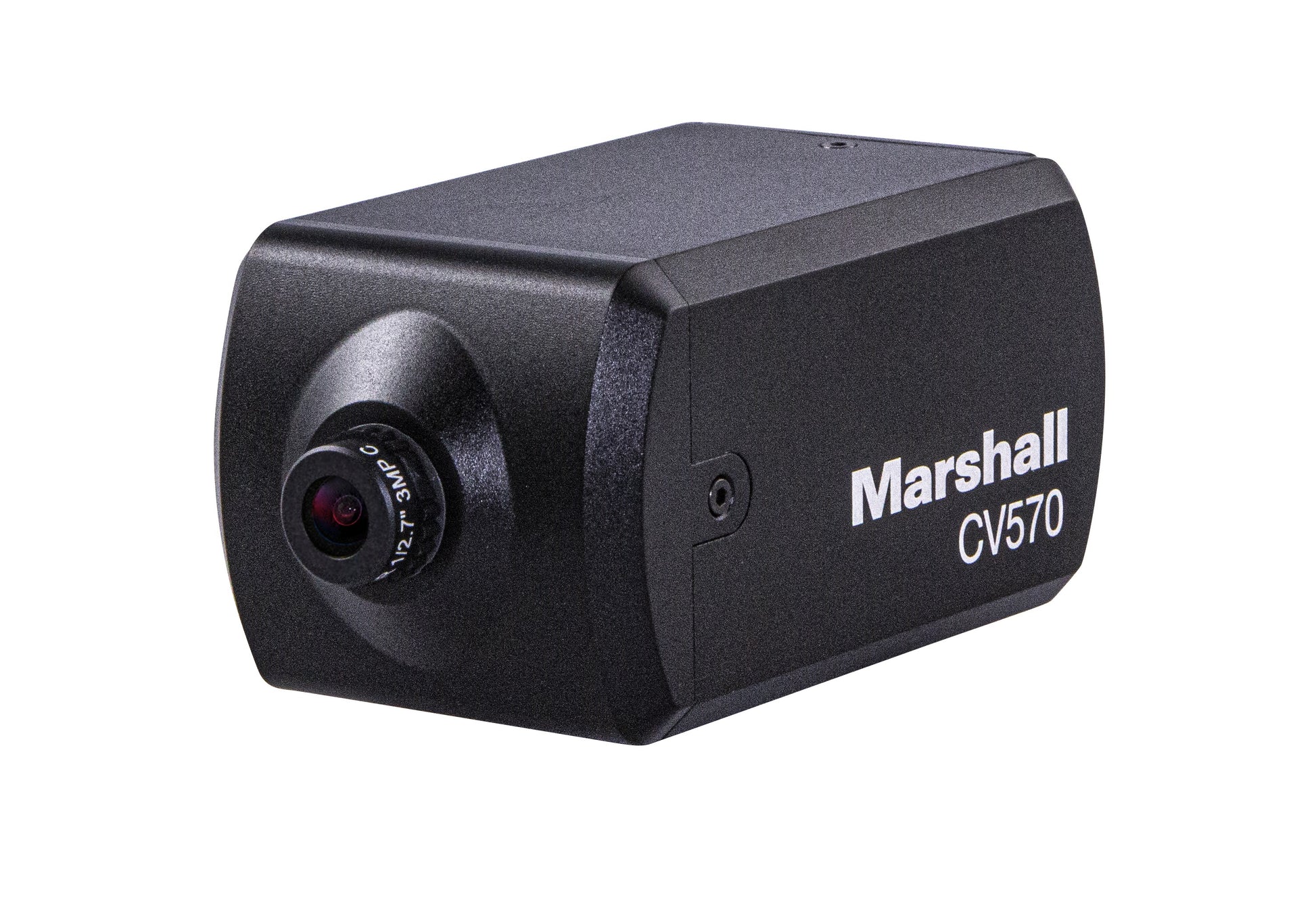

The CV570 miniature cameras contain a next generation Sony sensor with larger pixels and square pixel array implemented into all next generation POV cameras. These unique streaming cameras with easy AV over IP capability capable of a variety of streaming codecs and resolutions of up to 1920x1080p60 (progressive), 1920x1080i60 (interlaced) and 1280x720p60. These cameras are designed with the same flexible features as other Marshall POV’s with flexible swappable lenses, remote setting control, discreet durable bodies made of lightweight aluminum alloy with rear I/O protection wings.
Overview
NDI HX3 Premium, Efficient, Low Latency, Loss-less Streaming Codec Featuring the extremely efficient NDI HX3 codecs gives the miniature CV570 camera a unique advantage over other streaming cameras with 100ms end-to-end of latency using less bandwidth and maintaining the premium video quality of the source. Simultaneous HDMI output and other streaming options such as SRT, RTSP, RTMP, HEVC and more. Interchangeable M12 Lenses Marshall CV570 cameras come with a high-quality 4.0mm (81.1° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application. Durable, Flexible, Powerful The miniature CV570 body is chiseled from a block of aluminum alloy making it extremely durable in a discreet miniature size with rear I/O protection. CV570 operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability over network or Visca over IP commands. Suitable for a variety of AV over IP network, cloud production, remote contribution, and HDMI workflows. Broadcast Performance Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. 2.13 Megapixel Sony sensor with larger pixels and square pixel array CV-4704.0-3MP - Interchangeable 4.0mm lens with 81° Horizontal AOV HDMI + network support for NDI HX3, RTSP, RTMP, SRT with H.264 and HEVC streaming codecs One-cable to camera option for power (PoE), video, audio, and remote setting control Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current 1920x1080p, 1920x1080i & 1280x720p resolutions available Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps Remote adjust & match via Visca over IP, NDI|Tools, and camera control webpage Power Draw: 6W with 7~15V flexibility or PoE over Cat cable Applications: The Miniature CV570 is suitable for use in AV over IP or HDMI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government
Official Specifications
-
CV-4702.3-3MP: 2.3mm, F2.2 3MP M12 lens; Horiz AOV = 126°
-
CV-4702.8-3MP-IR: 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 105.5°
-
CV-4804.4-12MP: 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 69.5°
-
CV-4706-3MP-IR: 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 52.8°
-
CV-4708.0-3MP: 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 39.1°
-
CV-4712.0-3MP: 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 25.4°
-
CV-4716.0-2MP: 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 18.5°
-
Part Number: Description & Horizontal AOV
-
CV4804-8MP: 4.0mm F1.8 8MP M12 Lens - 76.6°
-
CV4808-8MP: 8.0mm F1.8 8MP M12 Lens - 39.1°
-
CV4812-8MP: 12.0mm F1.8 8MP M12 Lens - 25.3°
-
V-555.0-5MP-VIS-IR M12: 5.0mm F2.0 5MP M12 Lens - 67.3°
-
V-557.6-5MP-VIS-IR M12: 7.6mm F2.0 5MP M12 Lens 43.1°
-
CV-2812-3MP: 2.8~12mm, F1.4 3MP Varifocal M12 lens; Horiz AOV = W: D77.9°x H67.02°x V36.78° | T: D56.5°x H49.04°x V27.36°
-
CV-0622-5MP: 6.0~22mm, F1.6 5MP Varifocal M12 lens; Horiz AOV = W: D39.16°x H33.69°x V18.72° | T: D23.16°x H20.2°x V11.36°
Official Product Data
-
Model: CV570
-
Category: Mini Cameras
-
UPC: 801813232486
-
HS Code: 8525.89.0000
