Marshall CV568 Miniature Global Camera with Genlock
Marshall CV568 Miniature Global Camera with Genlock

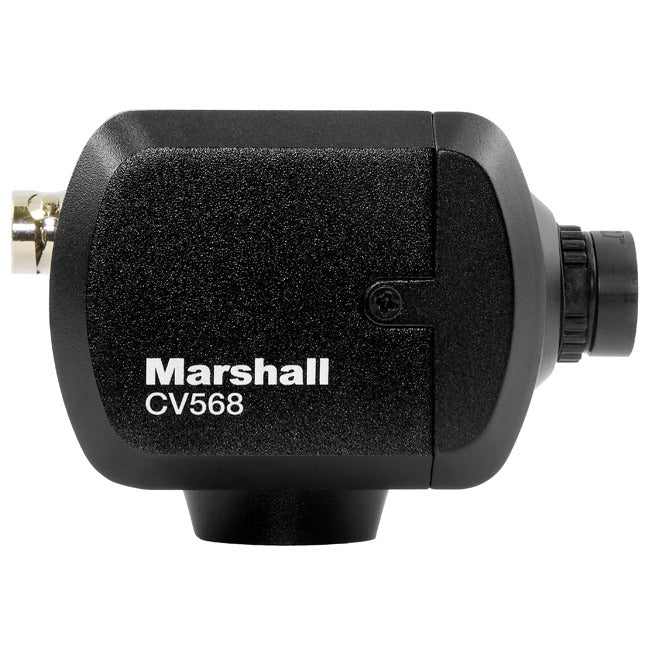

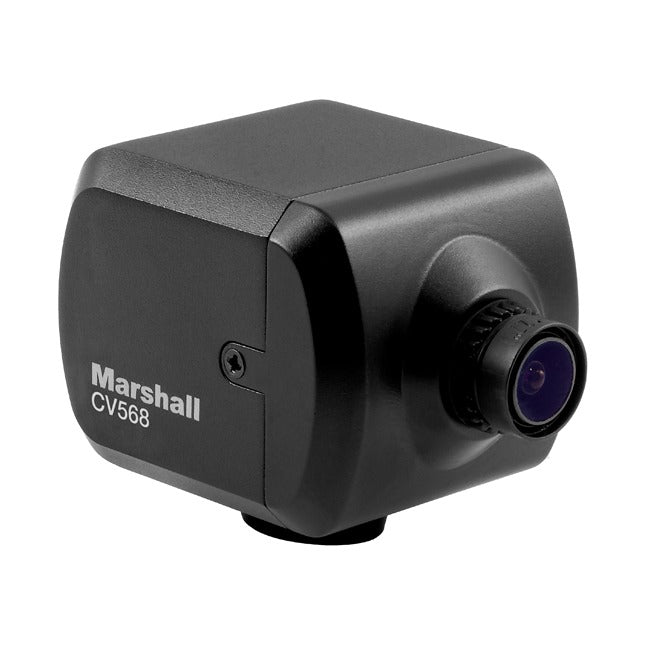

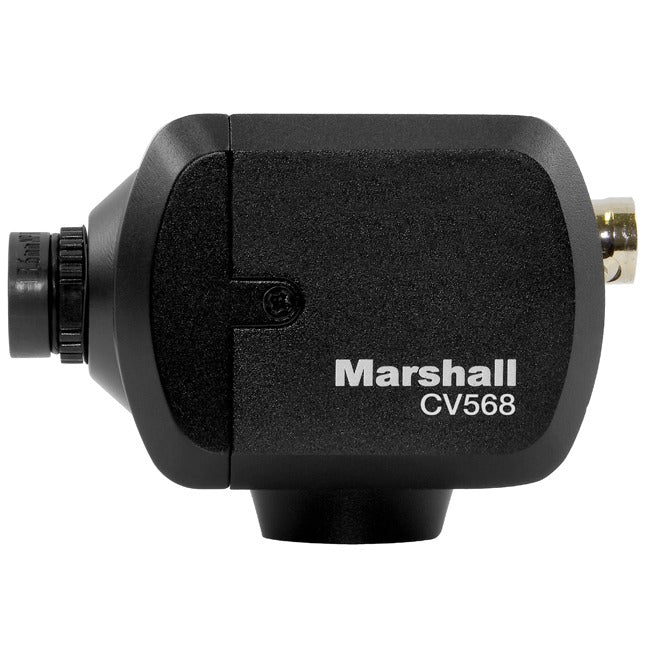

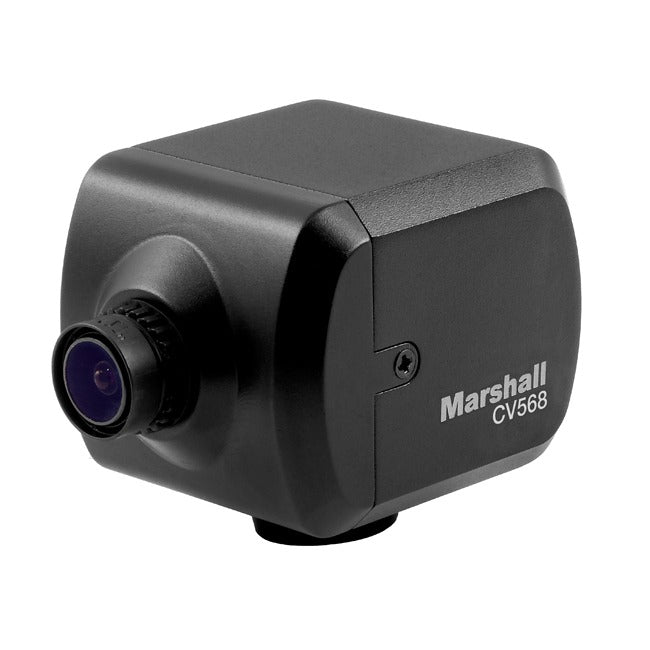

Miniature HD Camera with Global Shutter and Genlock Sync. Featuring a 1/1.8 inch Sony Global sensor with 3.2 million pixels, 25 percent larger pixel size and interchangeable M12 lens mount (comes with 4.4mm - 84 degrees H.AOV).
Overview

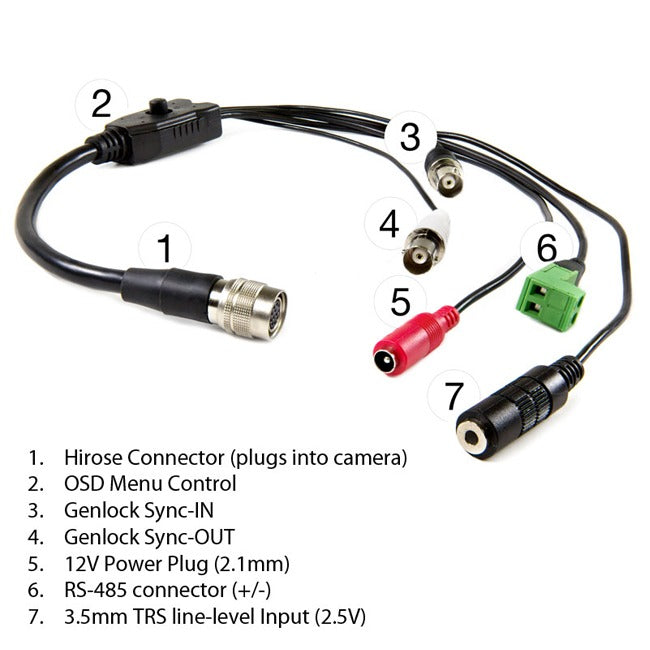

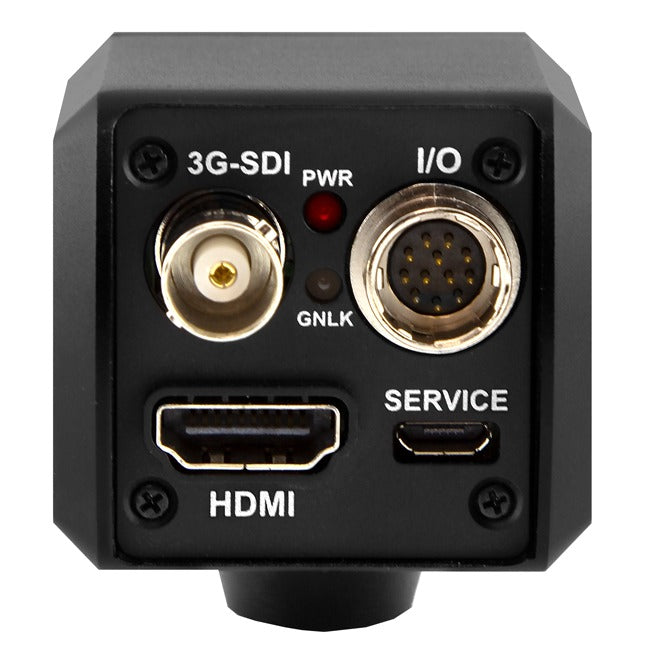

New Global Shutter CMOS Technology Global Shutter camera sensors are nothing new to the broadcast proAV industry, however when users are challenged to capture ultra-fast motion within the field-of-view, motion anomalies become more of a challenge - Sony Global Shutter sensors perform better in these conditions as all pixels are exposed (start to finish) simultaneously. Genlock Tri-Level Sync Feature Tri-level sync allows multiple cameras to be plugged into HD workflows already in sync (genlock) which allows for seamless transitions between cameras with minimal amount of delay. Tri-level runs at higher frequency which makes the HD60 signal sync more accurate and more seamless. 25% Larger Pixel Size Larger physical pixel sizes allow for greater accuracy of color and clarity even in low-light applications. The CV568 utilizes a Sony Exmor 1/1.8" sensor with larger physical pixels to deliver step-up broadcast quality images from a miniature camera size. Durable, Flexible, Powerful Marshall Miniature Cameras are cut from individual aluminum alloy blocks, designed with rear I/O connector protection, solid 1/4"-20 mount type, and flexible interchangeable lenses. Ability to remotely adjust and match a POV camera from a control room that is installed hundreds or thousands of feet away is a powerful tool and comes standard with every Marshall Camera. Large 1/1.8" Global Shutter Sensor 3.2 Megapixels with 25% larger pixel size CV-4804.4-12MP - Interchangeable 4.4mm lens with 81° Horizontal AOV Simultaneous 3GSDI & HDMI outputs Mic/Line Level (2.5V bias), AUDIO stereo embedding up to 48kHz Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current Flexible Interchangeable Lenses – 12MP 4.4mm (81° AOV) comes standard Tri-Level Sync (Genlock) for faster, more accurate camera switching SMPTE 424M (2.97Gbps) - 3GSDI: 1920x1080p @ 50, 59.94, 60fps SMPTE 292M (1.485Gbps) - HDSDI: 1920x1080p @ 23.97, 24, 25, 29.97, 30fps 1920x1080i @ 50, 59.94, 60fps 1280x720p @ 50, 59.94, 60fps Image Mirror/Flip, Digital Zoom, Digital Image Stabilizer Microphone/Line Level input with 2.5V Mic bias Color Matrix control: Style, Master level/phase, Color level/phase Environmental: -10°C ~ 50°C Includes 12v power supply, can operate 12V+/-10% with a 6 watt draw Applications: Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live
Official Specifications
- Part Number: Description & Horizontal AOV
- CV-4804.4-12MP (Included): 4.4mm, F2.7 12MP M12 Lens; Horiz AOV = 81°
- CV-4712.0-3MP: 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 29.7°
- CV-4716.0-2MP: 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 22.6°
- CV4812-8MP: 12.0mm F1.8 8MP M12 Lens - 29.9°
- V-555.0-5MP-VIS-IR M12: 5.0mm F2.0 5MP M12 Lens - 88.7°)
- V-557.6-5MP-VIS-IR M12: 7.6mm F2.0 5MP M12 Lens - 55.3°
Official Product Data
- Model: CV568
- Category: Mini Cameras
- UPC: 801813194135
- HS Code: 8525.89.0000
- Price: 849.00 EUR ex VAT
