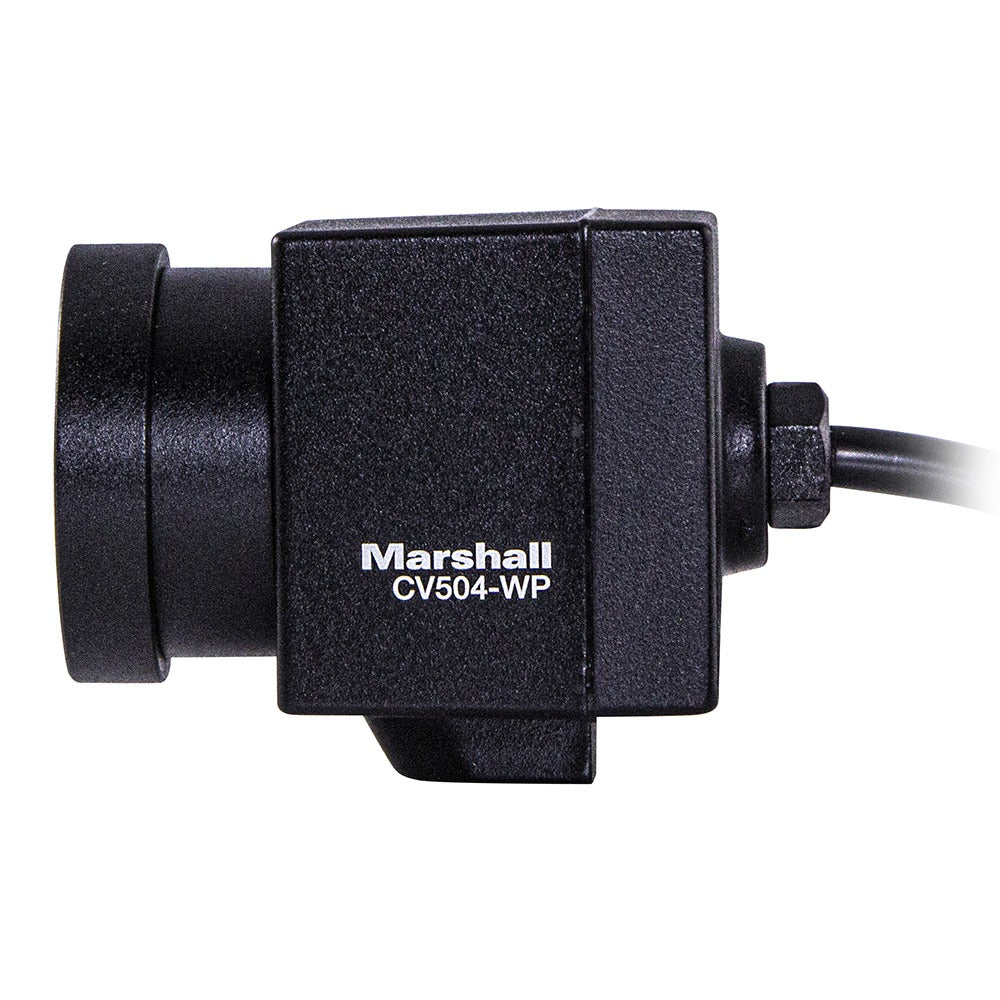

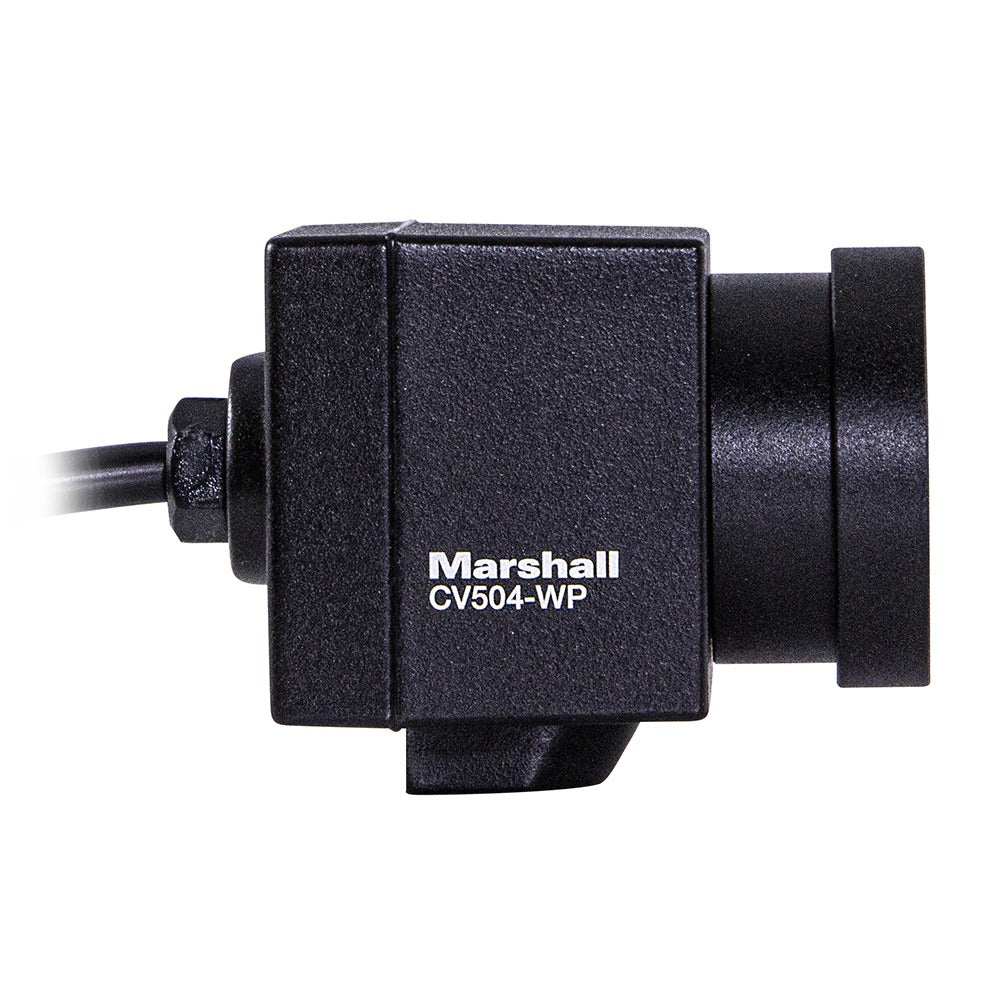

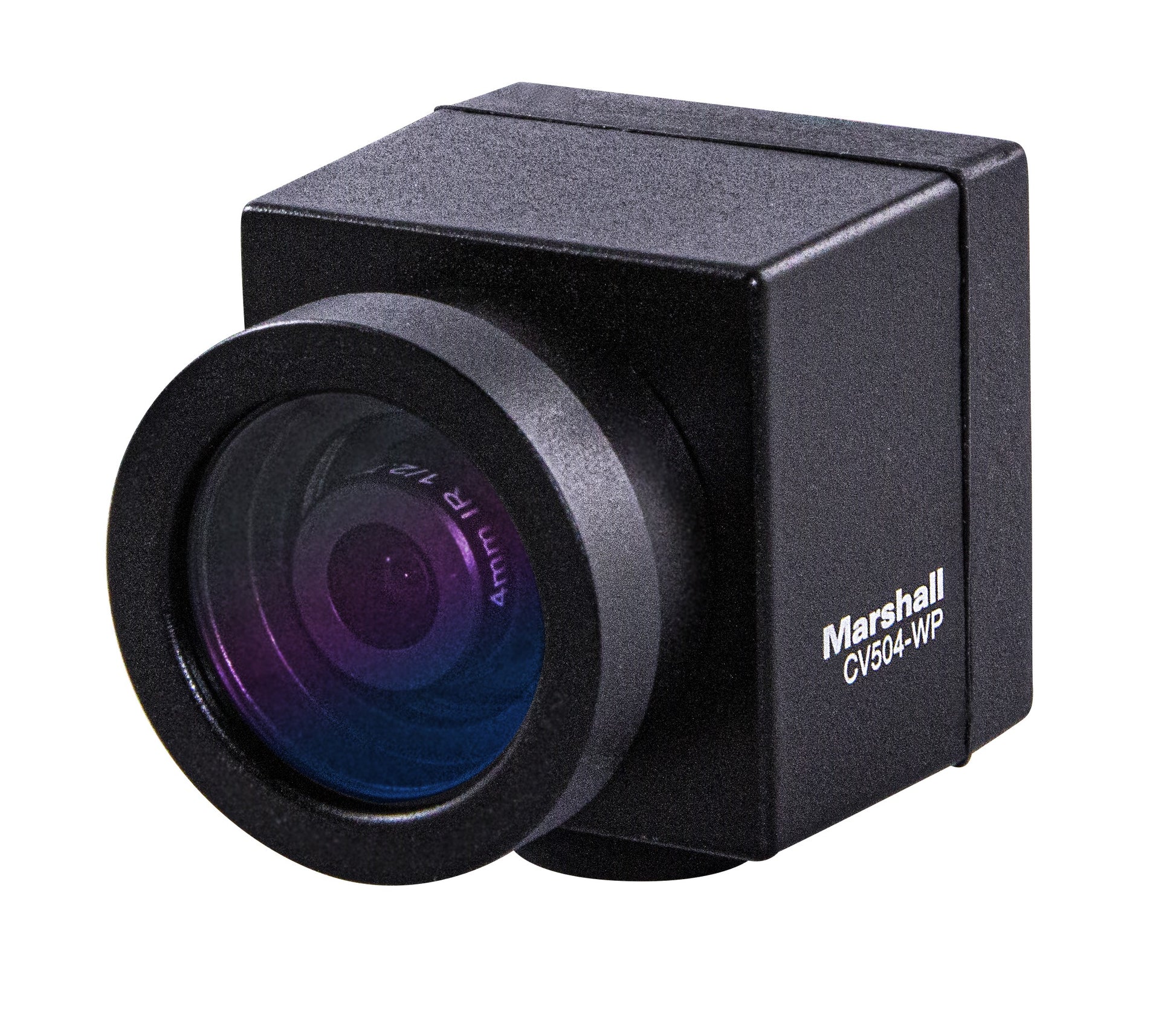

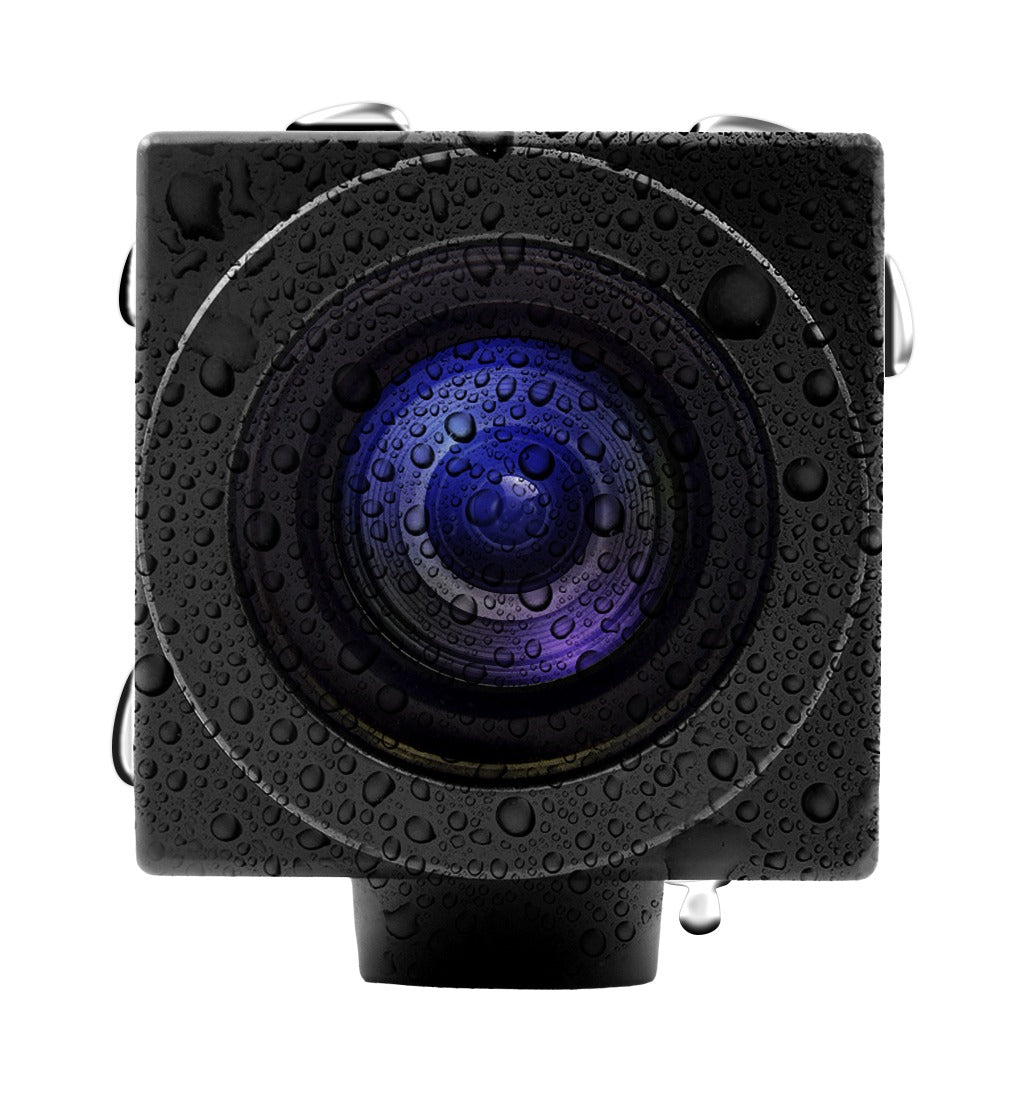

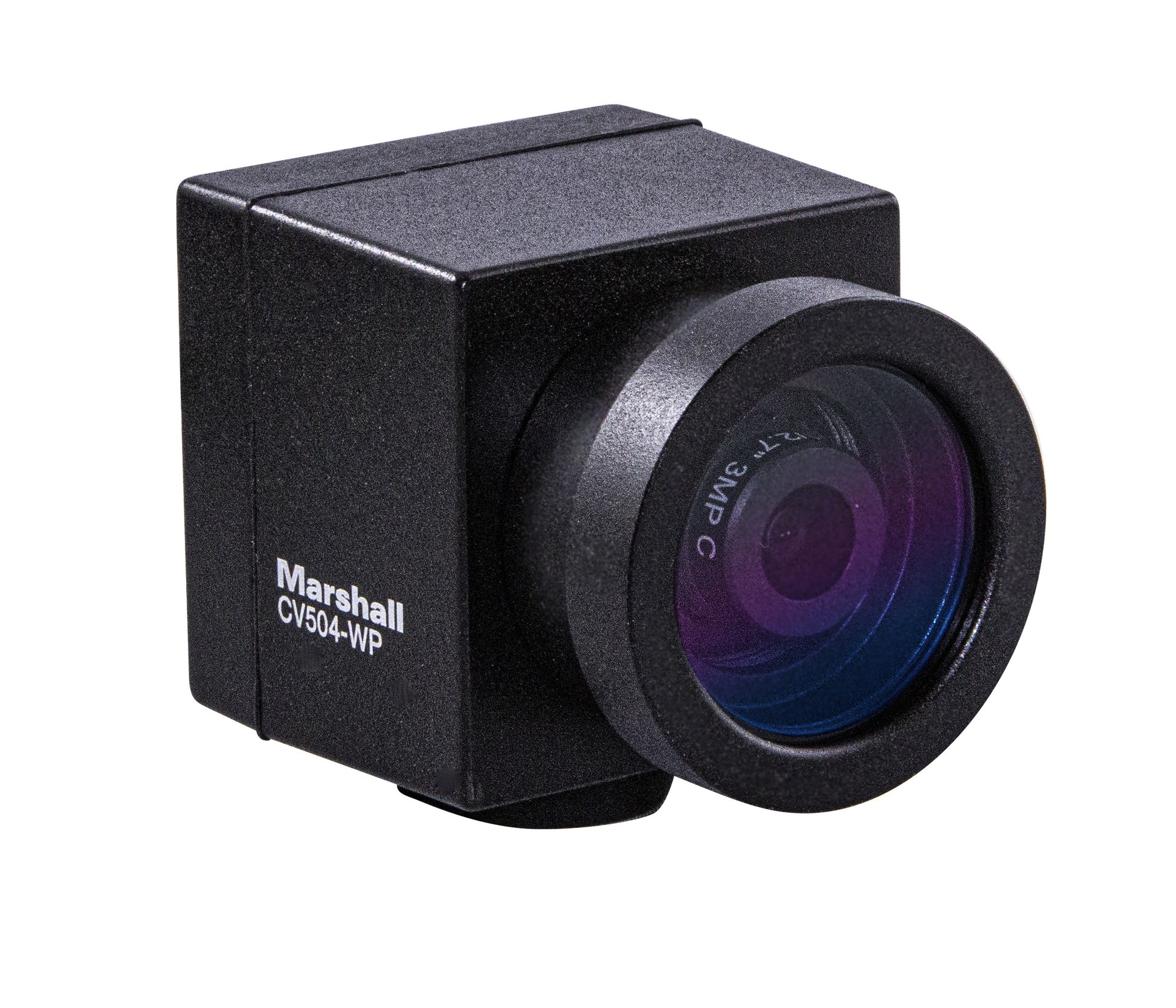

The Marshall All-Weather CV504-WP Micro Camera is built around a next generation Sony sensor with over 2 million pixels, larger pixel size and interchangeable lenses. CV504-WP delivers exceptional video performance with accurate color even in bad weather and dirty environments with ability to see into IR wavelengths from a very discreet durable weatherproof build.
Overview

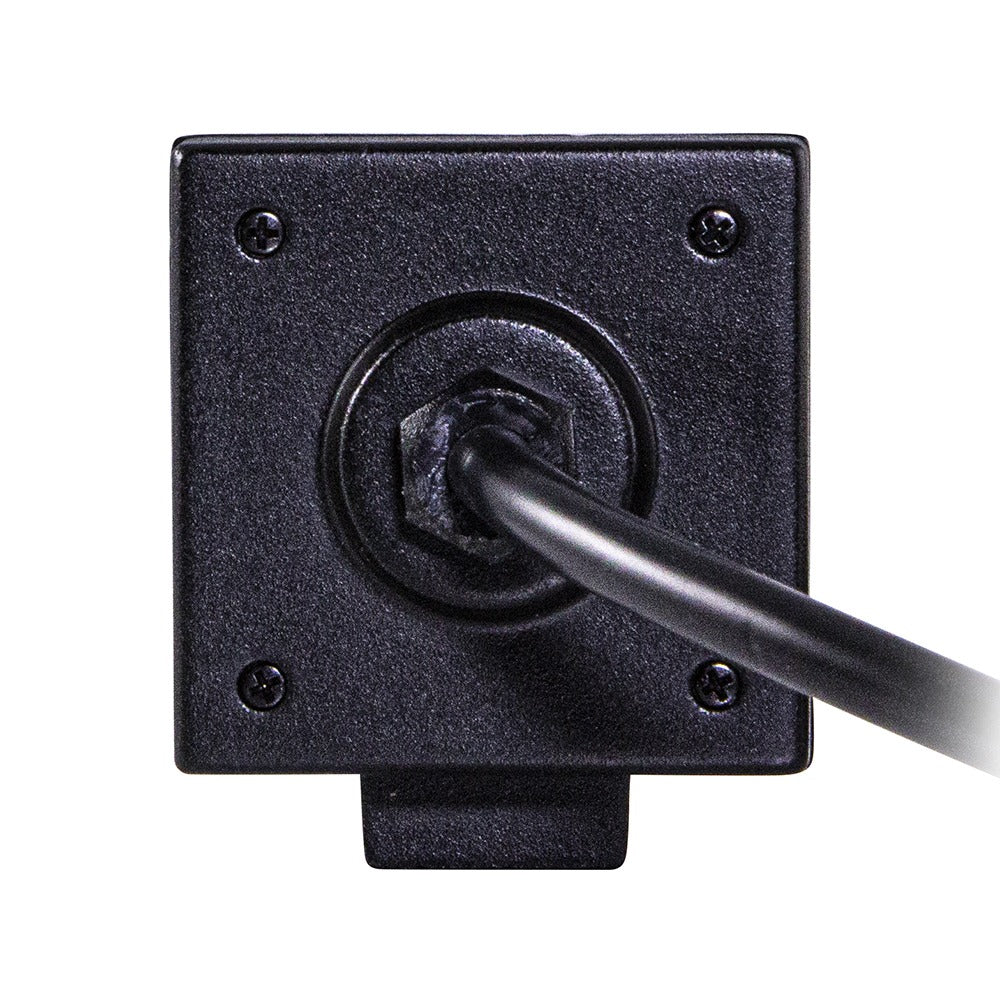

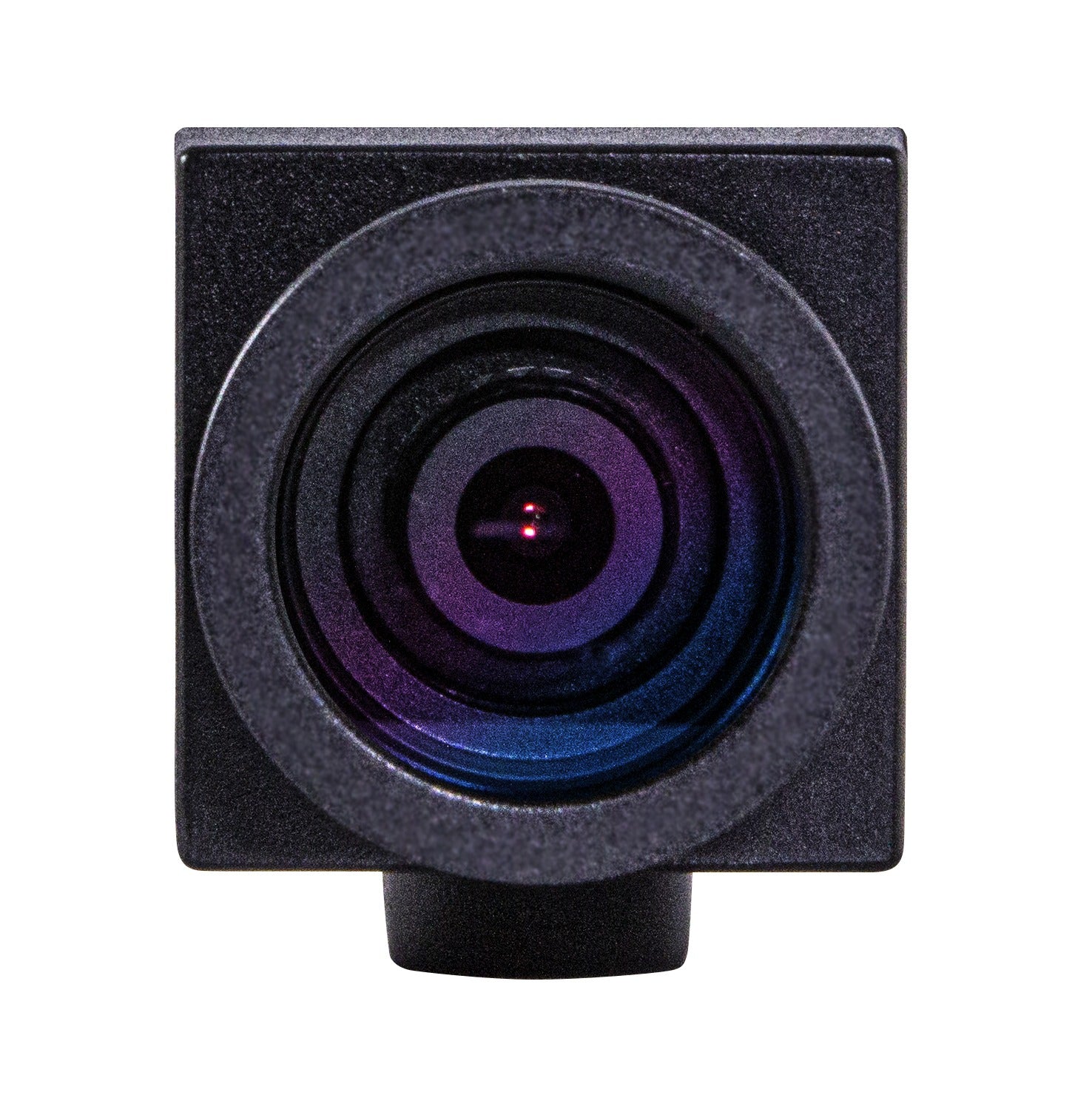

New Sony 1/2.8" (6.46mm) Solid-State Image Sensors The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness. Interchangeable M12 Lenses Marshall CV504 cameras come with a high-quality 4.0mm (78.8° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.. Durable, Flexible, Powerful The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability. Broadcast Performance Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners. 2.2 Megapixel Sony sensor with square pixel array and larger pixels CV-4704.0-3MP - Interchangeable 4.0mm lens with 78.8° Horizontal AOV 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability 1920x1080p, 1920x1080i & 1280x720p resolutions available Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sources such as Cyanview, Skaarhoj and more Power Draw: 2.64W (max 6W) with 7~15V flexibility Applications: The Micro CV504-WP is suitable for use in outdoor 3GSDI workflows where image quality and versatility are of utmost concern, including live broadcast, productions, concerts, courtroom capture, corporate video, government assembly, sportscast, newscast, reality television, eSports, live performance, house of worship and many more.
Official Specifications
-
Part Number: Description & Horizontal AOV
-
CV-4702.8-3MP-IR: 2.8mm, F2.6 3MP M12 lens; Horiz AOV = 102.7° | additional purchase of CV-M12-RING-SET is required
-
CV4804-8MP: 4.0mm F1.8 8MP M12 Lens - 74.1°
-
CV4808-8MP: 8.0mm F1.8 8MP M12 Lens - 37.8°
-
CV4812-8MP: 12.0mm F1.8 8MP M12 Lens - 25.3°
-
Part Number: Description & Horizontal AOV in degrees
-
CV-4706-3MP-IR: 6.0mm, F2.4 3MP M12 lens; Horiz AOV = 52.2°
-
CV-4708.0-3MP: 8.0mm, F1.8 3MP M12 lens; Horiz AOV = 38.5°
-
CV-4712.0-3MP: 12.0mm, F1.8 3MP M12 lens; Horiz AOV = 24.9°
-
CV-4716.0-2MP: 16.0mm, F1.8 2MP M12 lens; Horiz AOV = 18.4°
Official Product Data
-
Model: CV504-WP
-
Category: Mini Cameras
-
UPC: 801813230932
-
HS Code: 8525.89.0000
