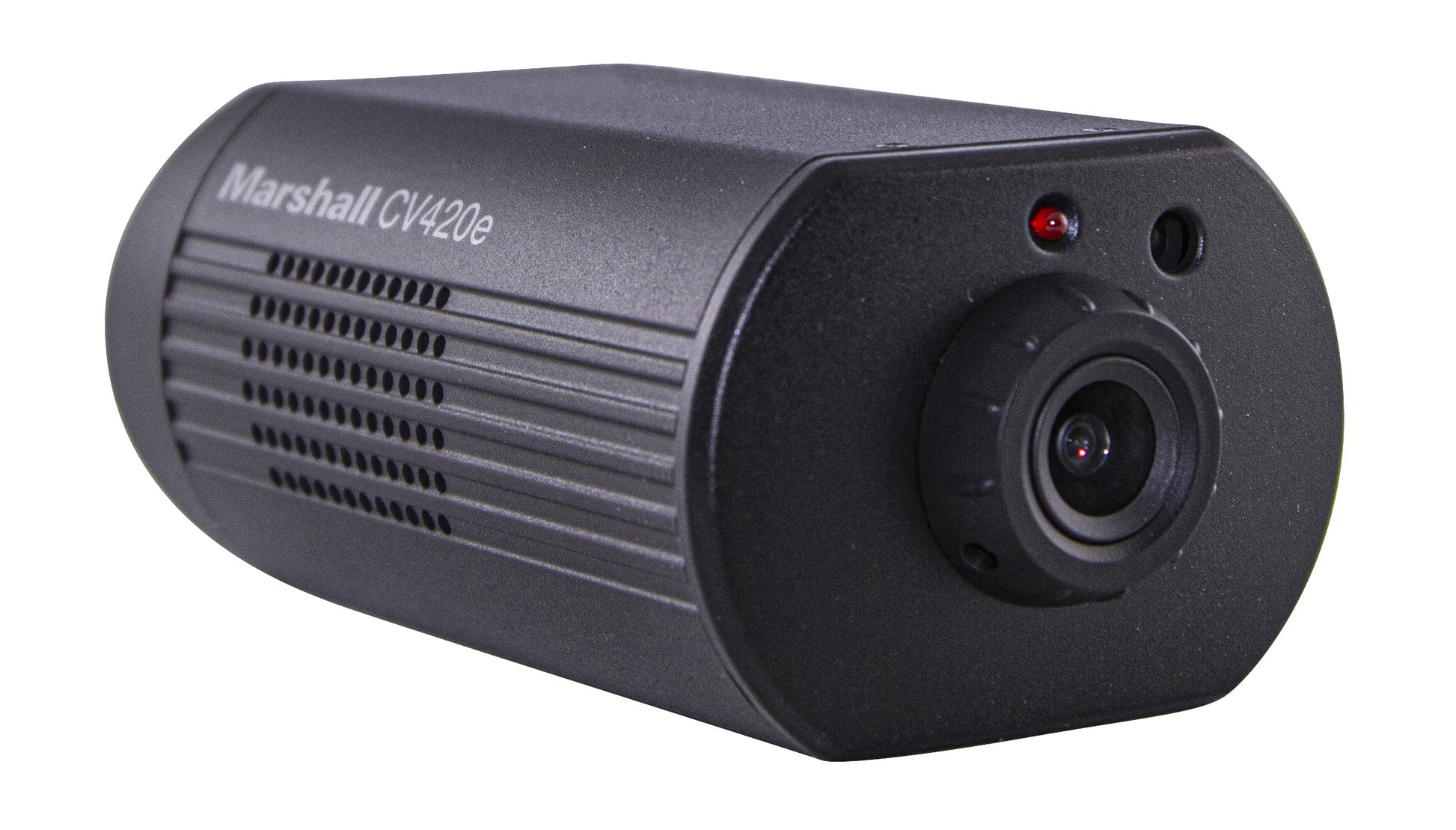

Compact 4K60 Camera with wide AOV lens and ePTZ functionality. The CV420e produces up to 3840x2160p (UHD) up to 60 frames per second with digital pan, tilt and zoom within a large 1/1.8 inch Sony 4K sensor with 9.2 million pixels, larger pixel size and selectable spherical correction.
Overview

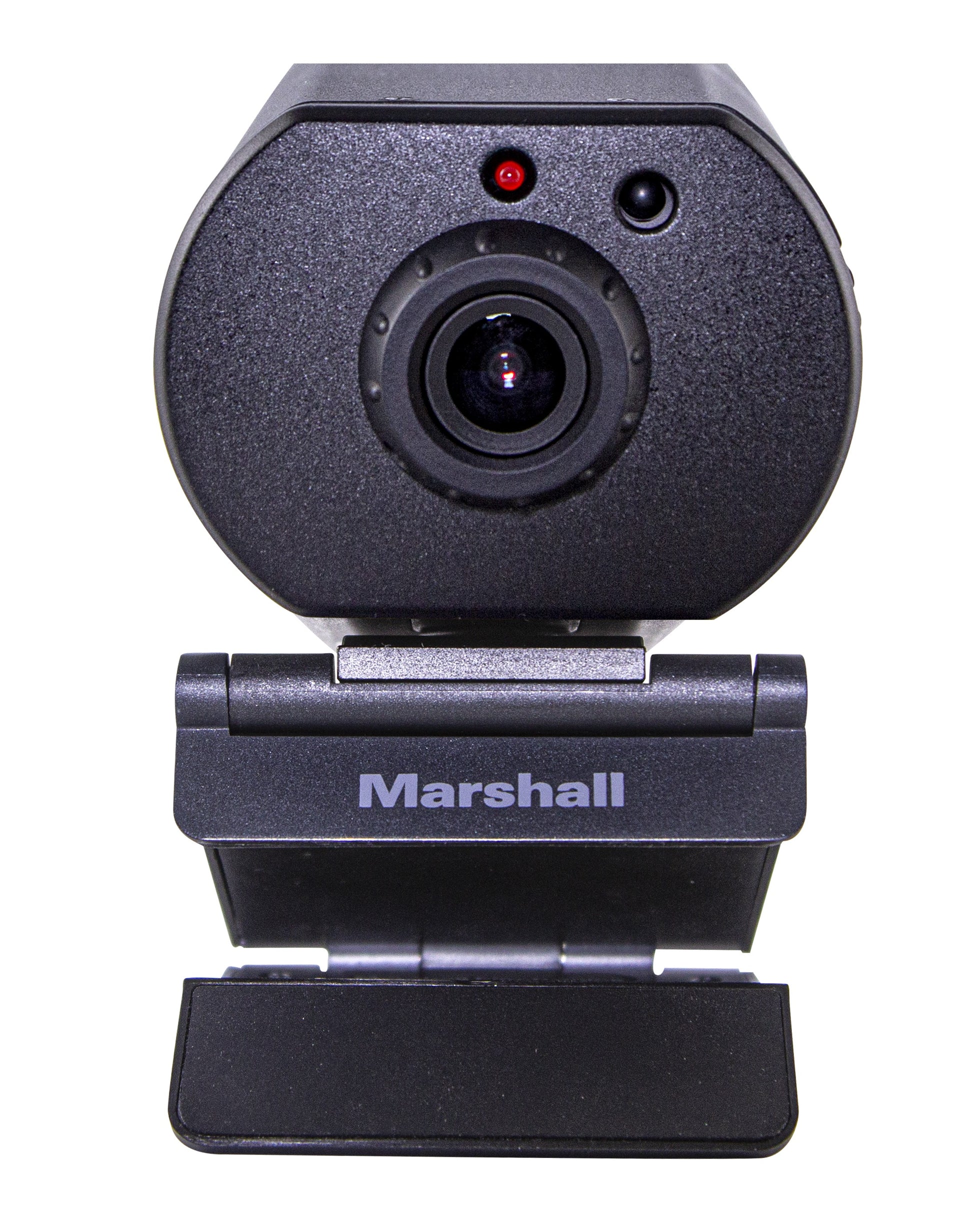

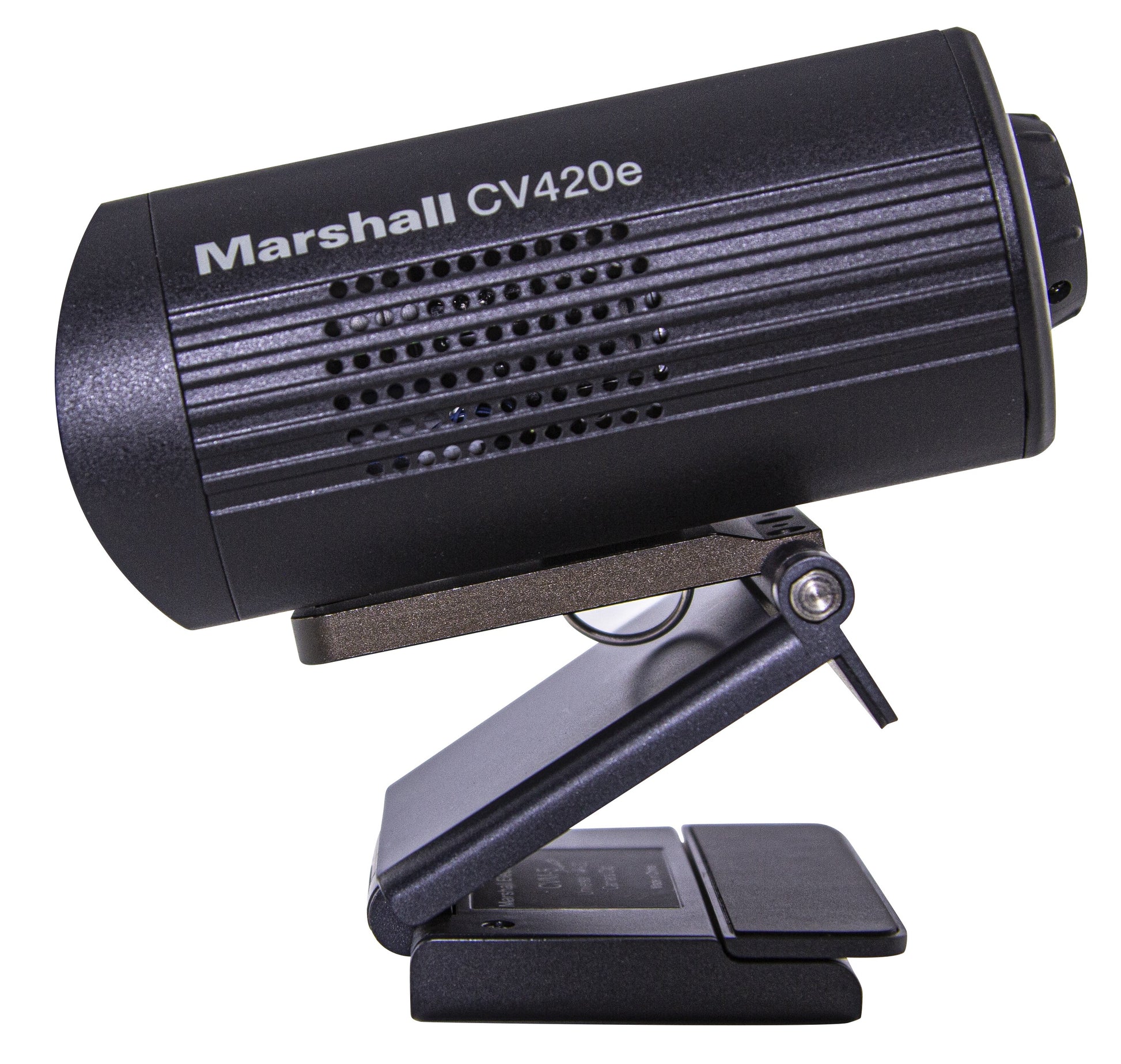

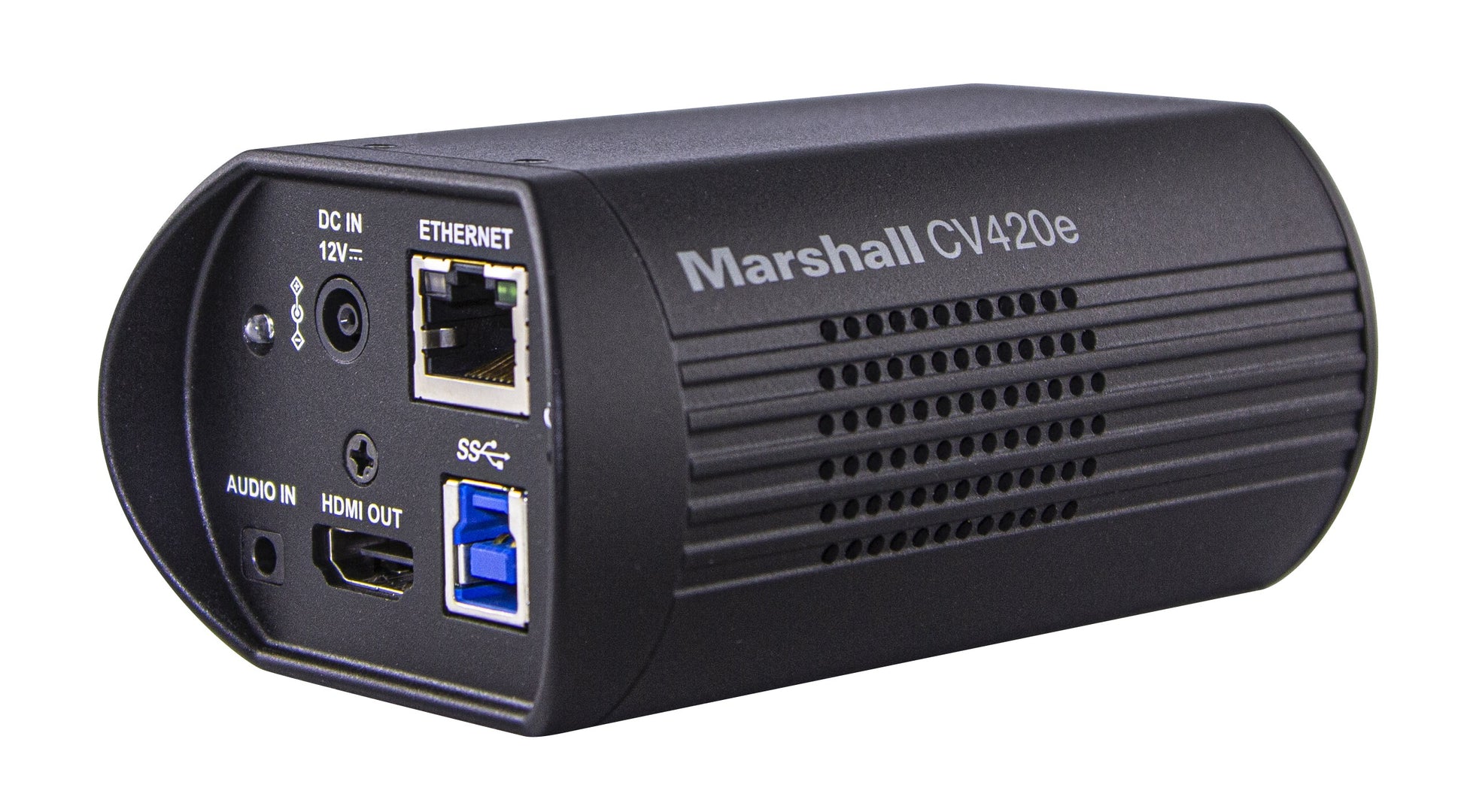

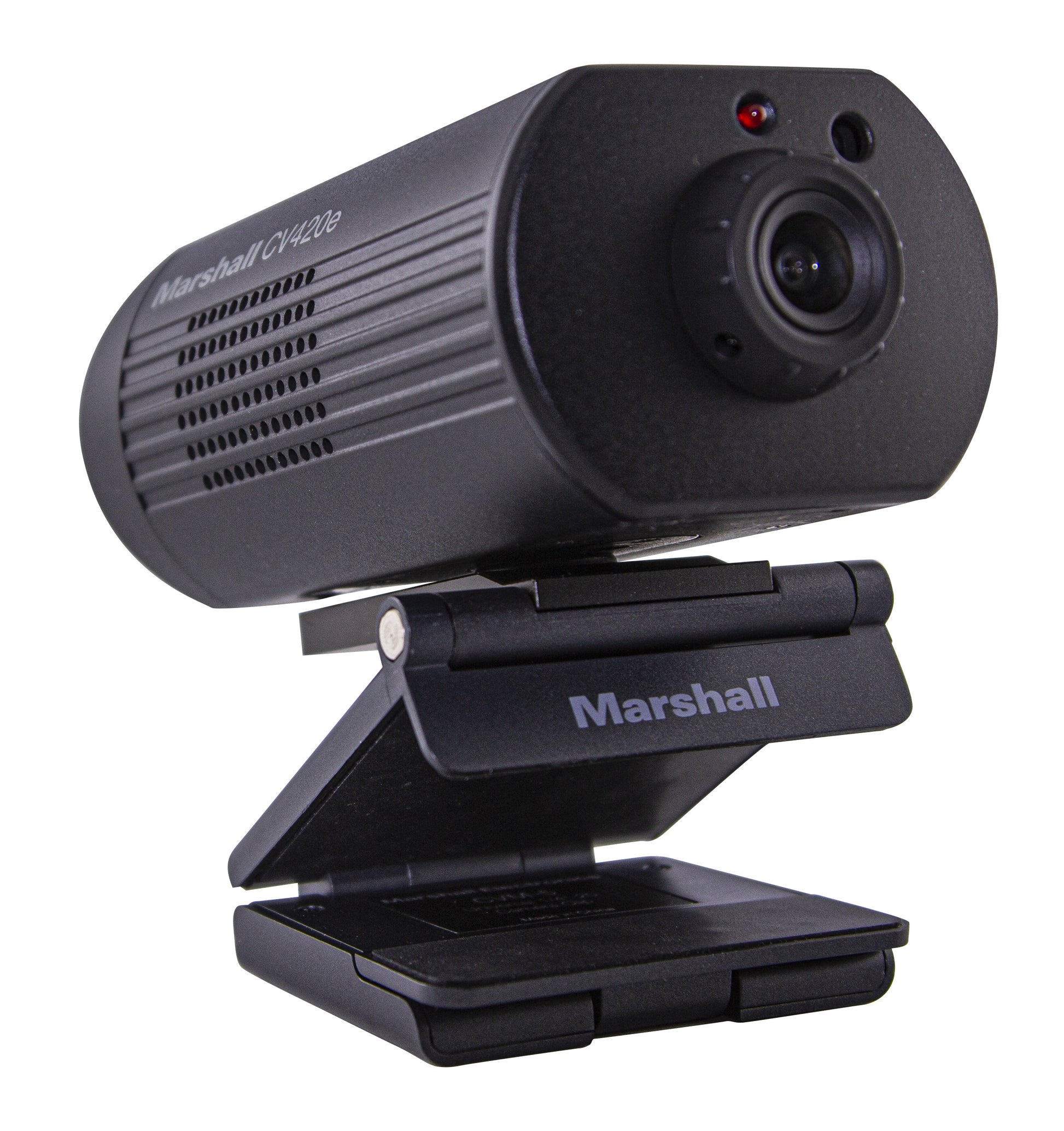

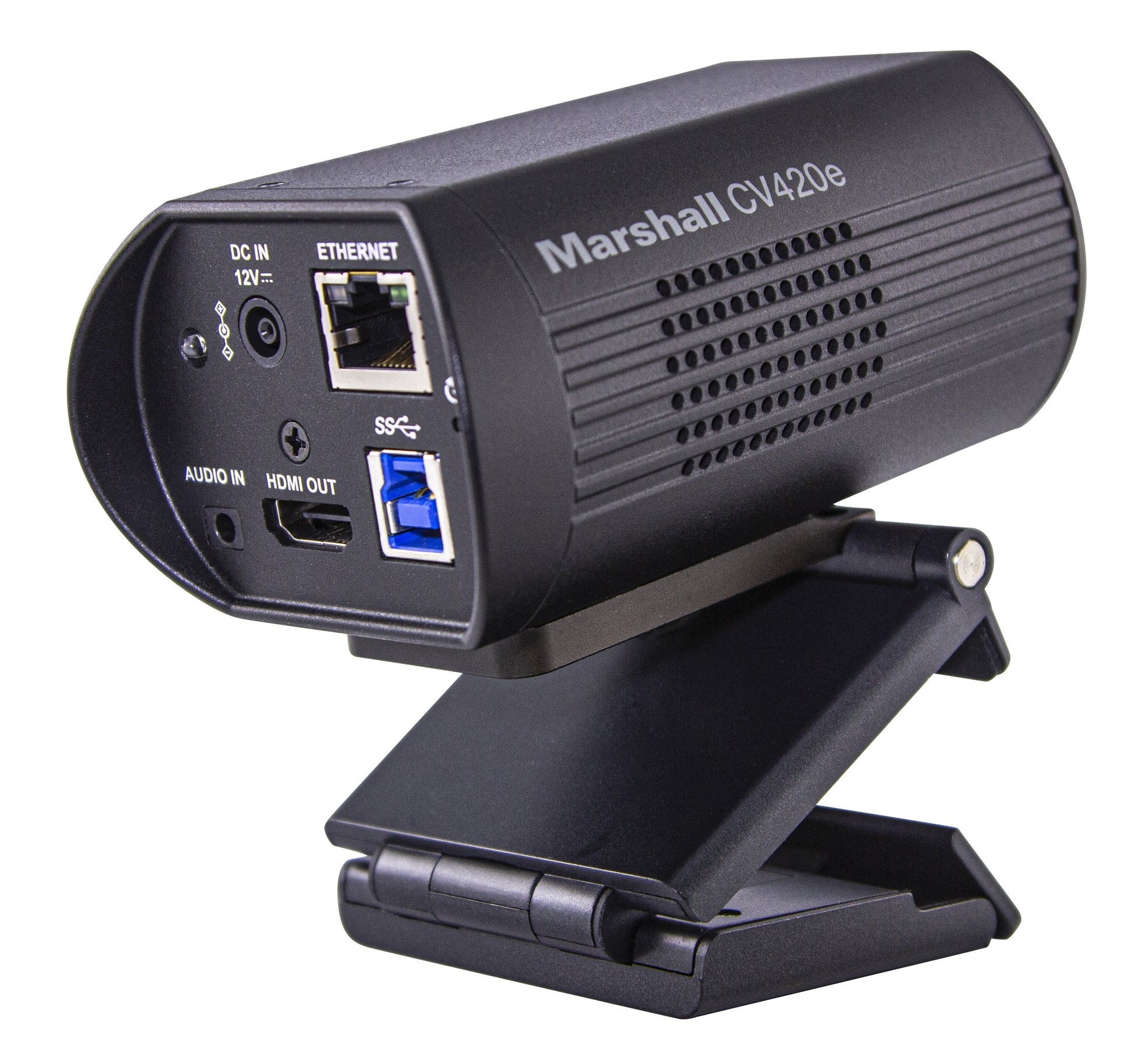

Crystal Clear 4K Images with wide AOV Incorporating a 1/1.8" 4K sensor with over 9 million pixels delivers unparalleled clarity and performance even in challenging light conditions. Starting at a 100° angle-of-view CV420e delivers an ultra-wide perspective with no curvature. Flexible Workflow Options The flexibility to stream content over IP (HEVC) with an HDMI simultaneous output, or USB3.0 with a simultaneous HDMI output offers flexibility for media streaming and collaboration from one camera. Stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content and workflow manipulation. ePTZ with digital pan, tilt and zoom Utilizing a large Sony 1/1.8" 4K sensor opens optional ePTZ maneuverability of HD images within the 4K sensor space. Controllable remotely via VMS, GUI, or Visca over IP command from 3rd party control decks as well as UVC commands over USB. Hardware control from Marshall VS-PTC-IP controller via IP and locally by IR remote included in box. Durable, Flexible, Powerful The CV420e is built into a compact and durable body with rear I/O protection wings. Marshall CVM-5 monitor mount and desktop stand is included (free) as well as IR remote for local setup and control. Compact, durable and powerful tool for a wide variety of streaming applications. Sony 1/1.8" 4K sensor 9.2 million pixels with large pixel size 4.5mm lens with 100° H.AOV (no curvature) + 12x clear digital zoom ePTZ maneuverable with HD images within UHD sensor for FOV adjustment Control options: IR remote included, CGI commands, Visca over IP, UVC and ONVIF Video output up to 3840x2160p at 60fps, 1080p, 1080i and 720p Video output options of USB + HDMI or IP + HDMI Multiple IP simultaneous streams (HEVC + 2x H.264) Low Light sensitivity (0.05 Lux) and Wide Dynamic Range 3.5mm Microphone & Line Level audio input for IP and HDMI streams Environmental: operating 0°C ~ 40°C, storage -20°C ~ 60°C Power Consumption: 11W via PoE, and 10W via DC (12V) Minimum Object Distance (M.O.D.) – 30cm Camera Applications: Broadcast, Production, Sports, Racing, Newscast, Weathercast, Live Events, Streaming, Aerospace, House of Worship, Courtroom, Government, Education, eSports, Nature, Concert, Podcast, Studio, Stage, Science and Technology
Official Specifications
-
Sensor: Sony IMX334LQR-C 1/1.8" 9.17 MP CMOS
-
Video Format: Resultion : 4K/1080p/720p Frame Rate : 59.94/50/29.97/25
-

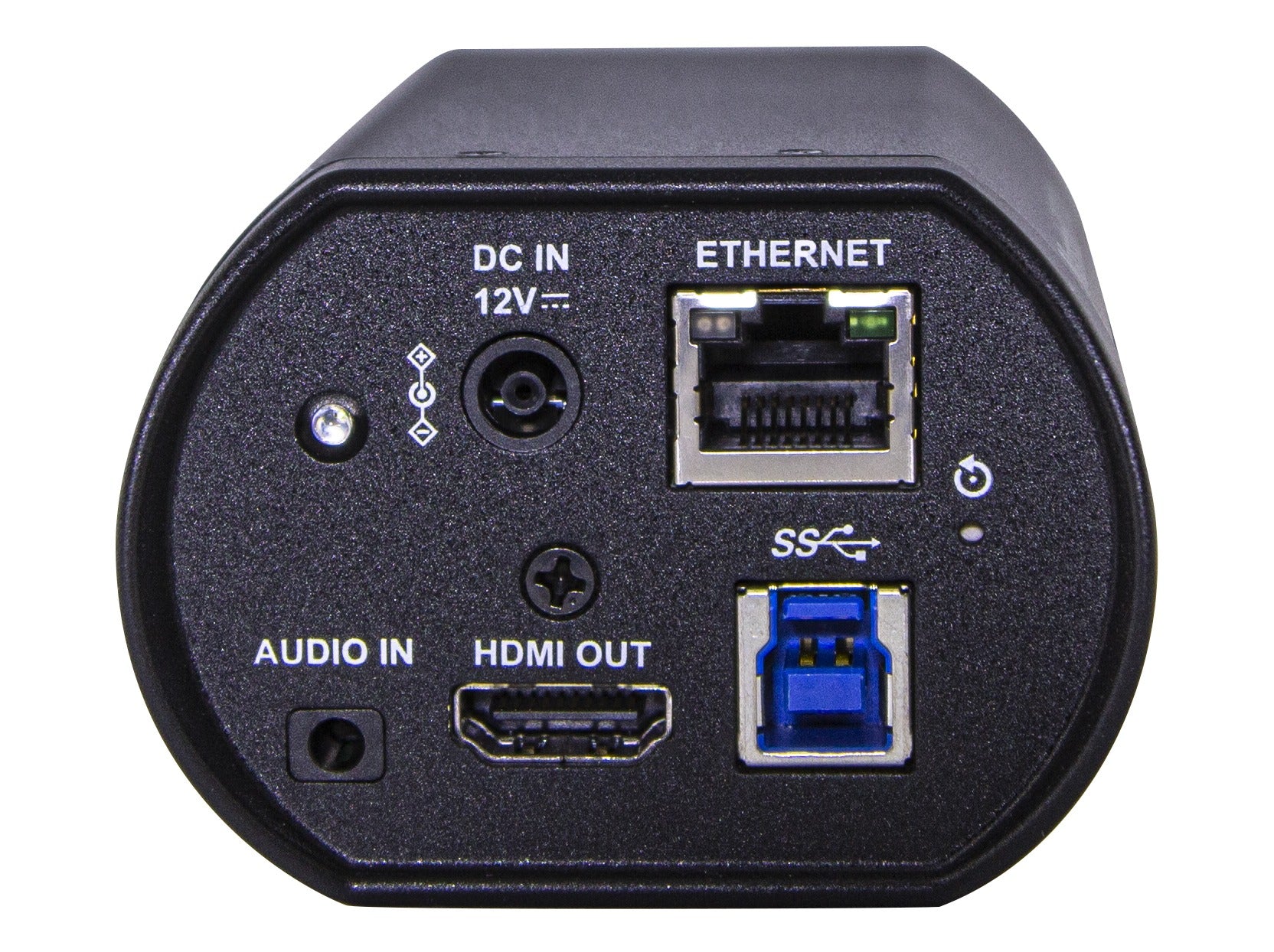

Video Output (HD) Interface: HDMI 2.0, Ethernet, USB 3.0(USB 2.0 compatible)
-
Optical Zoom: No
-
Horizontal Viewing Angle: 102°(Horizontal) typical
-
Aperture: F1.6
-
Focal Length: 4.57mm typical
-
Shutter Speed: 1 ~ 1/10,000 sec
-
Minimum Object Distance: 30 cm typical
-
Focus System: Manual
-
Gain Control: Auto, manual
-
White Balance: Auto, manual
-
Exposure Control: Auto, manual
-
WDR: Yes
-
3D NR: Yes
-
Image Flip: Yes
-
Preset Positions: 256
-
Control Interface: Ethernet / USB
-
Control Protocol: VISCA over IP/ ONVIF/ UVC
-
Tally Light: Yes
-
PoE: PoE (IEEE802.3af)
-
Video Stream: RTSP / RTMP / RTMPS / MPEG-TS / SRT
-
Video Compression: HEVC / H.264 / MJPEG
-
Audio Input: Line In/Mic In, Phone Jack 3.5mm x1
-
Audio Output: HDMI 2.0, Ethernet, USB 3.0
-
IR Receiver: Yes
-

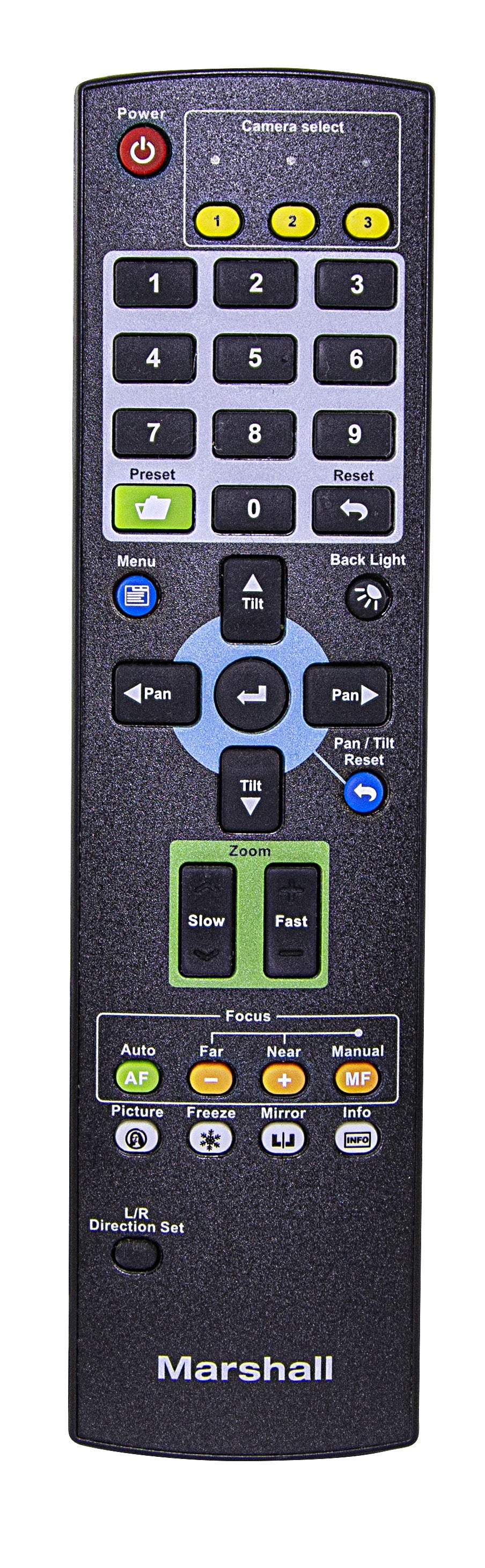

IR Remote Control: Yes
-
Power Consumption: DC : ≦11W ，PoE : ≦12W
-
Weight: 350g typical
-
Dimensions: 113 x 70 x 51 mm typical
Official Product Data
-
Model: CV420e
-
Category: Compact Cameras
-
UPC: 801813230291
-
HS Code: 8525.89.0000
