Marshall CV380-CS, Compact 4K30 Camera (6GSDI & HDMI)
Marshall CV380-CS, Compact 4K30 Camera (6GSDI & HDMI)
The Marshall CV380-CS offers true 4K resolution in 4096x2160p at 30fps, and comes packaged in a compact, sturdy, discrete design that features a wide range of picture adjustment controls. Available simultaneous outputs include 6G/3G/HD-SDI as well as HDMI for flexible application.
Overview

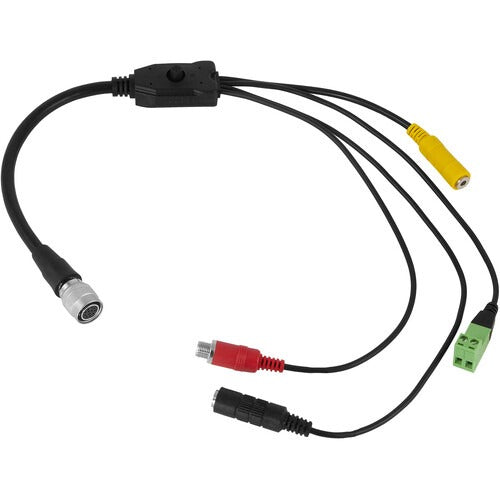

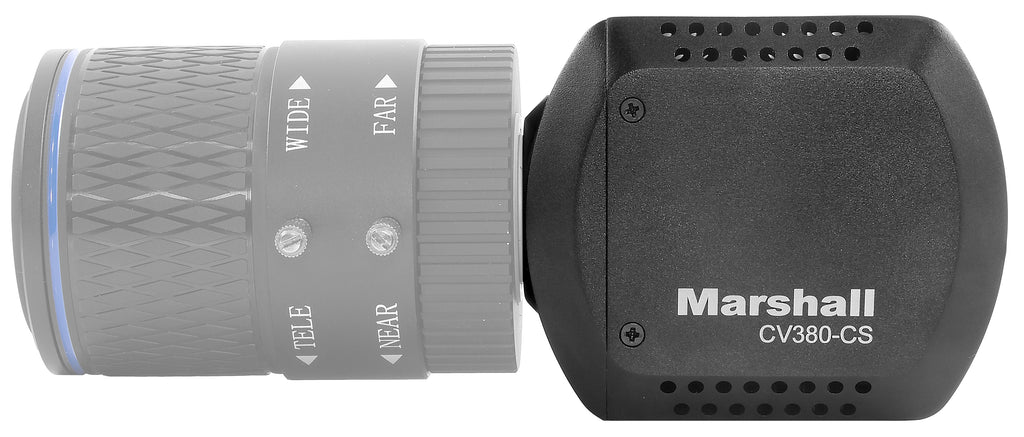

6G-SDI (single BNC) & HDMI 1.4 outputs 8.5 Megapixel (1/2.5") sensor (4:2:2) CS/C-mount for Varifocal or Fixed lenses Color Matrix function: Style, Master Level, Master Phase, Color Level, Color Phase TRS stereo audio inputs (mic & line level) Audio Line input does not provide power to the audio device. Mic will use Mic Bias 1.7V and up to 3mA max current Remote adjust and match through RS485 (Visca) or OSD menu joystick Wide range of broadcast picture adjustment settings 12v power supply, can operate 12V+/-10% with a 6 watt draw Rear view of CV380-CS The Marshall CV380-CS is a compact, true 4K camera built around an 8.5-Megapixel, 1/2.5-inch sensor that delivers ultra-crisp, clear true 4K resolution in 4096x2160p. The CV380-CS contains a single 6G (BNC) output with 6G/3G/HD-SDI capability and a simultaneous HDMI output. The flexible CS/C lens mount offers a wide variety of lens options with DC Auto-Iris plug-in ability. The CV380-CS is a versatile and powerful camera solution in an easy-to-understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma, and more. The CV380-CS delivers ultra-clear 4K or UHD video while maintaining a discrete presence. Use it to capture wide 4096x2160 (4K) video and pull HD frames in post, or as a flexibility spill-over shot, or for unique points-of-view and more. CV380-CS Applications: Broadcast Sports, Broadcast Television, Broadcast News, House of Worship, Courtroom, Government Assembly, Live Music & Events, Studio Production, Remote Learning, ProVideo, Broadcast Production, Cinematic Production
Official Specifications
- Part No.: Megapixel Rating Mount Type Focal Length Horizontal AOV on CV420 (1/1.7") Iris Focus F-Stop M.O.D.
- CS-2.8-10MP: CS 10MP 2.8mm 105.6° Manual F1.6 0.3m
- CS-3.2-12MP: 12MP CS 3.2mm 131° Fixed Fine Tune F2.0 0.3m~∞
- CS-3816-8MP-V2: CS 8MP 3.8~16mm 84°~23° (1/2.5") DC (4 pin) F1.4 (W) ~ 1.6 (T) 0.5m~∞
- CS-5.0-12MP: 12MP CS 5.0mm 87° Fixed Fine Tune F2.0 0.3m~∞
- CS1150-8MP: 8MP CS Mount 11~50mm 45°~10°approx DC Auto (4 pin) F1.4~close 0.8m
- C1670-8MP: 8MP C Mount 16~70mm 30°~7°approx DC Auto (4 pin) F1.4~close 0.8m
Official Product Data
- Model: CV380-CS
- Category: Compact Cameras
- UPC: 801813190939
- HS Code: 8525.89.0000
- Price: 1299.00 EUR ex VAT
