Combines live video sources for a more engaging presentation
Offering two HDMI inputs and one USB webcam input, USB Fusion can switch between sources or combine two inputs simultaneously into one output (picture-in-picture or side-by-side) for capturing into popular software via its USB 3.0 interface.
Official Features
Supports two HDMI inputs and one USB webcam input up to 1080p at 60fps
Switches between sources or combines two simultaneously into one output
Companion tablet app for more advanced features
Official Specifications and Features
Interface
Input Interface&Output Interface
Audio Input&Output Interface

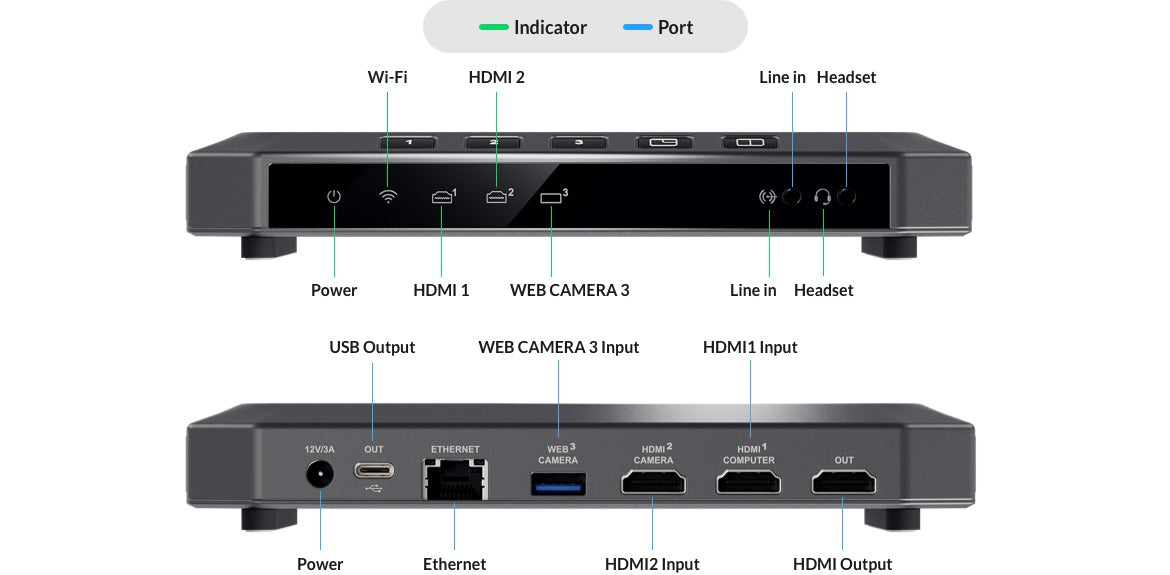

2x HDMI 1.4 Type-A input, 1x USB 3.0 Type-A input, Supports input resolution up to 1920x1080p, 60fps, 1x USB 3.0 Type-C output, 1x HDMI 1.4 Type-A output
3.5mm audio jack for line in and headset
Included Software
Input Interface&Output Interface
USB Fusion App
Others
Automatic, driver-free installation for plug-and-play, On-device buttons and LED status indicator, 2-year warranty, Form factor: 186mm (L) x 101.2mm (W) x 30mm (H), HTTP-based APIs for custom integration
