8-ch×7 groups, 2.4G wireless DMX control, pocket fit size, for all standard DMX lights

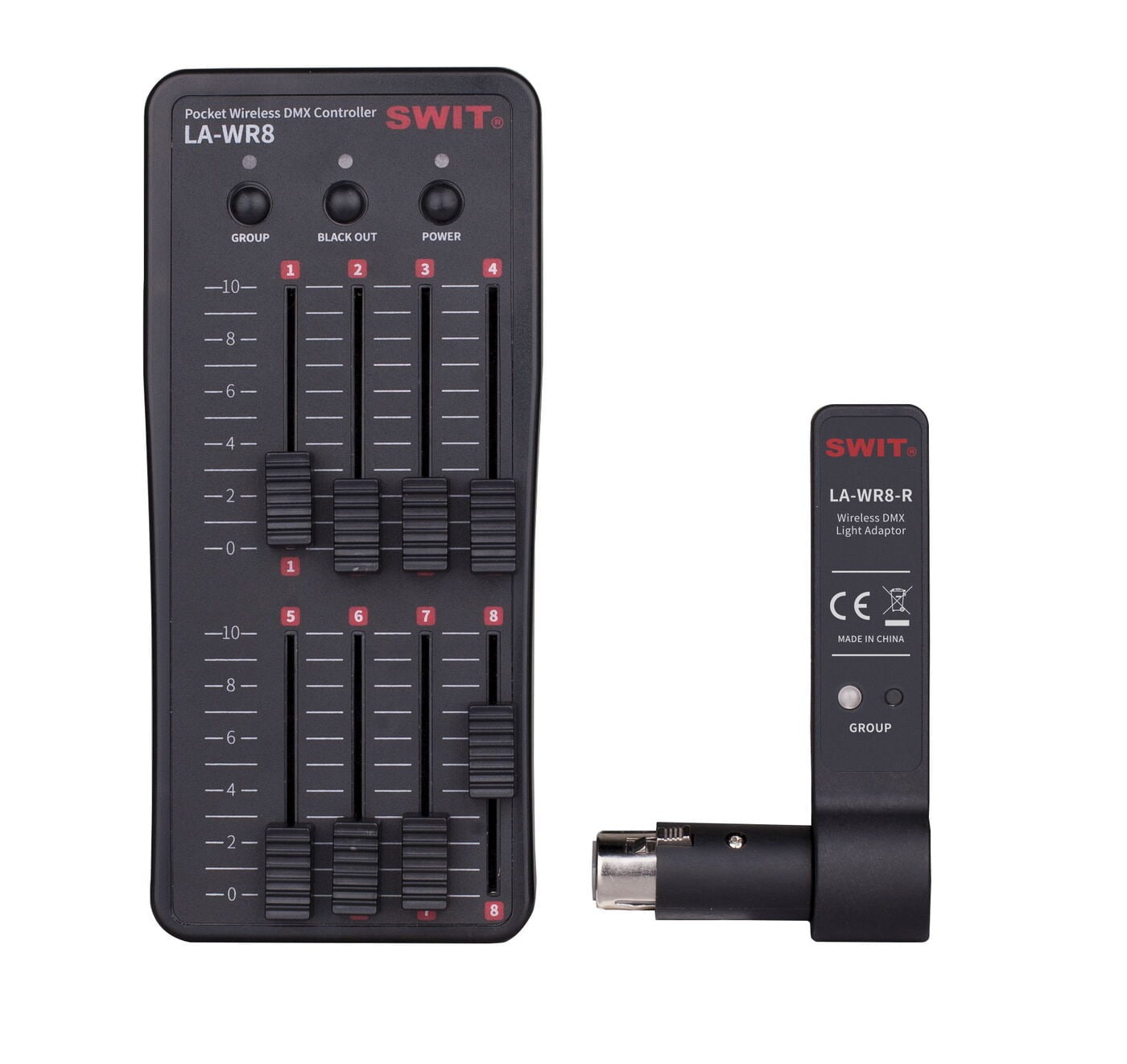

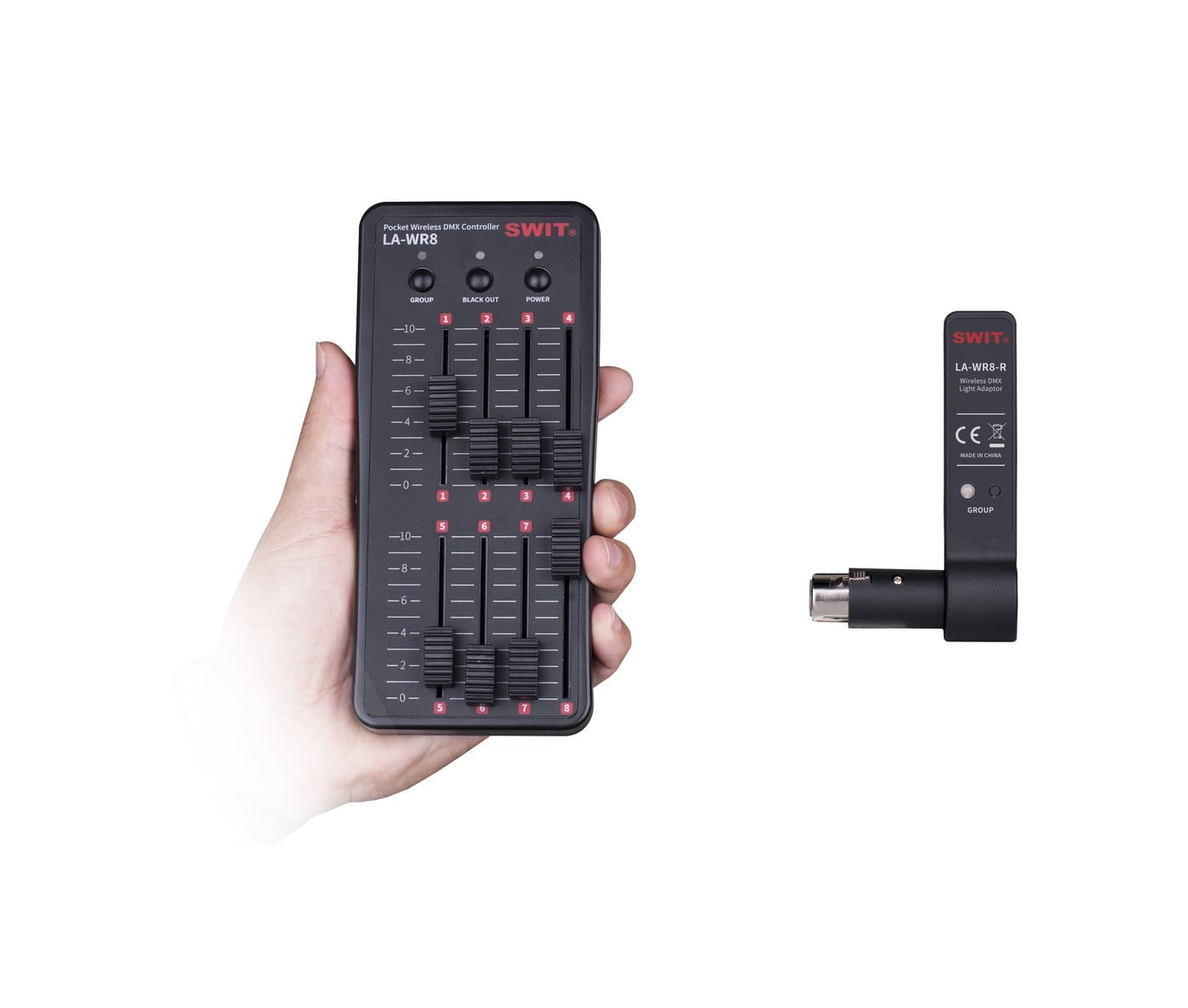

Pocket Wireless DMX Console
Official Features
Pocket Wireless DMX
LA-WR8 is a portable wireless DMX controller for field light kit application, compatible with all standard DMX512 protocol lights, to get rid of complex DMX cable work and large DMX console, and makes the field light kit control easier and quicker. * The “SkyPanel” light indicated in this picture is a product of ARRI Group, and is one of the lights that this wireless DMX controller is compatible with.
2.4G Wireless Quick Connect
Adopt 2.4G wireless transmission, quick connecting, plug and play, anti-interference, 400 meters transmission distance in line of sight. One controller can be connected with multiple light adaptors.
8-ch×7 Groups DMX512 Control
LA-WR8 adopts standard DMX512 protocol, 8 faders and 7 groups switching by 7 colors indicator. (Totally 56 DMX channels) Switch the controller group color the same as light adaptors, and they can be connected and controlled.
Standard 5-pin DMX connector
The light adaptor provides standard 5-pin DMX connector, compatible with all standard 5-pin DMX lights.
Power Supply

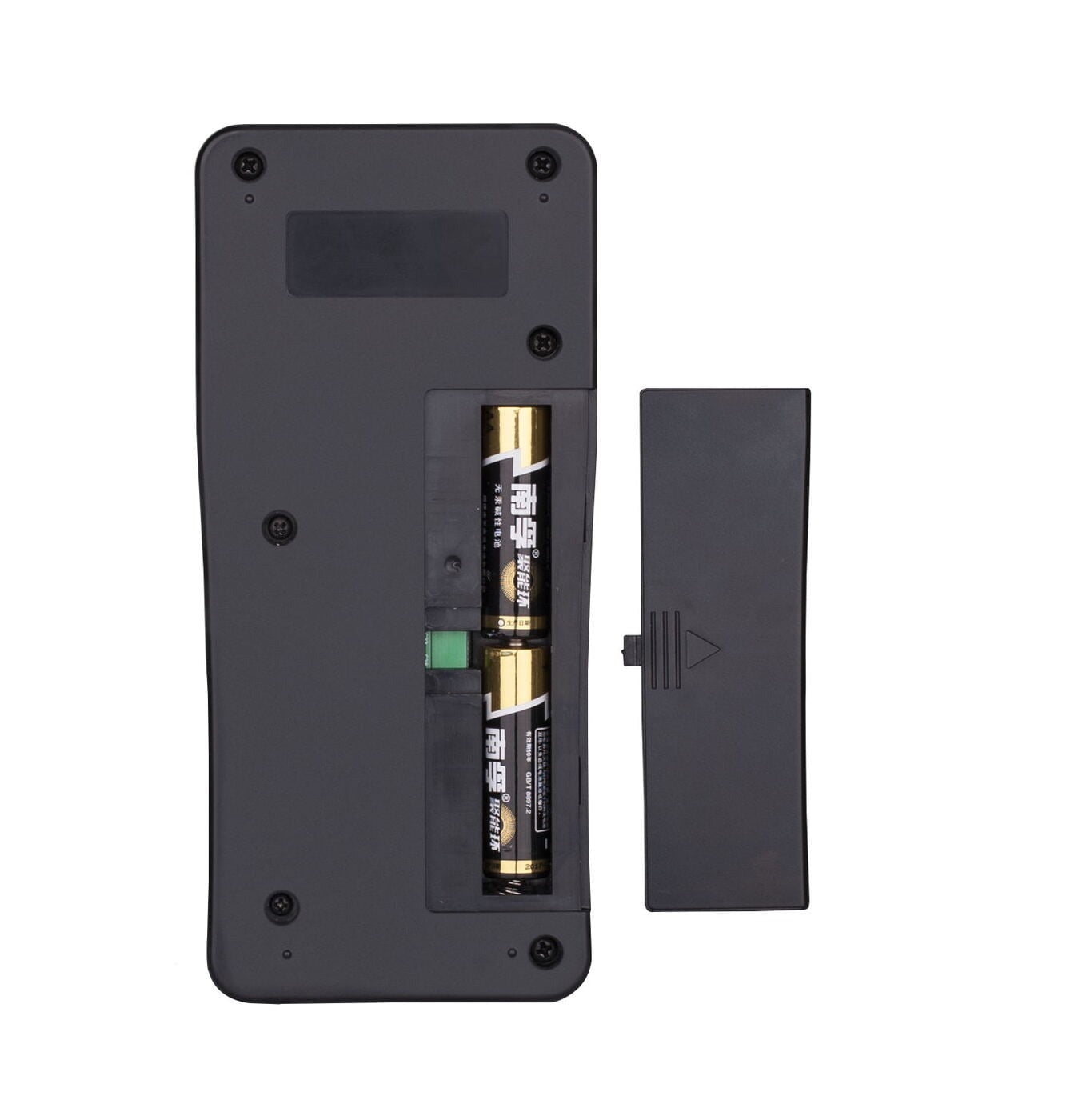

The Controller can be powered by 2x AA batteries, continuously 4 hours working. Support sleep mode if no operation after 1 minute. The Controller supports Micro USB power input as well. You can use USB power bank to power the controller. The Light Adaptor is powered by USB, only 0.5W power. The professional lights like Skypanel, SWIT PL-E series, FL-C series have USB socket on the light.
Official Product Data
-
Model SPU: LA-WR8
-
Division: Lighting
-
Big Category: Lighting
-
Small Category: Light Controller
-
Weight (kg): 0.65
-
Spec 1: Tx+3Rx, DMX
-
Accessory Options: LA-U2M5
Official Specifications
The Controller
| Model |
LA-WR8 |
| Wireless |
2.4G transmission |
| Distance |
400 meters (Line-of-Sight) |
| Input Voltage |
2x AA batteries or 5V Micro USB |
| Power Consumption |
1W |
| Dimension |
184mm×84mm×22mm |
| Weight |
Approx. 274g |

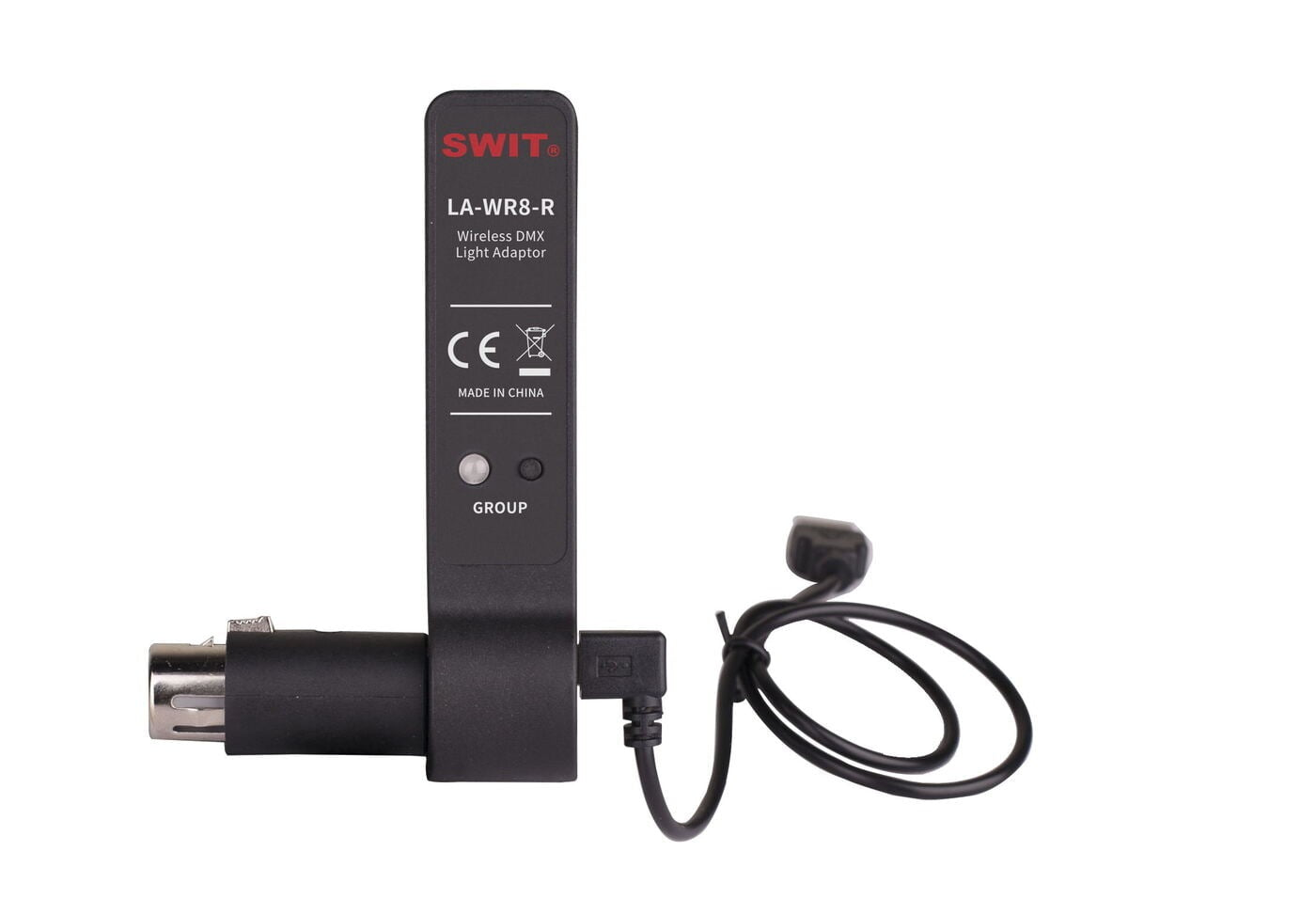

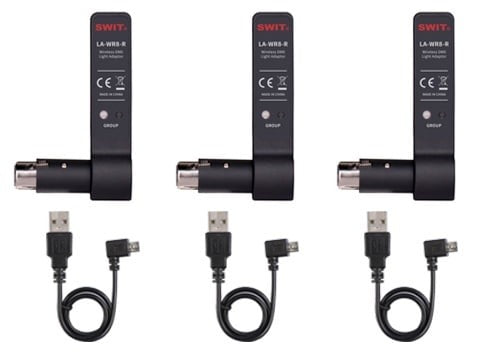

The Light Adaptor
| Model |
LA-WR8-R |
| Wireless |
2.4G transmission |
| Distance |
400 meters (Line-of-Sight) |
| Input Voltage |
5V Micro USB |
| Power Consumption |
0.5W |
| Dimension |
110mm×70mm×12mm |
| Weight |
Net 47g; With package 65g |
