24x channel faders with A/B switch, 6x Submaster, 1x Master, 4 units serial connection to 192-ch
48-ch DMX512 Light Console
Official Features
48-ch DMX Console

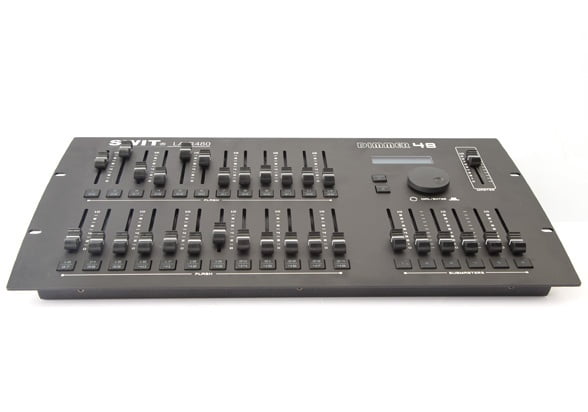

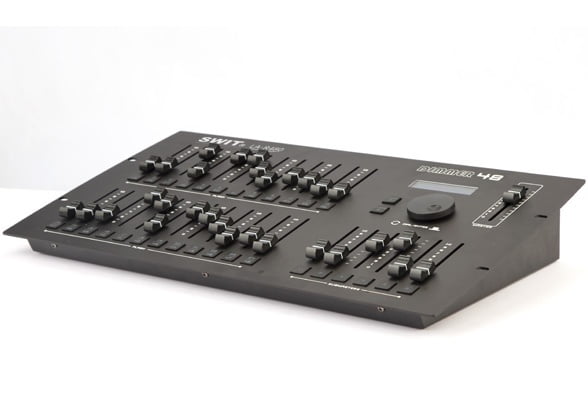

LA-R480 is a Zero-basis operatable standard DMX512 light console of 24 channel faders and Page A/B switch to control 48 channels in total.
Interface

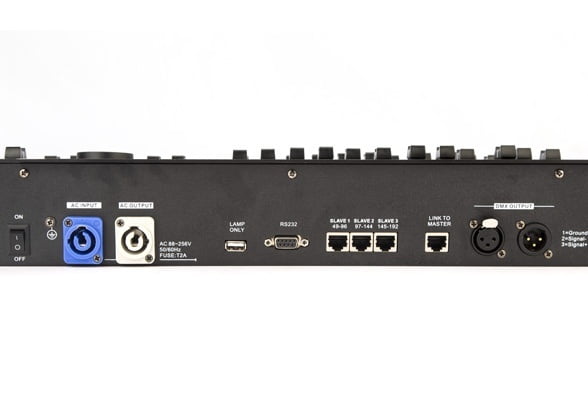

LA-R480 supports AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control

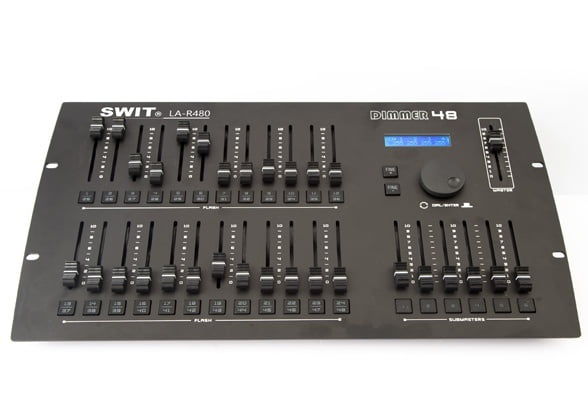

LA-R480 provides 6x Submaster faders to group any of the 48 channels, and a Master fader to control all connected lights. The LCD displays exact values of every DMX channel.
Serial Connection to Max 192-ch
You can connect up tp 4x LA-R480 by RJ45 cables, to expand DMX channels to Max 192. The Master unit is in charge of DMX 1-48, and the Slave units are DMX 49-96, 97-144 and 145-192.
