Kabeliai ir jungtys
Įprasta kaina
€4.415,97 be PVM
Įprasta kaina
Išpardavimo kaina
€4.415,97 be PVM
Nepavyko įkelti atsiėmimo galimybių

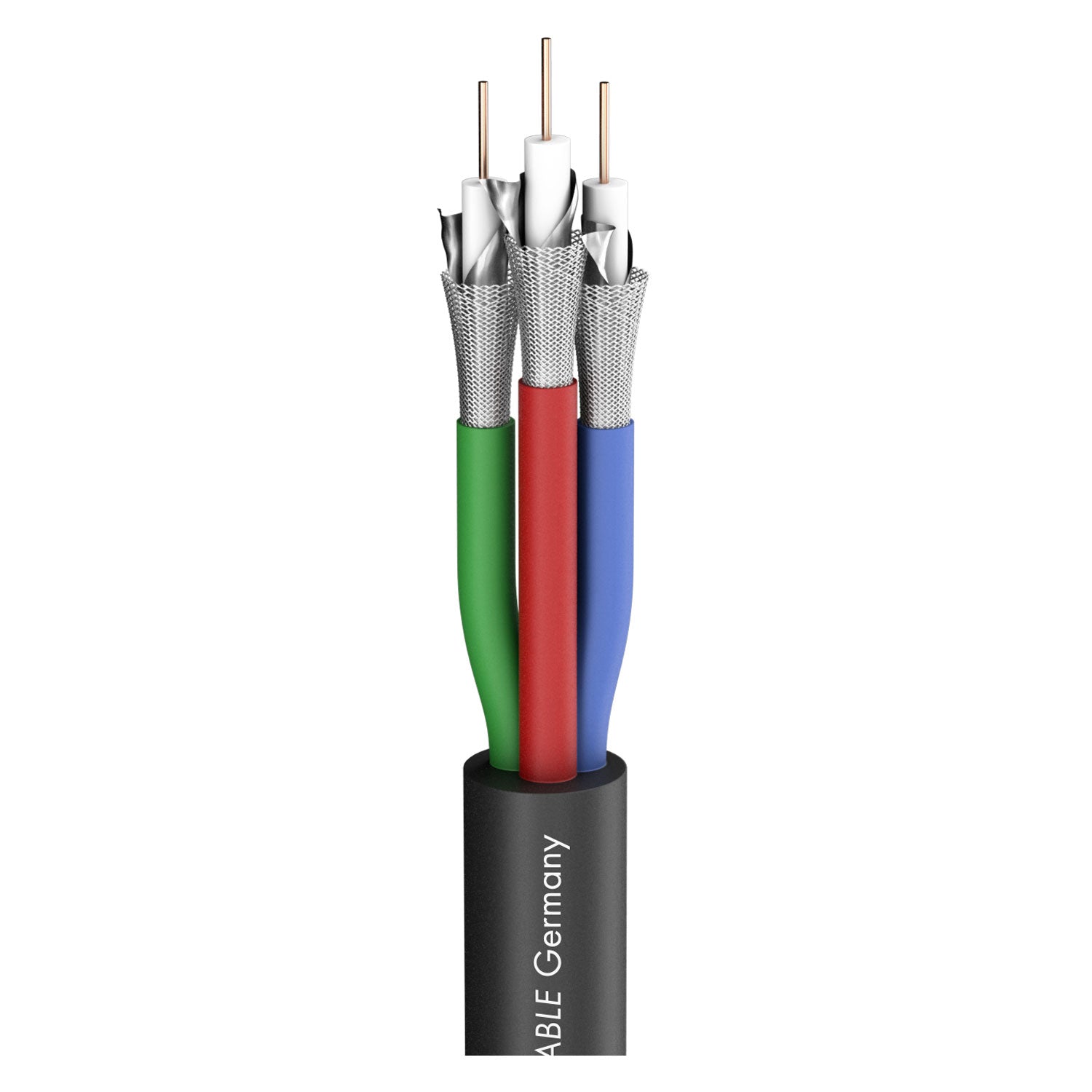

SDI kabelis 12G Transit 3 HD; 1 x 0,60/2,80; PVC Ø 11,20 mm; juodas - 500 m ritė
Parduodama 500 m ritė.
Transit 3 HD
Privalumai:
- Dependable and very high-quality image transmission over long distances
- Very good damping and transmission values even with excessive lengths
- Highly flexible due to special jacket compound and tight wire stranding
- Cable reel rollable
Pritaikymas:
- For permanent installation over long distances (theatres, sports arenas,
media & conference centres)
- Multi-coax cable reel
Techniniai duomenys
| Prekės kodas |
600-0851-03 |
| Savybės |
Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Konstrukcija |
3x2YS(ST)CY0,6/2,8 |
| Construction (video) |
2YS(ST)CY0,6/2,8 |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
11.20 |
| Išorinis skersmuo ["] |
0.4409 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
3 |
| Vidinis laidininkas (video) |
3 |
| Vidinis laidininkas (video) [mm²] |
0,28 |
| Vidinis laidininkas (video) [sqin] |
0.0004 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| AWG (video) |
23 |
| Ekranavimas |
Copper braiding tin-plated 90 % + AL / PT-foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,60 |
| Vario gyslos Ø (video) ["] |
0.0236 |
| Laidininko izoliacijos medžiaga |
Foam/Skin-PE |
| Conductor insulation Ø (video) [mm] |
2,80 |
| Conductor insulation Ø (video) ["] |
0.1102 |
| Svoris 1 m [g] |
145 |
| Svoris 1000 ft. [lbs] |
97.5728 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,84 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0.82 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
70 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
90 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
295.2756 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
63 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
206.6929 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
42 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
137,7953 |
| Width [mm] |
11,2 |
| Width ["] |
0.4409 |
| Height [mm] |
11,2 |
| Height ["] |
0.4409 |
| Capacity wire/electic screen at 1m (video) [pF] |
55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.764 |
| Damping at 50 MHz (100m & 20° C) [dB] |
9,8 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.4384 |
| Damping at 200 MHz (100m & 20° C) [dB] |
15,7 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4196 |
| Damping at 470 MHz (100m & 20° C) [dB] |
24,1 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.3457 |
| Damping at 862 MHz (100m & 20° C) [dB] |
32,8 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.9974 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
35,5 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.8204 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
43,7 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.3198 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
48 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.777 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
53,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.7582 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
63,3 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
19.2938 |
| Impedance [Ω] |
75 |
| BPVo-Euroclass |
Fca |
