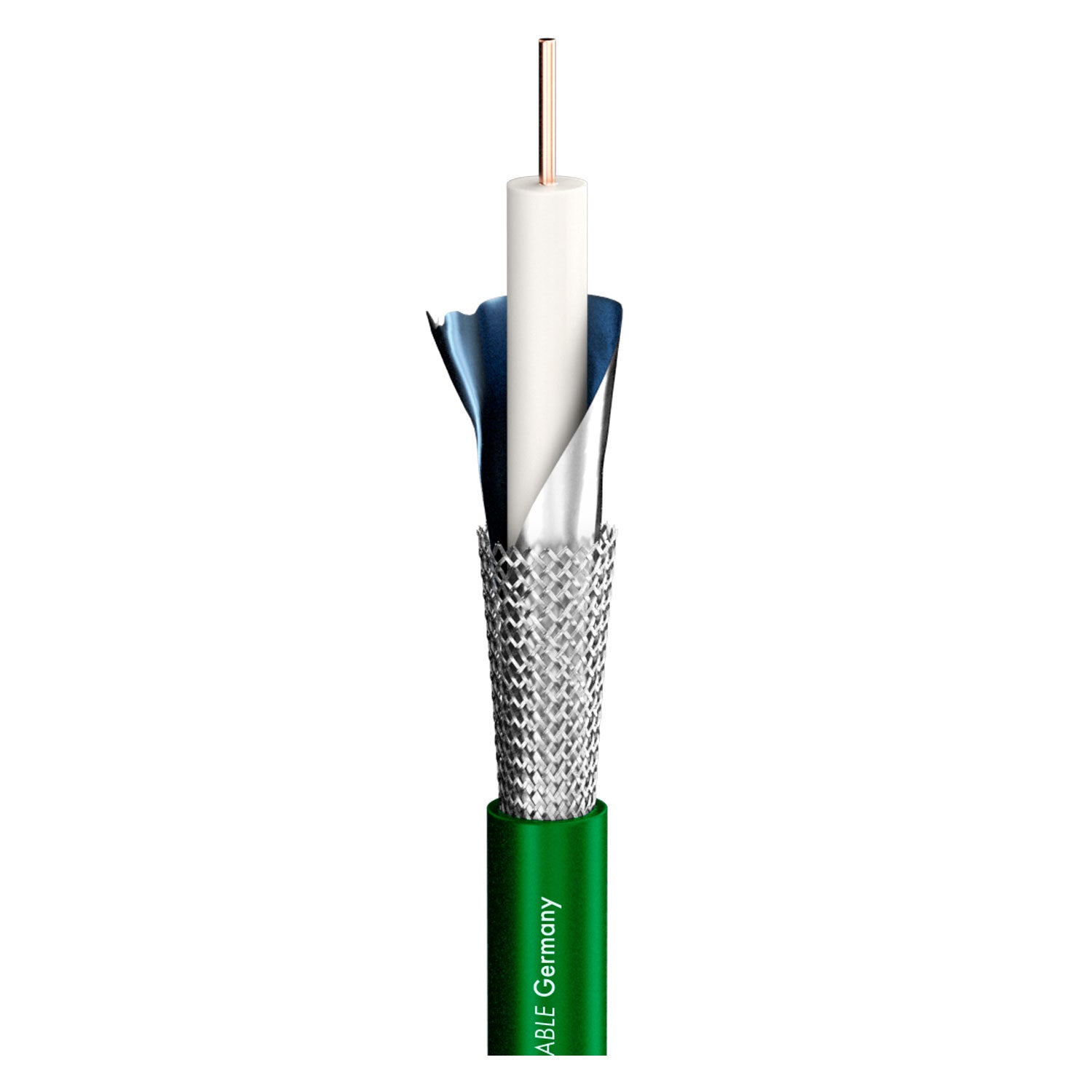

SDI kabelis 12G SC-Vector (RCB); 1 x 0,80; PVC Ø 6,00 mm; žalias - 300 m ritė
Parduodama 300 m ritė.
SC-Vector (RCB)
Privalumai:
- Low damping values for long distances
- Robust and durable outer sleeve
Pritaikymas:
- Digital SDI/HD-SDI long distance transmission
- Video transmission for OB van technology
Techniniai duomenys
| Prekės kodas |
600-0164 |
| Savybės |
3G-SDI , 6G-SDI , Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
žalia |
| Konstrukcija |
1x02YS(ST)CH0,8/3,7 HD-SDI |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
6,00 |
| Išorinis skersmuo ["] |
0.2362 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,50 |
| Vidinis laidininkas (video) [sqin] |
0.0008 |
| Vidinis laidininkas Ø (video) [mm] |
0,80 |
| Vidinis laidininkas Ø (video) ["] |
0.0315 |
| AWG (video) |
20 |
| Ekranavimas |
AL / PT-foil + Copper braiding tin-plated 85 % |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,80 |
| Vario gyslos Ø (video) ["] |
0.0315 |
| Laidininko izoliacijos medžiaga |
Gas Injected-PE |
| Laidininko izoliacijos Ø [mm] |
3.70 |
| Laidininko izoliacijos Ø ["] |
0.1457 |
| Svoris 1 m [g] |
51 |
| Svoris 1000 ft. [lbs] |
26.9166 |
| Gaisrinė apkrova per 1 m [kWh] |
0,16 |
| Variantas |
apvalus |
| Pakuotė |
100 m spool |
| Greičio koeficientas |
0,8 , 0.82 |
| Min. temperatūra [°C] |
-10 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
121 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
396.9816 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
82 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
269.0289 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
51 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
167,3228 |
| Width [mm] |
6 |
| Width ["] |
0.2362 |
| Height [mm] |
6 |
| Height ["] |
0.2362 |
| Capacity wire/electic screen at 1m (video) [pF] |
52,9 , 54 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1239 , 16.4592 |
| Damping at 200 MHz (100m & 20° C) [dB] |
11,2 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.4138 |
| Damping at 470 MHz (100m & 20° C) [dB] |
17 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.1816 |
| Damping at 862 MHz (100m & 20° C) [dB] |
24 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.3152 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
26,4 , 29,7 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.0467 , 9.0526 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
32,8 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.9974 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
35,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.9423 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
40,1 , 47,7 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.2225 , 14.539 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
47,9 , 58,4 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
14.5999 , 17.8003 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
77,8 |
| Damping at 9000 MHz (100m & 20° C) [dB] |
99,4 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
118,6 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
36 , 37 |
| Laidininko varža per 1000 ft. [Ω] |
10.9728 , 11.2776 |
| Shield. resistance per 1 km [Ω] |
19 , 20 |
| Shield. resistance per 1000 ft. [Ω] |
5.7912 , 6.096 |
| BPVo-Euroclass |
Fca |
