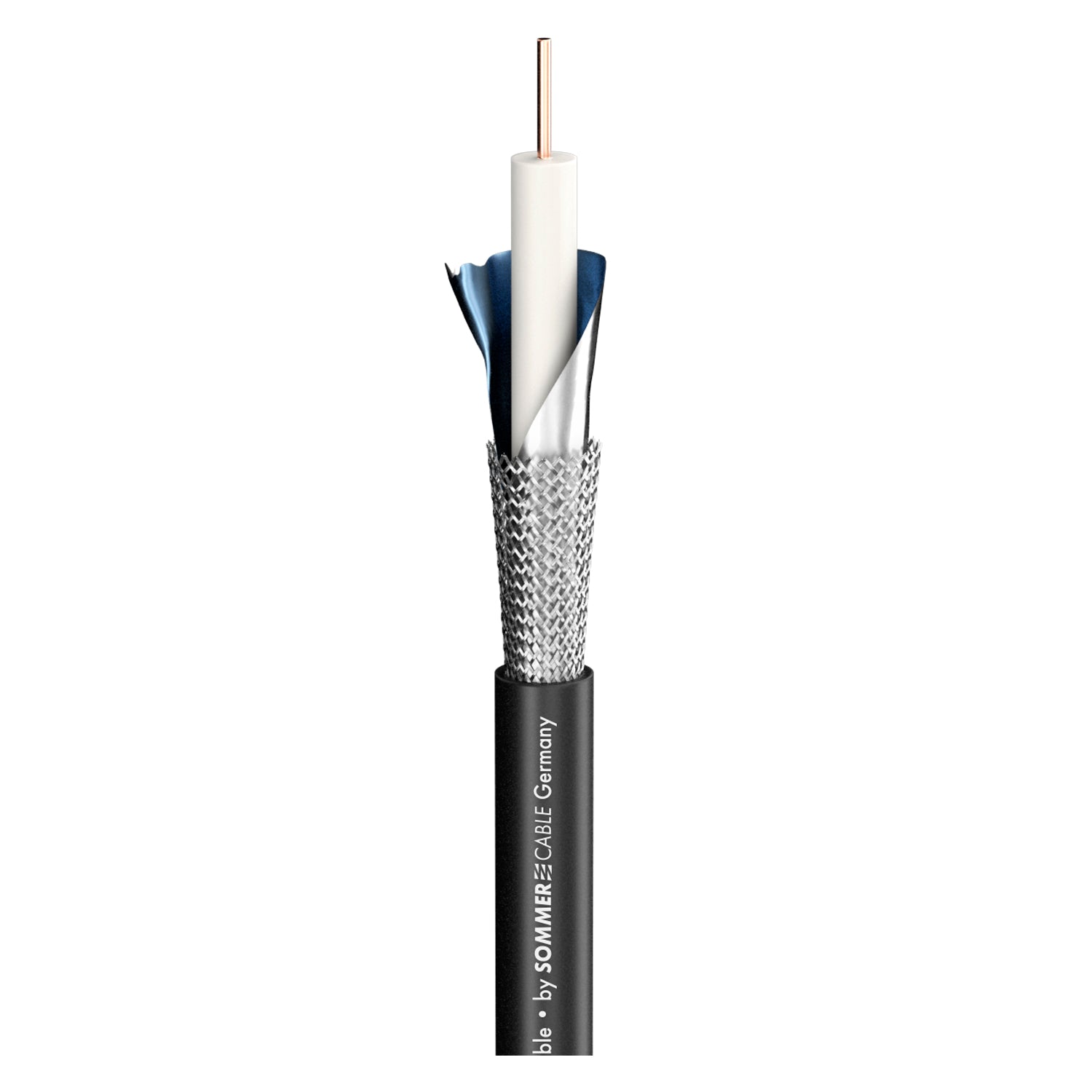

SDI kabelis 12G SC-Vector (RCB); 1 x 0,80; PVC Ø 6,00 mm; juodas - 300 m ritė
Parduodama 300 m ritė.
SC-Vector (RCB)
Privalumai:
- Low damping values for long distances
- Robust and durable outer sleeve
Pritaikymas:
- Digital SDI/HD-SDI/3G-SDI long-distance transmission
- Video transmission for OB van technology
Techniniai duomenys
| Prekės kodas |
600-0161 |
| Savybės |
3G-SDI , 6G-SDI , Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Konstrukcija |
1x02YS(ST)CH0,8/3,7 HD-SDI |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
6,00 |
| Išorinis skersmuo ["] |
0.2362 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,50 |
| Vidinis laidininkas (video) [sqin] |
0.0008 |
| Vidinis laidininkas Ø (video) [mm] |
0,80 |
| Vidinis laidininkas Ø (video) ["] |
0.0315 |
| AWG (video) |
20 |
| Ekranavimas |
AL / PT-foil + Copper braiding tin-plated 85 % |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,80 |
| Vario gyslos Ø (video) ["] |
0.0315 |
| Laidininko izoliacijos medžiaga |
Foam PE |
| Laidininko izoliacijos Ø [mm] |
3,75 |
| Laidininko izoliacijos Ø ["] |
0.1476 |
| Svoris 1 m [g] |
40.9 |
| Svoris 1000 ft. [lbs] |
26.9166 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,16 |
| Variantas |
apvalus |
| Pakuotė |
100 m spool |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-10 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
111 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
364.1732 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
75 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
269.0289 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
48 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
157,4803 |
| Width [mm] |
6 |
| Width ["] |
0.2362 |
| Height [mm] |
6 |
| Height ["] |
0.2362 |
| Capacity wire/electic screen at 1m (video) [pF] |
54 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.4592 |
| Damping at 200 MHz (100m & 20° C) [dB] |
12,2 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.7186 |
| Damping at 470 MHz (100m & 20° C) [dB] |
18,1 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.5169 |
| Damping at 862 MHz (100m & 20° C) [dB] |
26 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.9248 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
29,7 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.0526 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
35,8 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.9118 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
39,4 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.0091 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
47,7 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
14.539 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
58,4 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
17.8003 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
83,5 |
| Damping at 9000 MHz (100m & 20° C) [dB] |
107,4 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
130,4 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
36 |
| Laidininko varža per 1000 ft. [Ω] |
10.9728 |
| Shield. resistance per 1 km [Ω] |
19 |
| Shield. resistance per 1000 ft. [Ω] |
5.7912 |
| BPVo-Euroclass |
Fca |
