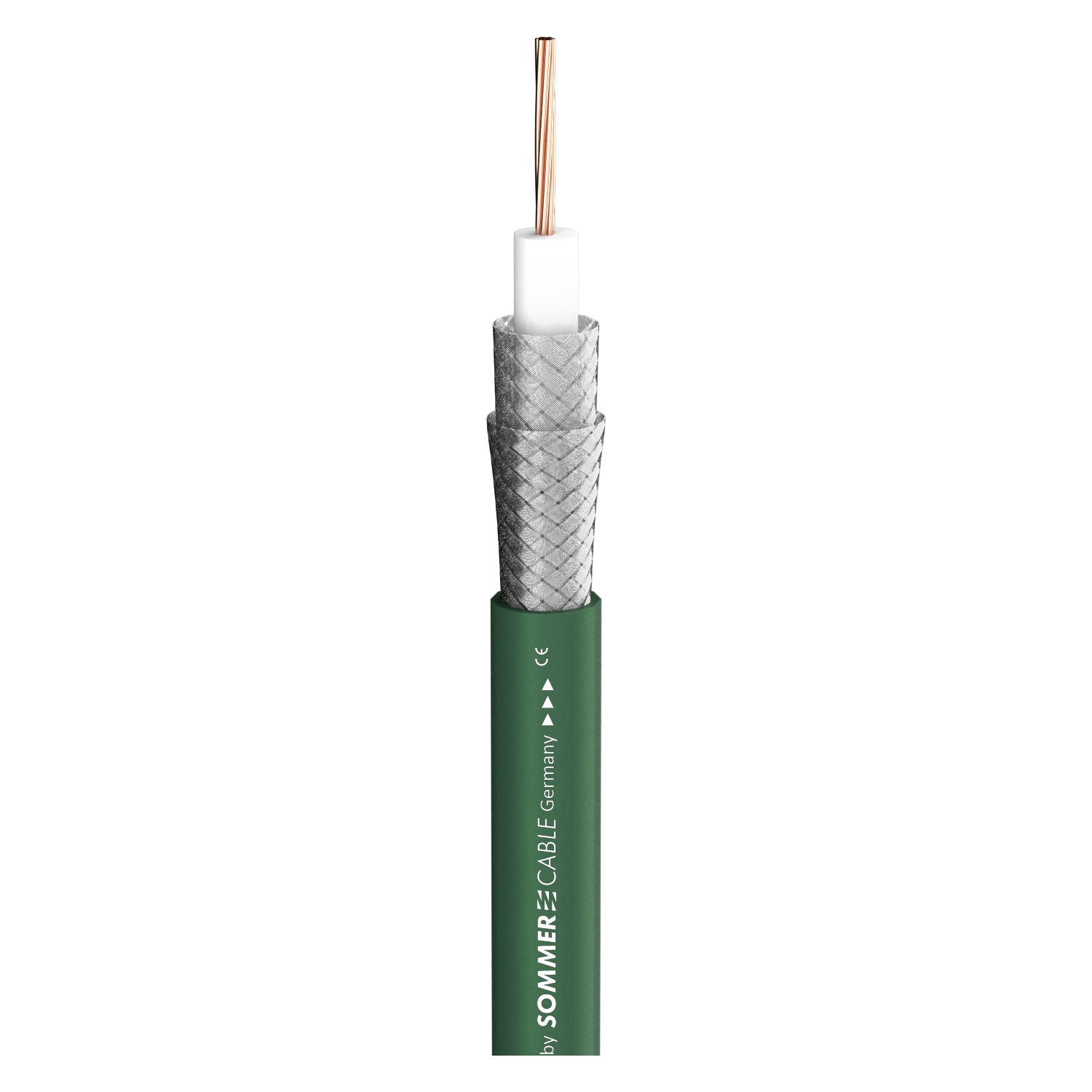

SDI kabelis 12G SC-Vector Plus RCB 1.6L/7.3; 1 x 1,40; PVC Ø 10,30 mm; žalias - 1000 m ritė

Name: SDI kabelis 12G SC-Vector Plus RCB 1.6L/7.3; 1 x 1,40; PVC Ø 10,30 mm; žalias - 1000 m ritė
Brand: Kabeliai
SKU: 600-0224-PU1000M
Price: 10252.1 EUR
Availability: InStock

€10.252,10 be PVM

Išpardavimas Išparduota

Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

SDI kabelis 12G SC-Vector Plus RCB 1.6L/7.3; 1 x 1,40; PVC Ø 10,30 mm; žalias - 1000 m ritė

Parduodama 1000 m ritė.

SC-Vector Plus RCB 1.6L/7.3

Privalumai:

- Long life due to non-aging jacket

- Constant optimised electrical values owing to intelligent cable design

- Gas injected skin-foam-skin insulation for optimal damping values and long distances

Pritaikymas:

- Digital UHD-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction

- Mobile UHD-SDI transmissions

- Professional media-technical permanent installation according to 6G standard

Techniniai duomenys

Prekės kodas	600-0224
Savybės	3G-SDI / UHD , Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI
Pritaikymo sritis	ELA 100 V , Installation , Mobile outdoor / indoor
Paskirtis	video cable
Spalva	žalia
Konstrukcija	02YS(ST)CH1,6L/7,3
Išorinio apvalkalo medžiaga	PVC
Išorinis skersmuo [mm]	10.30
Išorinis skersmuo ["]	0.4055
Kanalų skaičius (video)	1
Vidinis laidininkas	1
Vidinis laidininkas (video)	1
Vidinis laidininkas (video) [mm²]	1,54
Vidinis laidininkas (video) [sqin]	0.0024
Vidinis laidininkas Ø (video) [mm]	1,40
Vidinis laidininkas Ø (video) ["]	0.0551
AWG (video)	16
Ekranavimas	double Copper braiding tin-plated
Ekranavimo koeficientas [%]	90 , 100
Vario gyslos (video)	7
Vario gyslos Ø (video) [mm]	0,53
Vario gyslos Ø (video) ["]	0.0209
Laidininko izoliacijos medžiaga	Skin-Foam-Skin-PE
Laidininko izoliacijos Ø [mm]	7,30
Laidininko izoliacijos Ø ["]	0.2874
Svoris 1 m [g]	134.2
Svoris 1000 ft. [lbs]	94.2082
Gaisrinė apkrova per 1 m [kWh]	0,58
Variantas	apvalus
Pakuotė	100 m spool , 500 m spool , 1000 m spool
Greičio koeficientas	0.82
Min. temperatūra [°C]	-30
Maks. temperatūra [°C]	80
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m]	198
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft]	649.6063
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m]	121
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft]	396.9816
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m]	72
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft]	236,2205
Width [mm]	10,3
Width ["]	0.4055
Height [mm]	10,3
Height ["]	0.4055
Capacity wire/electic screen at 1m (video) [pF]	52,4 , 53
Capacity wire/electic screen at 1 ft. (video) [pF]	15.9715 , 16.1544
Damping at 200 MHz (100m & 20° C) [dB]	7,3
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB]	2.225
Damping at 470 MHz (100m & 20° C) [dB]	11,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB]	3.5052
Damping at 862 MHz (100m & 20° C) [dB]	15,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB]	4.6939
Damping at 1000 MHz (100m & 20° C) [dB]	15,9 , 16,5
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB]	4.8463 , 5.0292
Damping at 1485 MHz (100m & 20° C) [dB]	20,1 , 21
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB]	6.1265 , 6.4008
Damping at 1750 MHz (100m & 20° C) [dB]	22,8
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB]	6.9494
Damping at 2150 MHz (100m & 20° C) [dB]	25,3
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB]	7.7114
Damping at 3000 MHz (100m & 20° C) [dB]	32,2
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB]	9.8146
Damping at 6000 MHz (100m & 20° C) [dB]	56,5
Damping at 9000 MHz (100m & 20° C) [dB]	75,9 , 76,4
Damping at 12000 MHz (100m & 20° C) [dB]	96,2
Impedance [Ω]	75
Insulation resist. per 1 km [GΩ]	11,1
Insulation resist. per 1000 feet [GΩ]	3.3833
Shield. resistance per 1 km [Ω]	3,7 , 10
Shield. resistance per 1000 ft. [Ω]	1.1278 , 3.048
BPVo-Euroclass	Fca
