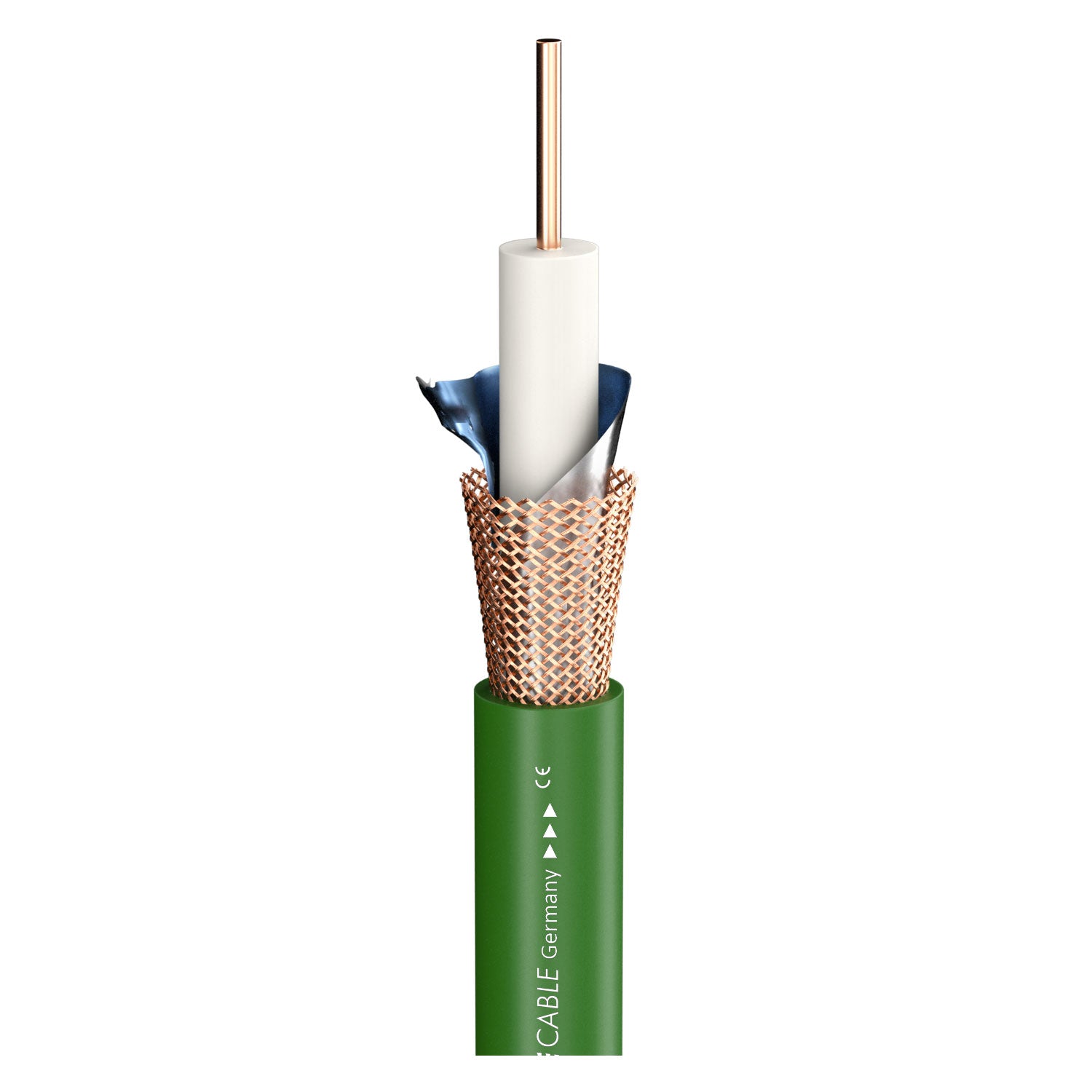

SDI kabelis 12G SC-Vector Plus RCB 1.6/7.2; 1 x 1,63; PVC Ø 10,20 mm; žalias - 200 m ritė

SDI kabelis 12G SC-Vector Plus RCB 1.6/7.2; 1 x 1,63; PVC Ø 10,20 mm; žalias - 200 m ritė

€1.178,15 be PVM
€1.178,15 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

SDI kabelis 12G SC-Vector Plus RCB 1.6/7.2; 1 x 1,63; PVC Ø 10,20 mm; žalias - 200 m ritė

Parduodama 200 m ritė.

SC-Vector Plus RCB 1.6/7.2

Privalumai:

- Long life due to non-aging jacket

- Constant optimised electrical values owing to intelligent cable design

- Gas injected skin-foam-skin insulation for optimal damping values and long distances

Pritaikymas:

- Digital UHD-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction

- Professional media-technical permanent installation according to 6G standard

Techniniai duomenys

Prekės kodas 600-0234
Savybės 3G-SDI / UHD , Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI
Pritaikymo sritis ELA 100 V , Installation , Mobile outdoor / indoor
Paskirtis video cable
Spalva žalia
Konstrukcija 02YS(ST)CH1,6/7,2
Išorinio apvalkalo medžiaga PVC
Išorinis skersmuo [mm] 10,20
Išorinis skersmuo ["] 0.4016
Kanalų skaičius (video) 1
Vidinis laidininkas 1
Vidinis laidininkas (video) 1
Vidinis laidininkas (video) [mm²] 2,01
Vidinis laidininkas (video) [sqin] 0.0031
Vidinis laidininkas Ø (video) [mm] 1,63
Vidinis laidininkas Ø (video) ["] 0.0642
AWG (video) 14
Ekranavimas Copper braiding + AL / PT foil
Ekranavimo koeficientas [%] 100
Vario gyslos (video) 1
Vario gyslos Ø (video) [mm] 1,63
Vario gyslos Ø (video) ["] 0.0642
Laidininko izoliacijos medžiaga Skin-Foam-Skin-PE
Laidininko izoliacijos Ø [mm] 7,20
Laidininko izoliacijos Ø ["] 0.2835
Svoris 1 m [g] 104
Svoris 1000 ft. [lbs] 68.5298
Gaisrinė apkrova per 1 m [kWh] 0,75
Variantas apvalus
Pakuotė 100 m spool , 500 m spool , 1000 m spool
Greičio koeficientas 0.82
Min. temperatūra [°C] -25
Maks. temperatūra [°C] 80
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] 234
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] 767.7166
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] 156
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] 511.811
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] 101
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] 331,3648
Width [mm] 10,2
Width ["] 0.4016
Height [mm] 10,2
Height ["] 0.4016
Capacity wire/electic screen at 1m (video) [pF] 53
Capacity wire/electic screen at 1 ft. (video) [pF] 16.1544
Damping at 5 MHz (100m & 20° C) [dB] 2,4
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] 0.7315
Damping at 200 MHz (100m & 20° C) [dB] 5,3
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 1.6154
Damping at 470 MHz (100m & 20° C) [dB] 8,4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 2.5603
Damping at 862 MHz (100m & 20° C) [dB] 11,9
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 3.6271
Damping at 1000 MHz (100m & 20° C) [dB] 13
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 3.9624
Damping at 1485 MHz (100m & 20° C) [dB] 17
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 5.1816
Damping at 1750 MHz (100m & 20° C) [dB] 18,7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 5.6998
Damping at 2150 MHz (100m & 20° C) [dB] 21
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 6.4008
Damping at 3000 MHz (100m & 20° C) [dB] 25,6
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 7.8029
Damping at 6000 MHz (100m & 20° C) [dB] 39,5
Damping at 9000 MHz (100m & 20° C) [dB] 51,7
Damping at 12000 MHz (100m & 20° C) [dB] 63,1
Impedance [Ω] 75
Laidininko varža per 1 km [Ω] 8,2
Laidininko varža per 1000 ft. [Ω] 2.4994
Shield. resistance per 1 km [Ω] 10
Shield. resistance per 1000 ft. [Ω] 3.048
BPVo-Euroclass Fca
