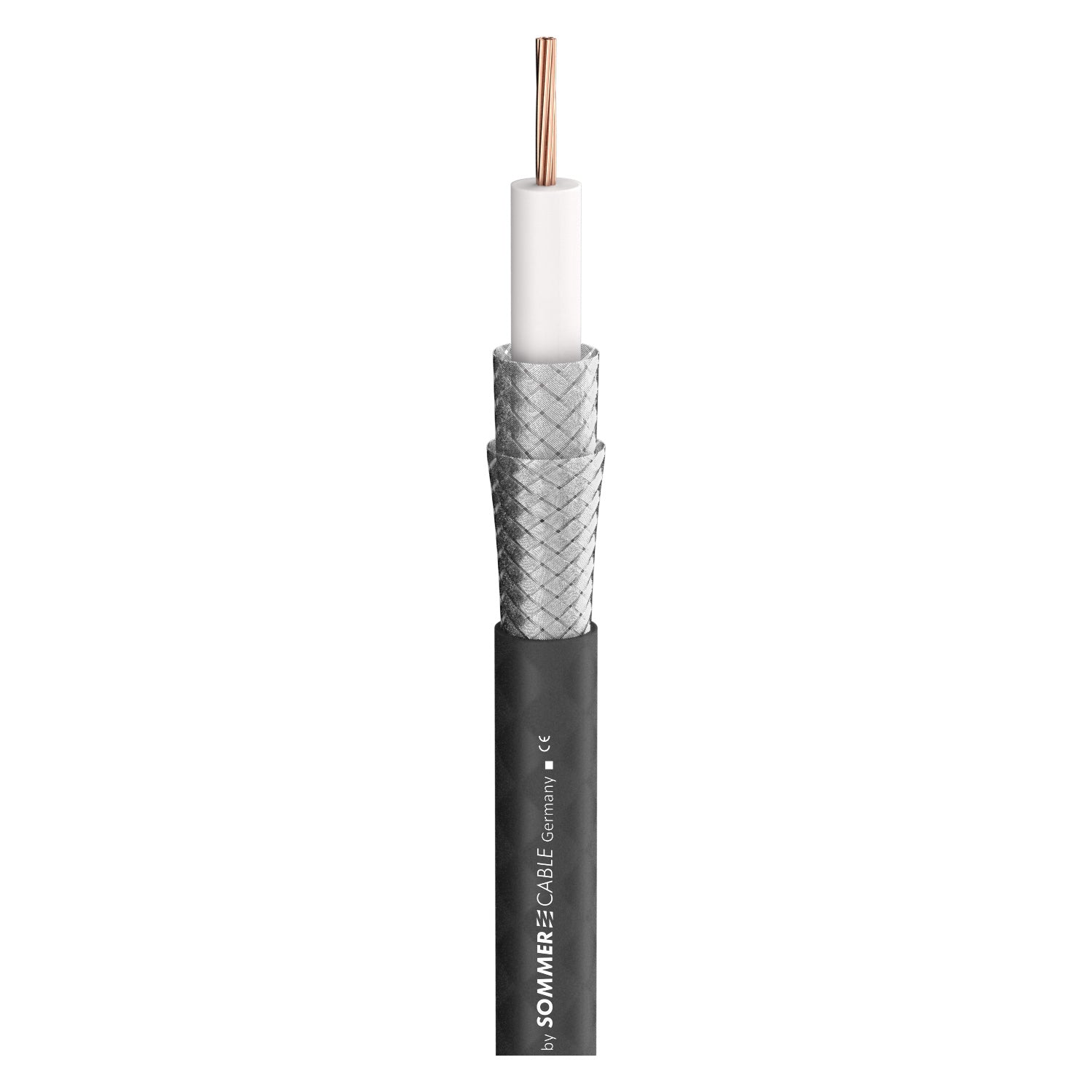

SDI kabelis 12G SC-Vector Plus DZ; 1 x 1,20; PUR Ø 7,10 mm; juodas - 100 m ritė
Parduodama 100 m ritė.
SC-Vector Plus DZ
Privalumai:
- Excellent transmission quality due to foam insulation
- Steadily consistent values
- UV- and notch-resistant PUR jacket, rodent protection
Pritaikymas:
- Dual shielded cable for digital SAT systems and professional video technology
- Professional HD-SDI applications
- Highly flexible and easy to reel
Techniniai duomenys
| Prekės kodas |
600-0211 |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , HDTV , Halogen-free / LSZH , OFC oxygen free copper , PUR , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Konstrukcija |
02YSCCH1,2L/4,8 |
| Išorinio apvalkalo medžiaga |
PUR |
| Išorinis skersmuo [mm] |
7,10 |
| Išorinis skersmuo ["] |
0.2795 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| Ekranavimas |
2 x Copper braiding tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
4,80 |
| Laidininko izoliacijos Ø ["] |
0.189 |
| Svoris 1 m [g] |
78 |
| Svoris 1000 ft. [lbs] |
45.7583 |
| Atsparumas UV |
labai aukštas |
| Variantas |
apvalus |
| Pakuotė |
100 m, bulk stock |
| Greičio koeficientas |
0,86 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
145 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
475.7218 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
96 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
314.9606 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
62 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
203,4121 |
| Width [mm] |
7,1 |
| Width ["] |
0.2795 |
| Height [mm] |
7,1 |
| Height ["] |
0.2795 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 50 MHz (100m & 20° C) [dB] |
7,8 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.3774 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
41,5 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.6492 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
64,8 |
| Damping at 9000 MHz (100m & 20° C) [dB] |
83,7 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
100,9 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
20 |
| Laidininko varža per 1000 ft. [Ω] |
6.096 |
| Shield. resistance per 1 km [Ω] |
5,6 |
| Shield. resistance per 1000 ft. [Ω] |
1.7069 |
| BPVo-Euroclass |
Fca |
