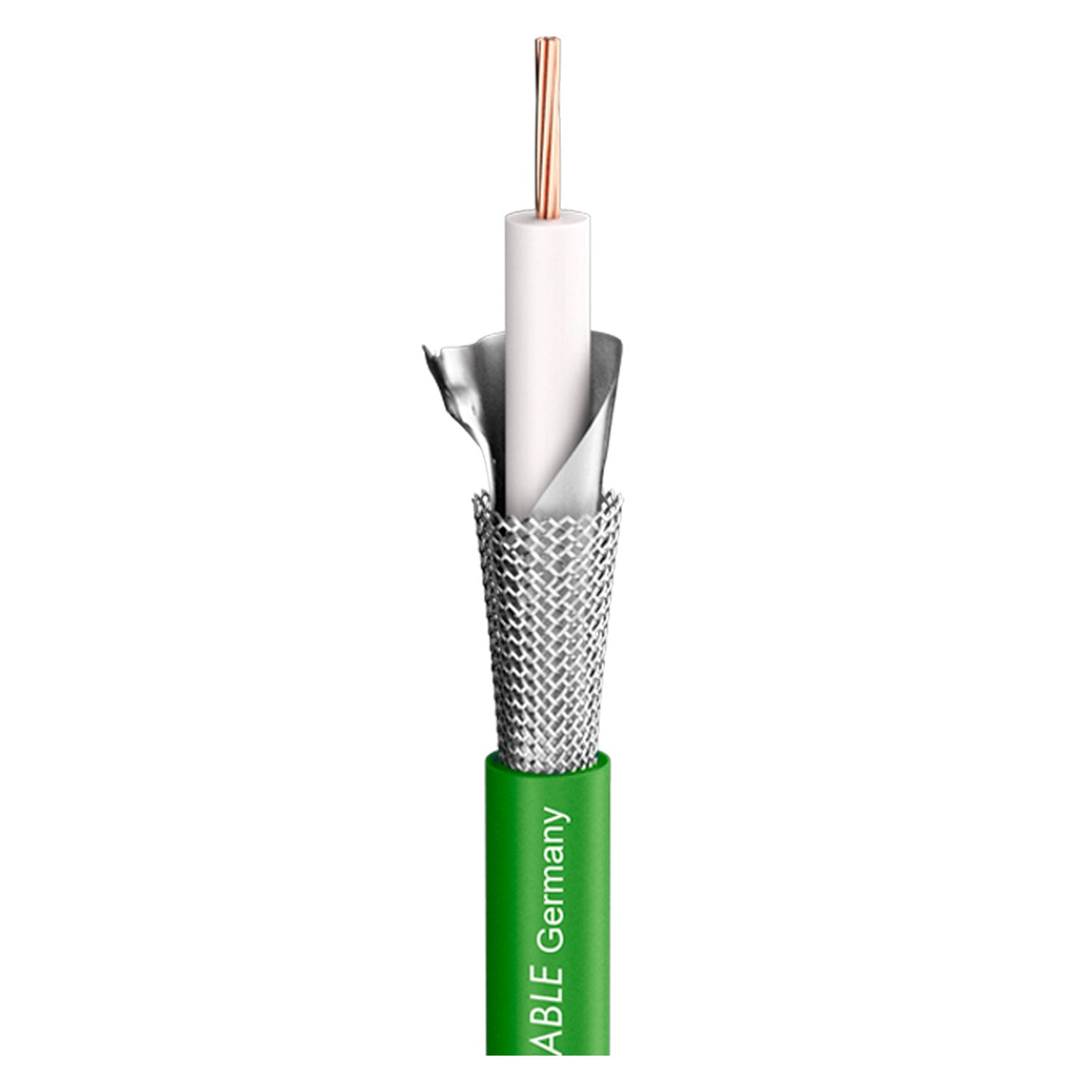

SDI kabelis SC-Vector Plus CPR-Version; 1 x 1,20; FRNC Ø 6,95 mm; žalias; Dca - 1000 m ritė
Parduodama 1000 m ritė.
SC-Vector Plus CPR-Version
Privalumai:
- Superb damping values for long distances of up to 1000 m
- Robust and durable outer jacket, reelable
Pritaikymas:
- Digital HD/SDI long distance transmission
- Cabling for sporting events and big TV events; OB van technology
Techniniai duomenys
| Prekės kodas |
600-0174FC |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , Halogen-free / LSZH , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
žalia |
| Konstrukcija |
1x02YS(ST)CH1,2/5,0 |
| Išorinio apvalkalo medžiaga |
FRNC |
| Išorinis skersmuo [mm] |
6,95 |
| Išorinis skersmuo ["] |
0.2736 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| Ekranavimas |
AL / PT-foil + copper braiding 80 % tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5.00 |
| Laidininko izoliacijos Ø ["] |
0.1969 |
| Svoris 1 m [g] |
51.2 |
| Svoris 1000 ft. [lbs] |
37.0104 |
| Gaisrinė apkrova per 1 m [kWh] |
0.2 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-10 |
| Maks. temperatūra [°C] |
80 |
| Width [mm] |
7 |
| Width ["] |
0.2736 |
| Height [mm] |
7 |
| Height ["] |
0.2736 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 , 54 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 , 16.4592 |
| Damping at 200 MHz (100m & 20° C) [dB] |
10,28 , 10.2 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.109 , 3.1333 |
| Damping at 470 MHz (100m & 20° C) [dB] |
16,46 , 16.4 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.9987 , 5.017 |
| Damping at 862 MHz (100m & 20° C) [dB] |
23.3 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.1018 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
25,36 , 25.3 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.7114 , 7.7297 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
32 , 32,05 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.7536 , 9.7688 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
35,39 , 35.3 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.7594 , 10.7869 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
40,1 , 40,13 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.2225 , 12.2316 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
49,39 , 49.3 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.0266 , 15.0541 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
73,5 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
21 |
| Laidininko varža per 1000 ft. [Ω] |
6.4008 |
| Shield. resistance per 1 km [Ω] |
11 |
| Shield. resistance per 1000 ft. [Ω] |
3.3528 |
| BPVo-Euroclass |
Dca |
