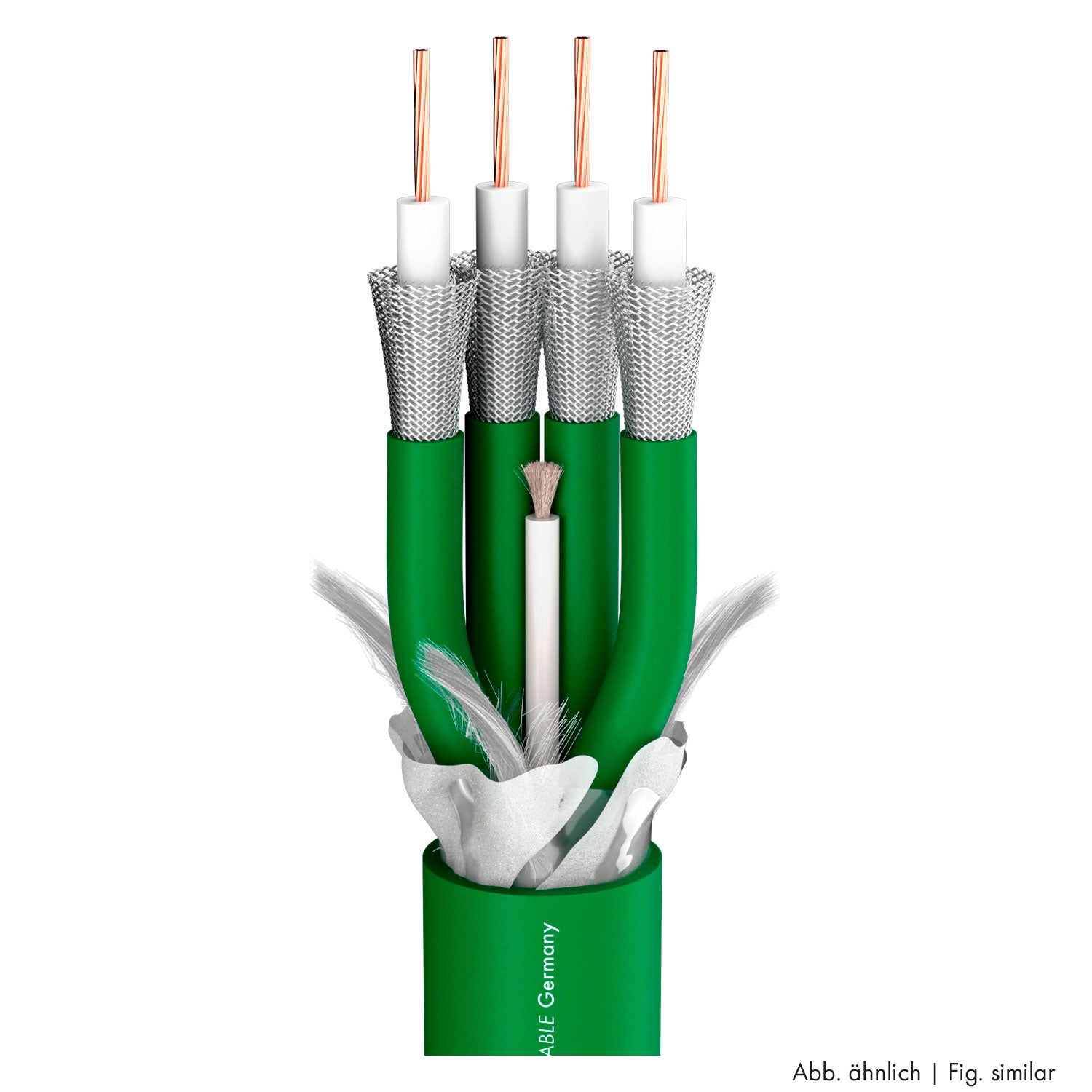

SDI kabelis SC-Vector Plus 7 DZ; 1 x 1,20; PMB Ø 28,50 mm; žalias
Parduodama po 1 metrą.
SC-Vector Plus 7 DZ
Privalumai:
- Excellent transmission quality due to foam insulation
- Steadily consistent values
- UV- and notch-resistant PUR jacket, rodent protection
Pritaikymas:
- Double-shielded cable for digital video transmissions and professional video equipment
- For professional broadcast use
- Highly flexible and easy to reel
Techniniai duomenys
| Prekės kodas |
600-0214-07 |
| Savybės |
Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , PUR Master Blend , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
žalia |
| Konstrukcija |
7x02YSCCH1,2L/4,8 |
| Išorinio apvalkalo medžiaga |
PMB |
| Išorinis skersmuo [mm] |
28,50 |
| Išorinis skersmuo ["] |
1.122 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
7 |
| Vidinis laidininkas (video) |
7 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| Ekranavimas |
2 x Copper braiding tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
4,80 |
| Laidininko izoliacijos Ø ["] |
0.189 |
| Svoris 1 m [g] |
990 |
| Svoris 1000 ft. [lbs] |
666.1868 |
| Variantas |
apvalus |
| Pakuotė |
100 m, bulk stock |
| Greičio koeficientas |
0,86 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
130 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
426.5092 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
86 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
282.1522 |
| Width [mm] |
28,5 |
| Width ["] |
1.122 |
| Height [mm] |
28,5 |
| Height ["] |
1.122 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 200 MHz (100m & 20° C) [dB] |
10,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.2918 |
| Damping at 470 MHz (100m & 20° C) [dB] |
16,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.1511 |
| Damping at 862 MHz (100m & 20° C) [dB] |
23,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.1323 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
25,1 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.6505 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
31,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.5098 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
34,3 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.4546 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
38,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
11.7348 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
46,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
14.2646 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
20 |
| Laidininko varža per 1000 ft. [Ω] |
6.096 |
| Shield. resistance per 1 km [Ω] |
5,6 |
| Shield. resistance per 1000 ft. [Ω] |
1.7069 |
| BPVo-Euroclass |
Fca |
