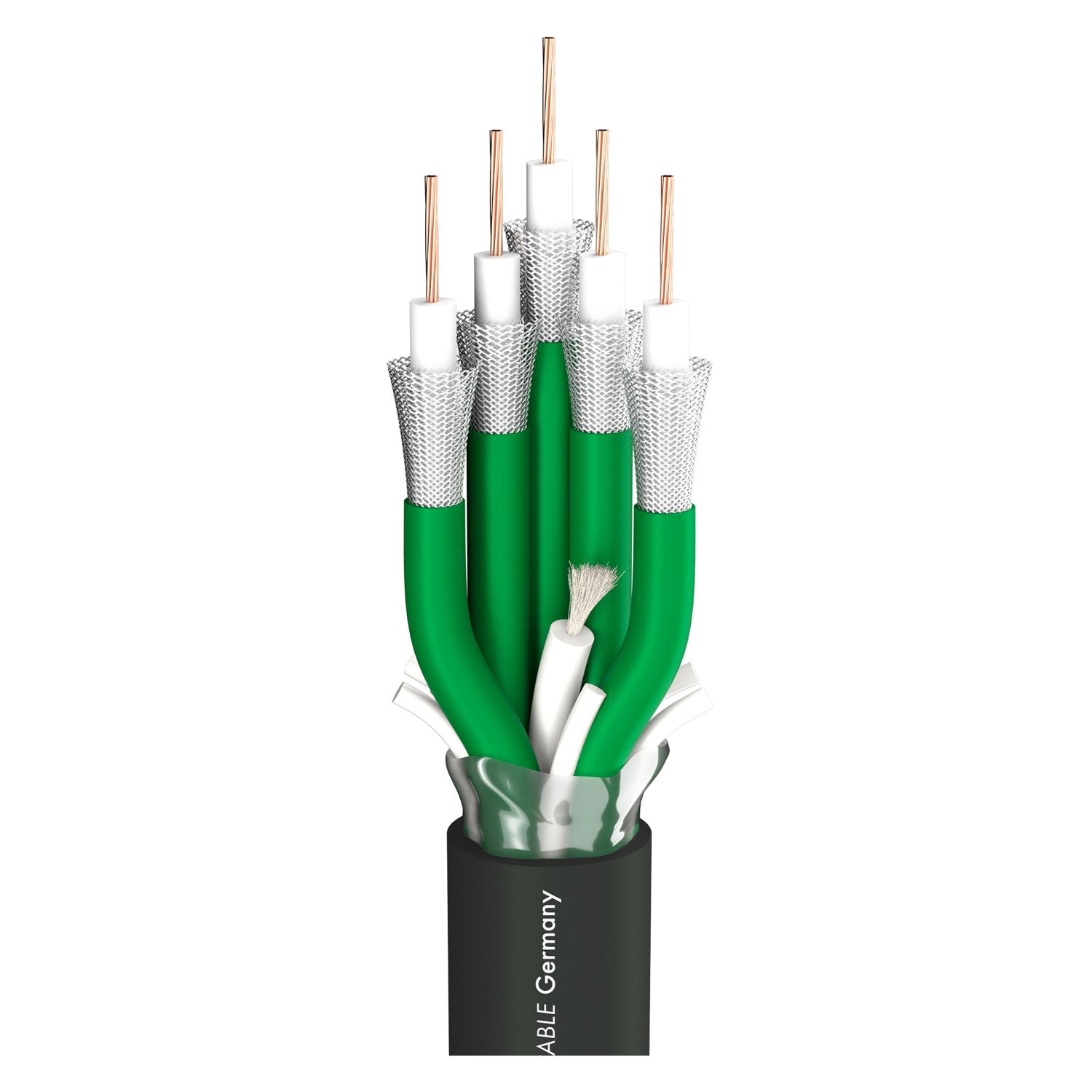

SDI kabelis 12G SC-Vector Plus 5; 1 x 1,20; PVC self-extinguishing Ø 22,10 mm; juodas
Parduodama po 1 metrą.
SC-Vector Plus 5
Privalumai:
- Superb damping values for long distances of up to 1000 m
- Robust and durable outer jacket, reelable
Pritaikymas:
- Digital HD/SDI long distance transmission, 3G in duplex mode
- Cabling for sporting events and big TV events; OB van technology
Techniniai duomenys
| Prekės kodas |
600-0171-05 |
| Savybės |
3G-SDI / UHD , Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Konstrukcija |
5x02YS(ST)CH1,2/5,0 |
| Išorinio apvalkalo medžiaga |
PVC self-extinguishing |
| Išorinis skersmuo [mm] |
22,10 |
| Išorinis skersmuo ["] |
0.8701 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
5 |
| Vidinis laidininkas (video) |
5 |
| Vidinis laidininkas (video) [mm²] |
0,80 , 0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0012 , 0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| Ekranavimas |
AL / PT-foil + copper braiding 80 % tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE , Gas-injected Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5.00 |
| Laidininko izoliacijos Ø ["] |
0.1969 |
| Svoris 1 m [g] |
510 |
| Svoris 1000 ft. [lbs] |
343.1872 |
| Gaisrinė apkrova per 1 m [kWh] |
1,99 , 2,1 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-10 , -20 |
| Maks. temperatūra [°C] |
70 , 80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
146 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
479.0026 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
100 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
328.084 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
70 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
229,6588 |
| Width [mm] |
22,1 |
| Width ["] |
0.8701 |
| Height [mm] |
22,1 |
| Height ["] |
0.8701 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,9 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.0175 |
| Damping at 470 MHz (100m & 20° C) [dB] |
15,4 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.6939 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,9 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.3703 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
22,8 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.9494 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
28 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.5344 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
30,5 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.2964 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
34,3 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.4546 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
41,5 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.6492 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
21 , 23 |
| Laidininko varža per 1000 ft. [Ω] |
6.4008 , 7.0104 |
| Shield. resistance per 1 km [Ω] |
11 |
| Shield. resistance per 1000 ft. [Ω] |
3.3528 |
| BPVo-Euroclass |
Fca |
