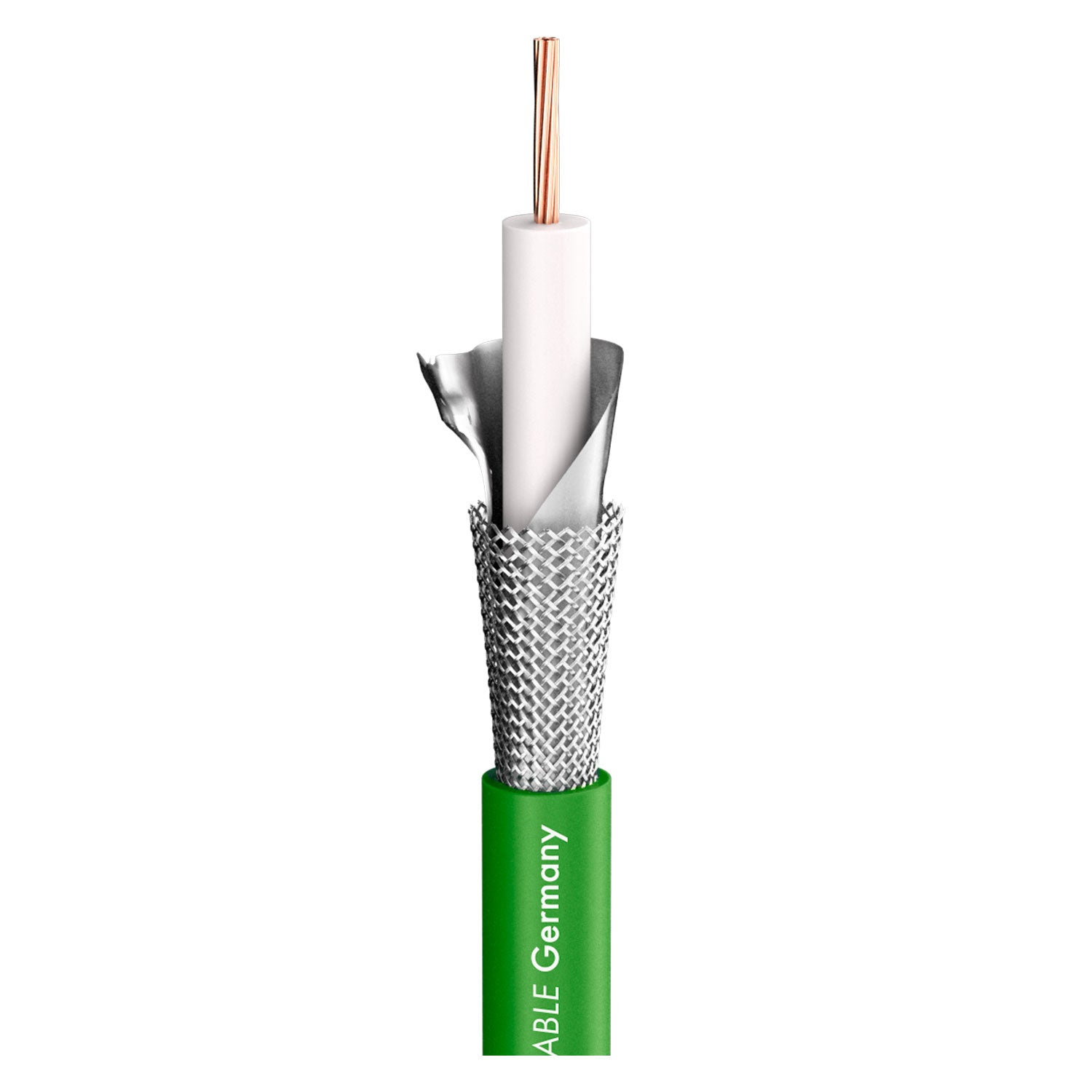

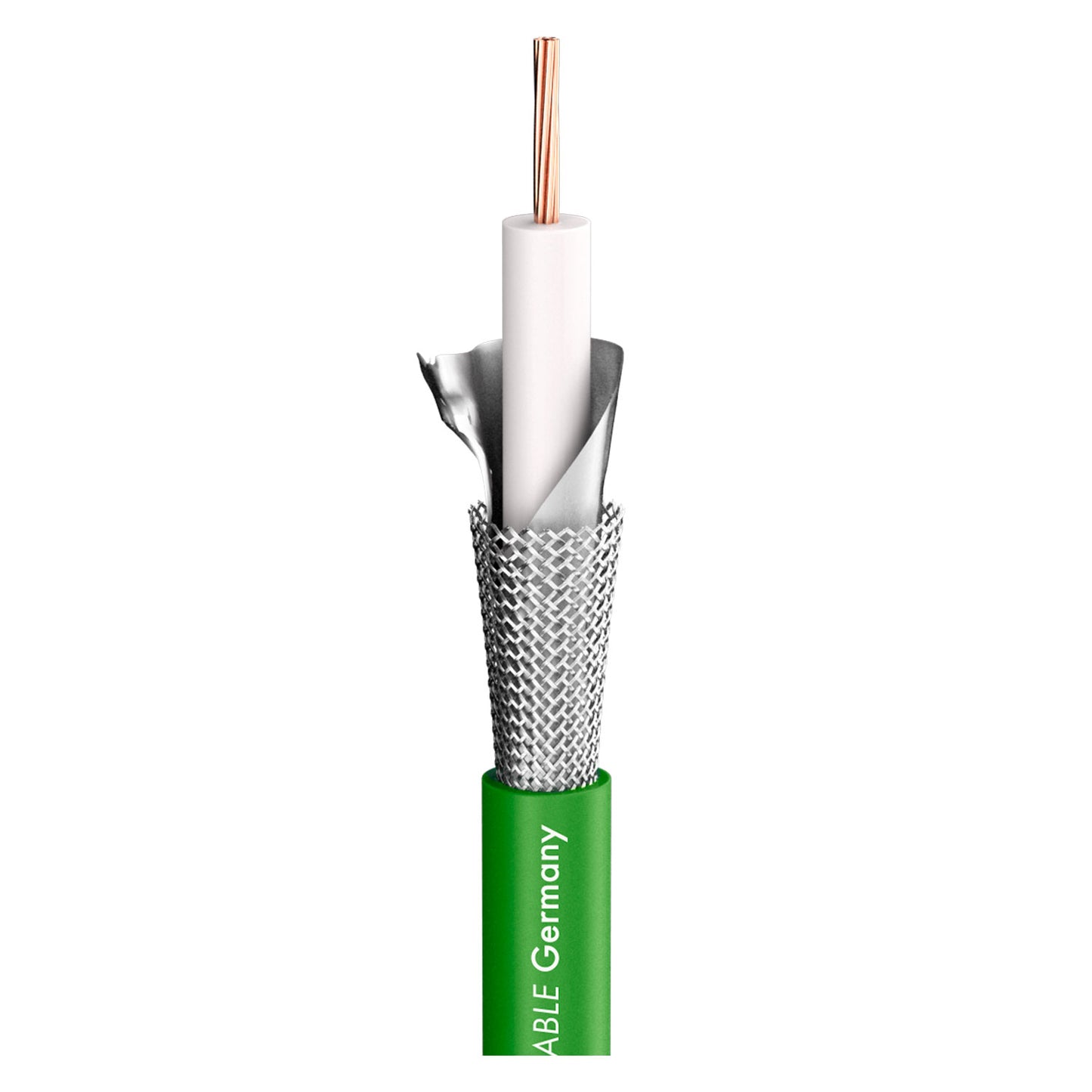

SDI kabelis 12G SC-Vector Plus; 1 x 1,20; PVC Ø 6,95 mm; žalias
Parduodama po 1 metrą.
SC-Vector Plus
Privalumai:
- Superb damping values for long distances of up to 1000 m
- Robust and durable outer jacket, reelable
Pritaikymas:
- Digital HD/SDI long distance transmission
- Cabling for sporting events and big TV events; OB van technology
Techniniai duomenys
| Prekės kodas |
600-0174 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
žalia |
| Konstrukcija |
1x02YS(ST)CH1,2/5,0 |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
6,95 |
| Išorinis skersmuo ["] |
0.2736 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| Ekranavimas |
AL / PT-foil + copper braiding 80 % tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5.00 |
| Laidininko izoliacijos Ø ["] |
0.1969 |
| Svoris 1 m [g] |
55 |
| Svoris 1000 ft. [lbs] |
37.0104 |
| Gaisrinė apkrova per 1 m [kWh] |
0.2 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-10 , -20 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
160 , 162 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
524.9344 , 531.4961 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
110 , 111 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
360.8924 , 364.1732 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
75 , 78 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
246,063 , 255,9055 |
| Width [mm] |
7 |
| Width ["] |
0.2736 |
| Height [mm] |
7 |
| Height ["] |
0.2736 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4,5 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.3716 |
| Damping at 200 MHz (100m & 20° C) [dB] |
8,6 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.6213 |
| Damping at 470 MHz (100m & 20° C) [dB] |
13.4 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.0843 |
| Damping at 862 MHz (100m & 20° C) [dB] |
18,2 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.5474 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
19,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.0655 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
24,5 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.4676 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
26.7 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.1382 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
35,9 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.9423 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
51,5 |
| Damping at 9000 MHz (100m & 20° C) [dB] |
63,5 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
73,5 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
20 , 21 |
| Laidininko varža per 1000 ft. [Ω] |
6.096 , 6.4008 |
| Shield. resistance per 1 km [Ω] |
11 |
| Shield. resistance per 1000 ft. [Ω] |
3.3528 |
| BPVo-Euroclass |
Fca |
