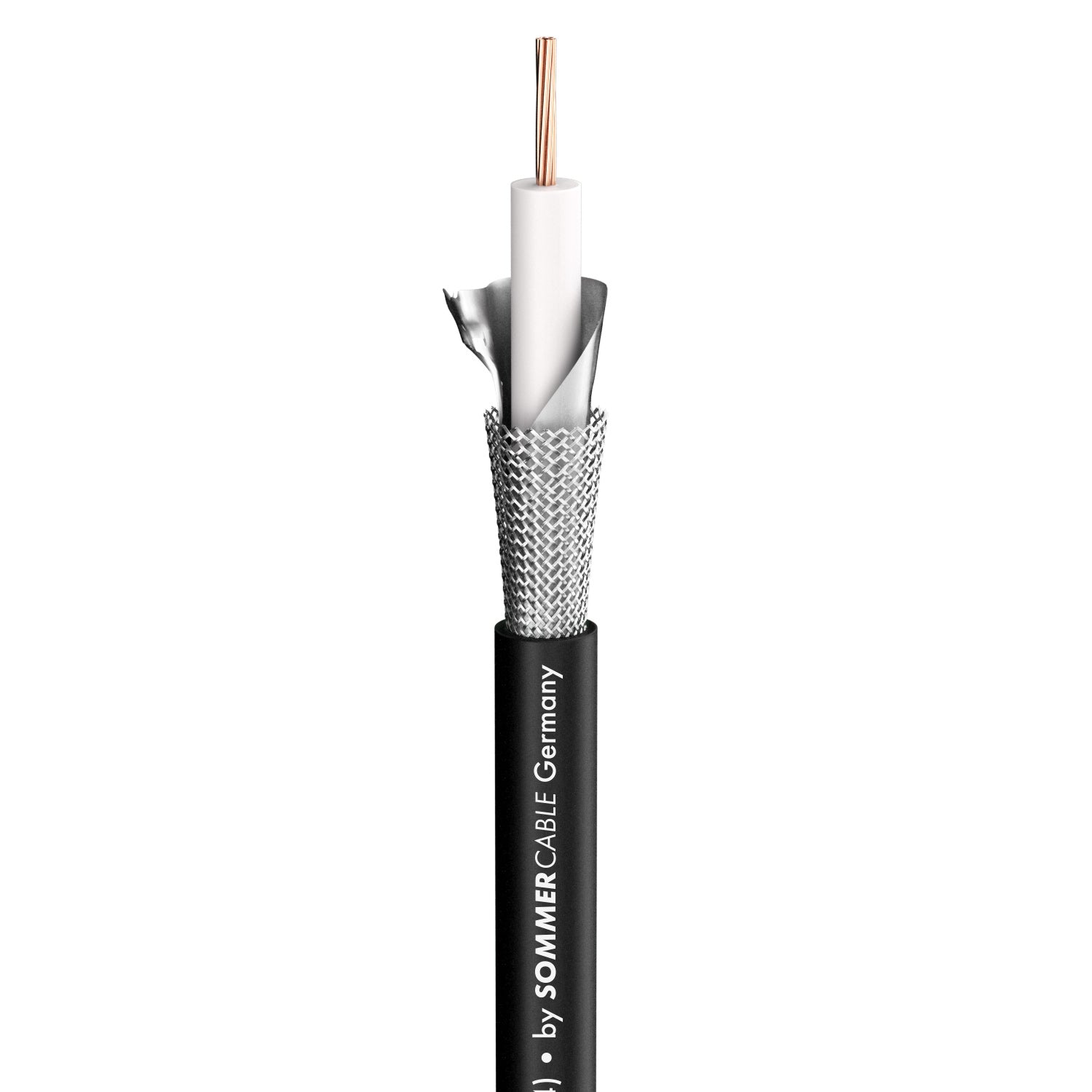

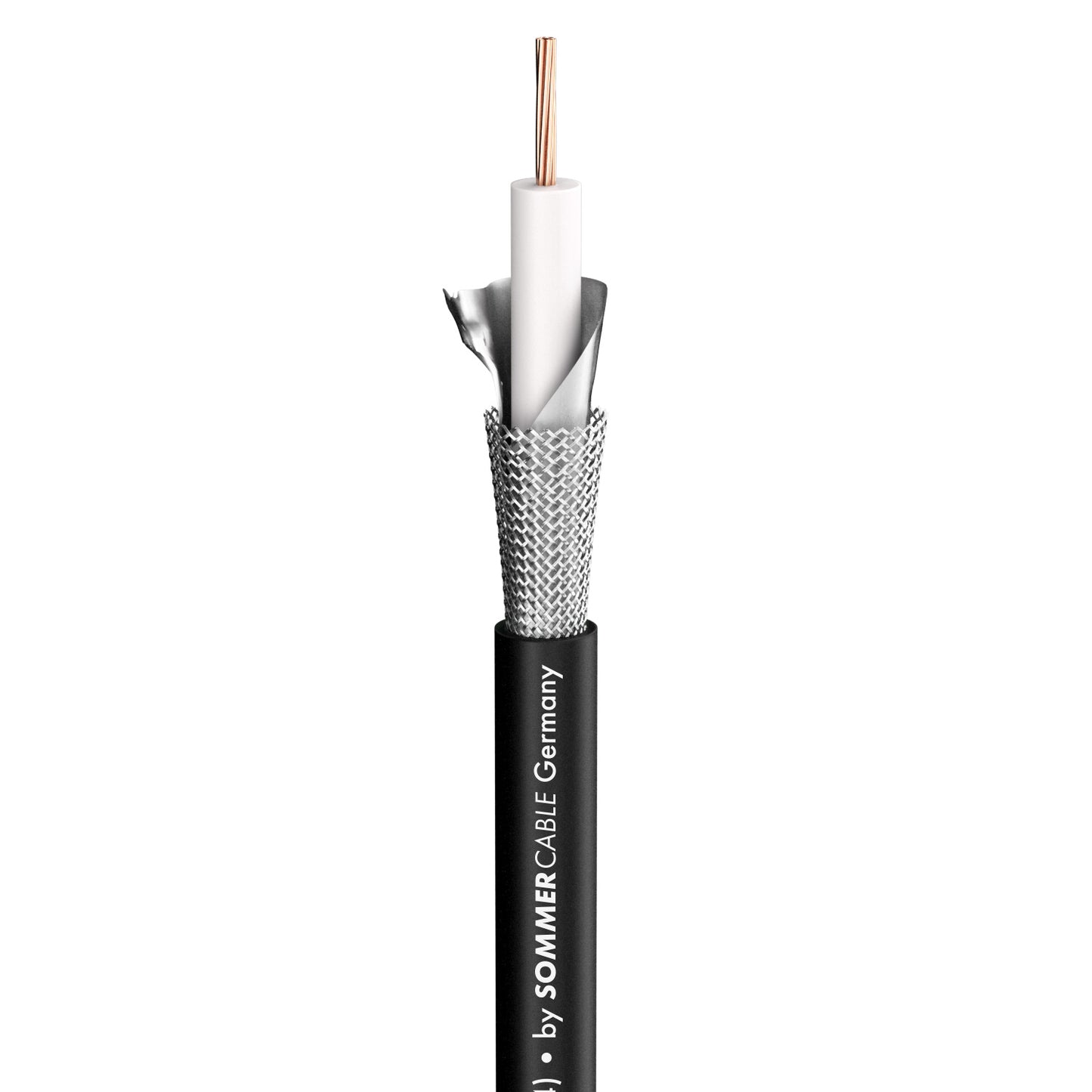

SDI kabelis 12G SC-Vector Plus; 1 x 1,20; PVC Ø 6,95 mm; juodas - 500 m ritė

SDI kabelis 12G SC-Vector Plus; 1 x 1,20; PVC Ø 6,95 mm; juodas - 500 m ritė

€2.016,81 be PVM
€2.016,81 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

SDI kabelis 12G SC-Vector Plus; 1 x 1,20; PVC Ø 6,95 mm; juodas - 500 m ritė

Parduodama 500 m ritė.

SC-Vector Plus

Privalumai:

- Superb damping values for long distances of up to 1000 m

- Robust and durable outer jacket, reelable

Pritaikymas:

- Digital HD/SDI long distance transmission

- Cabling for sporting events and big TV events; OB van technology

Techniniai duomenys

Prekės kodas 600-0171
Savybės Analog , Digital 75 Ω , OFC oxygen free copper , SDI
Pritaikymo sritis ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast
Paskirtis video cable
Spalva juoda
Konstrukcija 1x02YS(ST)CH1,2/5,0
Išorinio apvalkalo medžiaga PVC
Išorinis skersmuo [mm] 6,95
Išorinis skersmuo ["] 0.2736
Kanalų skaičius (video) 1
Vidinis laidininkas 1
Vidinis laidininkas (video) 1
Vidinis laidininkas (video) [mm²] 0,88
Vidinis laidininkas (video) [sqin] 0.0014
Vidinis laidininkas Ø (video) [mm] 1,20
Vidinis laidininkas Ø (video) ["] 0.0472
AWG (video) 18
Ekranavimas AL / PT-foil + copper braiding 80 % tin-plated
Ekranavimo koeficientas [%] 100
Vario gyslos (video) 7
Vario gyslos Ø (video) [mm] 0,40
Vario gyslos Ø (video) ["] 0.0157
Laidininko izoliacijos medžiaga Foam / Skin-PE
Laidininko izoliacijos Ø [mm] 5.00
Laidininko izoliacijos Ø ["] 0.1969
Svoris 1 m [g] 52.86
Gaisrinė apkrova per 1 m [kWh] 0.2
Variantas apvalus
Pakuotė sandėlio metražas
Greičio koeficientas 0.82
Min. temperatūra [°C] -10
Maks. temperatūra [°C] 80
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] 160
Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] 524.9344
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] 110
Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] 360.8924
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] 75
Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] 246,063
Width [mm] 7
Width ["] 0.2736
Height [mm] 7
Height ["] 0.2736
Capacity wire/electic screen at 1m (video) [pF] 52
Capacity wire/electic screen at 1 ft. (video) [pF] 15.8496
Damping at 50 MHz (100m & 20° C) [dB] 4,5
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] 1.3716
Damping at 200 MHz (100m & 20° C) [dB] 8,6
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] 2.6213
Damping at 470 MHz (100m & 20° C) [dB] 13.4
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] 4.0843
Damping at 862 MHz (100m & 20° C) [dB] 18,2
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] 5.5474
Damping at 1000 MHz (100m & 20° C) [dB] 19,9
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] 6.0655
Damping at 1485 MHz (100m & 20° C) [dB] 24,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] 7.4676
Damping at 1750 MHz (100m & 20° C) [dB] 26.7
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] 8.1382
Damping at 2150 MHz (100m & 20° C) [dB] 29,9
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] 9.1135
Damping at 3000 MHz (100m & 20° C) [dB] 35,9
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] 10.9423
Damping at 6000 MHz (100m & 20° C) [dB] 51,5
Damping at 9000 MHz (100m & 20° C) [dB] 63,5
Damping at 12000 MHz (100m & 20° C) [dB] 73,5
Impedance [Ω] 75
Laidininko varža per 1 km [Ω] 20
Laidininko varža per 1000 ft. [Ω] 6.096
Shield. resistance per 1 km [Ω] 11
Shield. resistance per 1000 ft. [Ω] 3.3528
BPVo-Euroclass Fca
