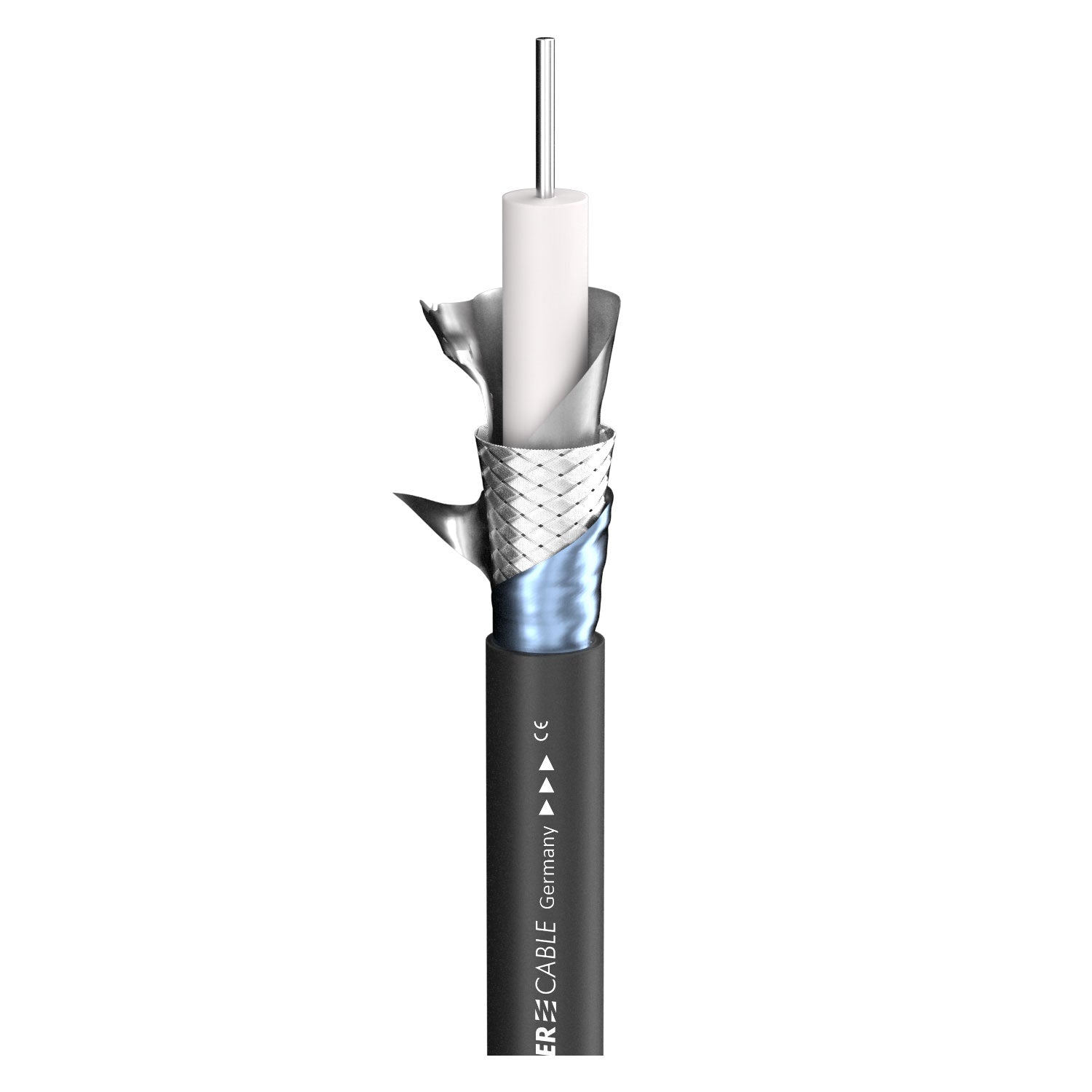

SDI kabelis 12G SC-Vector PLUS 1.3/5.7 4K; 1 x 1,30; PVC Ø 8,10 mm; juodas; Eca
Parduodama po 1 metrą.
SC-Vector PLUS 1.3/5.7 4K
Privalumai:
- Triple shielding with 100% coverage
- Extremely durable and temperatur resistant components (silver-plated wires, smoothed insulation, UV resistant jacket)
- Super low attenuation and so thin
Pritaikymas:
- Digital HD/UHD-SDI 4K long-distance transmission
- Connections for radio, broadcasting and surveillance technology, cables for stadium building and generally for sports events
- Ideal broadband, antenna and video cable
Techniniai duomenys
| Prekės kodas |
600-0131 |
| Savybės |
3G-SDI , 6G-SDI , Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
8,10 |
| Išorinis skersmuo ["] |
0.3189 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
1,30 |
| Vidinis laidininkas Ø (video) ["] |
0.0512 |
| AWG (video) |
16 |
| Ekranavimas |
AL foil + Cu mesh, tinned + 2nd AL foil |
| Ekranavimo koeficientas [%] |
100 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE , Skin-Foam-Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5,70 |
| Laidininko izoliacijos Ø ["] |
0.2244 |
| Svoris 1 m [g] |
77.3 |
| Svoris 1000 ft. [lbs] |
60.5624 |
| Gaisrinė apkrova per 1 m [kWh] |
0,22 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0.84 |
| Min. temperatūra [°C] |
-10 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
199 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
652.8872 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
94 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
308,399 |
| Width [mm] |
8,1 |
| Width ["] |
0.3189 |
| Height [mm] |
8,1 |
| Height ["] |
0.3189 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 , 53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 , 16.1544 |
| Damping at 5 MHz (100m & 20° C) [dB] |
1,2 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] |
0.3658 |
| Damping at 50 MHz (100m & 20° C) [dB] |
3,5 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.0668 |
| Damping at 100 MHz (100m & 20° C) [dB] |
4,3 , 4,8 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.463 , 1.3106 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
14,8 , 16,1 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.511 , 4.9073 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
20,1 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.1265 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
25,3 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.7114 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
27,5 , 29,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.382 , 9.083 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
39,8 , 42,7 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
64 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
13 |
| Laidininko varža per 1000 ft. [Ω] |
3.9624 |
| Shield. resistance per 1 km [Ω] |
6,2 |
| Shield. resistance per 1000 ft. [Ω] |
1.8898 |
| BPVo-Euroclass |
Eca |
