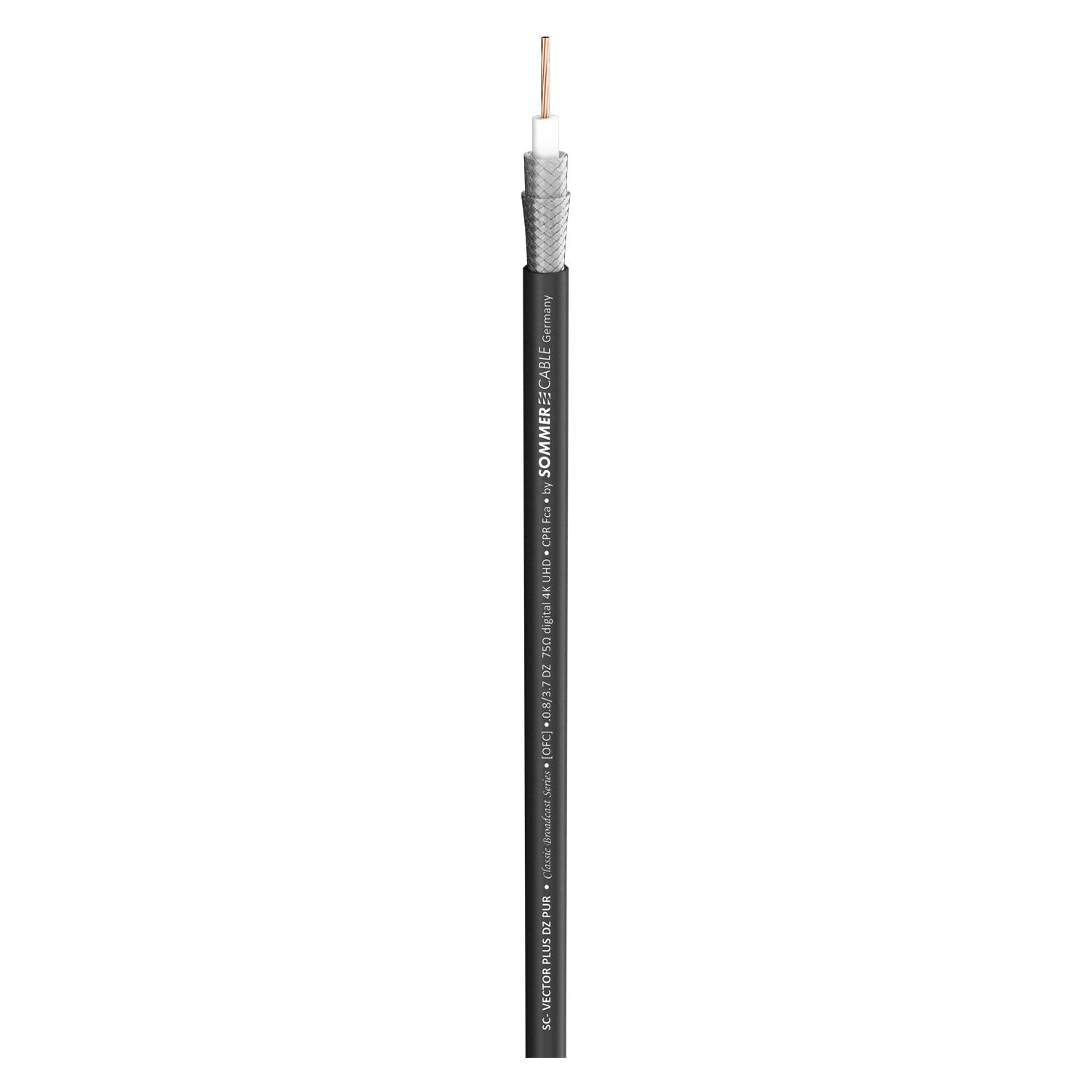

SDI kabelis 12G SC-Vector Plus 0.8L/3.7; 1 x 0,80; PUR Ø 6,10 mm; juodas - 100 m ritė
Parduodama 100 m ritė.
SC-Vector Plus 0.8L/3.7
Privalumai:
- Long life due to non-aging soft PUR jacket
- Temperature-resistant and flexible at low temperatures of -40 ° C
- Double shielded by dense, double CU braiding
- Compact and reelable
Pritaikymas:
- Digital UHD-SDI video transmission in the professional broadcast/OB van/studio sector, HF technology and antenna construction
- Mobile UHD-SDI transmissions
- Professional media-technical permanent installation according to 6G standard
Techniniai duomenys
| Prekės kodas |
601-0181 |
| Savybės |
3G-SDI / UHD , Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Konstrukcija |
02YS(ST)CH0.8L/3.7 |
| Išorinio apvalkalo medžiaga |
PUR |
| Išorinis skersmuo [mm] |
6,10 |
| Išorinis skersmuo ["] |
0.2402 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
0,80 |
| Vidinis laidininkas Ø (video) ["] |
0.0315 |
| AWG (video) |
20 |
| Ekranavimas |
double Copper braiding tin-plated |
| Ekranavimo koeficientas [%] |
95 |
| Vario gyslos (video) |
19 |
| Vario gyslos Ø (video) [mm] |
0,16 |
| Vario gyslos Ø (video) ["] |
0.0063 |
| Laidininko izoliacijos medžiaga |
Skin-Foam-Skin-PE |
| Laidininko izoliacijos Ø [mm] |
3.70 |
| Laidininko izoliacijos Ø ["] |
0.1457 |
| Atsparumas UV |
labai aukštas |
| Variantas |
apvalus |
| Pakuotė |
100 m spool , 500 m spool , 1000 m spool |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-40 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
94 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
308.399 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
63 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
206.6929 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
41 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
134.5144 |
| Width [mm] |
6,1 |
| Width ["] |
0.2402 |
| Height [mm] |
6,1 |
| Height ["] |
0.2402 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 100 MHz (100m & 20° C) [dB] |
9,9 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.0175 |
| Damping at 200 MHz (100m & 20° C) [dB] |
8,7 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.6518 |
| Damping at 470 MHz (100m & 20° C) [dB] |
21,2 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.4618 |
| Damping at 862 MHz (100m & 20° C) [dB] |
31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
33.7 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2718 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
42.4 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.9235 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
46.1 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
14.0513 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
51.3 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.6362 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
63.8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
19.4462 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
98,5 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
168.2 |
| Impedance [Ω] |
75 |
| Shield. resistance per 1 km [Ω] |
7,2 |
| Shield. resistance per 1000 ft. [Ω] |
2.1946 |
| BPVo-Euroclass |
Fca |
