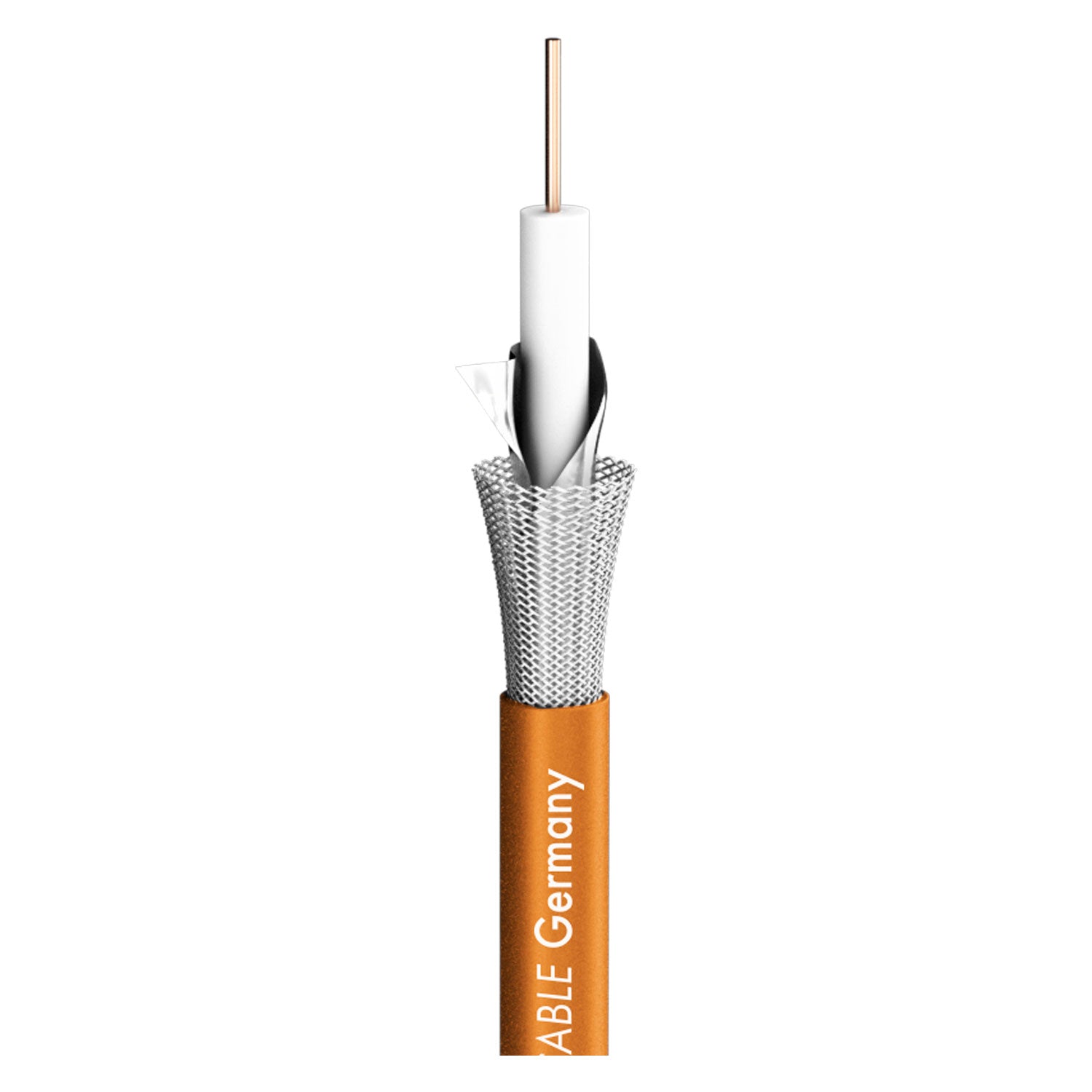

SDI kabelis 12G SC-Slimline; 1 x 0,60; PVC Ø 4,20 mm; oranžinis
Parduodama po 1 metrą.
SC-Slimline
Privalumai:
- Long life due to non-aging jacket
- Consistent, optimised electrical values due to the use of a massive
OFC wire
- Gas-injected insulation for best damping values
Pritaikymas:
- HD-SDI-video transmission in the professional broadcasting/studio sector
- OB van technology
- Permanent installation, HF technology and antenna construction
Techniniai duomenys
| Prekės kodas |
600-0855 |
| Savybės |
Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation |
| Paskirtis |
video cable |
| Spalva |
oranžinė |
| Konstrukcija |
02YS(ST)CH0,6/2,8 HD-SDI |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
4,20 |
| Išorinis skersmuo ["] |
0.1654 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,28 |
| Vidinis laidininkas (video) [sqin] |
0.0004 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| AWG (video) |
23 |
| Ekranavimas |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,60 |
| Vario gyslos Ø (video) ["] |
0.0236 |
| Laidininko izoliacijos medžiaga |
Gas Injected-PE |
| Laidininko izoliacijos Ø [mm] |
2,80 |
| Laidininko izoliacijos Ø ["] |
0.1102 |
| Svoris 1 m [g] |
22 |
| Svoris 1000 ft. [lbs] |
14.8042 |
| Gaisrinė apkrova per 1 m [kWh] |
0,06 |
| Variantas |
apvalus |
| Pakuotė |
100 m spool , 500 m spool , 1000 m spool |
| Greičio koeficientas |
0.82 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
70 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
96 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
314.9606 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
66 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
216.5354 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
44 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
144,357 |
| Width [mm] |
4,2 |
| Width ["] |
0.1654 |
| Height [mm] |
4,2 |
| Height ["] |
0.1654 |
| Capacity wire/wire at 1m (video) [pF] |
53 |
| Capacity wire/wire at 1 ft. (video) [pF] |
16.1544 |
| Damping at 50 MHz (100m & 20° C) [dB] |
7,3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.225 |
| Damping at 200 MHz (100m & 20° C) [dB] |
14,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4196 |
| Damping at 470 MHz (100m & 20° C) [dB] |
22,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.919 |
| Damping at 862 MHz (100m & 20° C) [dB] |
31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
33,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2413 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
41,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.5578 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
45,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.777 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
50,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.5143 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
60 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
18.288 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
90,4 |
| Impedance [Ω] |
75 |
| Shield. resistance per 1 km [Ω] |
17 |
| Shield. resistance per 1000 ft. [Ω] |
5.1816 |
| BPVo-Euroclass |
Fca |
