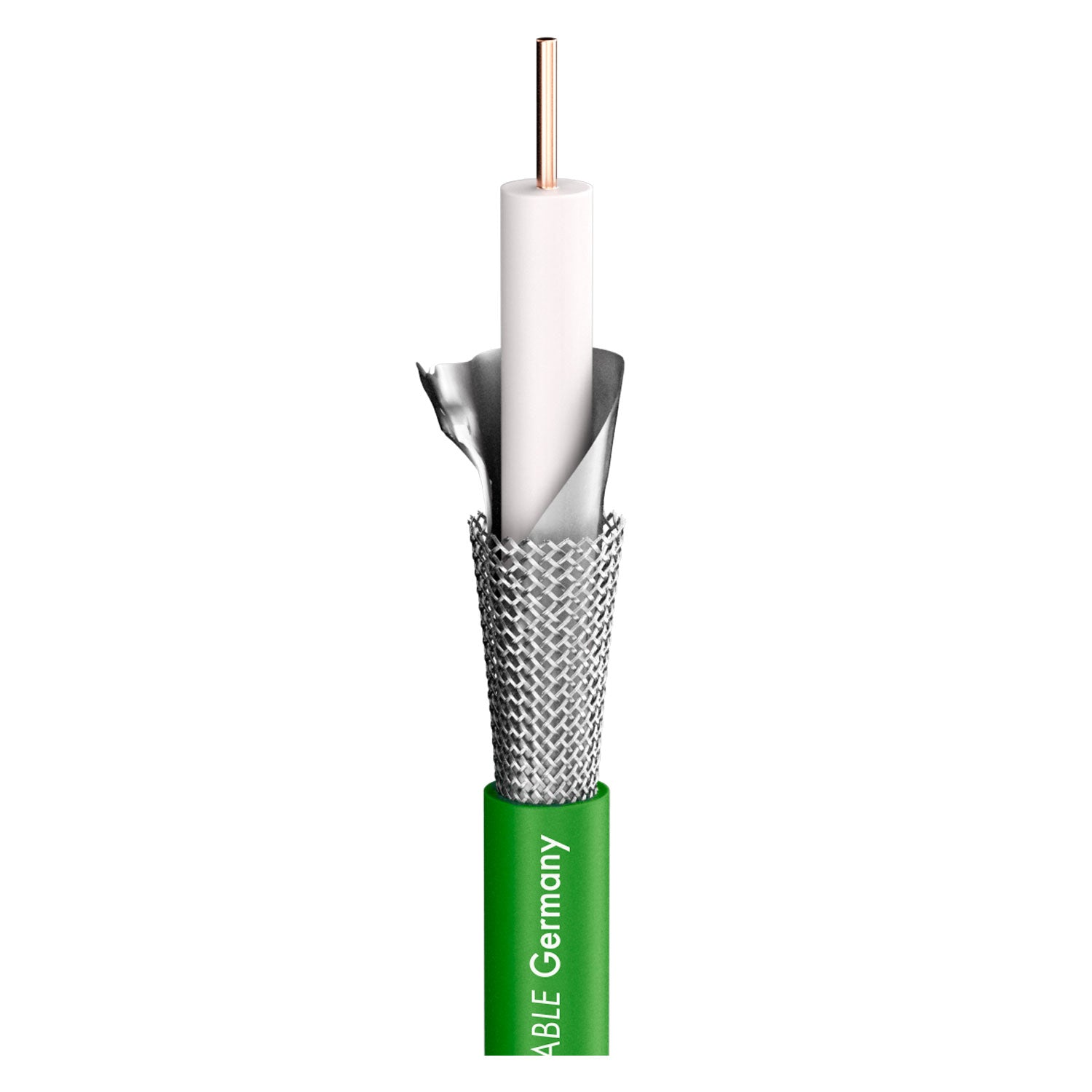

SDI kabelis 12G SC-RG Classic Broadcast; 1 x 1,00; FRNC Ø 7,10 mm; žalias - 1000 m ritė
Parduodama 1000 m ritė.
SC-RG Classic Broadcast
Privalumai:
- Long life due to non-aging jacket
- Consistent, optimised electrical values due to the use of a massive
OFC wire
- Gas-injected insulation for best damping values
Pritaikymas:
- HD-SDI-video transmission in the professional broadcasting/studio sector
- OB van technology
- HF technology and antenna construction
- For fixed installations
Techniniai duomenys
| Prekės kodas |
600-0144F |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , HDTV , Halogen-free / LSZH , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation |
| Paskirtis |
video cable |
| Spalva |
žalia |
| Konstrukcija |
02YS(ST)CH1,0/4,8 HD-SDI |
| Išorinio apvalkalo medžiaga |
FRNC |
| Išorinis skersmuo [mm] |
7,10 |
| Išorinis skersmuo ["] |
0.2795 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,79 |
| Vidinis laidininkas (video) [sqin] |
0.0012 |
| Vidinis laidininkas Ø (video) [mm] |
1,00 |
| Vidinis laidininkas Ø (video) ["] |
0.0394 |
| AWG (video) |
18 |
| Ekranavimas |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
1,00 |
| Vario gyslos Ø (video) ["] |
0.0394 |
| Laidininko izoliacijos medžiaga |
Gas Injected-PE |
| Laidininko izoliacijos Ø [mm] |
4,80 |
| Laidininko izoliacijos Ø ["] |
0.189 |
| Svoris 1 m [g] |
64 |
| Svoris 1000 ft. [lbs] |
43.0666 |
| Gaisrinė apkrova per 1 m [kWh] |
0,21 |
| Variantas |
apvalus |
| Pakuotė |
100 m spool , 500 m spool , 1000 m spool |
| Greičio koeficientas |
0.82 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
70 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
162 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
531.4961 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
113 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
370.7349 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
77 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
252,6247 |
| Width [mm] |
7,1 |
| Width ["] |
0.2795 |
| Height [mm] |
7,1 |
| Height ["] |
0.2795 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4,5 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.3716 |
| Damping at 200 MHz (100m & 20° C) [dB] |
8,9 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.7127 |
| Damping at 470 MHz (100m & 20° C) [dB] |
13,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.2367 |
| Damping at 862 MHz (100m & 20° C) [dB] |
18,5 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.6388 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
20 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.096 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
24,5 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.4676 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
26,6 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.1077 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
30 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.144 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
35,4 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.7899 |
| Damping at 6000 MHz (100m & 20° C) [dB] |
52 |
| Damping at 9000 MHz (100m & 20° C) [dB] |
65,5 |
| Damping at 12000 MHz (100m & 20° C) [dB] |
77,4 |
| Impedance [Ω] |
75 |
| Shield. resistance per 1 km [Ω] |
7 |
| Shield. resistance per 1000 ft. [Ω] |
2.1336 |
| BPVo-Euroclass |
Fca |
