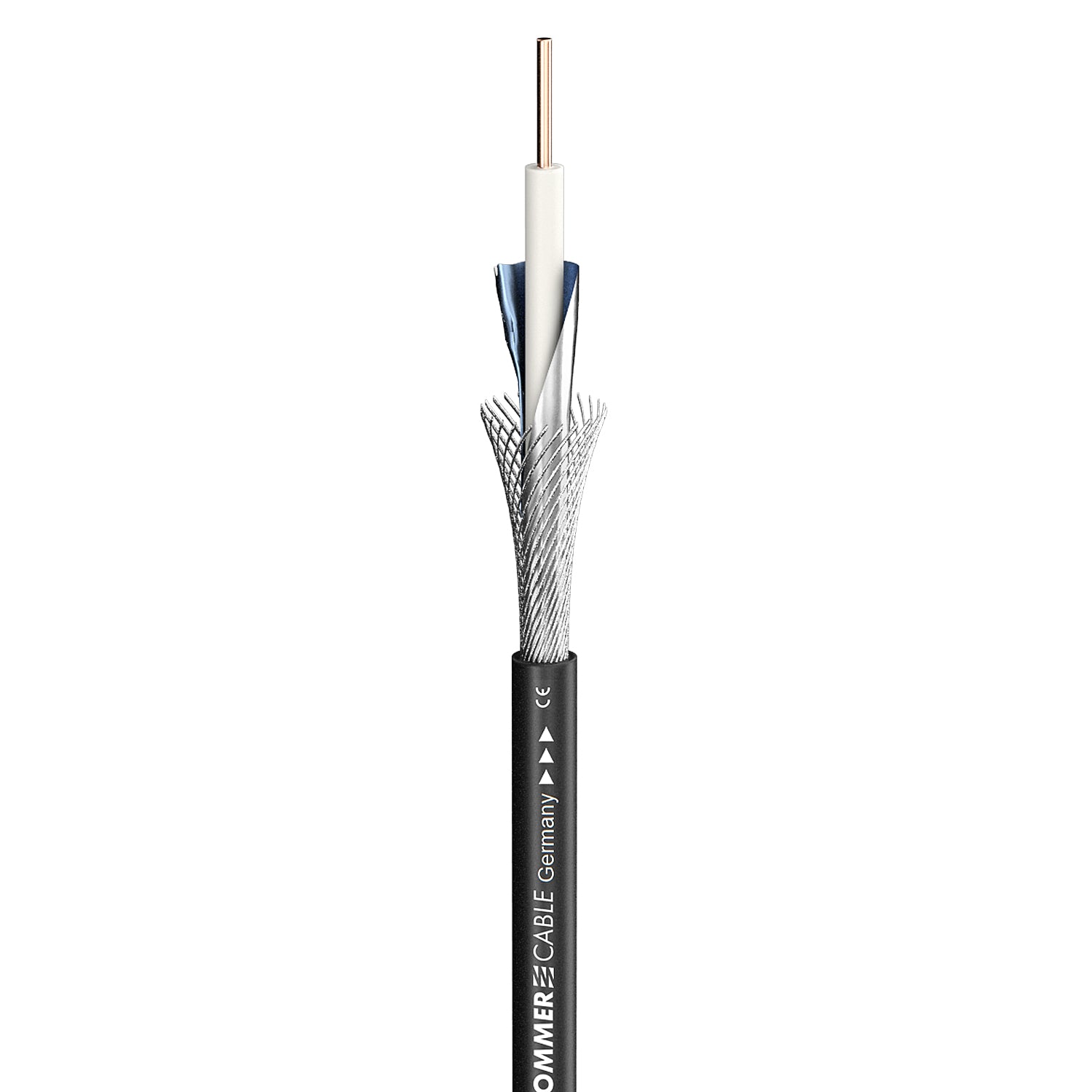

SDI kabelis 12G SC-Monomax 0.41/1.9 CPR-Version; 1 x 0,41; PVC Ø 3,60 mm; juodas; Eca
Parduodama po 1 metrą.
SC-Monomax 0.41/1.9 CPR-Version
Privalumai:
- Low attenuation due to skin-gas-skin foamed insulation
- Superb shielding by a combined Cu braid plus foil screen
- Lowest tolerances in the characteristic impedance (±3 %)
- Compact with a small outer diameter
- Robust and durable cable construction in spite of ultra small design
Pritaikymas:
- As flexible HD-SDI video cable for switchgear construction
- For all kinds of unbalanced interior wirings
- For compact cable connections in the video and home cinema sector
Techniniai duomenys
| Prekės kodas |
600-0041C |
| Savybės |
Analog , Digital 75 Ω |
| Pritaikymo sritis |
Installation , Studio / Broadcast |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
3,60 |
| Išorinis skersmuo ["] |
0.1417 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
0,41 |
| Vidinis laidininkas Ø (video) ["] |
0.0161 |
| AWG (video) |
26 |
| Ekranavimas |
Copper braiding tin-plated + AL / PT foil |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,41 |
| Vario gyslos Ø (video) ["] |
0.0161 |
| Laidininko izoliacijos Ø [mm] |
1,90 |
| Laidininko izoliacijos Ø ["] |
0.0748 |
| Svoris 1 m [g] |
14.18 |
| Gaisrinė apkrova per 1 m [kWh] |
0,05 , 0,06 |
| Variantas |
apvalus |
| Pakuotė |
100 m spool |
| Greičio koeficientas |
0,83 , 0,85 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
67 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
219.8163 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
47 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
154.1995 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
33 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
108,2677 |
| Width [mm] |
3,6 |
| Width ["] |
0.1417 |
| Height [mm] |
3,6 |
| Height ["] |
0.1417 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 50 MHz (100m & 20° C) [dB] |
11,4 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.4747 |
| Damping at 200 MHz (100m & 20° C) [dB] |
22,1 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.7361 |
| Damping at 470 MHz (100m & 20° C) [dB] |
32,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.0279 |
| Damping at 862 MHz (100m & 20° C) [dB] |
44,8 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.655 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
48,8 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
14.8742 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
58,9 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
17.9527 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
63,5 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
19.3548 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
70,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
21.6103 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
84,7 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
25.8166 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
130 |
| Laidininko varža per 1000 ft. [Ω] |
39.624 |
| Shield. resistance per 1 km [Ω] |
46 |
| Shield. resistance per 1000 ft. [Ω] |
14.0208 |
| Old article number |
600-0041 |
| BPVo-Euroclass |
Eca |
