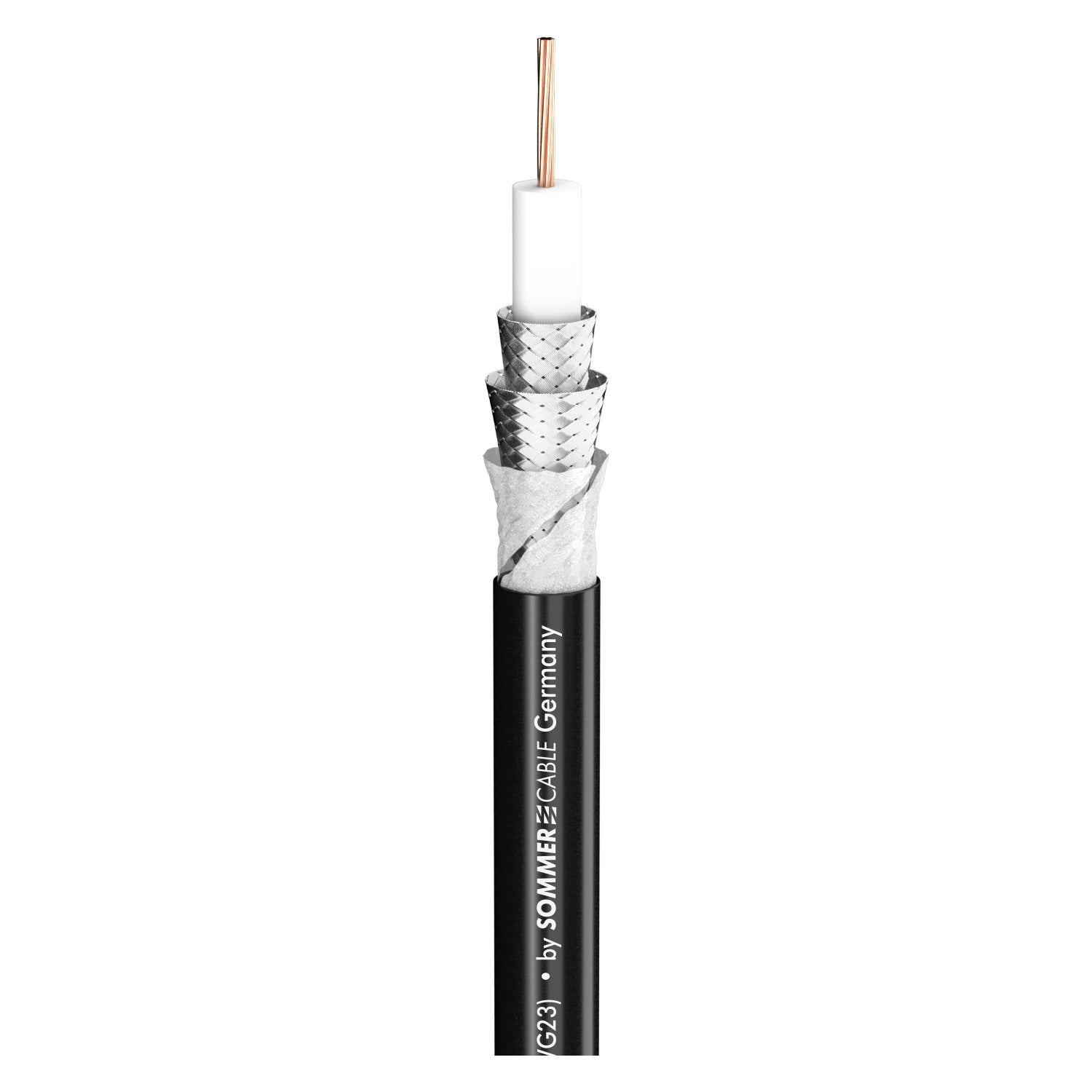

SDI kabelis 12G SC-AQUA MARINEX VIDEO 1.2L/4.8; 1 x 1,06; PUR-SR Ø 7,40 mm; juodas - 100 m ritė
Parduodama 100 m ritė.
SC-AQUA MARINEX VIDEO 1.2L/4.8
Privalumai:
- Solid outer jacket and double Cu mesh screen
- Reelable and high number of bending cycles
- Useable in great water depths
- Cold-flexible due to special HD-PUR jacket
- No-compromise mechanical and electrical line quality
- Useable with common 1.2/4.8 BNC connectors
Pritaikymas:
- HD-SDI video cable for permanent installation in boat-building, tunnel construction or in sport arenas
- Flexible HD-SDI video cable as camera supply line with dive sessions
- High-quality phono/audio line for AF transmission
- High-resolution picture transmission e.g. for use in sediment technology
Techniniai duomenys
| Prekės kodas |
605-0241AQ |
| Savybės |
Analog , Digital 75 Ω , HDTV , Halogen-free / LSZH , PUR , SDI , Underwater / submerged |
| Pritaikymo sritis |
Aqua , ELA 100 V , Installation , Mobile outdoor / indoor , Stage / live |
| Paskirtis |
video cable |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PUR-SR |
| Išorinis skersmuo [mm] |
7,40 |
| Išorinis skersmuo ["] |
0.2913 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas Ø (video) [mm] |
1,06 |
| Vidinis laidininkas Ø (video) ["] |
0.0417 |
| AWG (video) |
18 |
| Ekranavimas |
2 x Copper braiding + special protective banding |
| Ekranavimo koeficientas [%] |
90 |
| Vario gyslos (video) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Laidininko izoliacijos medžiaga |
PO |
| Laidininko izoliacijos Ø [mm] |
4,80 |
| Laidininko izoliacijos Ø ["] |
0.189 |
| Svoris 1 m [g] |
72 |
| Svoris 1000 ft. [lbs] |
48.45 |
| Atsparumas UV |
labai aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,38 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Greičio koeficientas |
0,86 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
80 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [m] |
141 |
| Max. Transmission length (SMPTE 425M, 3G) (without connectors) [ft] |
462.5984 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
96 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
314.9606 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [m] |
62 |
| Max. Transmission length (SMPTE 2082, 12G) (without connectors) [ft] |
203,4121 |
| Width [mm] |
7,5 |
| Width ["] |
0.2953 |
| Height [mm] |
7,4 |
| Height ["] |
0.2913 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,3 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8346 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 |
| Impedance [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
20 |
| Laidininko varža per 1000 ft. [Ω] |
6.096 |
| Shield. resistance per 1 km [Ω] |
5,6 |
| Shield. resistance per 1000 ft. [Ω] |
1.7069 |
| BPVo-Euroclass |
Fca |
