Kabeliai ir jungtys
Įprasta kaina
€8,57 be PVM
Įprasta kaina
Išpardavimo kaina
€8,57 be PVM
Nepavyko įkelti atsiėmimo galimybių

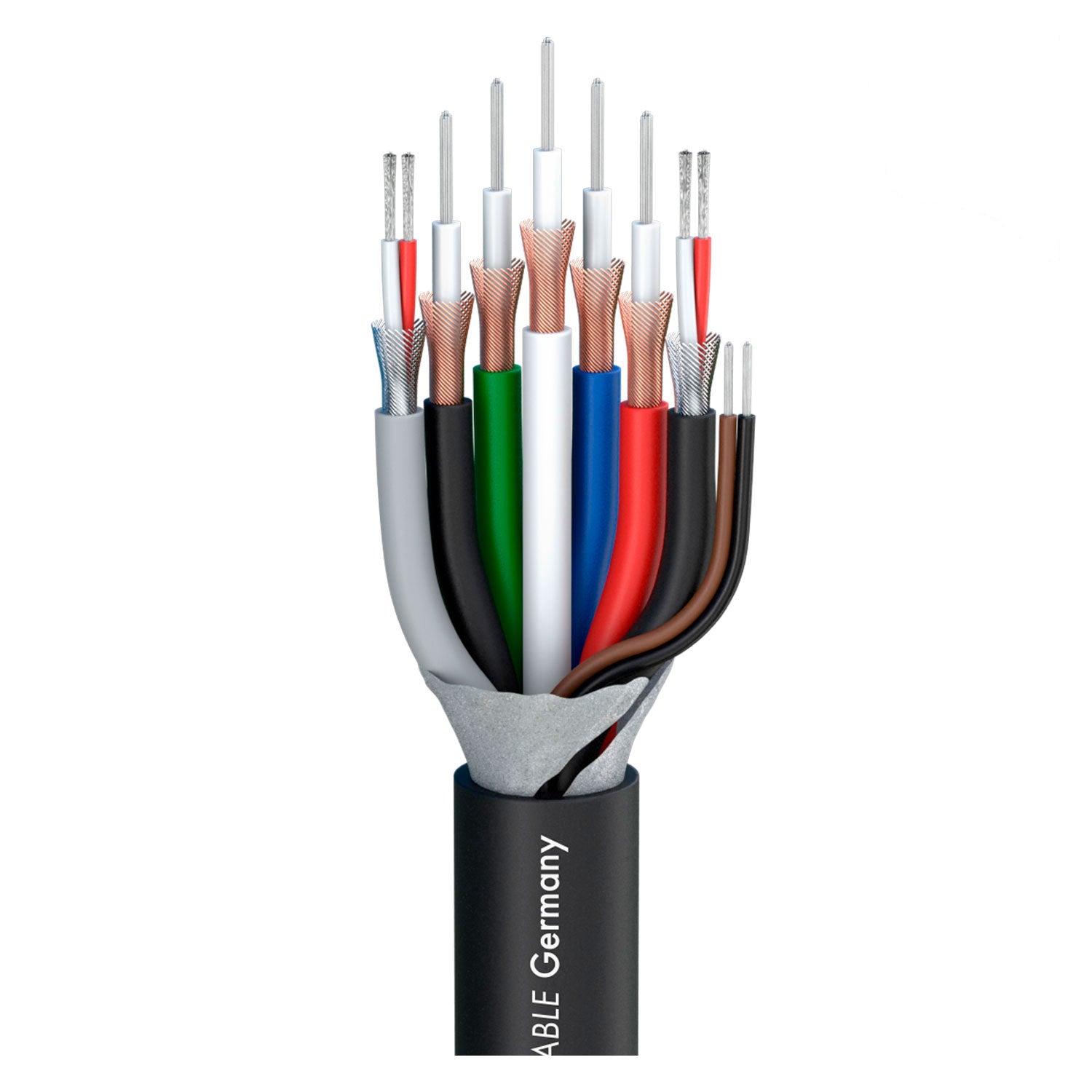

Transit Mini Kombi TMK 522; video: 5 x 0,34/1,60; audio: 2 x 10 x 0,08 mm²; 2 x control; PVC Ø 10,00 mm; juodas
Techniniai duomenys
| Prekės kodas |
600-1841-05 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Stage / live , Studio / Broadcast |
| Paskirtis |
Video- & Audio cable |
| Spalva |
juoda |
| Konstrukcija |
[5LI2YSCY0,34mm+2(2LI2Y0,08mm²)DY+2LIY0,14mm²)Y]Y |
| Construction (audio) |
2(2LIY0,08mm²)DY |
| Construction (control) |
2 x 0,14 mm² |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
10,00 |
| Išorinis skersmuo ["] |
0.3937 |
| Jacket Ø (audio) [mm] |
2,70 |
| Jacket Ø (audio) ["] |
0.1063 |
| Jacket Ø (video) [mm] |
2,70 |
| Jacket Ø (video) ["] |
0.1063 |
| Jacket Ø (control) [mm] |
1,00 |
| Jacket Ø (control) ["] |
0.0394 |
| Kanalų skaičius (audio) |
2 |
| Kanalų skaičius (video) |
1 |
| Kanalų skaičius (control) |
2 |
| Vidinis laidininkas |
15 |
| Vidinis laidininkas (audio) |
10 |
| Vidinis laidininkas (video) |
5 |
| Vidinis laidininkas (audio) [mm²] |
0,08 |
| Vidinis laidininkas (audio) [sqin] |
0.0001 |
| Vidinis laidininkass (control) [mm²] |
0,14 |
| Vidinis laidininkass (control) [sqin] |
0.0002 |
| Vidinis laidininkas Ø (audio) [mm] |
0,32 |
| Vidinis laidininkas Ø (audio) ["] |
0.0126 |
| Vidinis laidininkas Ø (video) [mm] |
0,34 |
| Vidinis laidininkas Ø (video) ["] |
0.0134 |
| Vidinis laidininkas Ø (control) [mm] |
0,42 |
| Vidinis laidininkas Ø (control) ["] |
0.0165 |
| AWG (audio) |
28 |
| AWG (video) |
26 |
| AWG (control) |
25 |
| Shielding (video) |
copper spiral shielding 92 % |
| Ekranavimo koeficientas [%] |
92 |
| Vario gyslos (audio) |
7 |
| Vario gyslos (video) |
7 |
| Vario gyslos (control) |
18 |
| Vario gyslos Ø (audio) [mm] |
0,13 |
| Vario gyslos Ø (audio) ["] |
0.0051 |
| Vario gyslos Ø (video) [mm] |
0,13 |
| Vario gyslos Ø (video) ["] |
0.0051 |
| Vario gyslos Ø (control) [mm] |
0,10 |
| Vario gyslos Ø (control) ["] |
0.0039 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
1,60 |
| Conductor insulation Ø (video) ["] |
0.063 |
| Svoris 1 m [g] |
160 |
| Svoris 1000 ft. [lbs] |
94.2082 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,4 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
10 |
| Width ["] |
0.3937 |
| Height [mm] |
10 |
| Height ["] |
0.3937 |
| Capac. cond./cond. per 1 m (audio) [pF] |
140 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
42.672 |
| Capac. cond./shield. per 1 m (audio) [pF] |
245 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
74.676 |
| Capacity wire/electic screen at 1m (video) [pF] |
56 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
17.0688 |
| Damping at 50 MHz (100m & 20° C) [dB] |
14,4 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.3891 |
| Damping at 100 MHz (100m & 20° C) [dB] |
20,8 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.3398 |
| Damping at 200 MHz (100m & 20° C) [dB] |
29,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.083 |
| Damping at 470 MHz (100m & 20° C) [dB] |
43 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.1064 |
| Damping at 862 MHz (100m & 20° C) [dB] |
67 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
20.4216 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
74,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
22.7381 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
96,8 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
29.5046 |
| Impedance (video) [Ω] |
75 |
| BPVo-Euroclass |
Fca |
