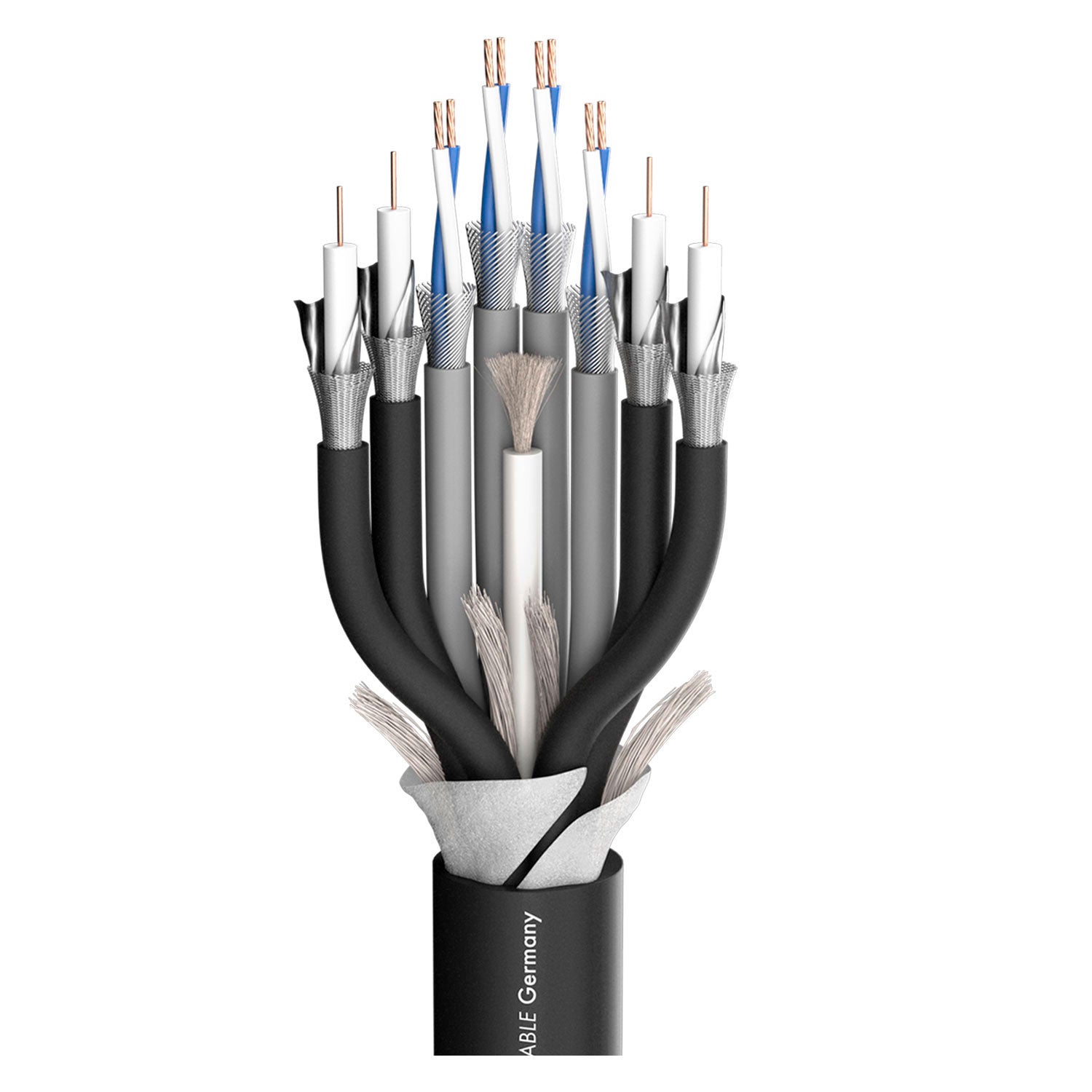

SDI kabelis Transit MC4400 Kombi HD-SDI; video: 4 x 0,60/2,80; audio: 4 x 2 x 0,14 mm²; PUR Ø 15,60 mm; juodas
Parduodama po 1 metrą.
Transit MC4400 Kombi HD-SDI
Multicoax & Audio
Privalumai:
- Dependable and very high-quality picture & sound transmission
in one cable
- Easy to crimp and very good damping values due to solid wire
conductors
- Extremely rugged due to special jacket compound
- Small outer diameter
Pritaikymas:
- For permanent installation over long distances (theatres, sports arenas,
media & conference centres)
- For audio and video transmission, MADI live and studio operation
Techniniai duomenys
| Prekės kodas |
600-1441 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper , PUR , SDI |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Stage / live , Studio / Broadcast |
| Paskirtis |
Multicoax & Audio |
| Spalva |
juoda |
| Konstrukcija |
[4LI2YSCY0,60mm+4(2LI2Y0,14mm²)DY]Y |
| Construction (audio) |
4(2LIY0,14mm²)(ST)DY |
| Išorinio apvalkalo medžiaga |
PUR |
| Išorinis skersmuo [mm] |
15,60 |
| Išorinis skersmuo ["] |
0.6142 |
| Kanalų skaičius (audio) |
4 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
6 |
| Vidinis laidininkas (audio) |
2 |
| Vidinis laidininkas (video) |
4 |
| Vidinis laidininkas (audio) [mm²] |
0,14 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas (video) [mm²] |
0,28 |
| Vidinis laidininkas (video) [sqin] |
0.0004 |
| Vidinis laidininkas Ø (audio) [mm] |
0,42 |
| Vidinis laidininkas Ø (audio) ["] |
0.0165 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| AWG (audio) |
26 |
| AWG (video) |
23 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (video) |
Cu mesh, tinned 95% + AL / PT-foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (audio) |
36 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (audio) [mm] |
0,07 |
| Vario gyslos Ø (audio) ["] |
0.0028 |
| Vario gyslos Ø (video) [mm] |
0,60 |
| Vario gyslos Ø (video) ["] |
0.0236 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
2,80 |
| Conductor insulation Ø (video) ["] |
0.1102 |
| Svoris 1 m [g] |
270 |
| Svoris 1000 ft. [lbs] |
181.6873 |
| Atsparumas UV |
labai aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
1,59 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
85 |
| Width [mm] |
15,6 |
| Width ["] |
0.6142 |
| Height [mm] |
15,6 |
| Height ["] |
0.6142 |
| Capac. cond./cond. per 1 m (audio) [pF] |
53 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
16.1544 |
| Capacity wire/electic screen at 1m (video) [pF] |
55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.764 |
| Damping at 5 MHz (100m & 20° C) [dB] |
8,5 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.5908 |
| Damping at 50 MHz (100m & 20° C) [dB] |
9,6 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.9261 |
| Damping at 100 MHz (100m & 20° C) [dB] |
11 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.3528 |
| Damping at 200 MHz (100m & 20° C) [dB] |
13,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.2062 |
| Damping at 470 MHz (100m & 20° C) [dB] |
20,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.3703 |
| Damping at 862 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
32,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.0279 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
41,6 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.6797 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
45,7 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.9294 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
50,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.3924 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
56,2 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
17.1298 |
| Impedance (video) [Ω] |
75 |
| BPVo-Euroclass |
Fca |
