600-2791-PU400M | SDI kabelis Transit MC 3231 HD-SDI, 400 m ritė, video: 3 x 1,20/5,00, audio: 2 x 2 x 0,15 mm², power: 3 x 2.50 mm², 1 x CAT.7
600-2791-PU400M | SDI kabelis Transit MC 3231 HD-SDI, 400 m ritė, video: 3 x 1,20/5,00, audio: 2 x 2 x 0,15 mm², power: 3 x 2.50 mm², 1 x CAT.7
Įprasta kaina
€15.667,23 be PVM
Įprasta kaina
Išpardavimo kaina
€15.667,23 be PVM
Išpardavimas
Išparduota
Nepavyko įkelti atsiėmimo galimybių
Atnaujinti

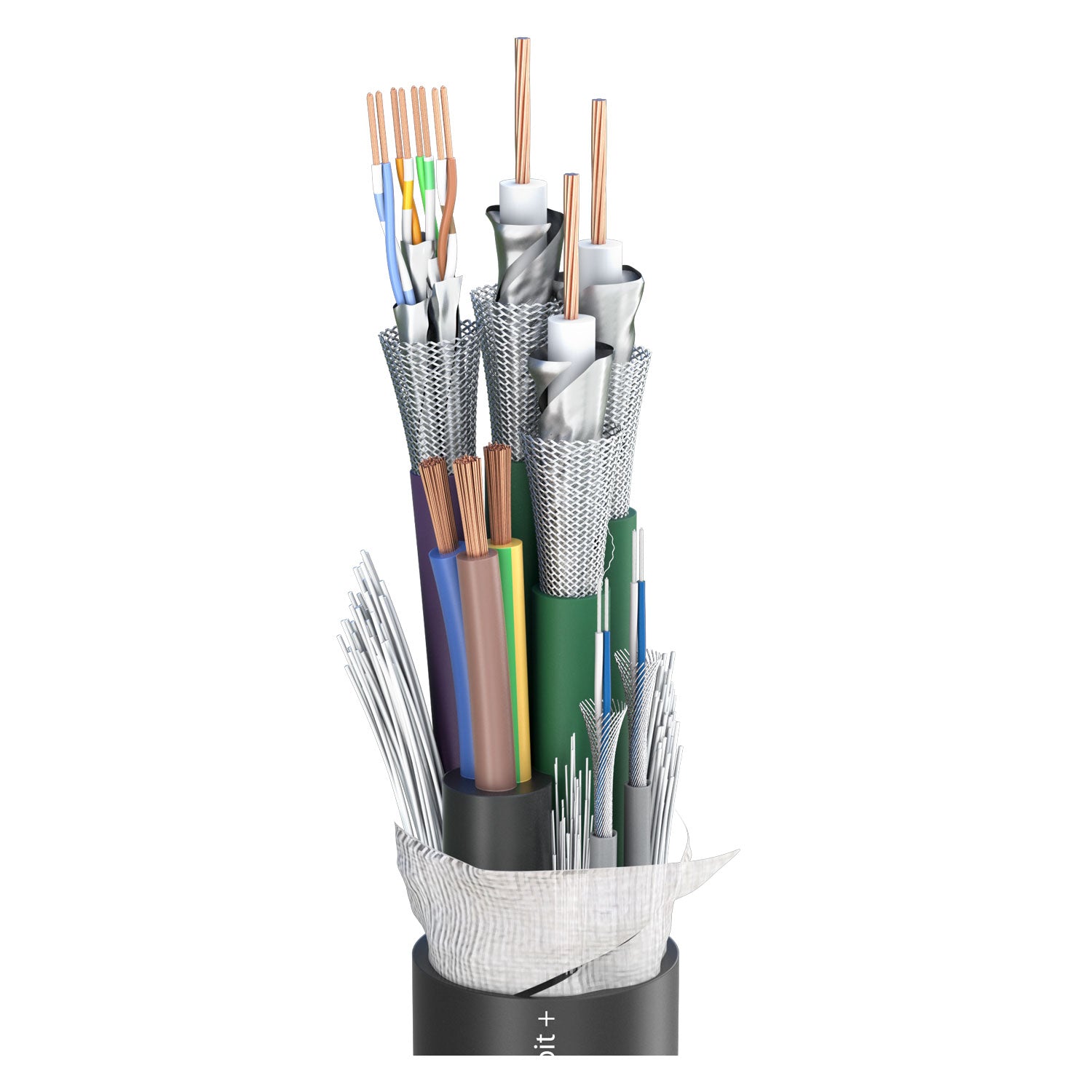

SDI kabelis Transit MC 3231 HD-SDI; video: 3 x 1,20/5,00; audio: 2 x 2 x 0,15 mm²; power: 3 x 2.50 mm²; 1 x CAT.7; Soft-PVC Ø 24,00 mm; juodas - 400 m ritė
Parduodama 400 m ritė.
Transit MC 3231 HD-SDI
hybrid cable
Privalumai:
- 10 Gbit capable network and HD-SDI compliant video transmission in one cable
- Excellent shielding
- Super low damping values for long distance transmissions
Pritaikymas:
- Digital HD-SDI long distance transmission including digital audio network and power supply
- Ideal for broadcasting van applications, sporting events and big events
- Installation (Broadcast, studio, conference rooms, building technology)
Papildoma informacija:
- Minimum bending radius: 15 x outer diameter
Techniniai duomenys
Prekės kodas
600-2791
Savybės
Analog , Digital 75 Ω , OFC oxygen free copper , SDI
Pritaikymo sritis
Installation , Mobile outdoor / indoor , Studio / Broadcast
Paskirtis
hybrid cable
Spalva
juoda
Konstrukcija
[3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+(3LIY2,5mm²)Y+SFTP4x2xAWG26/7]Y
Construction (audio)
2 x 2 x 0,15mm²
Construction (video)
3 x 1,2/5,0
Construction (power)
(3LIY2,5mm²)Y
Construction (network)
SFTP 4x2x0,14mm²
Išorinio apvalkalo medžiaga
Soft-PVC
Jacket material (audio)
PVC
Jacket material (video)
PVC
Jacket material (power)
PVC
Jacket material (network)
PVC
Išorinis skersmuo [mm]
24,00
Išorinis skersmuo ["]
0.9449
Jacket Ø (audio) [mm]
3,00
Jacket Ø (audio) ["]
0.1181
Jacket Ø (video) [mm]
6,95
Jacket Ø (video) ["]
0.2736
Jacket Ø (power) [mm]
10,20
Jacket Ø (power) ["]
0.4016
Jacket Ø (network) [mm]
6,40
Jacket Ø (network) ["]
0.252
Kanalų skaičius (audio)
2
Kanalų skaičius (power)
1
Kanalų skaičius (network)
1
Vidinis laidininkas
16
Vidinis laidininkas (audio)
2
Vidinis laidininkas (video)
3
Vidinis laidininkas (power)
3
Vidinis laidininkas (network)
8
Vidinis laidininkas (audio) [mm²]
0,15
Vidinis laidininkas (audio) [sqin]
0.0002
Vidinis laidininkas (video) [mm²]
1,13
Vidinis laidininkas (video) [sqin]
0.0018
Vidinis laidininkas (power) [mm²]
2,50
Vidinis laidininkas (power) [sqin]
0.0039
Vidinis laidininkas (network) [sqin]
0.0002
Vidinis laidininkas (network) [mm²]
0,14
Vidinis laidininkas Ø (audio) [mm]
0,44
Vidinis laidininkas Ø (audio) ["]
0.0173
Vidinis laidininkas Ø (video) [mm]
1,20
Vidinis laidininkas Ø (video) ["]
0.0472
Vidinis laidininkas Ø (power) [mm]
1,78
Vidinis laidininkas Ø (power) ["]
0.0701
Vidinis laidininkas Ø (network) [mm]
0,42
Vidinis laidininkas Ø (network) ["]
0.0165
AWG (audio)
25
AWG (video)
18
AWG (power)
13
AWG (network)
26
Shielding (audio)
Copper spiral
Shielding (video)
Copper braiding + AL / PT foil
Shielding (network)
Copper braiding + AL / PT-foil per wire pair (CAT)
Ekranavimo koeficientas [%]
100
Vario gyslos (audio)
19
Vario gyslos (network)
7
Vario gyslos Ø (audio) [mm]
0,10
Vario gyslos Ø (audio) ["]
0.0039
Vario gyslos Ø (network) [mm]
0,16
Vario gyslos Ø (network) ["]
0.0063
Wire insulation material (video)
Foam / Skin-PE
Conductor insulation Ø (video) [mm]
5,00
Conductor insulation Ø (video) ["]
0.1969
Svoris 1 m [g]
580
Svoris 1000 ft. [lbs]
390.2913
Atsparumas UV
aukštas
Gaisrinė apkrova per 1 m [kWh]
3,57
Variantas
apvalus
Pakuotė
sandėlio metražas
CAT-Type
CAT.7
Greičio koeficientas
0,77
Min. temperatūra [°C]
-20
Maks. temperatūra [°C]
75
Width [mm]
24
Width ["]
0.9449
Height [mm]
24
Height ["]
0.9449
Capacity wire/wire at 1m (network) [pF]
43
Capacity wire/wire at 1 ft. (network) [pF]
13.1064
Capacity wire/electic screen at 1m (video) [pF]
52
Capacity wire/electic screen at 1 ft. (video) [pF]
15.8496
Damping at 50 MHz (100m & 20° C) [dB]
16,9
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB]
5.1511
Damping at 100 MHz (100m & 20° C) [dB]
21,2
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB]
6.4618
Damping at 470 MHz (100m & 20° C) [dB]
50,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB]
15.3924
Damping at 862 MHz (100m & 20° C) [dB]
77
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB]
23.4696
Damping at 1000 MHz (100m & 20° C) [dB]
85,4
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB]
26.0299
Damping at 1485 MHz (100m & 20° C) [dB]
109,6
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB]
33.4061
Damping at 1750 MHz (100m & 20° C) [dB]
120,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB]
36.637
Damping at 2150 MHz (100m & 20° C) [dB]
131,8
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB]
40.1726
Damping at 3000 MHz (100m & 20° C) [dB]
140,5
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB]
42.8244
Impedance (video) [Ω]
75
Impedance (network) [Ω]
100
Insulation resist. per 1 km (network) [GΩ]
5
Insulation resist. per 1000 feet (network) [GΩ]
1.524
Laidininko varža per 1 km (network) [Ω]
143
Laidininko varža per 1000 ft. (network) [Ω]
43.5864
Shield. resistance per 1 km [Ω]
12
Shield. resistance per 1000 ft. [Ω]
3.6576
Max. delay (skew)
20 ns @ 100 MHz/100 m
BPVo-Euroclass
Fca
Bending factor
15
