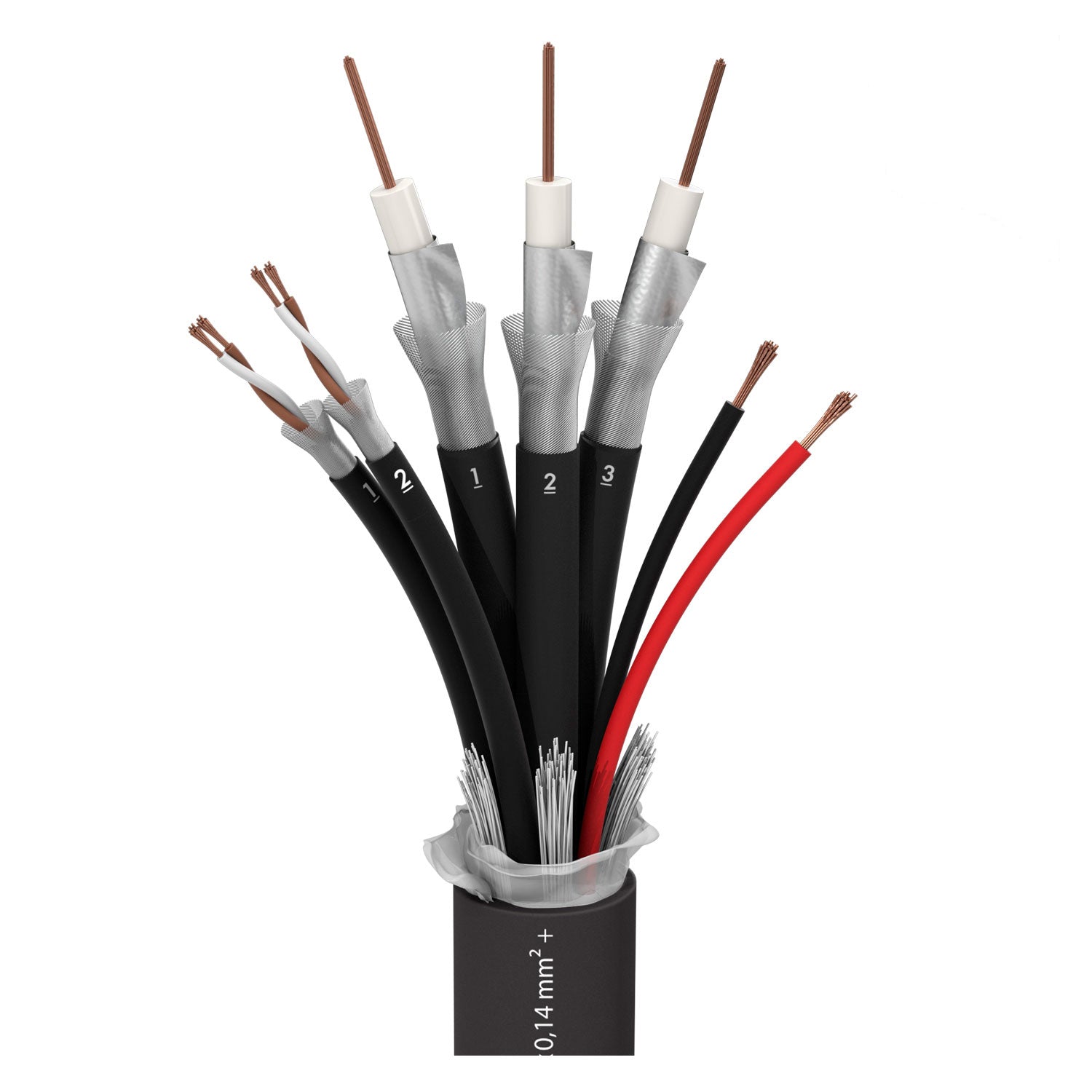

SDI kabelis TRANSIT MC 3202 HD; video: 3 x 1,06/4,80; audio: 2 x 2 x 0,14 mm²; PVC Ø 20,90 mm; juodas - 100 m ritė
Parduodama 100 m ritė.
TRANSIT MC 3202 HD
Privalumai:
- Compact hybrid cable for 3 x UHD video (BNC), 2 x digital audio (XLR 3-pole) and camera power supply (e.g. XLR 4-pole)
- Low attenuation values for long distance transmissions
- 3-in-1 cable, flexible and easy to reel for tough usage
Pritaikymas:
- Combi line for UHD cameras, UHD monitors etc.
- Digital UHD-SDI transmission incl. digital audio and power
- OB van use, sporting events and big live events
- Installation (broadcast, studio, conference)
Techniniai duomenys
| Prekės kodas |
600-3202 |
| Savybės |
3G-SDI , 6G-SDI , Analog , Digital 75 Ω , OFC oxygen free copper , SDI/HD-SDI |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Spalva |
juoda |
| Konstrukcija |
3x1.2L/5.0+2x(2x0,14mm²)+2x0,75mm² |
| Construction (audio) |
2x(2x0,14mm²) |
| Construction (video) |
3x1.2L/5.0 |
| Construction (control) |
2x0,75mm² |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
20,90 |
| Išorinis skersmuo ["] |
0.8228 |
| Jacket Ø (audio) [mm] |
2,60 |
| Jacket Ø (audio) ["] |
0.1024 |
| Jacket Ø (video) [mm] |
6,95 |
| Jacket Ø (video) ["] |
0.2736 |
| Jacket Ø (control) [mm] |
2,20 |
| Jacket Ø (control) ["] |
0.0866 |
| Kanalų skaičius (audio) |
2 |
| Vidinis laidininkas |
7 |
| Vidinis laidininkas (audio) |
2 |
| Vidinis laidininkas (video) |
3 |
| Vidinis laidininkass (control) |
2 |
| Vidinis laidininkas (audio) [mm²] |
0,14 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkass (control) [mm²] |
0,75 |
| Vidinis laidininkass (control) [sqin] |
0.0012 |
| Vidinis laidininkas Ø (video) [mm] |
1,06 |
| Vidinis laidininkas Ø (video) ["] |
0.0417 |
| AWG (audio) |
26 |
| AWG (video) |
18 |
| AWG (control) |
18 |
| Vario gyslos (audio) |
18 |
| Vario gyslos (video) |
7 |
| Vario gyslos (control) |
42 |
| Vario gyslos Ø (audio) [mm] |
0,10 |
| Vario gyslos Ø (audio) ["] |
0.0039 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Vario gyslos Ø (control) [mm] |
0,15 |
| Vario gyslos Ø (control) ["] |
0.0059 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
4,80 |
| Conductor insulation Ø (video) ["] |
0.189 |
| Svoris 1 m [g] |
450 |
| Svoris 1000 ft. [lbs] |
302.8122 |
| Variantas |
apvalus |
| Greičio koeficientas |
0,8 |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
20,9 |
| Width ["] |
0.8228 |
| Height [mm] |
20,9 |
| Height ["] |
0.8228 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4,6 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.4021 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 |
| BPVo-Euroclass |
Fca |
