Kabeliai ir jungtys
Įprasta kaina
€10.420,17 be PVM
Įprasta kaina
Išpardavimo kaina
€10.420,17 be PVM
Nepavyko įkelti atsiėmimo galimybių

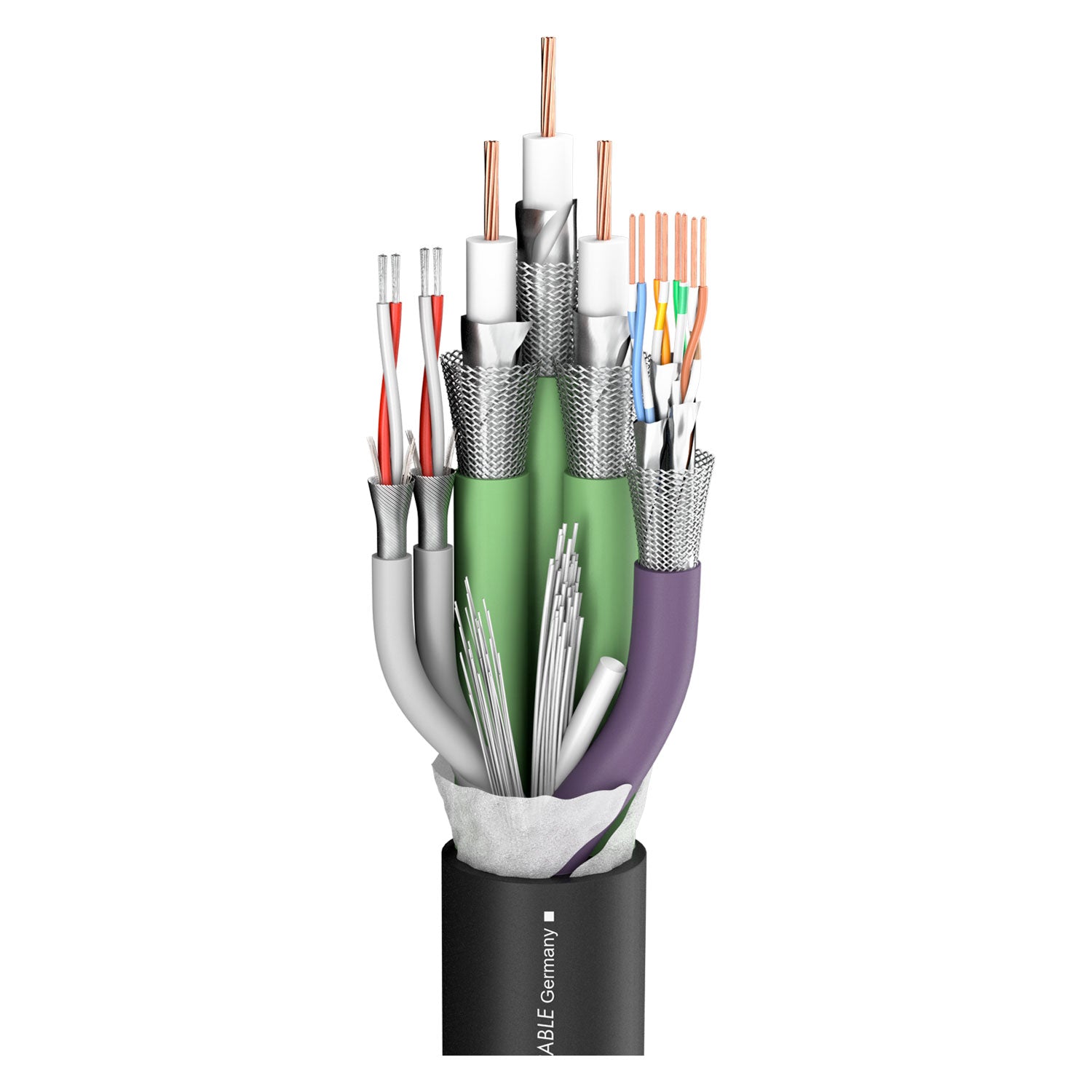

SDI kabelis Transit MC 3201 HD-SDI; video: 3 x 1,20/5,00; audio: 2 x 2 x 0,15 mm²; 1 x CAT.7; Soft-PVC Ø 20,50 mm; juodas - 400 m ritė
Parduodama 400 m ritė.
Transit MC 3201 HD-SDI
hybrid cable
Privalumai:
- 10 Gbit capable network and HD-SDI compliant video transmission in one cable
- Excellent shielding
- Super low damping values for long distance transmissions
Pritaikymas:
- Digital HD-SDI long distance transmission including digital audio network and power supply
- Ideal for broadcasting van applications, sporting events and big events
- Installation (Broadcast, studio, conference rooms, building technology)
Techniniai duomenys
| Prekės kodas |
600-2781 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
hybrid cable |
| Spalva |
juoda |
| Konstrukcija |
[3LI2YSCY0,1,2mm+2(2LI2Y0,15mm²)DY+SFTP4x2xAWG26/7]Y |
| Construction (audio) |
2 x 2 x 0,15mm² |
| Construction (video) |
3 x 1,2/5,0 |
| Construction (network) |
SFTP 4x2x0,14mm² |
| Išorinio apvalkalo medžiaga |
Soft-PVC |
| Jacket material (audio) |
PVC |
| Jacket material (video) |
PVC |
| Jacket material (power) |
PVC |
| Jacket material (network) |
PVC |
| Išorinis skersmuo [mm] |
20,50 |
| Išorinis skersmuo ["] |
0.8071 |
| Jacket Ø (audio) [mm] |
3,00 |
| Jacket Ø (audio) ["] |
0.1181 |
| Jacket Ø (video) [mm] |
6,95 |
| Jacket Ø (video) ["] |
0.2736 |
| Jacket Ø (network) [mm] |
6,40 |
| Jacket Ø (network) ["] |
0.252 |
| Kanalų skaičius (audio) |
2 |
| Kanalų skaičius (video) |
1 |
| Kanalų skaičius (network) |
1 |
| Vidinis laidininkas |
16 |
| Vidinis laidininkas (audio) |
2 |
| Vidinis laidininkas (video) |
3 |
| Vidinis laidininkas (network) |
8 |
| Vidinis laidininkas (audio) [mm²] |
0,15 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas (video) [mm²] |
1,13 |
| Vidinis laidininkas (video) [sqin] |
0.0018 |
| Vidinis laidininkas (network) [sqin] |
0.0002 |
| Vidinis laidininkas (network) [mm²] |
0,14 |
| Vidinis laidininkas Ø (audio) [mm] |
0,44 |
| Vidinis laidininkas Ø (audio) ["] |
0.0173 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| Vidinis laidininkas Ø (network) [mm] |
0,42 |
| Vidinis laidininkas Ø (network) ["] |
0.0165 |
| AWG (audio) |
25 |
| AWG (video) |
18 |
| AWG (network) |
26 |
| Shielding (audio) |
Copper spiral |
| Shielding (video) |
Copper braiding + AL / PT foil |
| Shielding (network) |
Copper braiding + AL / PT-foil per wire pair (CAT) |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (audio) |
19 |
| Vario gyslos (network) |
7 |
| Vario gyslos Ø (audio) [mm] |
0,10 |
| Vario gyslos Ø (audio) ["] |
0.0039 |
| Vario gyslos Ø (network) [mm] |
0,16 |
| Vario gyslos Ø (network) ["] |
0.0063 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
5,00 |
| Conductor insulation Ø (video) ["] |
0.1969 |
| Svoris 1 m [g] |
432 |
| Svoris 1000 ft. [lbs] |
390.2913 |
| Gaisrinė apkrova per 1 m [kWh] |
3,57 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| CAT-Type |
CAT.7 |
| Greičio koeficientas |
0,77 |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
75 |
| Width [mm] |
20,5 |
| Width ["] |
0.8071 |
| Height [mm] |
20,5 |
| Height ["] |
0.8071 |
| Capacity wire/wire at 1m (network) [pF] |
43 |
| Capacity wire/wire at 1 ft. (network) [pF] |
13.1064 |
| Capacity wire/electic screen at 1m (video) [pF] |
52 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
15.8496 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4,6 , 16,9 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.4021 , 5.1511 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 , 50,5 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 , 15.3924 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 , 77 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 , 23.4696 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 , 85,4 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 , 26.0299 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 , 109,6 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 , 33.4061 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 , 120,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 , 36.637 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 , 131,8 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 , 40.1726 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 , 140,5 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 , 42.8244 |
| Impedance (video) [Ω] |
75 |
| Impedance (network) [Ω] |
100 |
| Insulation resist. per 1 km (network) [GΩ] |
5 |
| Insulation resist. per 1000 feet (network) [GΩ] |
1.524 |
| Laidininko varža per 1 km (network) [Ω] |
143 |
| Laidininko varža per 1000 ft. (network) [Ω] |
43.5864 |
| Shield. resistance per 1 km [Ω] |
12 |
| Shield. resistance per 1000 ft. [Ω] |
3.6576 |
| Max. delay (skew) |
20 ns @ 100 MHz/100 m |
| BPVo-Euroclass |
Fca |
