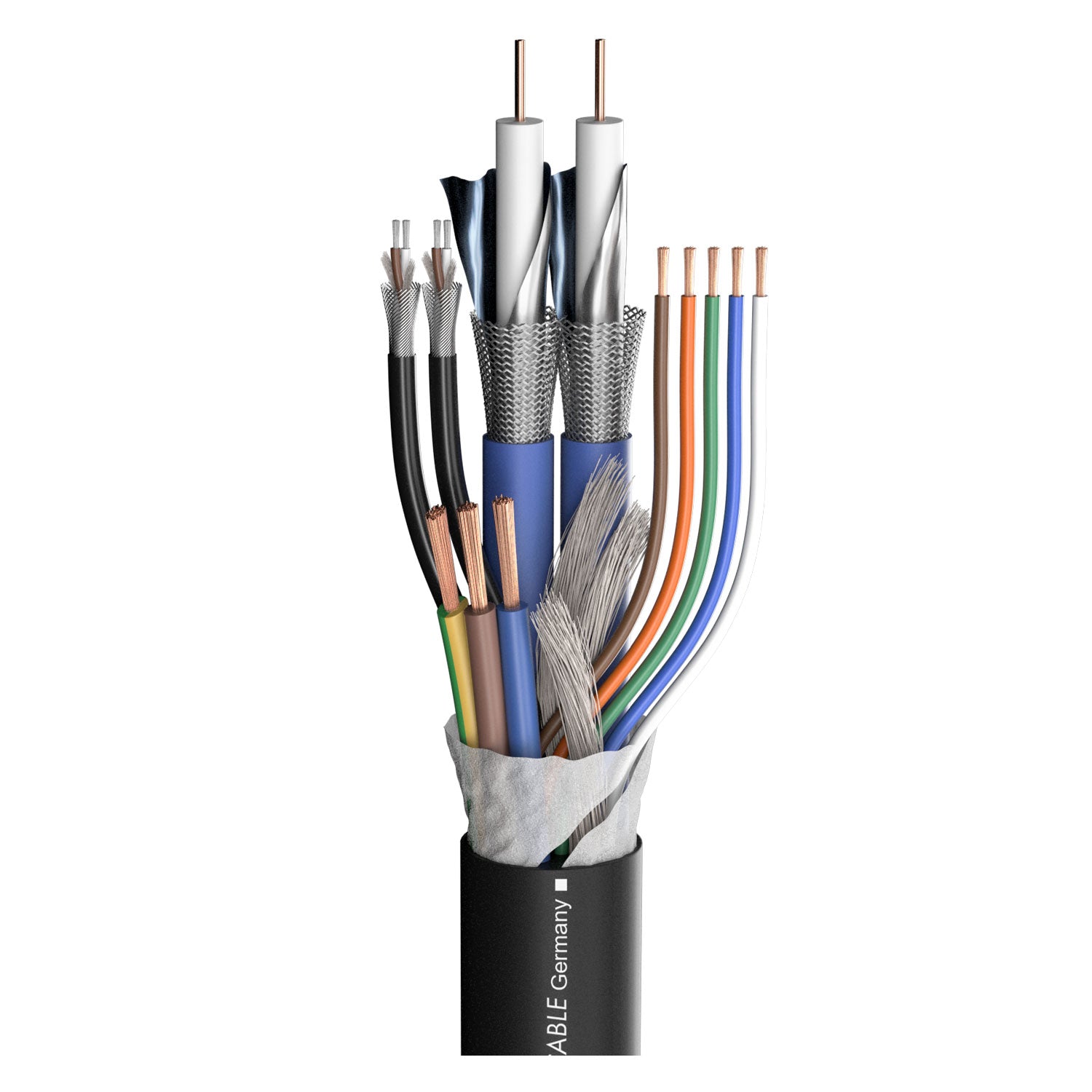

SDI kabelis Transit MC 2235 HD; video: 2 x 0,80/3,70; audio: 2 x 2 x 0,14 mm²; power: 3 x 1.50 mm²; 5 x control; S-PVC Ø 15,50 mm; juodas
Parduodama po 1 metrą.
Transit MC 2235 HD
hybrid cable
Privalumai:
- HD-SDI Video 75 Ω + Audio (+ Power)
- Very compact and flexible
- Easy handling
Pritaikymas:
- Connection of surveillance monitors, cameras, cutting consoles
- Installation (studio, theatre, building technology, rack mount)
- Outdoor applications
Techniniai duomenys
| Prekės kodas |
600-2231 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
hybrid cable |
| Spalva |
juoda |
| Konstrukcija |
[2Y0,8mm(ST)CY+2(2LI2Y0,14mm²)DY+3LI2Y1,5mm²]Y |
| Construction (audio) |
2(2LI2Y0,14mm²)DY |
| Construction (video) |
2Y0,8mm(ST)CY |
| Construction (power) |
3 x 1,50 mm² |
| Construction (control) |
5 x 0,34 mm² |
| Išorinio apvalkalo medžiaga |
S-PVC |
| Jacket material (audio) |
PVC |
| Jacket material (video) |
PVC |
| Išorinis skersmuo [mm] |
15,50 |
| Išorinis skersmuo ["] |
0.6102 |
| Jacket Ø (audio) [mm] |
2,60 |
| Jacket Ø (audio) ["] |
0.1024 |
| Kanalų skaičius (audio) |
2 |
| Kanalų skaičius (video) |
2 |
| Kanalų skaičius (power) |
1 |
| Kanalų skaičius (control) |
5 |
| Vidinis laidininkas |
7 |
| Vidinis laidininkas (audio) |
2 |
| Vidinis laidininkas (video) |
2 |
| Vidinis laidininkas (power) |
3 |
| Vidinis laidininkas (audio) [mm²] |
0,14 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas (video) [mm²] |
0,50 |
| Vidinis laidininkas (video) [sqin] |
0.0008 |
| Vidinis laidininkas (power) [mm²] |
1,50 |
| Vidinis laidininkas (power) [sqin] |
0.0023 |
| Vidinis laidininkass (control) [mm²] |
0,34 |
| Vidinis laidininkass (control) [sqin] |
0.0005 |
| Vidinis laidininkas Ø (audio) [mm] |
0,42 |
| Vidinis laidininkas Ø (audio) ["] |
0.0165 |
| Vidinis laidininkas Ø (video) [mm] |
0,80 |
| Vidinis laidininkas Ø (video) ["] |
0.0315 |
| Vidinis laidininkas Ø (power) [mm] |
1,38 |
| Vidinis laidininkas Ø (power) ["] |
0.0543 |
| Vidinis laidininkas Ø (control) [mm] |
0,66 |
| Vidinis laidininkas Ø (control) ["] |
0.026 |
| AWG (audio) |
26 |
| AWG (video) |
20 |
| AWG (control) |
22 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (video) |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (audio) |
18 |
| Vario gyslos Ø (audio) [mm] |
0,10 |
| Vario gyslos Ø (audio) ["] |
0.0039 |
| Vario gyslos Ø (control) [mm] |
0,25 |
| Vario gyslos Ø (control) ["] |
0.0098 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
3,70 |
| Conductor insulation Ø (video) ["] |
0.1457 |
| Svoris 1 m [g] |
290 |
| Svoris 1000 ft. [lbs] |
170.9207 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
1,01 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
15,5 |
| Width ["] |
0.6102 |
| Height [mm] |
15,5 |
| Height ["] |
0.6102 |
| Capac. cond./cond. per 1 m (audio) [pF] |
78 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
23.7744 |
| Capac. cond./shield. per 1 m (audio) [pF] |
130 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
39.624 |
| Capacity wire/electic screen at 1m (video) [pF] |
54 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.4592 |
| Damping at 50 MHz (100m & 20° C) [dB] |
5,7 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.7374 |
| Damping at 200 MHz (100m & 20° C) [dB] |
10,8 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.2918 |
| Damping at 470 MHz (100m & 20° C) [dB] |
16,9 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.1511 |
| Damping at 862 MHz (100m & 20° C) [dB] |
23,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.1323 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
25,1 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.6505 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
31,4 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.5707 |
| Impedance (video) [Ω] |
75 |
| BPVo-Euroclass |
Fca |
