Kabeliai ir jungtys
Įprasta kaina
€12.886,55 be PVM
Įprasta kaina
Išpardavimo kaina
€12.886,55 be PVM
Nepavyko įkelti atsiėmimo galimybių

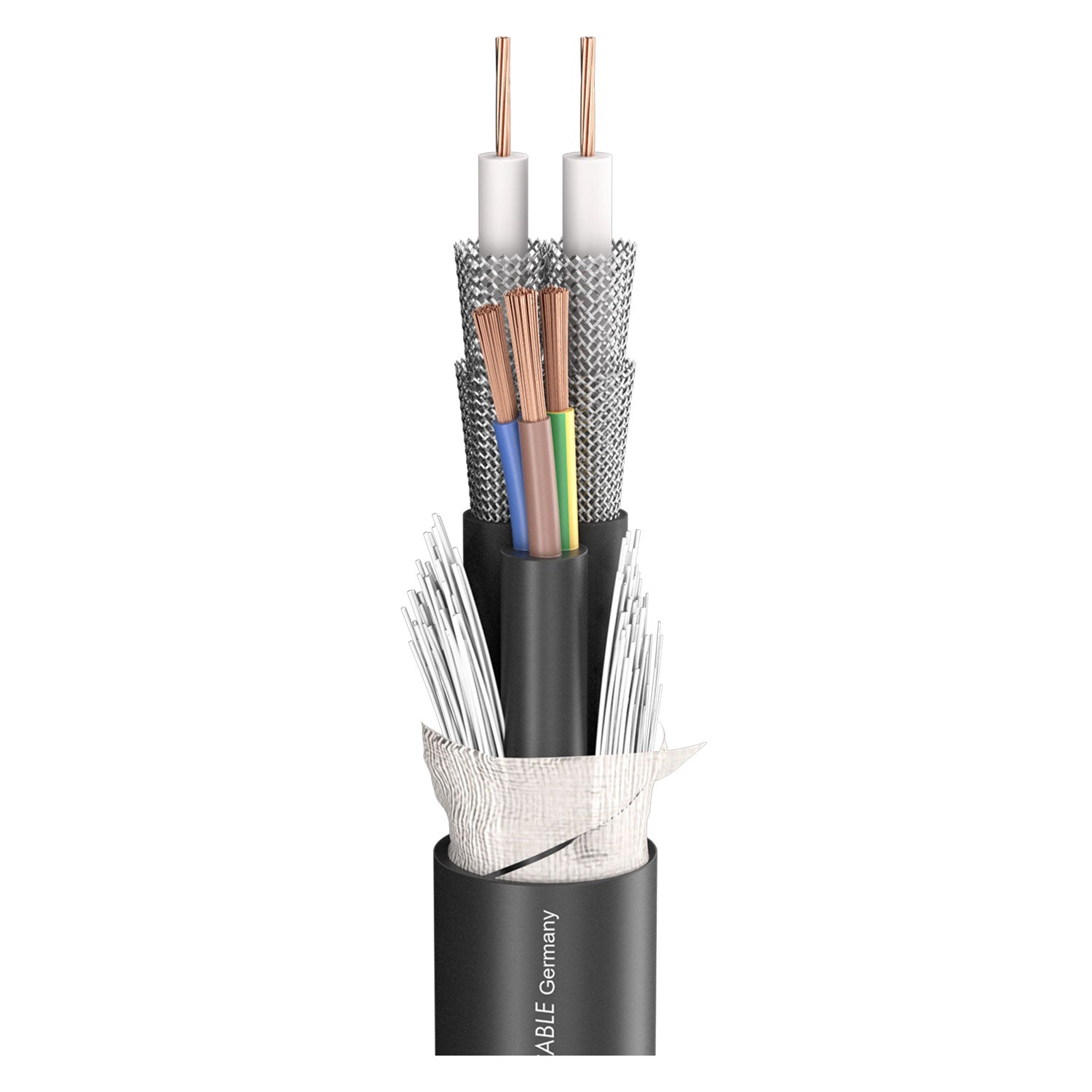

SDI kabelis TRANSIT MC 2030 HD; video: 2 x 1,20/4,80; power: 3 x 1,50 mm²; PMB Ø 18,80 mm; juodas - 500 m ritė
Parduodama 500 m ritė.
TRANSIT MC 2030 HD
Video- & Power cable
Privalumai:
- Power and HD-SDI-compliant video transmission in one cable
- Excellent shielding
- Low attenuation value for long-distance transmissions in HD
- Compact diameter
- flexible and easy to wind
Pritaikymas:
- Digital HDSDI long-distance transmission including power suppy
- Ideal for OB van use, sporting spectacles and major events
- Installation (Broadcast, studio, conference rooms, building technology)
Techniniai duomenys
| Prekės kodas |
600-2031 |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , OFC oxygen free copper , PUR Master Blend , SDI/HD-SDI |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
Video- & Power cable |
| Spalva |
juoda |
| Konstrukcija |
[2x(02YSCCH1.2L/4.8) +(3LIY1,5mm²)]Y |
| Construction (video) |
2x(02YSCCH1.2L/4.8) |
| Construction (power) |
(3LIY1,5mm²) |
| Išorinio apvalkalo medžiaga |
PMB |
| Jacket material (video) |
PVC |
| Jacket material (power) |
PVC |
| Išorinis skersmuo [mm] |
18,80 |
| Išorinis skersmuo ["] |
0.7402 |
| Jacket Ø (audio) ["] |
0.1024 |
| Jacket Ø (video) [mm] |
7,10 |
| Jacket Ø (video) ["] |
0.2795 |
| Jacket Ø (power) [mm] |
6,70 |
| Jacket Ø (power) ["] |
0.2638 |
| Jacket Ø (control) ["] |
0.0866 |
| Kanalų skaičius (video) |
2 |
| Kanalų skaičius (power) |
1 |
| Vidinis laidininkas |
5 |
| Vidinis laidininkas (video) |
2 |
| Vidinis laidininkas (power) |
3 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas (power) [mm²] |
1,50 |
| Vidinis laidininkas (power) [sqin] |
0.0023 |
| Vidinis laidininkass (control) [sqin] |
0.0012 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| Vidinis laidininkas Ø (power) [mm] |
1,06 |
| Vidinis laidininkas Ø (power) ["] |
0.0417 |
| AWG (video) |
18 |
| Shielding (video) |
2 x Copper braiding tinned |
| Vario gyslos (video) |
7 |
| Vario gyslos (power) |
30 |
| Vario gyslos Ø (audio) ["] |
0.0039 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Vario gyslos Ø (power) [mm] |
0,25 |
| Vario gyslos Ø (power) ["] |
0.0098 |
| Vario gyslos Ø (control) ["] |
0.0059 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
4,80 |
| Conductor insulation Ø (video) ["] |
0.189 |
| Svoris 1 m [g] |
397.2 |
| Svoris 1000 ft. [lbs] |
329.7288 |
| Variantas |
apvalus |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
75 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [m] |
0 |
| Max. Transmission length (SMPTE 2081, 6G) (without connectors) [ft] |
0 |
| Width [mm] |
18,8 |
| Width ["] |
0.7402 |
| Height [mm] |
18,8 |
| Height ["] |
0.7402 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.4021 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 |
| Impedance (video) [Ω] |
75 |
| Available since |
V07.1 |
| Old article number |
999-0001-310 |
| BPVo-Euroclass |
Fca |
