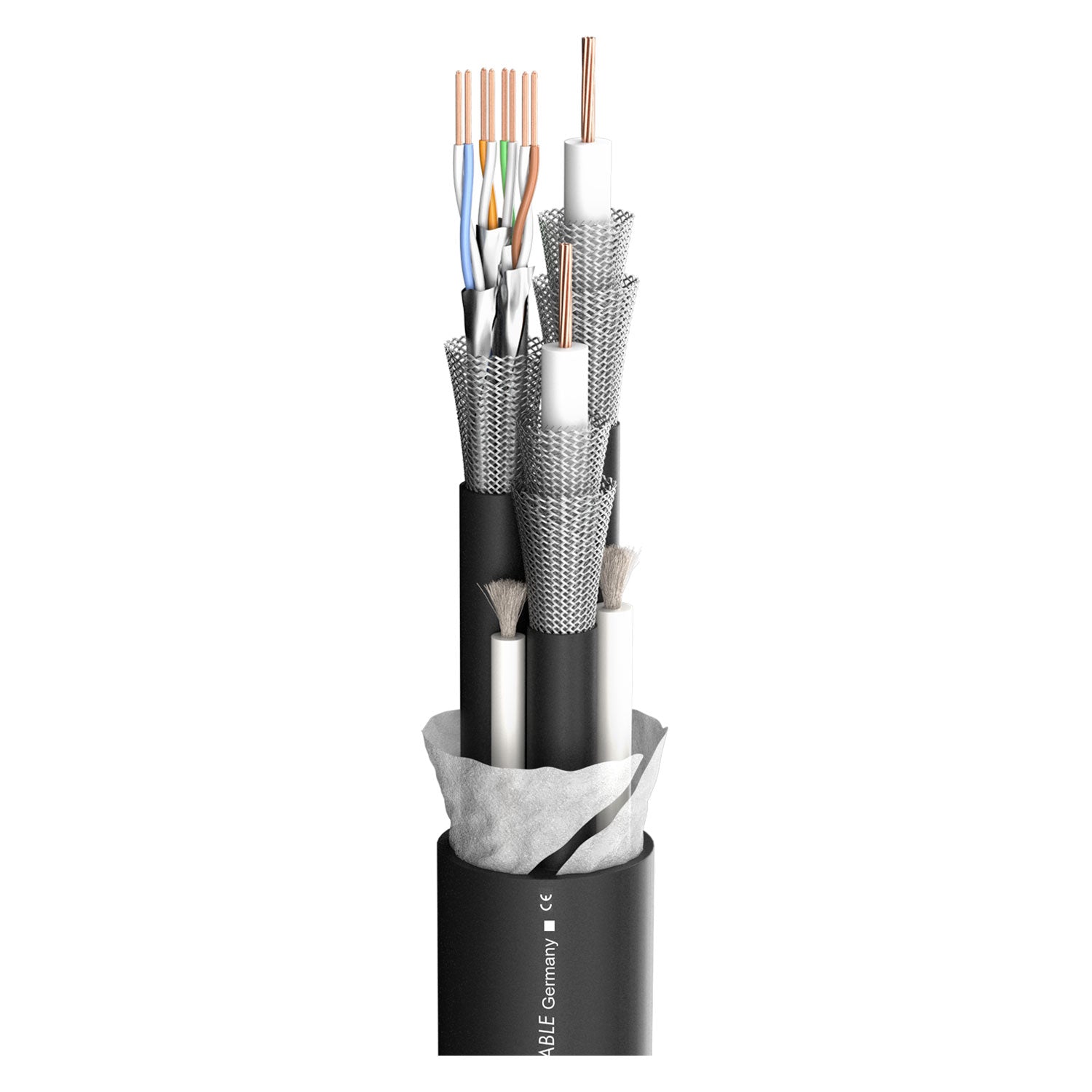

SDI kabelis TRANSIT MC 2001 HD; 2 x 1,20/4,80; S-PVC flame-retardant Ø 20,50 mm; juodas - 100 m ritė
Parduodama 100 m ritė.
TRANSIT MC 2001 HD
Techniniai duomenys
| Prekės kodas |
600-2001 |
| Spalva |
juoda |
| Konstrukcija |
[2x(02YSCCH1.2L/4.8)+(S/FTP4x2xAWG23/7)]Y |
| Construction (video) |
2x(02YCCH1.2L/4.8) |
| Construction (network) |
(S/FTP4x2xAWG23/7) |
| Išorinio apvalkalo medžiaga |
S-PVC flame-retardant |
| Jacket material (video) |
PUR |
| Jacket material (network) |
PUR |
| Išorinis skersmuo [mm] |
20,50 |
| Išorinis skersmuo ["] |
0.8071 |
| Jacket Ø (video) [mm] |
7,10 |
| Jacket Ø (video) ["] |
0.2795 |
| Jacket Ø (network) [mm] |
8,50 |
| Jacket Ø (network) ["] |
0.3346 |
| Kanalų skaičius (video) |
2 |
| Kanalų skaičius (network) |
4 |
| Vidinis laidininkas |
4 |
| Vidinis laidininkas (video) |
2 |
| Vidinis laidininkas (network) |
2 |
| Vidinis laidininkas (network) [sqin] |
0.0004 |
| Vidinis laidininkas (network) [mm²] |
0,26 |
| Vidinis laidininkas Ø (video) [mm] |
1,20 |
| Vidinis laidininkas Ø (video) ["] |
0.0472 |
| AWG (video) |
18 |
| AWG (network) |
23 |
| Shielding (video) |
2 x Copper braiding tinned |
| Shielding (network) |
Tin-plated Cu braid + AL/PT foil per wire pair |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
7 |
| Vario gyslos (network) |
7 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Vario gyslos Ø (network) [mm] |
0,22 |
| Vario gyslos Ø (network) ["] |
0.0087 |
| Wire insulation material (video) |
Foam/Skin-PE |
| Conductor insulation Ø (video) [mm] |
4,80 |
| Conductor insulation Ø (video) ["] |
0.189 |
| Svoris 1 m [g] |
455 |
| Gaisrinė apkrova per 1 m [kWh] |
1,52 |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 |
| Impedance (video) [Ω] |
75 |
| Impedance (network) [Ω] |
100 |
| BPVo-Euroclass |
Fca |
