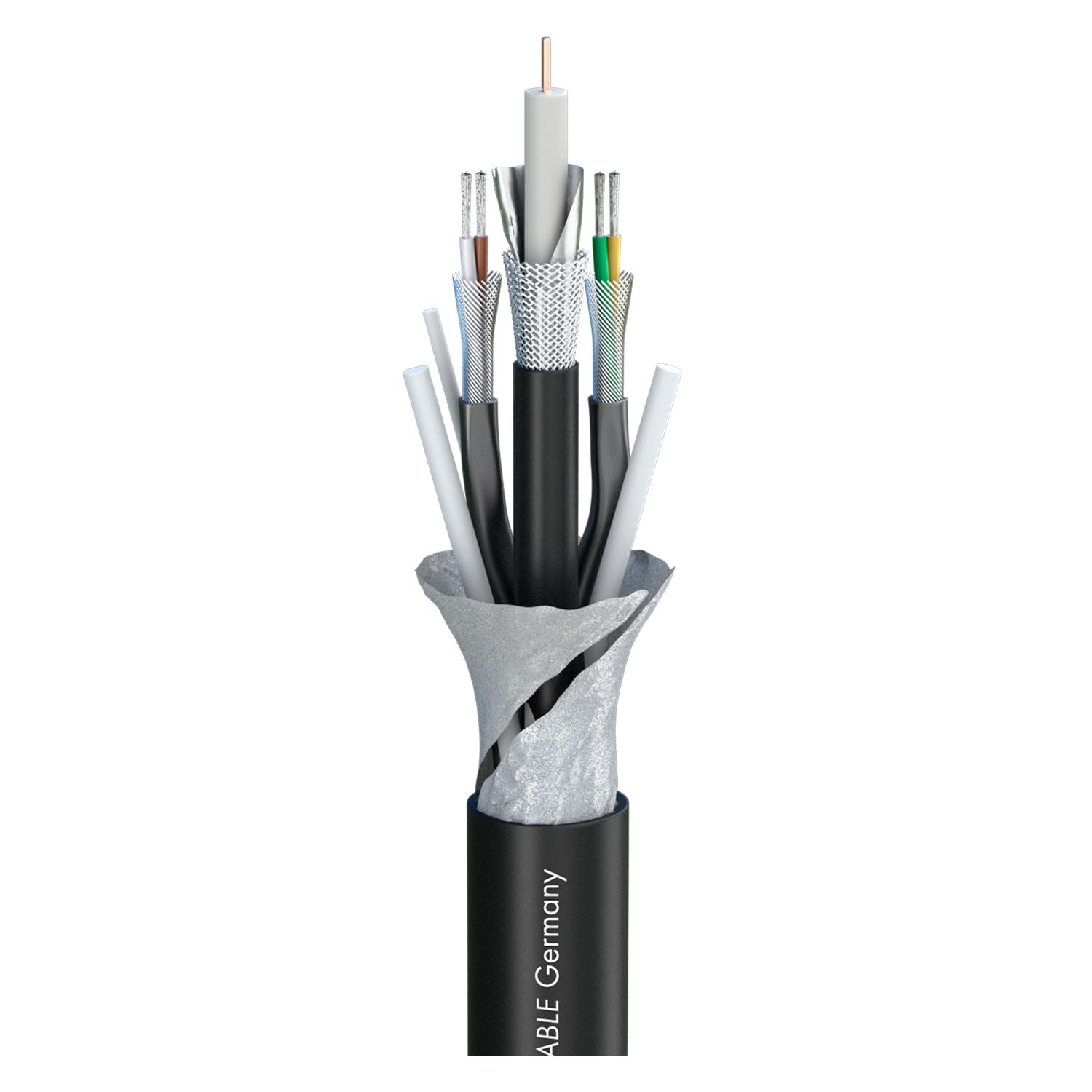

SDI kabelis Transit MC 120 HD; video: 1 x 0,60/2,80; audio: 2 x 2 x 0,14 mm²; TPE Ø 10,00 mm; juodas
Parduodama po 1 metrą.
Transit MC 120 HD
hybrid cable
Privalumai:
- HD-SDI video 75 Ω + audio
- Very compact and flexible
- Easy handling
Pritaikymas:
- Connection of surveillance monitors, cameras, cutting consoles
- Installation (studio, theatre, building technology, rack mount)
- Outdoor applications
Techniniai duomenys
| Prekės kodas |
600-0791 |
| Savybės |
Analog , Digital 75 Ω , HDTV , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
hybrid cable |
| Spalva |
juoda |
| Konstrukcija |
[2LI2Y0,6(ST)CY+2(2LIY0,14mm²)(ST)DY]Y |
| Construction (audio) |
2(2LIY0,14mm²)(ST)DY |
| Construction (video) |
2LI2Y0,6(ST)CY |
| Išorinio apvalkalo medžiaga |
TPE |
| Išorinis skersmuo [mm] |
10,00 |
| Išorinis skersmuo ["] |
0.3937 |
| Jacket Ø (audio) [mm] |
3,10 |
| Jacket Ø (audio) ["] |
0.122 |
| Jacket Ø (video) [mm] |
4,20 |
| Jacket Ø (video) ["] |
0.1654 |
| Kanalų skaičius (audio) |
2 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
3 |
| Vidinis laidininkas (audio) |
2 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (audio) [mm²] |
0,14 |
| Vidinis laidininkas (audio) [sqin] |
0.0002 |
| Vidinis laidininkas Ø (audio) [mm] |
0,42 |
| Vidinis laidininkas Ø (audio) ["] |
0.0165 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| AWG (audio) |
26 |
| AWG (video) |
23 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (video) |
Copper braiding tin-plated + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (audio) |
18 |
| Vario gyslos Ø (audio) [mm] |
0,10 |
| Vario gyslos Ø (audio) ["] |
0.0039 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
2,80 |
| Conductor insulation Ø (video) ["] |
0.1102 |
| Svoris 1 m [g] |
110 |
| Svoris 1000 ft. [lbs] |
74.0208 |
| Gaisrinė apkrova per 1 m [kWh] |
0,69 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-30 , -50 |
| Maks. temperatūra [°C] |
80 , 85 |
| Width [mm] |
10 |
| Width ["] |
0.3937 |
| Height [mm] |
10,5 |
| Height ["] |
0.4134 |
| Capac. cond./cond. per 1 m (audio) [pF] |
50 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
15.24 |
| Capac. cond./shield. per 1 m (audio) [pF] |
95 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
28.956 |
| Capacity wire/electic screen at 1m (video) [pF] |
67 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
20.4216 |
| Damping at 50 MHz (100m & 20° C) [dB] |
7,3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.225 |
| Damping at 200 MHz (100m & 20° C) [dB] |
14,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4196 |
| Damping at 470 MHz (100m & 20° C) [dB] |
22,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.919 |
| Damping at 862 MHz (100m & 20° C) [dB] |
31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
33,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2413 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
41,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.5578 |
| Impedance [Ω] |
75 |
| Surge impedance (audio) [Ω] |
110 |
| Impedance (video) [Ω] |
75 |
| BPVo-Euroclass |
Fca |
