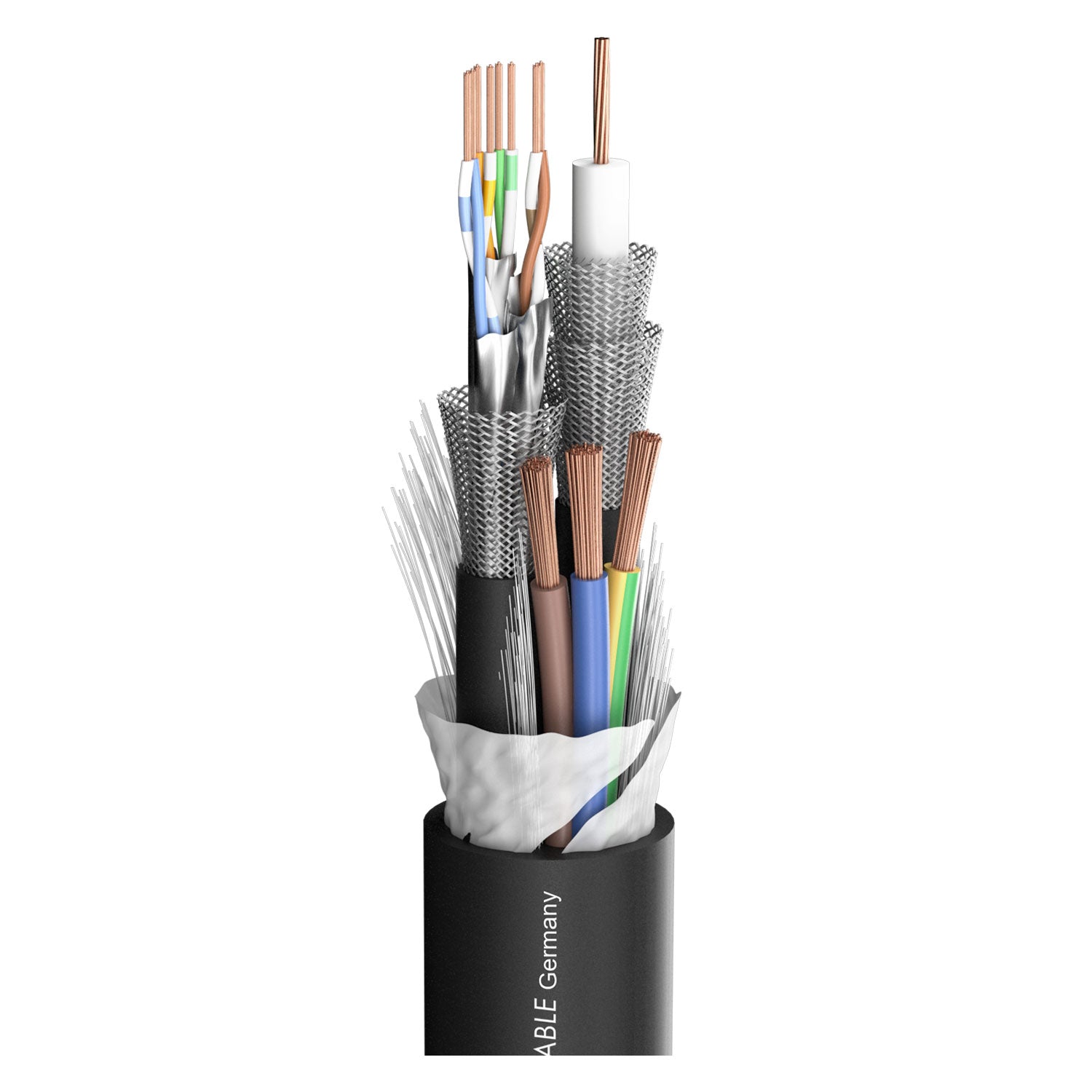

SDI kabelis TRANSIT MC 1031 HD; video: 1 x 1,06/4,80; power: 3 x 2,50 mm²x CAT.7; FR-PVC Ø 19,90 mm; juodas
Parduodama po 1 metrą.
TRANSIT MC 1031 HD
hybrid cable
Privalumai:
- 10 Gbit-capable network, power and HD-SDI compliant video transmission in one cable
- Excellent shielding
- Low damping values for long-distance HD transmissions
- Compact diameter
- flexible and easy to wind
Pritaikymas:
- Digital HD-SDI long-distance transmission including digital audio network and power supply
- Ideal for broadcasting van applications, sporting events and big events
- Installation (Broadcast, studio, conference rooms, building technology)
Techniniai duomenys
| Prekės kodas |
600-1031 |
| Paskirtis |
hybrid cable |
| Spalva |
juoda |
| Konstrukcija |
[(02YSCCH1,2/4,8)+(SFTP4x2xAWG23/1)+3LIY2,5mm²]Y |
| Construction (video) |
(02YSCCH1,2/4,8) |
| Construction (power) |
3LIY2,5mm² |
| Construction (network) |
SFTP4x2xAWG23/1 |
| Išorinio apvalkalo medžiaga |
FR-PVC |
| Jacket material (video) |
PUR |
| Jacket material (network) |
PVC |
| Išorinis skersmuo [mm] |
19,90 |
| Išorinis skersmuo ["] |
0.7835 |
| Jacket Ø (video) [mm] |
7,10 |
| Jacket Ø (video) ["] |
0.2795 |
| Jacket Ø (network) [mm] |
8,00 |
| Jacket Ø (network) ["] |
0.315 |
| Vidinis laidininkas |
12 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (power) |
3 |
| Vidinis laidininkas (network) |
8 |
| Vidinis laidininkas (video) [mm²] |
0,88 |
| Vidinis laidininkas (video) [sqin] |
0.0014 |
| Vidinis laidininkas (power) [mm²] |
2,50 |
| Vidinis laidininkas (power) [sqin] |
0.0039 |
| Vidinis laidininkas Ø (video) [mm] |
1,06 |
| Vidinis laidininkas Ø (video) ["] |
0.0417 |
| Vidinis laidininkas Ø (network) [mm] |
0,57 |
| Vidinis laidininkas Ø (network) ["] |
0.0224 |
| AWG (video) |
18 |
| AWG (network) |
23 |
| Shielding (video) |
2 x Copper braiding tinned |
| Shielding (network) |
Tinned copper braid + AL / PT-foil per pair |
| Vario gyslos (video) |
7 |
| Vario gyslos (network) |
1 |
| Vario gyslos Ø (video) [mm] |
0,40 |
| Vario gyslos Ø (video) ["] |
0.0157 |
| Vario gyslos Ø (network) [mm] |
0,57 |
| Vario gyslos Ø (network) ["] |
0.0224 |
| Wire insulation material (video) |
Foam / Skin-PE |
| Conductor insulation Ø (video) [mm] |
4,80 |
| Conductor insulation Ø (video) ["] |
0.189 |
| Svoris 1 m [g] |
460 |
| Svoris 1000 ft. [lbs] |
291.5072 |
| Atsparumas UV |
aukštas |
| Variantas |
apvalus |
| CAT-Type |
CAT.7 |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
75 |
| Width [mm] |
19,9 |
| Width ["] |
0.7835 |
| Height [mm] |
19,9 |
| Height ["] |
0.7835 |
| Capacity wire/electic screen at 1m (video) [pF] |
53 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.1544 |
| Damping at 200 MHz (100m & 20° C) [dB] |
9,4 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.8651 |
| Damping at 470 MHz (100m & 20° C) [dB] |
14,7 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4806 |
| Damping at 862 MHz (100m & 20° C) [dB] |
20,4 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.2179 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
21,9 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.6751 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
27,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.2906 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
29,9 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.1135 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
33,5 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2108 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
40,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.4358 |
| Impedance (video) [Ω] |
75 |
| Impedance (network) [Ω] |
100 |
| BPVo-Euroclass |
Fca |
