Kabeliai ir jungtys
Įprasta kaina
€7,27 be PVM
Įprasta kaina
Išpardavimo kaina
€7,27 be PVM
Nepavyko įkelti atsiėmimo galimybių

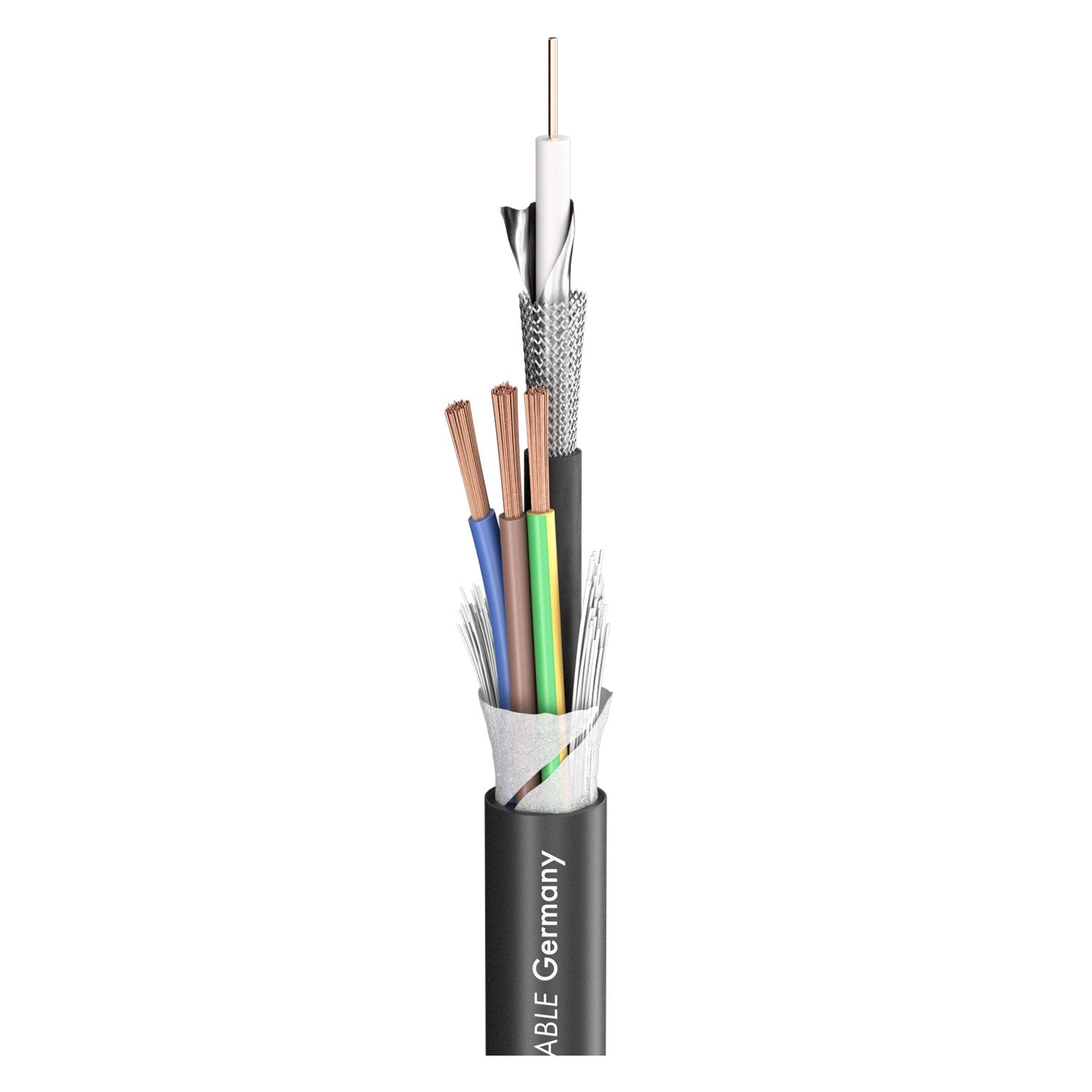

SDI kabelis SC-Observer 1 HD; video: 1 x 0,60/2,80; power: 3 x 0,75 mm²; S-PVC Ø 9,00 mm; juodas
Parduodama po 1 metrą.
SC-Observer 1 HD
Video- & Power cable
Privalumai:
- 75 Ω cable and power line in one cable
- Very durable and rugged due to high-quality PVC jacket
- Very good damping values of the 75 Ω video line
- Excellent shielding owing to the combination of Cu mesh screen plus AL/PT foil
Pritaikymas:
- Control of surveillance monitors
- Studio and fixed installations
Techniniai duomenys
| Prekės kodas |
600-2101 |
| Savybės |
Analog , Digital 75 Ω , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Studio / Broadcast |
| Paskirtis |
Video- & Power cable |
| Spalva |
juoda |
| Konstrukcija |
[LI02YSC12Y0,60mm+3x0,75mm²]Y |
| Construction (video) |
LI02YSC12Y0,60mm |
| Construction (power) |
3 x 0,75 mm² |
| Išorinio apvalkalo medžiaga |
S-PVC |
| Išorinis skersmuo [mm] |
9,00 |
| Išorinis skersmuo ["] |
0.3543 |
| Jacket Ø (power) [mm] |
9,70 |
| Jacket Ø (power) ["] |
0.3819 |
| Kanalų skaičius (video) |
1 |
| Kanalų skaičius (power) |
1 |
| Vidinis laidininkas |
4 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (power) |
3 |
| Vidinis laidininkas (video) [mm²] |
0,28 |
| Vidinis laidininkas (video) [sqin] |
0.0004 |
| Vidinis laidininkas (power) [mm²] |
0,75 |
| Vidinis laidininkas (power) [sqin] |
0.0012 |
| Vidinis laidininkas Ø (video) [mm] |
0,60 |
| Vidinis laidininkas Ø (video) ["] |
0.0236 |
| Vidinis laidininkas Ø (power) [mm] |
0,98 |
| Vidinis laidininkas Ø (power) ["] |
0.0386 |
| AWG (video) |
23 |
| AWG (power) |
18 |
| Shielding (video) |
Copper braiding + AL / PT foil |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
0,60 |
| Vario gyslos Ø (video) ["] |
0.0236 |
| Wire insulation material (video) |
Foam/Skin-PE |
| Conductor insulation Ø (video) [mm] |
2,80 |
| Conductor insulation Ø (video) ["] |
0.1102 |
| Svoris 1 m [g] |
132 |
| Svoris 1000 ft. [lbs] |
88.8249 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,38 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
9,7 |
| Width ["] |
0.3819 |
| Height [mm] |
9,7 |
| Height ["] |
0.3819 |
| Capacity wire/electic screen at 1m (video) [pF] |
56 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
17.0688 |
| Damping at 50 MHz (100m & 20° C) [dB] |
7,3 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.225 |
| Damping at 100 MHz (100m & 20° C) [dB] |
10,8 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.2918 |
| Damping at 200 MHz (100m & 20° C) [dB] |
14,5 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.4196 |
| Damping at 470 MHz (100m & 20° C) [dB] |
22,4 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.8275 |
| Damping at 862 MHz (100m & 20° C) [dB] |
31,1 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
9.4793 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
33,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.2413 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
41,2 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
12.5578 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
45,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
13.777 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
50,9 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
15.5143 |
| Impedance (video) [Ω] |
75 |
| Laidininko varža per 1 km [Ω] |
62,2 |
| Laidininko varža per 1000 ft. [Ω] |
18.9586 |
| Laidininko varža per 1 km (video) [Ω] |
69 |
| Laidininko varža per 1000 ft. (video) [Ω] |
21.0312 |
| Nominal voltage (power) [V] |
300 |
| BPVo-Euroclass |
Fca |
