Kabeliai ir jungtys
Įprasta kaina
€510,92 be PVM
Įprasta kaina
Išpardavimo kaina
€510,92 be PVM
Nepavyko įkelti atsiėmimo galimybių

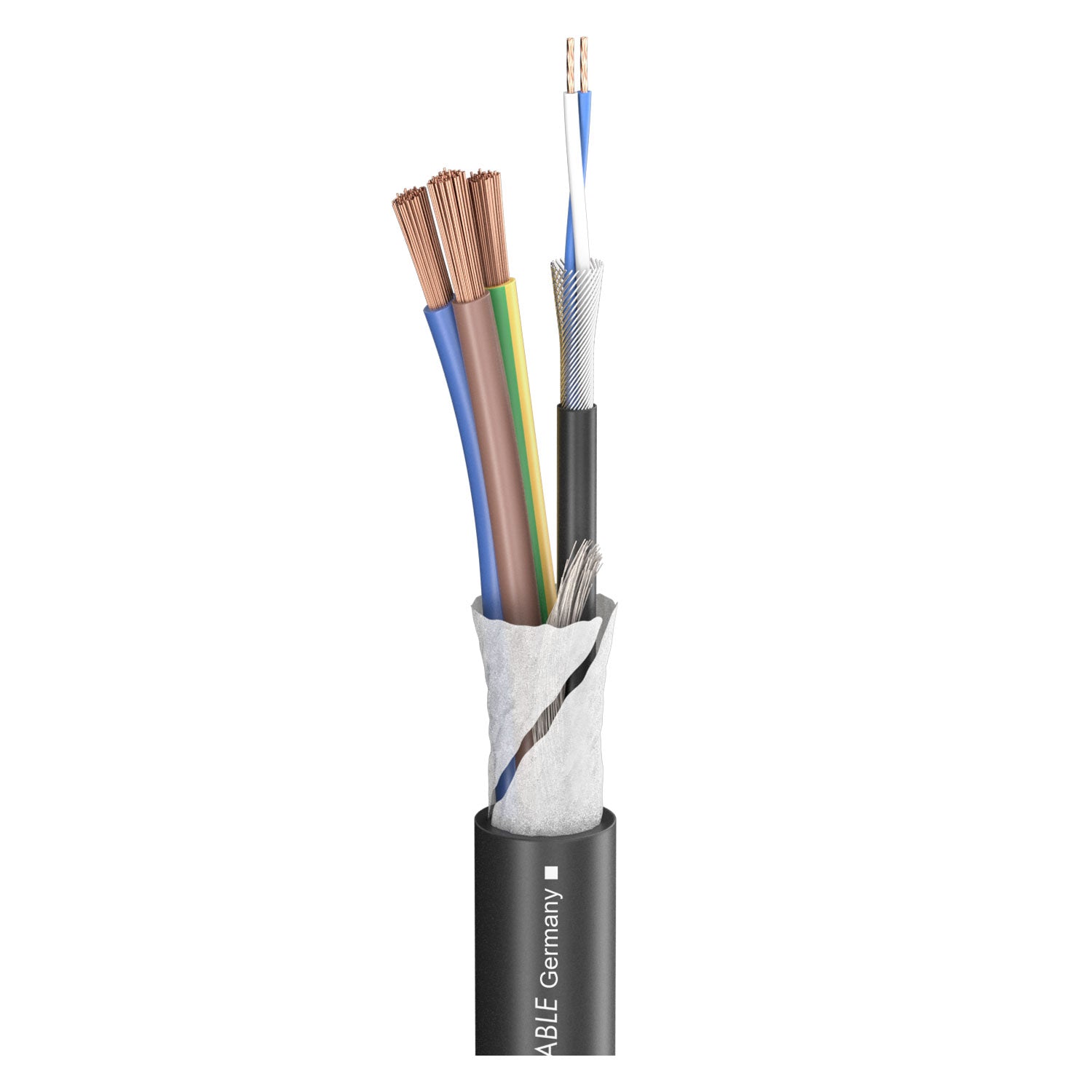

SC-Monolith 1 compact; power: 3 x 1,50 mm²; DMX: 1 x 2 x 0,14 mm²; PVC Ø 9,50 mm; juodas - 50 m ritė
Parduodama 50 m ritė.
Techniniai duomenys
| Prekės kodas |
502-0051-1 |
| Savybės |
Analog , Digital 110 Ω AES / EBU , OFC oxygen free copper |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Stage / live , Studio / Broadcast |
| Paskirtis |
DMX & Power |
| Spalva |
juoda |
| Signalo perdavimas |
symmetrical |
| Konstrukcija |
[3LIY1,5mm²+ 1x(2LI2Y0,14mm²)DY]VLY |
| Construction (power) |
3LIY1,5mm² |
| Construction (AES/EBU, DMX) |
1x(2LI2Y0.14mm²)DY |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
9,50 |
| Išorinis skersmuo ["] |
0.374 |
| Jacket Ø (power) [mm] |
0,00 |
| Jacket Ø (power) ["] |
0 |
| Jacket Ø (AES/EBU, DMX) [mm] |
3,00 |
| Jacket Ø (AES/EBU, DMX) ["] |
0.1181 |
| Kanalų skaičius (power) |
1 |
| Kanalų skaičius (AES/EBU, DMX) |
1 |
| Vidinis laidininkas |
5 |
| Vidinis laidininkas (power) |
3 |
| Vidinis laidininkas (AES/EBU, DMX) |
2 |
| Vidinis laidininkas (power) [mm²] |
1,50 |
| Vidinis laidininkas (power) [sqin] |
0.0023 |
| Vidinis laidininkas (AES/EBU, DMX) [mm²] |
0,14 |
| Vidinis laidininkas (AES/EBU, DMX) [sqin] |
0.0002 |
| Vidinis laidininkas Ø (power) [mm] |
1,38 |
| Vidinis laidininkas Ø (power) ["] |
0.0543 |
| AWG (power) |
15 |
| AWG (AES/EBU, DMX) |
25 |
| Shielding (audio) |
Copper spiral, tin-plated |
| Shielding (AES/EBU, DMX) |
Copper spiral, tin-plated |
| Ekranavimo koeficientas [%] |
95 |
| Vario gyslos (power) |
28 |
| Vario gyslos (AES/EBU, DMX) |
36 |
| Vario gyslos Ø (power) [mm] |
0,25 |
| Vario gyslos Ø (power) ["] |
0.0098 |
| Vario gyslos Ø (AES/EBU, DMX) [mm] |
0,07 |
| Vario gyslos Ø (AES/EBU, DMX) ["] |
0.0028 |
| Conductor insulation material (AES/EBU, DMX) |
PVC |
| Laidininko izoliacijos Ø [mm] |
0,00 |
| Laidininko izoliacijos Ø ["] |
0 |
| Conductor insulation Ø (power) [mm] |
2,80 |
| Conductor insulation Ø (power) ["] |
0.1102 |
| Conductor insulation Ø (AES/EBU, DMX) [mm] |
1,15 |
| Conductor insulation Ø (AES/EBU, DMX) ["] |
0.0453 |
| Svoris 1 m [g] |
144 |
| Svoris 1000 ft. [lbs] |
96.8999 |
| Atsparumas UV |
aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,54 |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
9,5 |
| Width ["] |
0.374 |
| Height [mm] |
9,5 |
| Height ["] |
0.374 |
| Capac. cond./cond. per 1 m (audio) [pF] |
52 |
| Capacity wire/wire at 1 ft. (audio) [pF] |
15.8496 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] |
53 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] |
16.1544 |
| Capac. cond./shield. per 1 m (audio) [pF] |
89 |
| Capacity wire/electic screen at 1 ft. (audio) [pF] |
27.1272 |
| Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] |
93 |
| Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] |
28.3464 |
| Surge impedance (audio) [Ω] |
110 |
| Surge impedance (AES/EBU, DMX) [Ω] |
110 |
| Insulation resist. per 1 km (audio) [GΩ] |
0,1 |
| Insulation resist. per 1000 feet (audio) [GΩ] |
0.0305 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] |
1 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] |
0.3048 |
| Laidininko varža per 1 km [Ω] |
135 |
| Laidininko varža per 1000 ft. [Ω] |
41.148 |
| Bandymo įtampa [V] |
2000 |
| Nominal voltage (power) [V] |
500 |
| Operating voltage (power) [V] |
300 |
| BPVo-Euroclass |
Fca |
