Kabeliai ir jungtys
Įprasta kaina
€32,35 be PVM
Įprasta kaina
Išpardavimo kaina
€32,35 be PVM
Nepavyko įkelti atsiėmimo galimybių

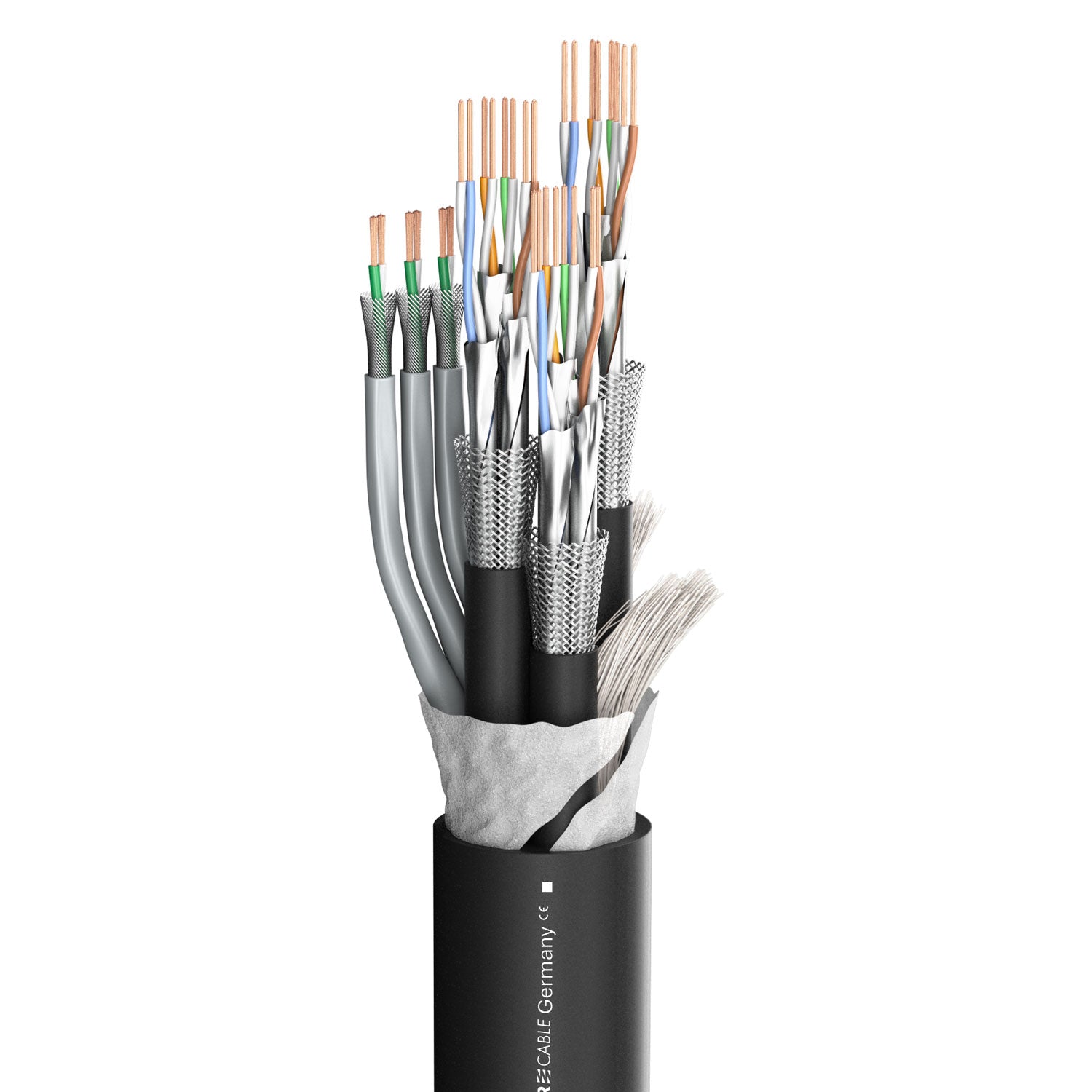

SC-Monocat 303; 3 x CAT.7; DMX: 3 x 2 x 0,25 mm²; PVC Ø 18,00 mm; juodas
Techniniai duomenys
| Prekės kodas |
500-0161-3 |
| Savybės |
Analog , OFC oxygen free copper |
| Pritaikymo sritis |
Installation , Mobile outdoor / indoor , Stage / live , Studio / Broadcast |
| Paskirtis |
hybrid cable |
| Spalva |
juoda |
| Signalo perdavimas |
symmetrical |
| Konstrukcija |
3x(4x(2LI2Yx0,14mm²))(ST)CY+3x(2LI2Y0,25mm²)DY]Y |
| Construction (AES/EBU, DMX) |
3x(2LI2Y0,25mm²)DY |
| Construction (network) |
3x(4x(2LI2Yx0,14mm²))(ST)CY |
| Išorinio apvalkalo medžiaga |
PVC |
| Išorinis skersmuo [mm] |
18.00 |
| Išorinis skersmuo ["] |
0.7087 |
| Jacket Ø (AES/EBU, DMX) [mm] |
3,40 |
| Jacket Ø (AES/EBU, DMX) ["] |
0.1339 |
| Jacket Ø (network) [mm] |
6,40 |
| Jacket Ø (network) ["] |
0.252 |
| Kanalų skaičius (AES/EBU, DMX) |
3 |
| Kanalų skaičius (network) |
3 |
| Vidinis laidininkas (AES/EBU, DMX) |
2 |
| Vidinis laidininkas (network) |
8 |
| Vidinis laidininkas (network) [sqin] |
0.0002 |
| Vidinis laidininkas (AES/EBU, DMX) [mm²] |
0.25 |
| Vidinis laidininkas (AES/EBU, DMX) [sqin] |
0.0004 |
| Vidinis laidininkas (network) [mm²] |
0,14 |
| AWG (AES/EBU, DMX) |
23 |
| Shielding (AES/EBU, DMX) |
Copper spiral, tin-plated |
| Shielding (network) |
AL / PT-foil + Copper braiding tin-plated |
| Ekranavimo koeficientas [%] |
100 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Conductor insulation Ø (AES/EBU, DMX) [mm] |
1,30 |
| Conductor insulation Ø (AES/EBU, DMX) ["] |
0.0512 |
| Conductor insulation Ø (network) [mm] |
1,05 |
| Conductor insulation Ø (network) ["] |
0.0413 |
| Svoris 1 m [g] |
390 |
| Svoris 1000 ft. [lbs] |
262.4372 |
| Atsparumas UV |
aukštas |
| Variantas |
apvalus |
| Pakuotė |
sandėlio metražas |
| CAT-Type |
CAT.7 |
| Max. section length [m] |
100 |
| Max. section length [ft] |
328.084 |
| Min. temperatūra [°C] |
-20 |
| Maks. temperatūra [°C] |
75 |
| Width [mm] |
18 |
| Width ["] |
0.7087 |
| Height [mm] |
18 |
| Height ["] |
0.7087 |
| Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] |
47 |
| Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] |
14.3256 |
| Capacity wire/wire at 1m (network) [pF] |
44 |
| Capacity wire/wire at 1 ft. (network) [pF] |
13.4112 |
| Surge impedance (AES/EBU, DMX) [Ω] |
110 |
| Impedance (network) [Ω] |
100 |
| Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] |
5 |
| Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] |
1.524 |
| Insulation resist. per 1 km (network) [GΩ] |
5 |
| Insulation resist. per 1000 feet (network) [GΩ] |
1.524 |
| Laidininko varža per 1 km (AES/EBU, DMX) [Ω] |
87 |
| Laidininko varža per 1000 ft. (AES/EBU, DMX) [Ω] |
26.5176 |
| Laidininko varža per 1 km (network) [Ω] |
143 |
| Laidininko varža per 1000 ft. (network) [Ω] |
43.5864 |
| BPVo-Euroclass |
Fca |
