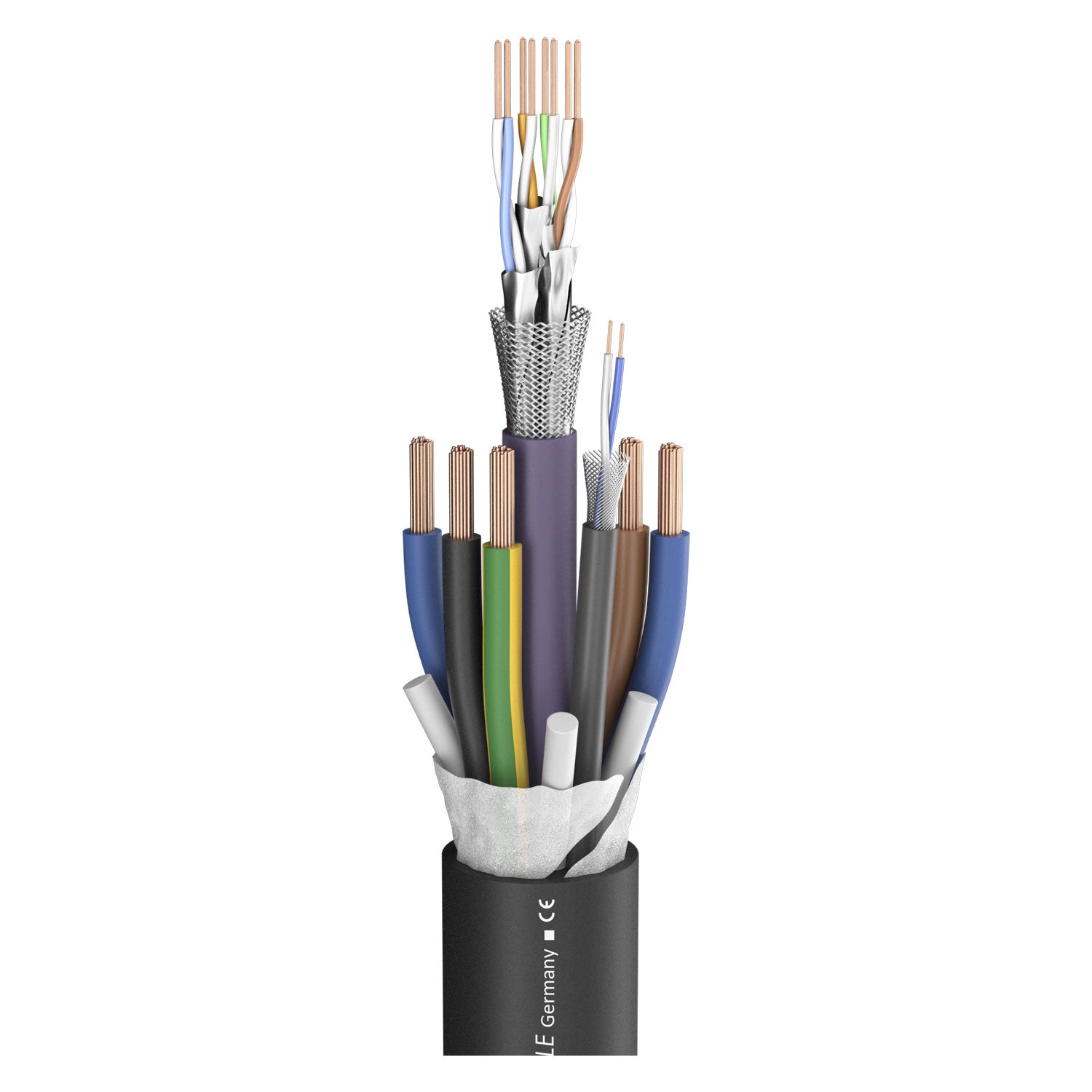

SC-Monocat 121C; power: 5 x 2,50 mm²x CAT.7x 2 x 0,14 mm²; PVC, flame-retardant Ø 17,30 mm; juodas - 100 m ritė

SC-Monocat 121C; power: 5 x 2,50 mm²x CAT.7x 2 x 0,14 mm²; PVC, flame-retardant Ø 17,30 mm; juodas - 100 m ritė

€2.558,82 be PVM
€2.558,82 be PVM
Išpardavimas Išparduota
Siuntimo išlaidos ir mokesčiai apskaičiuojami atsiskaitant.

SC-Monocat 121C; power: 5 x 2,50 mm²x CAT.7x 2 x 0,14 mm²; PVC, flame-retardant Ø 17,30 mm; juodas - 100 m ritė

Parduodama 100 m ritė.

Techniniai duomenys

Prekės kodas 500-0131-1
Savybės Analog , Digital 110 Ω AES / EBU , OFC oxygen free copper
Pritaikymo sritis Installation , Mobile outdoor / indoor , Stage / live , Studio / Broadcast
Paskirtis hybrid cable
Spalva juoda
Construction (power) 5 x 2,50mm²
Construction (AES/EBU, DMX) 01(2LI2Y0,14mm²)DY
Construction (network) SFTP 4x2x0,14mm²
Išorinio apvalkalo medžiaga PVC, flame-retardant
Jacket material (AES/EBU, DMX) PVC, flame-retardant
Jacket material (network) PVC, flame-retardant
Išorinis skersmuo [mm] 17,30
Išorinis skersmuo ["] 0.6811
Jacket Ø (AES/EBU, DMX) [mm] 3,50
Jacket Ø (AES/EBU, DMX) ["] 0.1378
Jacket Ø (network) [mm] 6,40
Jacket Ø (network) ["] 0.252
Vidinis laidininkas 15
Vidinis laidininkas (power) 5
Vidinis laidininkas (AES/EBU, DMX) 2
Vidinis laidininkas (network) 8
Vidinis laidininkas (power) [mm²] 2,50
Vidinis laidininkas (power) [sqin] 0.0039
Vidinis laidininkas (network) [sqin] 0.0002
Vidinis laidininkas (AES/EBU, DMX) [mm²] 0,14
Vidinis laidininkas (AES/EBU, DMX) [sqin] 0.0002
Vidinis laidininkas (network) [mm²] 0,14
AWG (power) 13
AWG (AES/EBU, DMX) 26
AWG (network) 0
Shielding (AES/EBU, DMX) Copper spiral, tin-plated
Shielding (network) AL / PT-foil + Copper braiding tin-plated
Vario gyslos (network) 7
Vario gyslos Ø (network) [mm] 0,16
Vario gyslos Ø (network) ["] 0.0063
Wire insulation material (power) PP
Conductor insulation material (AES/EBU, DMX) Foam/Skin-PE
Wire insulation material (network) Foam / Skin-PE
Conductor insulation Ø (power) [mm] 3,50
Conductor insulation Ø (power) ["] 0.1378
Conductor insulation Ø (AES/EBU, DMX) [mm] 1,15
Conductor insulation Ø (AES/EBU, DMX) ["] 0.0453
Conductor insulation Ø (network) [mm] 1,05
Conductor insulation Ø (network) ["] 0.0413
Svoris 1 m [g] 390
Svoris 1000 ft. [lbs] 262.4372
Gaisrinė apkrova per 1 m [kWh] 1,49
Variantas apvalus
Pakuotė sandėlio metražas
CAT-Type CAT.7
Min. temperatūra [°C] -25
Maks. temperatūra [°C] 70
Width [mm] 17,3
Width ["] 0.6811
Height [mm] 17,3
Height ["] 0.6811
Capac. cond./cond. per 1 m (AES/EBU, DMX) [pF] 53
Capacity wire/wire at 1 ft. (AES/EBU, DMX) [pF] 16.1544
Capacity wire/wire at 1m (network) [pF] 44
Capacity wire/wire at 1 ft. (network) [pF] 13.4112
Capac. cond./shield. per 1 m (AES/EBU, DMX) [pF] 93
Capacity wire/electic screen at 1 ft. (AES/EBU, DMX) [pF] 28.3464
Surge impedance (AES/EBU, DMX) [Ω] 110
Impedance (network) [Ω] 100
Insulation resist. per 1km (power) [GΩ] 5
Insulation resist. per 1000 feet (power) [GΩ] 1.524
Insulation resist. per 1 km (AES/EBU, DMX) [GΩ] 1
Insulation resist. per 1000 feet (AES/EBU, DMX) [GΩ] 0.3048
Insulation resist. per 1 km (network) [GΩ] 5
Insulation resist. per 1000 feet (network) [GΩ] 1.524
Laidininko varža per 1 km (power) [Ω] 7,98
Laidininko varža per 1000 ft. (power) [Ω] 2.4323
Laidininko varža per 1 km (AES/EBU, DMX) [Ω] 135
Laidininko varža per 1000 ft. (AES/EBU, DMX) [Ω] 41.148
Laidininko varža per 1 km (network) [Ω] 143
Laidininko varža per 1000 ft. (network) [Ω] 43.5864
Bandymo įtampa [V] 2500
Nominal voltage (power) [V] 700
Operating voltage (power) [V] 500
Old article number 999-0001-453
