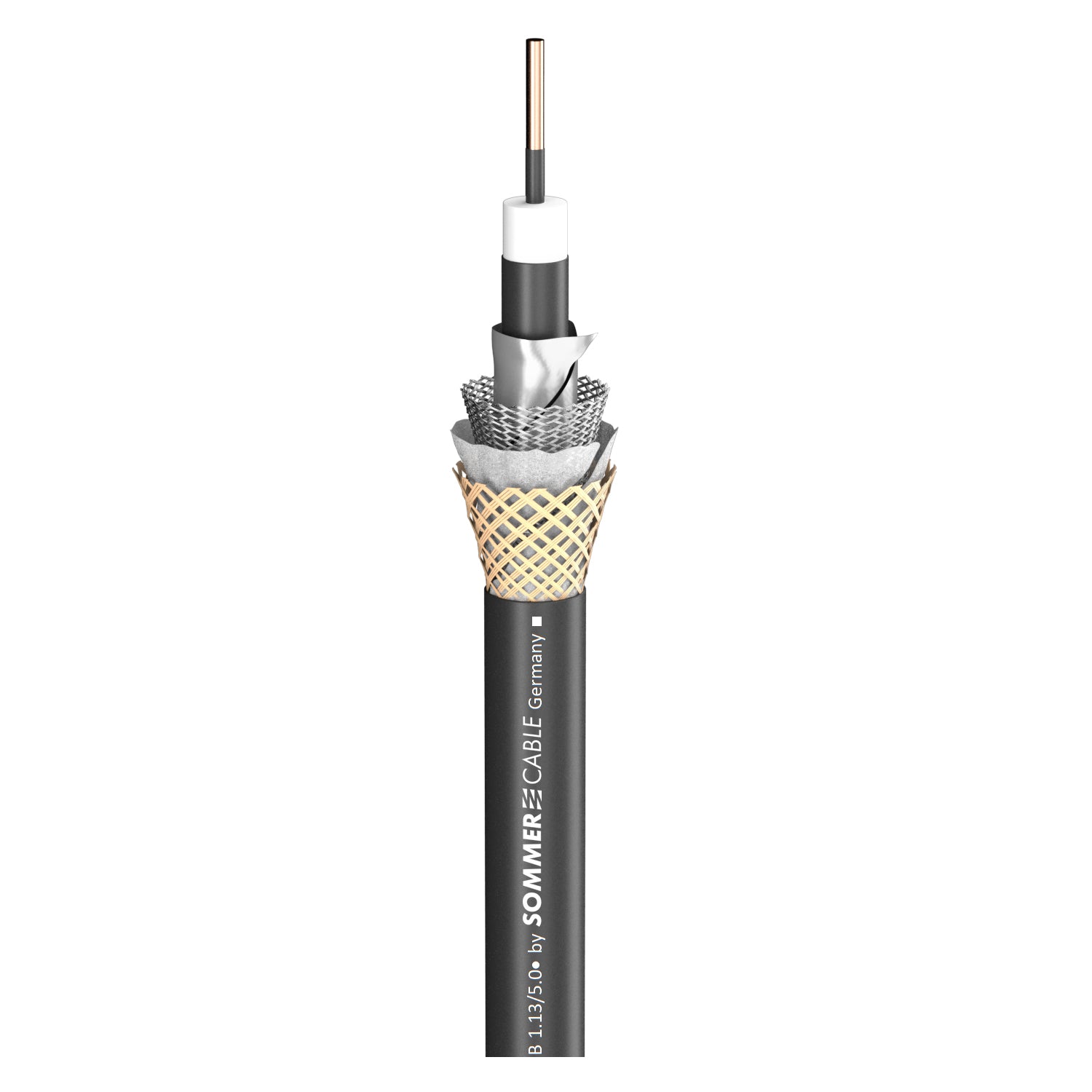

SDI kabelis SAT-Kabel HD, 120dB, longlife, aramid-reinforced SC-Aqua-Marinex-Astral-LLX; 1 x 1,13; PUR-SR with ARAMID reinforcement and special protective coating Ø 8,50 mm; juodas - 500 m ritė
SDI kabelis SAT-Kabel HD, 120dB, longlife, aramid-reinforced SC-Aqua-Marinex-Astral-LLX; 1 x 1,13; PUR-SR with ARAMID reinforcement and special protective coating Ø 8,50 mm; juodas - 500 m ritė
Įprasta kaina
€6.714,29 be PVM
Įprasta kaina
Išpardavimo kaina
€6.714,29 be PVM
Nepavyko įkelti atsiėmimo galimybių
SDI kabelis SAT-Kabel HD, 120dB, longlife, aramid-reinforced SC-Aqua-Marinex-Astral-LLX; 1 x 1,13; PUR-SR with ARAMID reinforcement and special protective coating Ø 8,50 mm; juodas - 500 m ritė
Parduodama 500 m ritė.
SC-Aqua-Marinex-Astral-LLX
SAT-Kabel HD, 120dB, longlife, aramid-reinforced
Privalumai:
- Excellent transmission quality and damping values
- Consistent values even after installation for decades due to patented anti-aging construction
- For analog and digital applications, HD-SDI transmission quality
- Including aramid reinforcement
Pritaikymas:
- High-end cable for broadband cable TV and digital SAT equipment
- For professional HDTV applications
Techniniai duomenys
| Prekės kodas |
600-0961AQ-LLX |
| Savybės |
Analog , Digital 75 Ω , FRNC flame retardant , Halogen-free / LSZH , OFC oxygen free copper , SDI |
| Pritaikymo sritis |
Aqua , Installation , Studio / Broadcast |
| Paskirtis |
SAT-Kabel HD, 120dB, longlife, aramid-reinforced |
| Spalva |
juoda |
| Konstrukcija |
(1.13/5.0) 120 dB |
| Išorinio apvalkalo medžiaga |
PUR-SR with ARAMID reinforcement and special protective coating |
| Išorinis skersmuo [mm] |
8.50 |
| Išorinis skersmuo ["] |
0.3346 |
| Kanalų skaičius (video) |
1 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas (video) [mm²] |
1,00 |
| Vidinis laidininkas (video) [sqin] |
0.0016 |
| Vidinis laidininkas Ø (video) [mm] |
1,13 |
| Vidinis laidininkas Ø (video) ["] |
0.0445 |
| AWG (video) |
17 |
| Ekranavimo koeficientas [%] |
100 |
| Vario gyslos (video) |
1 |
| Vario gyslos Ø (video) [mm] |
1,13 |
| Vario gyslos Ø (video) ["] |
0.0445 |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
5.00 |
| Laidininko izoliacijos Ø ["] |
0.1969 |
| Svoris 1 m [g] |
67.49 |
| Svoris 1000 ft. [lbs] |
59.2166 |
| Atsparumas UV |
labai aukštas |
| Gaisrinė apkrova per 1 m [kWh] |
0,41 |
| Variantas |
apvalus |
| Pakuotė |
100 m ring , 500 m spool |
| Greičio koeficientas |
0,85 |
| Min. temperatūra [°C] |
-30 |
| Maks. temperatūra [°C] |
80 |
| Width [mm] |
8,5 |
| Width ["] |
0.3346 |
| Height [mm] |
8,5 |
| Height ["] |
0.3346 |
| Damping at 5 MHz (100m & 20° C) [dB] |
1,5 |
| Damping at 5 MHz (100 ft. & 20 °C / 68 °F) [dB] |
0.4572 |
| Damping at 50 MHz (100m & 20° C) [dB] |
4 |
| Damping at 50 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.2192 |
| Damping at 100 MHz (100m & 20° C) [dB] |
5,6 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.7069 |
| Damping at 200 MHz (100m & 20° C) [dB] |
7,9 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.4079 |
| Damping at 470 MHz (100m & 20° C) [dB] |
12,4 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.7795 |
| Damping at 862 MHz (100m & 20° C) [dB] |
15,5 , 17 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.7244 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
18,6 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
5.6693 |
| Damping at 1485 MHz (100m & 20° C) [dB] |
23 |
| Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.0104 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
25,2 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
7.681 |
| Damping at 2150 MHz (100m & 20° C) [dB] |
28,4 |
| Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) [dB] |
8.6563 |
| Damping at 3000 MHz (100m & 20° C) [dB] |
34,8 |
| Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
10.607 |
| Impedance [Ω] |
75 |
| BPVo-Euroclass |
Fca |
