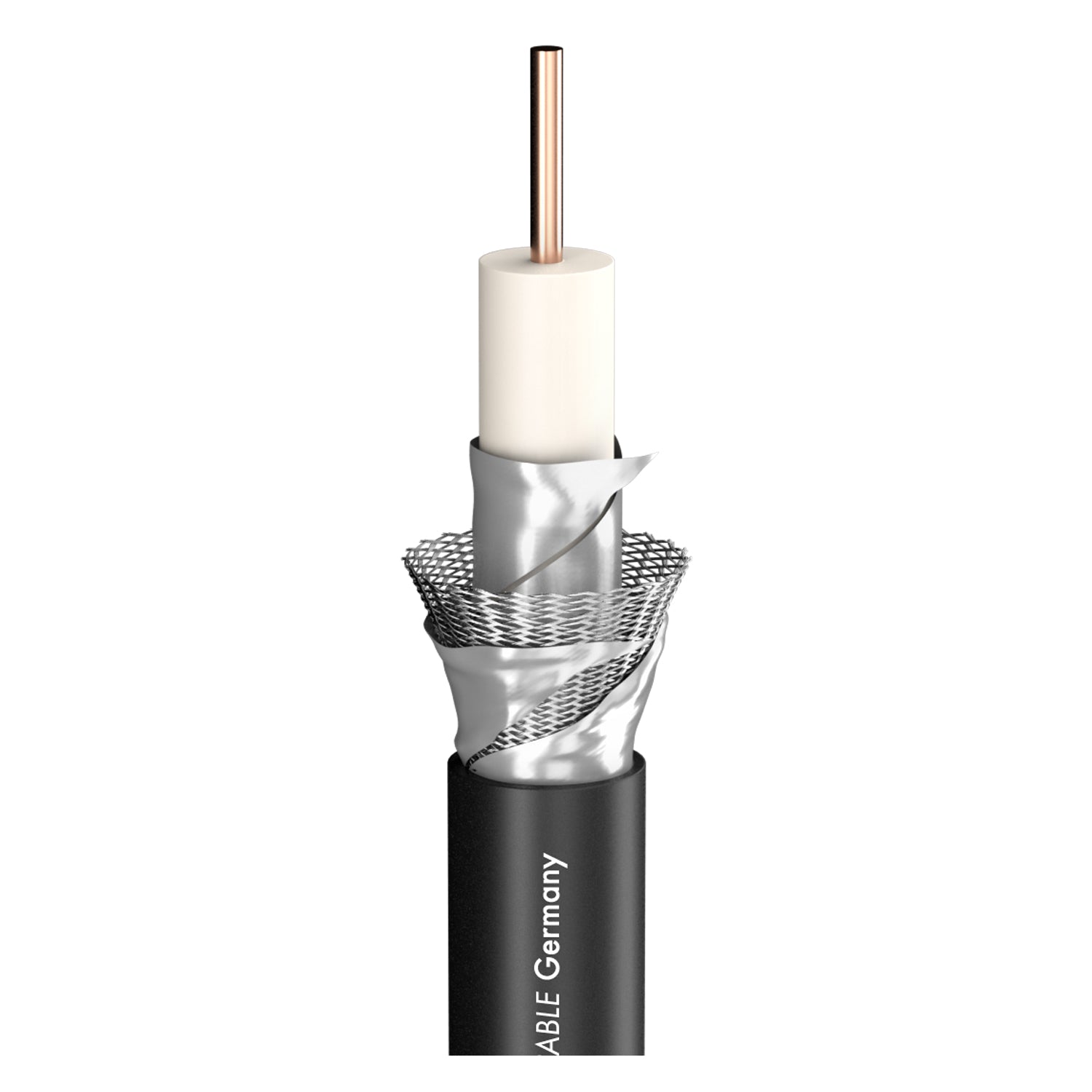

SDI kabelis SAT-CABLE HD/UHD/DIGI PRO SERIES SC-ASTRAL HD/UHDx 1,60; PE Ø 10,30 mm; juodas
Parduodama po 1 metrą.
SC-ASTRAL HD/UHD
SAT-CABLE HD/UHD/DIGI PRO SERIES
Privalumai:
- Inner conductor of solid, oxygen-free copper (OFC Class 6N)
- High shielding factor, triple or quad shielding, low transfer impedances
- Gas-injected insulation, smoothed, heavy-duty AL/PT foil
- Trouble-free digital signal transmission with SAT/broadband cable/terrestrial systems
- Robust and flexible
- Simple and easy mounting
Pritaikymas:
- Professional satellite technology for indoor and outdoor applications
- Permanent installation in building and monitoring technology
Techniniai duomenys
| Prekės kodas |
601-0991P |
| Savybės |
Analog , Digital 75 Ω , Halogen-free / LSZH , In-ground / burial , OFC oxygen free copper , SDI/HD-SDI |
| Pritaikymo sritis |
ELA 100 V , Installation , Studio / Broadcast |
| Paskirtis |
SAT-CABLE HD/UHD/DIGI PRO SERIES |
| Spalva |
juoda |
| Išorinio apvalkalo medžiaga |
PE |
| Išorinis skersmuo [mm] |
10.30 |
| Jacket Ø (video) [mm] |
10,30 |
| Jacket Ø (video) ["] |
0.4055 |
| Vidinis laidininkas |
1 |
| Vidinis laidininkas (video) |
1 |
| Vidinis laidininkas Ø (video) [mm] |
1,60 |
| Vidinis laidininkas Ø (video) ["] |
0.063 |
| AWG (video) |
14 |
| Ekranavimas |
AL foil + Cu mesh, tinned + 2nd AL foil |
| Laidininko izoliacijos medžiaga |
Foam / Skin-PE |
| Laidininko izoliacijos Ø [mm] |
7,30 |
| Laidininko izoliacijos Ø ["] |
0.2874 |
| Svoris 1 m [g] |
101 |
| Svoris 1000 ft. [lbs] |
67.9645 |
| Gaisrinė apkrova per 1 m [kWh] |
0,7 |
| Variantas |
apvalus |
| Pakuotė |
100 m , 500 m |
| Min. temperatūra [°C] |
-25 |
| Maks. temperatūra [°C] |
70 |
| Width [mm] |
10,3 |
| Width ["] |
0.4055 |
| Height [mm] |
10,3 |
| Height ["] |
0.4055 |
| Capacity wire/electic screen at 1m (video) [pF] |
55 |
| Capacity wire/electic screen at 1 ft. (video) [pF] |
16.764 |
| Damping at 100 MHz (100m & 20° C) [dB] |
4,1 |
| Damping at 100 MHz (100 ft. & 20 °C / 68 °F) [dB] |
1.2497 |
| Damping at 200 MHz (100m & 20° C) [dB] |
6,9 |
| Damping at 200 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.1031 |
| Damping at 470 MHz (100m & 20° C) [dB] |
9,6 |
| Damping at 470 MHz (100 ft. & 20 °C / 68 °F) [dB] |
2.9261 |
| Damping at 862 MHz (100m & 20° C) [dB] |
12,6 |
| Damping at 862 MHz (100 ft. & 20 °C / 68 °F) [dB] |
3.8405 |
| Damping at 1000 MHz (100m & 20° C) [dB] |
14,8 |
| Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) [dB] |
4.511 |
| Damping at 1750 MHz (100m & 20° C) [dB] |
21,1 |
| Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) [dB] |
6.4313 |
| Impedance [Ω] |
75 |
| BPVo-Euroclass |
Fca |
